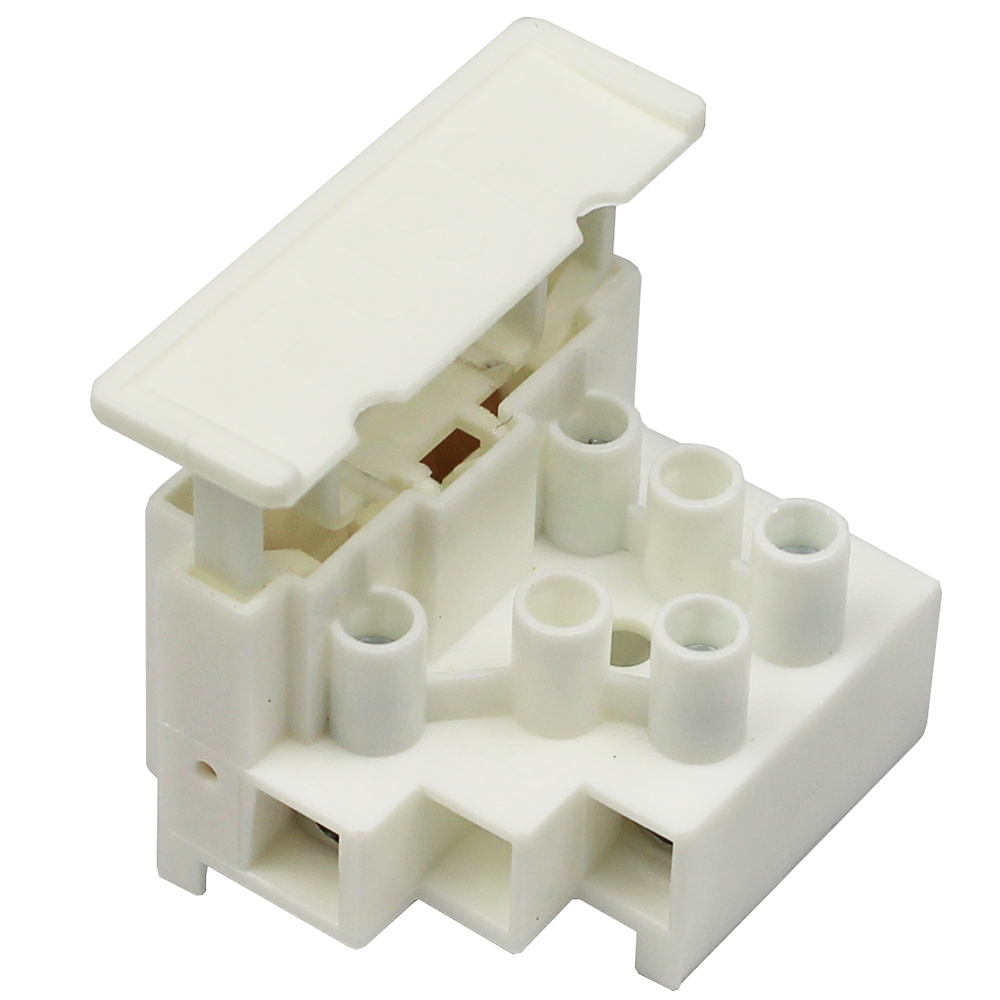

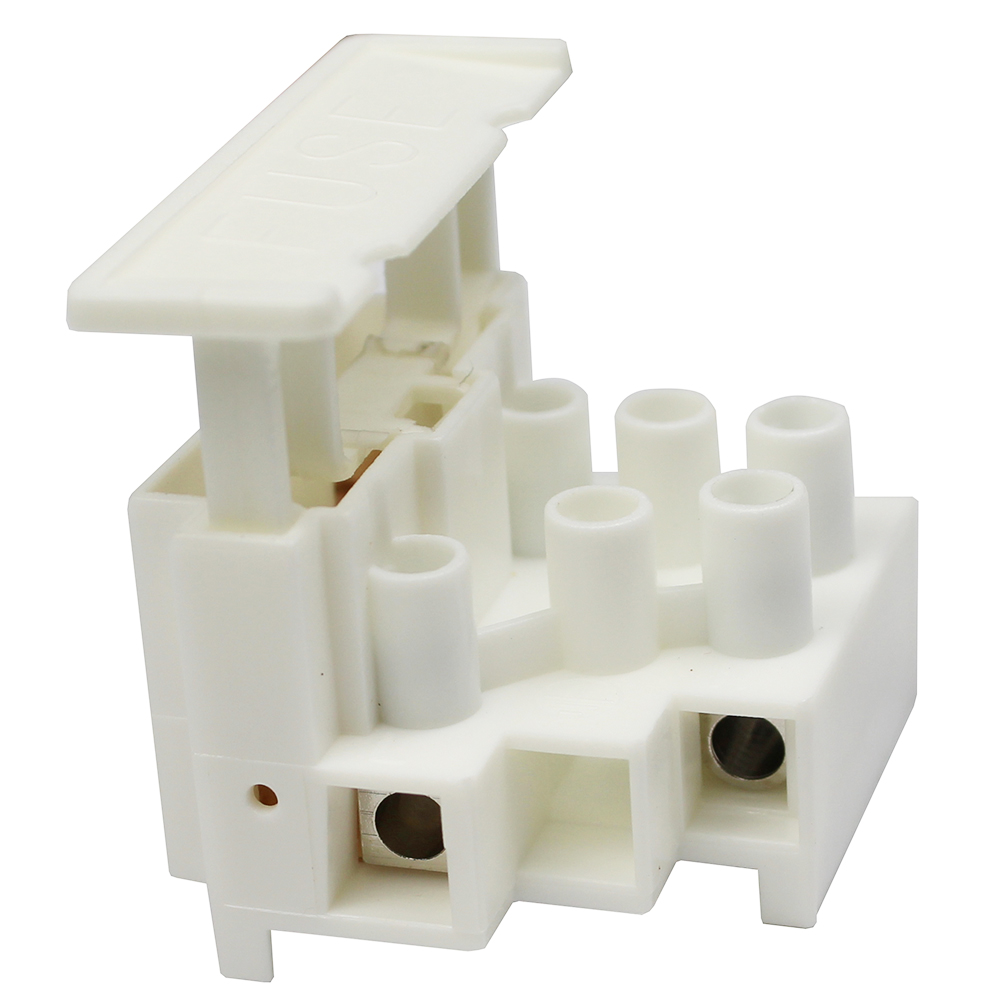

CMFTB/2 - 6.3x25mm Fused Terminal Block
2 Pole 6.3x25mm Fused Terminal Block
- 2 Pole Terminal Block
- Anti rotation spigot
- IP20 finger protection
- Cable entry 3x1.5mm2 or 2x2.5mm2
- Meets creepage and clearance requirements of IEC (8mm)
- 16mm fixing pitch
- 2 pole supplied in 3 pole housing
- 3 pole supplied complete with earth screw and washer
- CE Approved
| External Length (mm) | 27 |
| External Width (mm) | 28 |
| External Height (mm) | 36 |
| Weight (G) | 16 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | White |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 29.99999 |
| Max Wire size (mm) | 25 |
| Operating Temperature | -20 Deg C to 125 Deg C |
| No. of Poles | 2 |
3D Step Drawing
