CJB894PLG - 89 Series Terminal Block Junction Box Enclosure, Grey, 4 Pole, 40x60x24mm

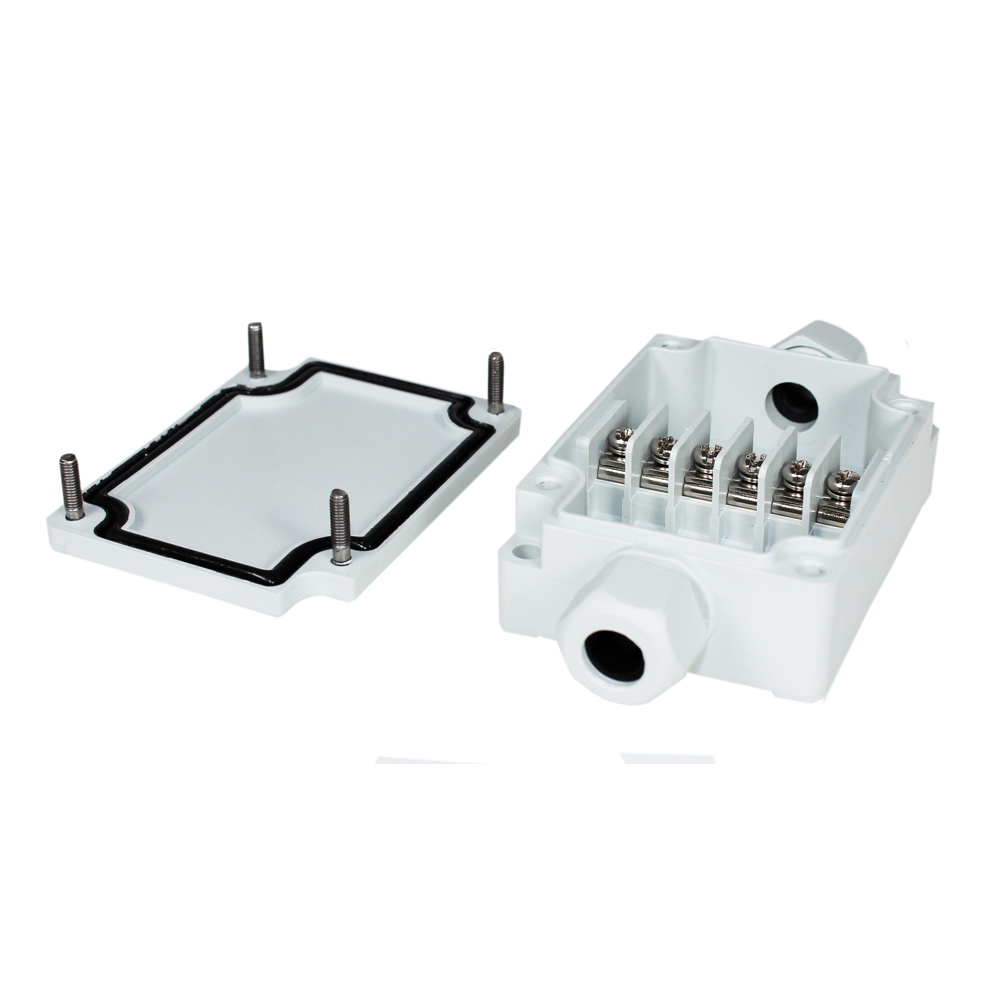

89 Series small waterproof junction box enclosure with internal connection terminals
- Integrated junction box consisting of cable glands and a terminal block
- 89 series has been designed to meet the requirements of IP65

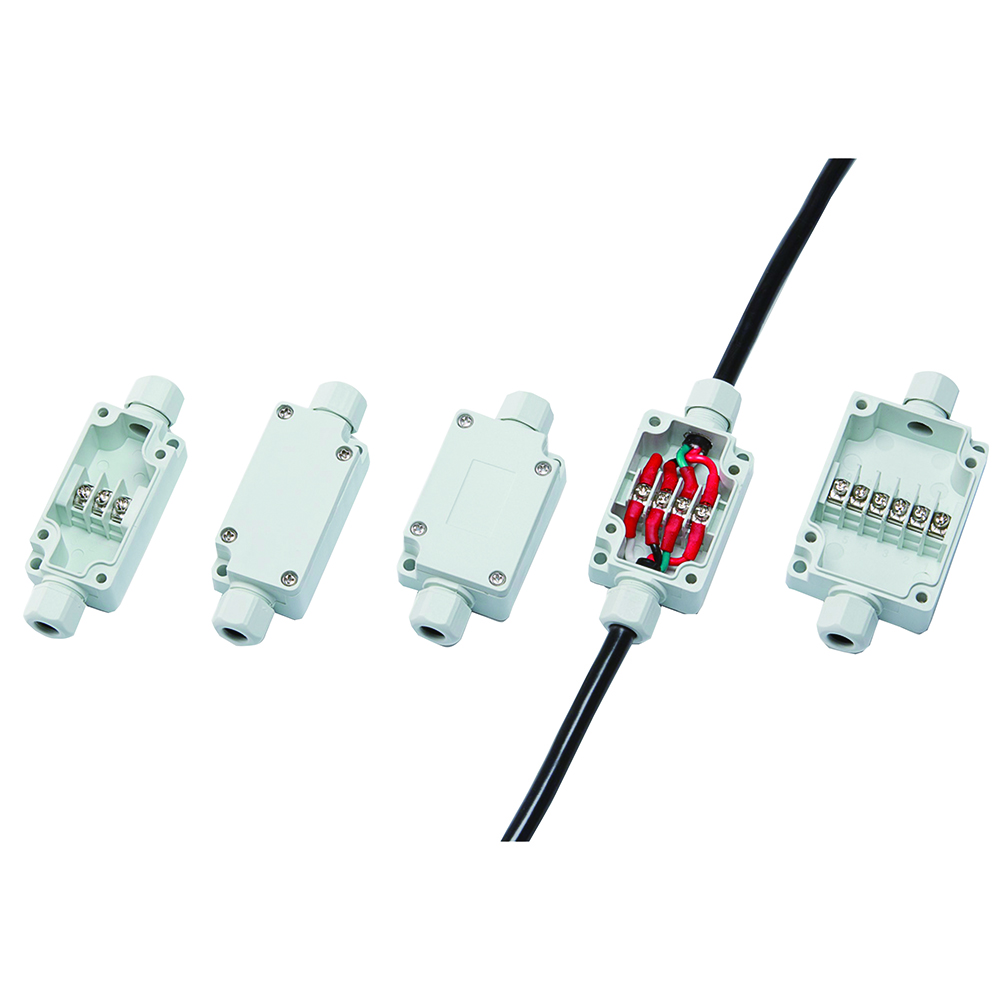

- Available in 3, 4 and 6 poles

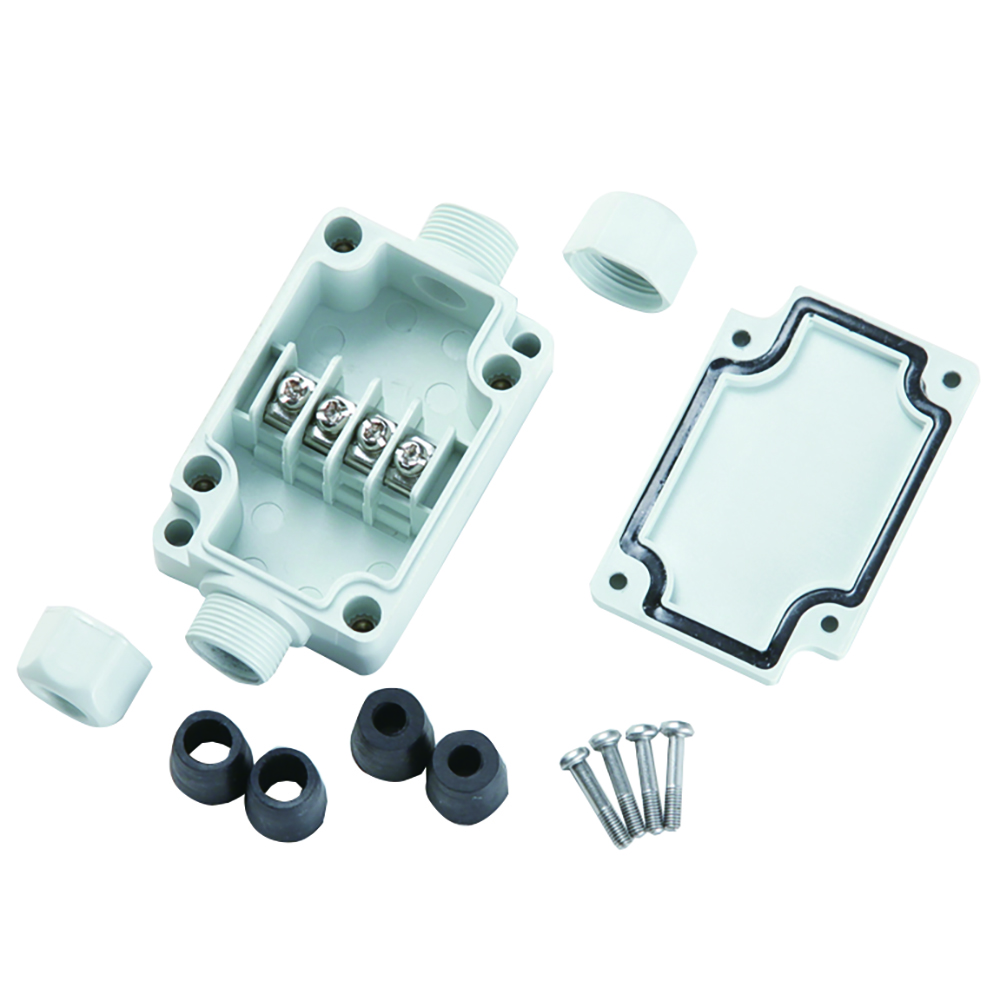

- Supplied with 2 pcs each of 5mm and 7.4mm rubber cable bushes
- Suitable for industrial applications, power cable joints, wiring for motors or sensors
| External Length (mm) | 40 |
| External Width (mm) | 60 |
| External Height (mm) | 24 |
| Weight (G) | 58 |
| Base Material | Plastic |
| Material Type | PBT |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IP Rating | IP65 |
| General Current Rating (A) | 15 |
| Nominal Voltage (V) | 250 |
| Max Wire size (mm) | 125 |
| Brand | CamdenBoss |
| Development Board | N/A |
