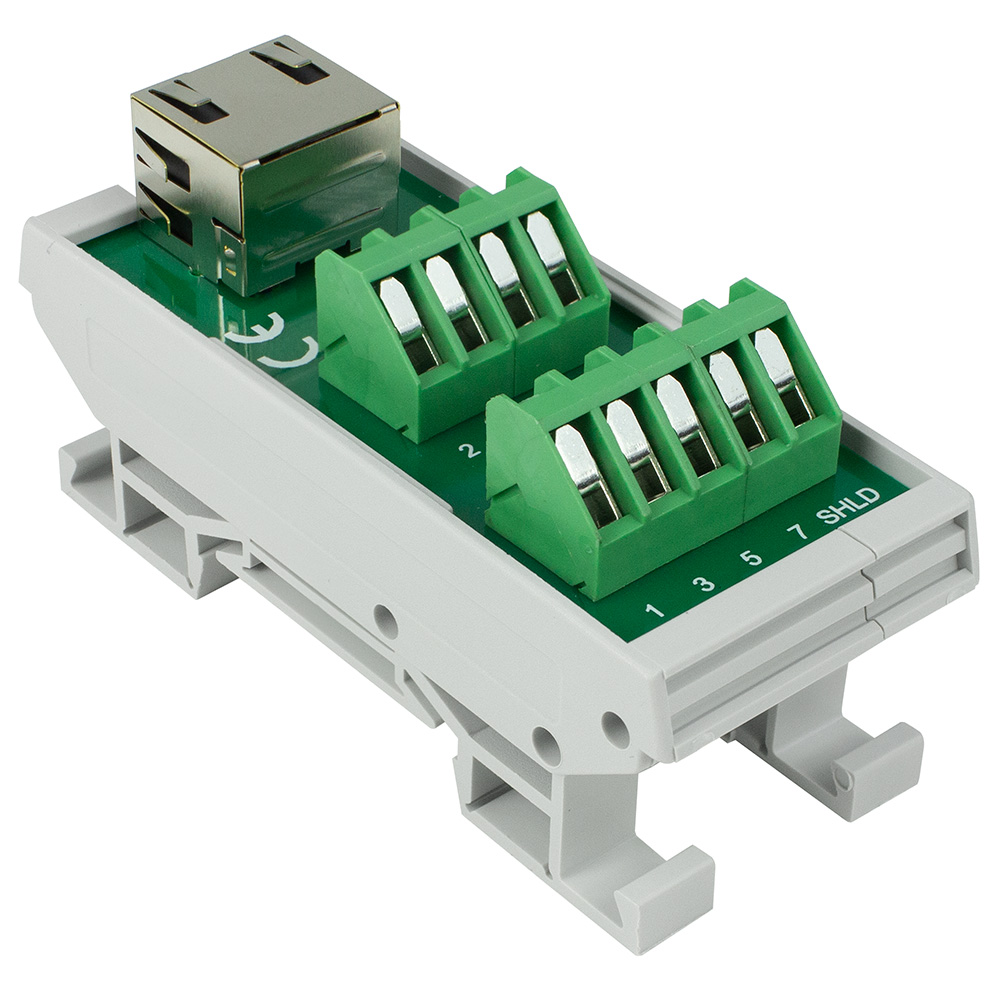

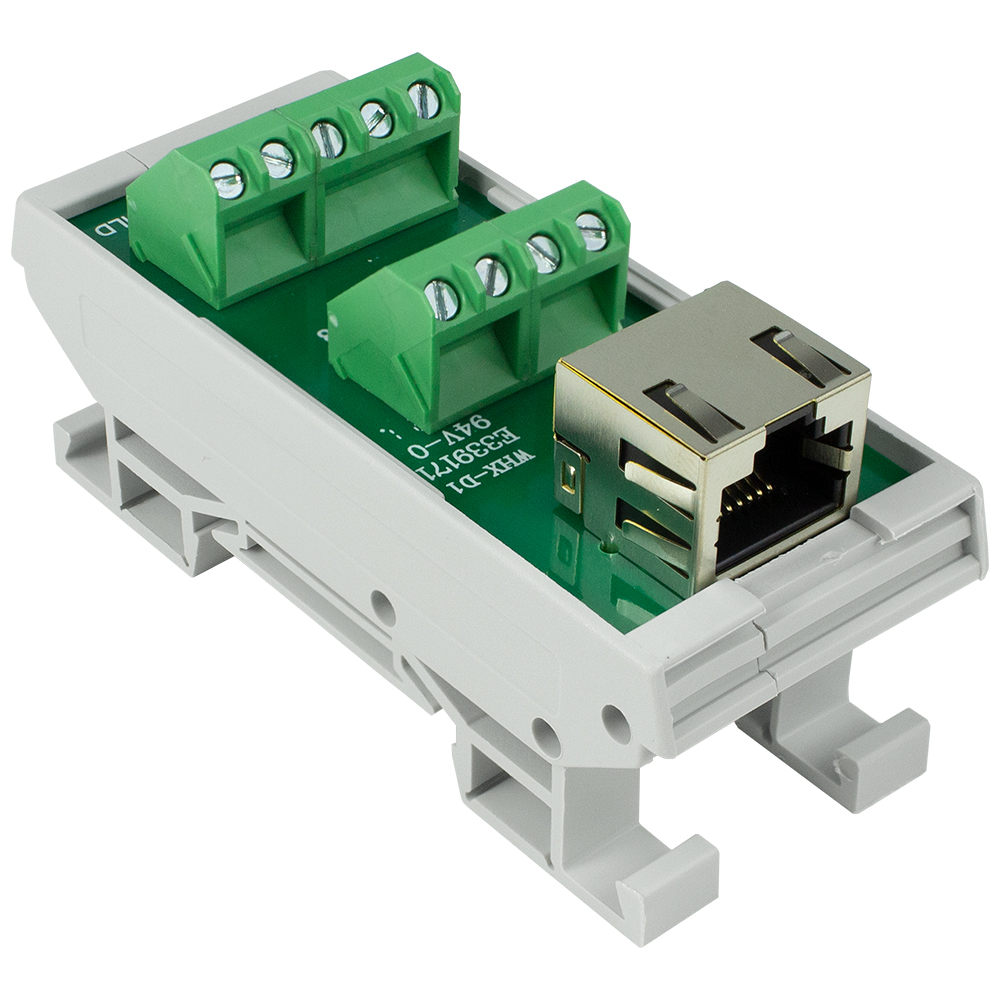

CIM/RJ45 - RJ45 Interface Module, DIN Rail Electronic Interface Module
RJ45 to screw terminal interface. 35 mm Din Rail mounting
- Single RJ45 (8P8C) type socket to screw terminals
- Terminals marked 1 to 8 (+ Shield)
- Separate shield connection
- Option for 32mm (G) rail mounting
- Available with optional wall mounting plates
- 45 degree terminals for easy access
External Length (mm) | 34 |
External Width (mm) | 81 |
External Height (mm) | 42 |
Weight (G) | 38 |
Base Material | Plastic |
RJ45 Type | Breakout |
