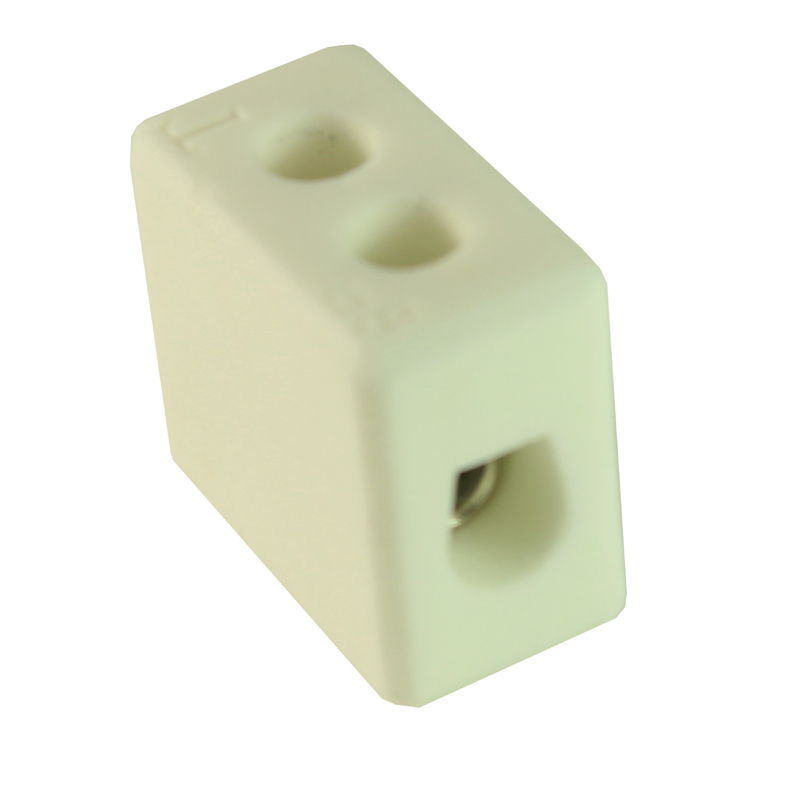

CHTB6/1N
6mm High Temperature Terminal Block Ceramic 1 Pole
- Porcelain body rated to 1000?C
- Inserts rated to 350?C
- 1 to 4 poles available
- 3, 3.5, 4.4 and 6mm insert diameter sizes
| External Length (mm) | 11 |
| External Width (mm) | 20 |
| External Height (mm) | 17.5 |
| Weight (G) | 9 |
| Base Material | Ceramic |
| Material Type | Porcelain |
| Colour | White |
| General Current Rating (A) | 41 |
| Clamping Method | Screw Terminal |
| Max Wire size (mm) | 6 |
| Operating Temperature | 5 Deg C to 350 Deg C |
| No. of Poles | 1 |
| Insert Diameter | 3.5 |
