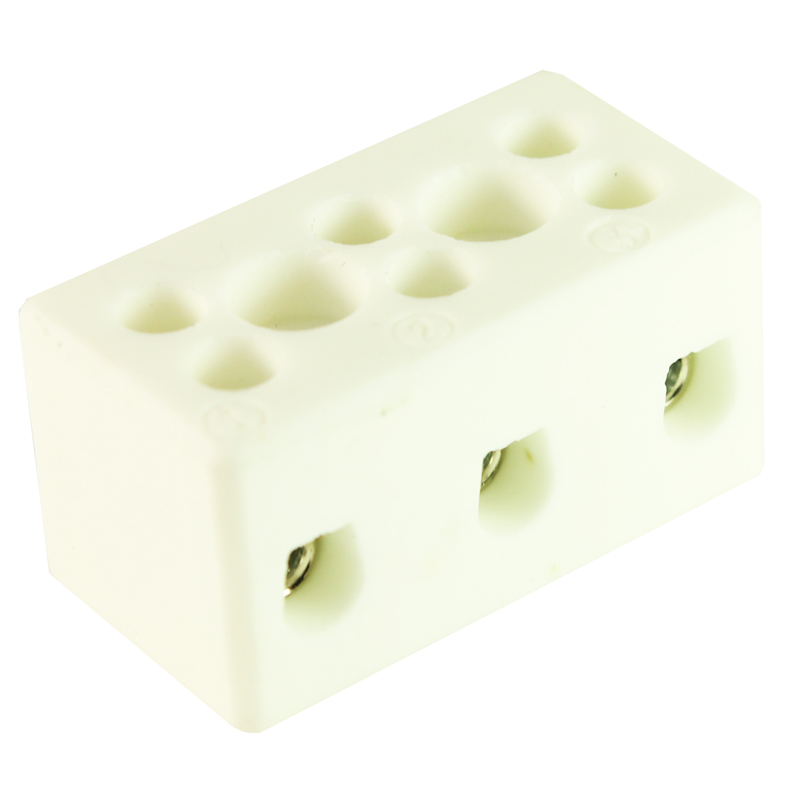

CHTB4/3N
4mm High Temperature Terminal Block Ceramic 3 Pole
- Porcelain body rated to 1000?C
- Inserts rated to 350?C
- 1 to 4 poles available
- 3, 3.5, 4.4 and 6mm insert diameter sizes
| External Length (mm) | 33 |
| External Width (mm) | 18 |
| External Height (mm) | 17 |
| Weight (G) | 21.6 |
| Base Material | Ceramic |
| Material Type | Porcelain |
| Colour | White |
| General Current Rating (A) | 32 |
| Clamping Method | Screw Terminal |
| Max Wire size (mm) | 4 |
| Operating Temperature | 5 Deg C to 350 Deg C |
| No. of Poles | 3 |
| Insert Diameter | 3 |
