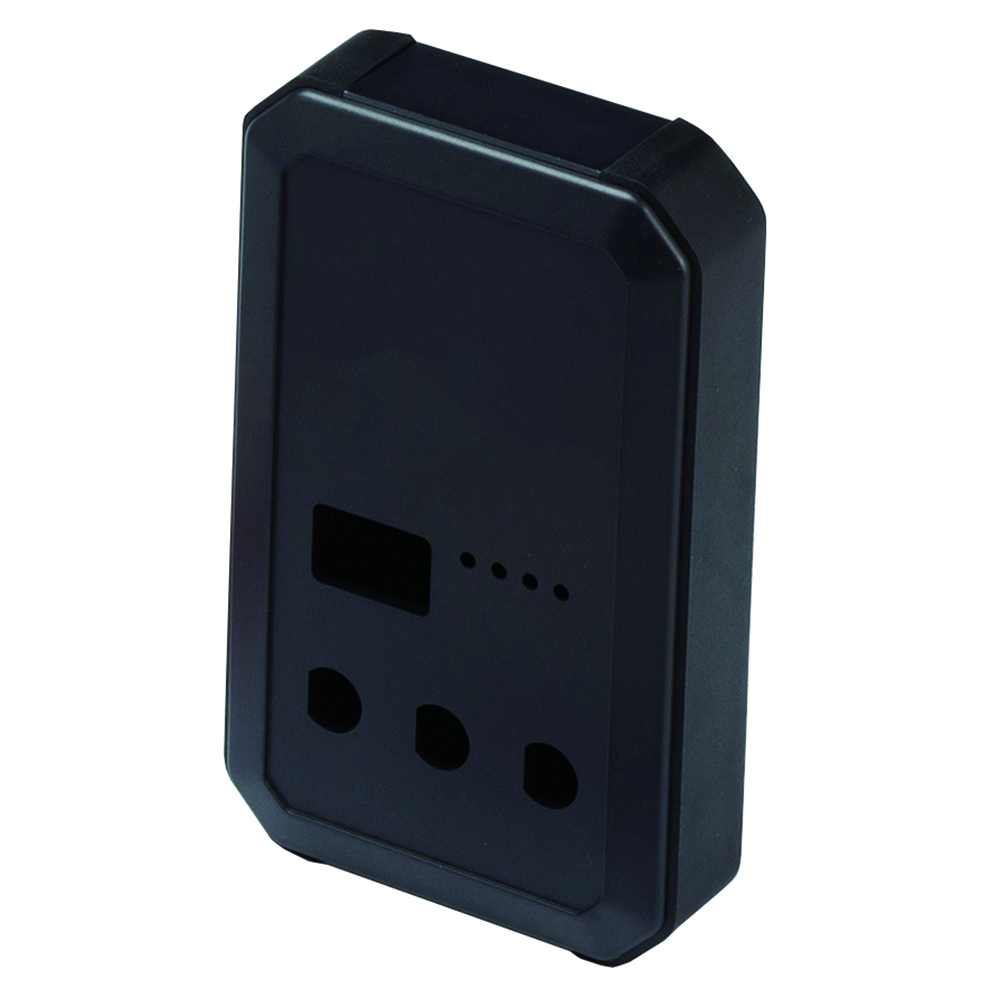

CHH901AWB - 90 Series Waterproof Soft Grip Handheld Enclosure, White/Black, x4 AAA Battery Compartment, Size 1, 146x88x20mm

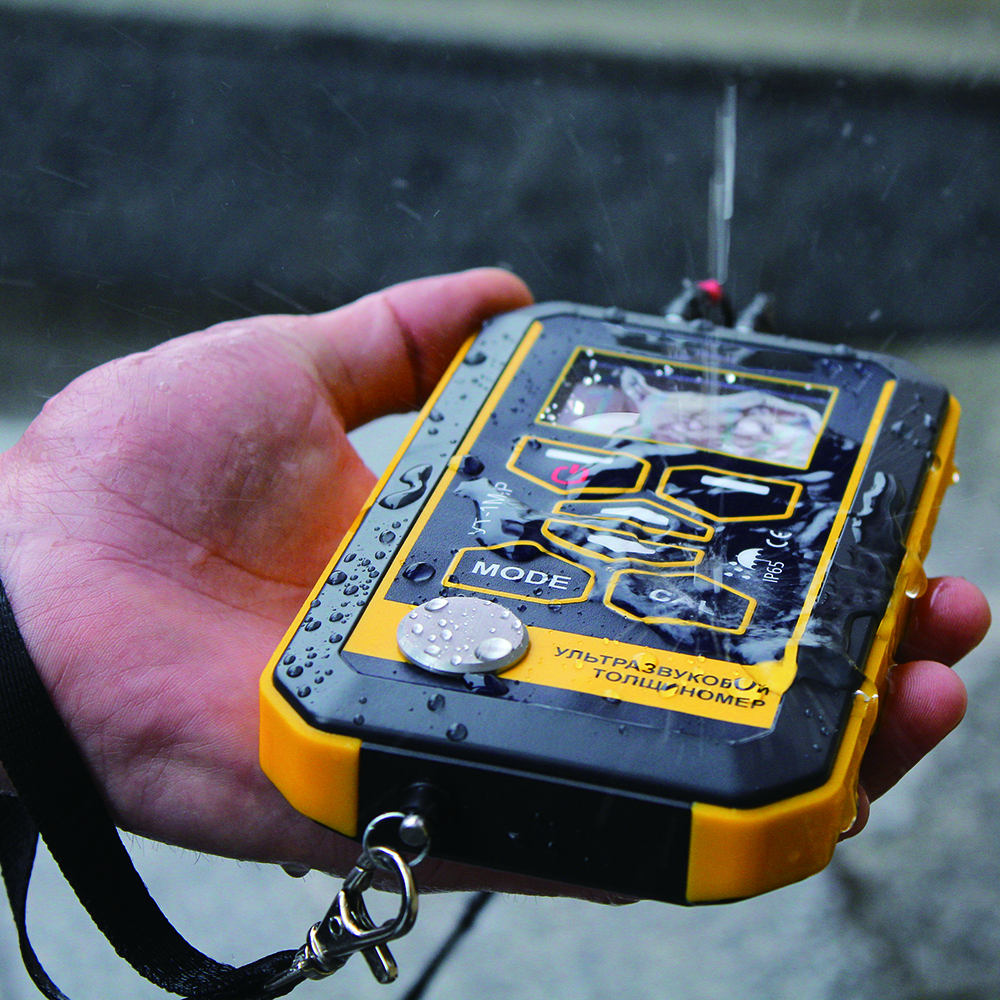

A IP67 rated enclosure with soft touch side grips for comfortable use. Suitable for extreme outdoor applications and avilable with or without a battery compartment
- Manufactured in ABS UL94-V0

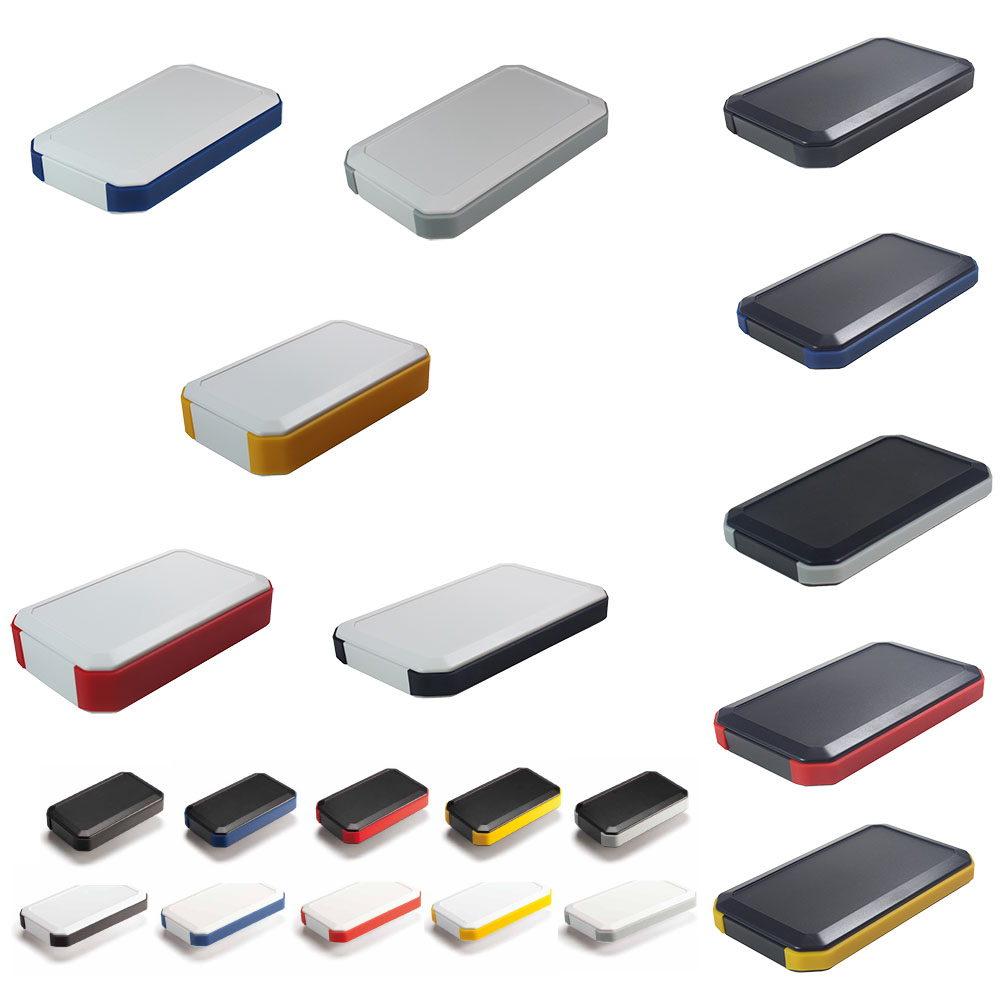

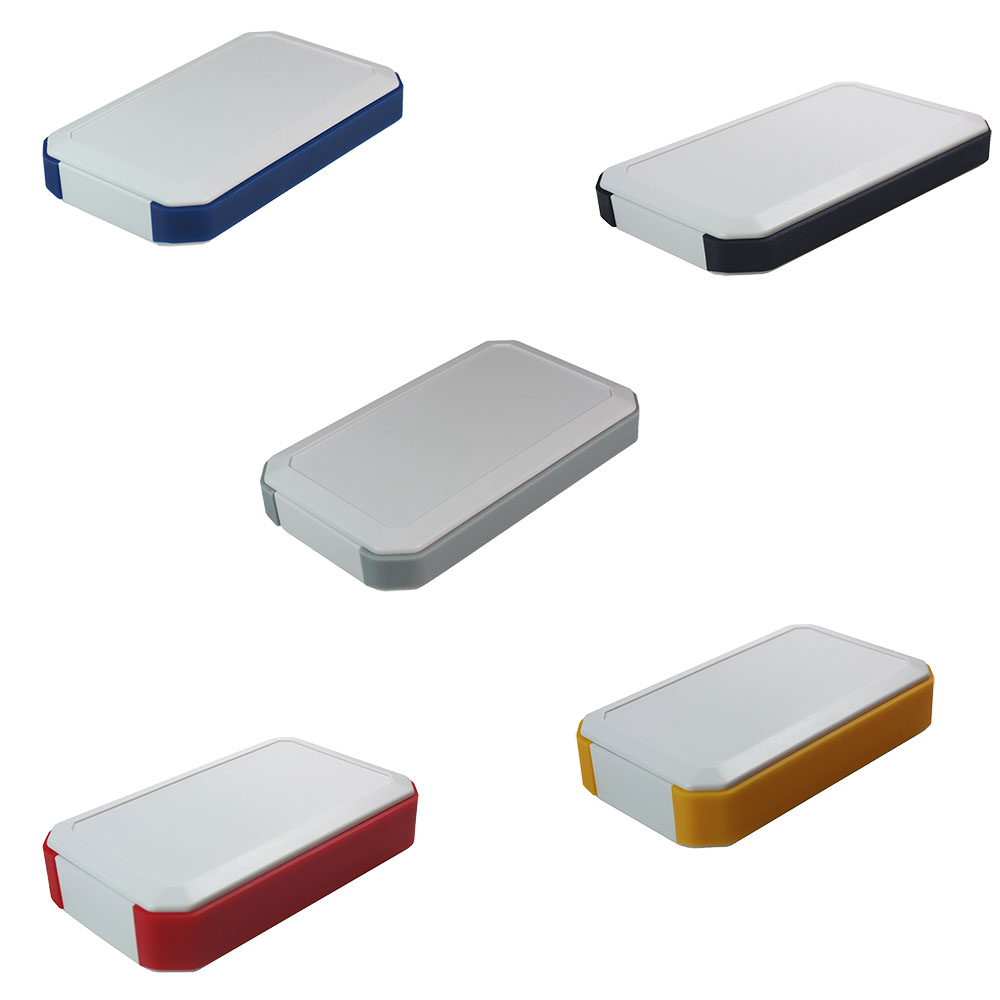

- Available in black or white
- Rubber (TPE) sides provide a soft touch feel and extra protection (five colours available)
- Seven types - plain (no battery), x4 AAA, x3 AAA, x2 AAA x4 AA, x3 AA and x2 AA

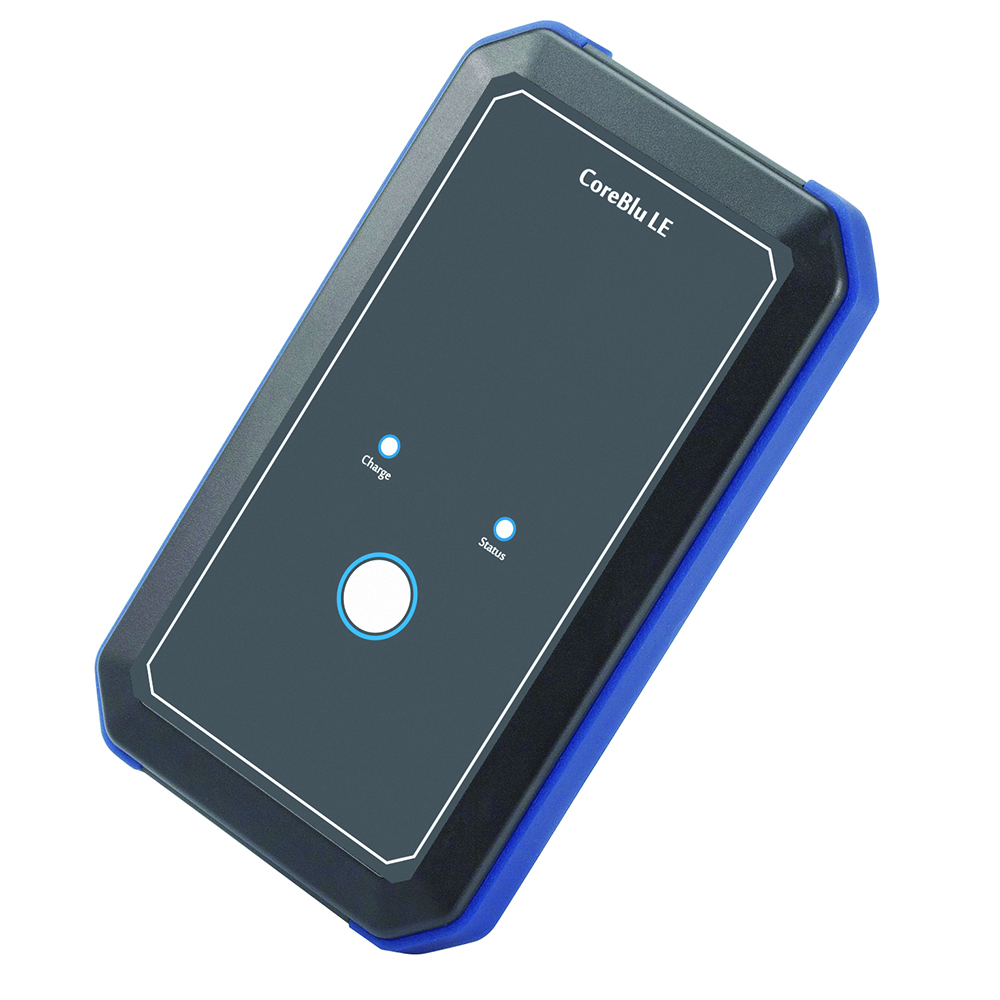

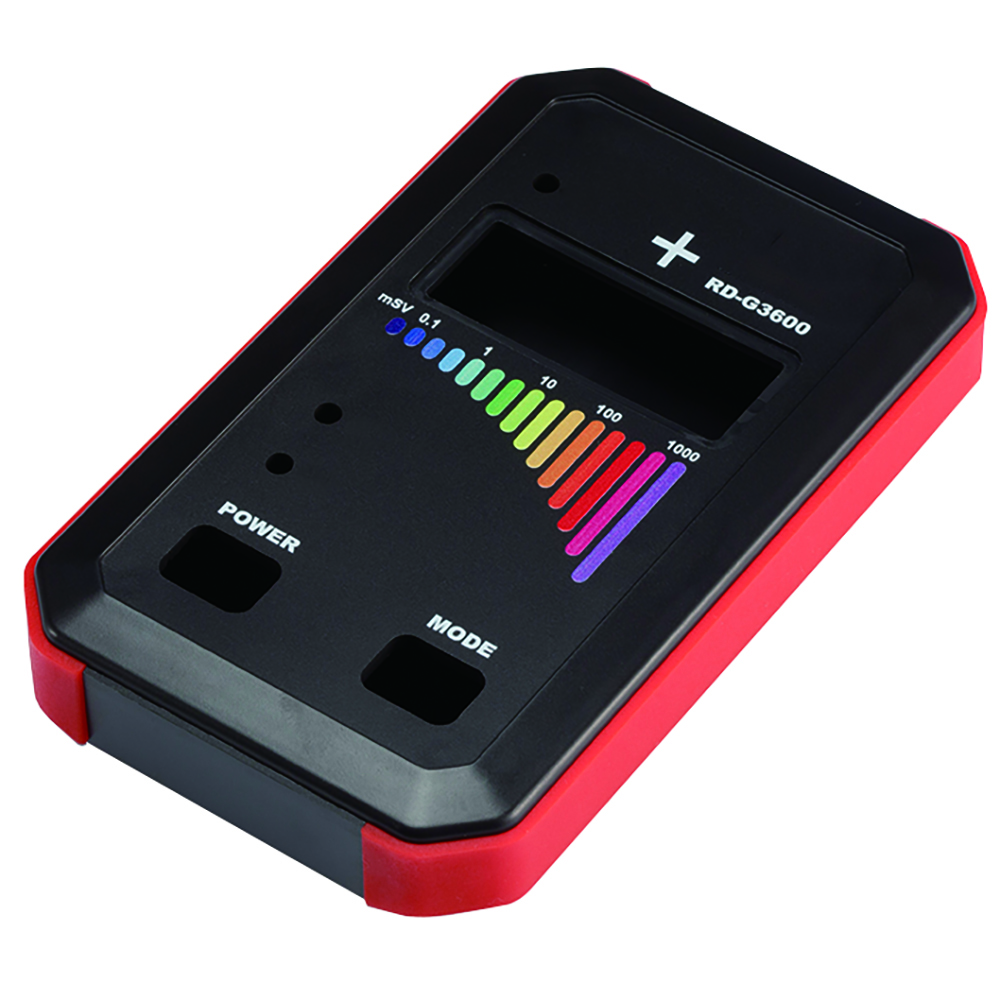

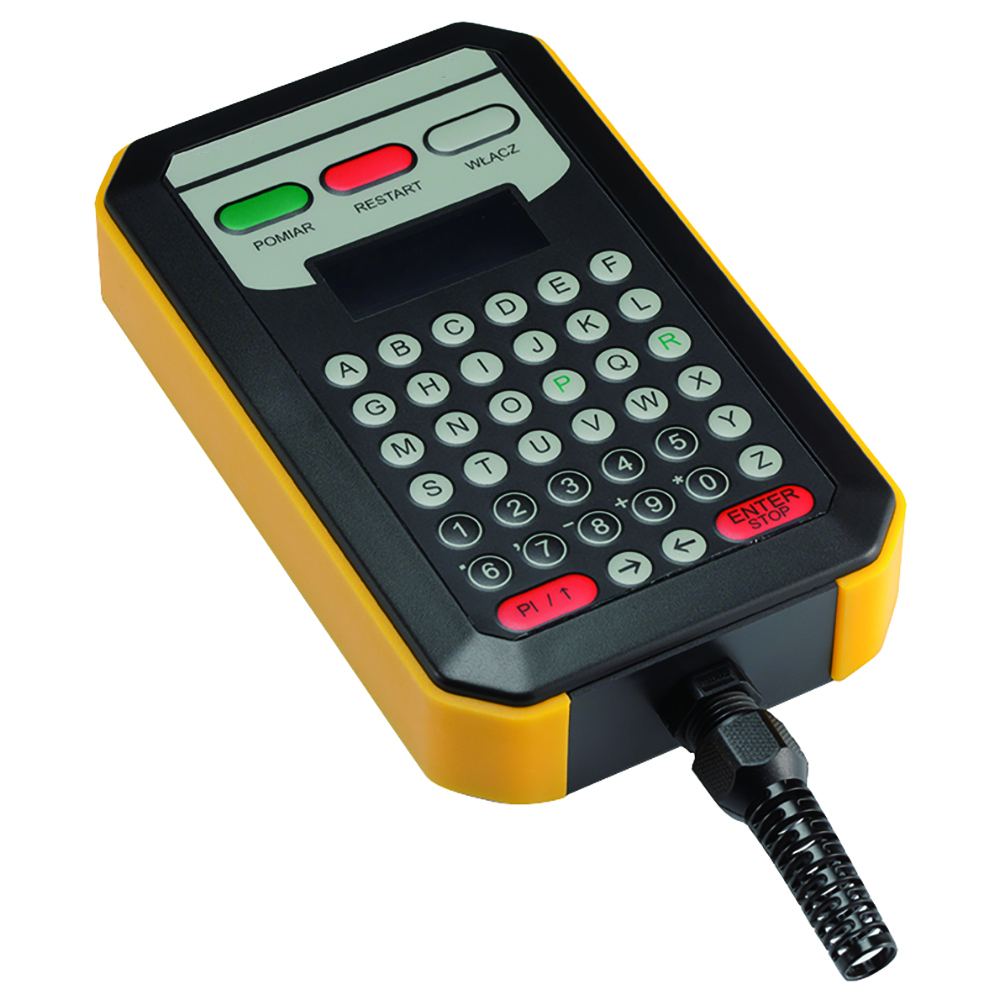

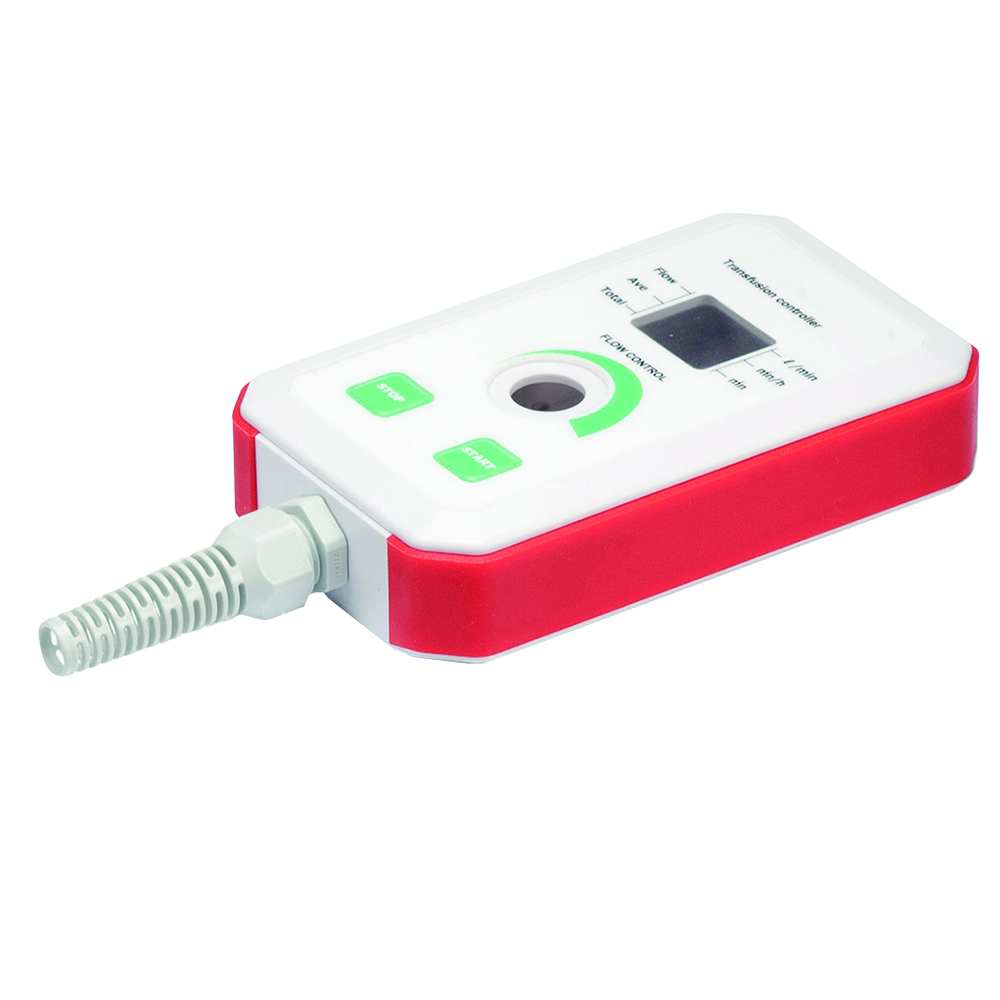

- Suitable for various hand-held apparatus, such as measuring instruments and medical equipment
- 90 series has been designed to meet the requirements of IP67
| External Length (mm) | 146 |
| External Width (mm) | 88 |
| External Height (mm) | 20 |
| Internal Length (mm) | 126 |
| Internal Width (mm) | 71 |
| Internal Height (mm) | 13 |
| Weight (G) | 125 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | White |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP67 |
| Brand | Takachi |
| Size | 146 x 88 x 20 |
| Battery Door | Yes |
| Battery Compartment Type | 4x AAA |
| Side Colour | Black |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
