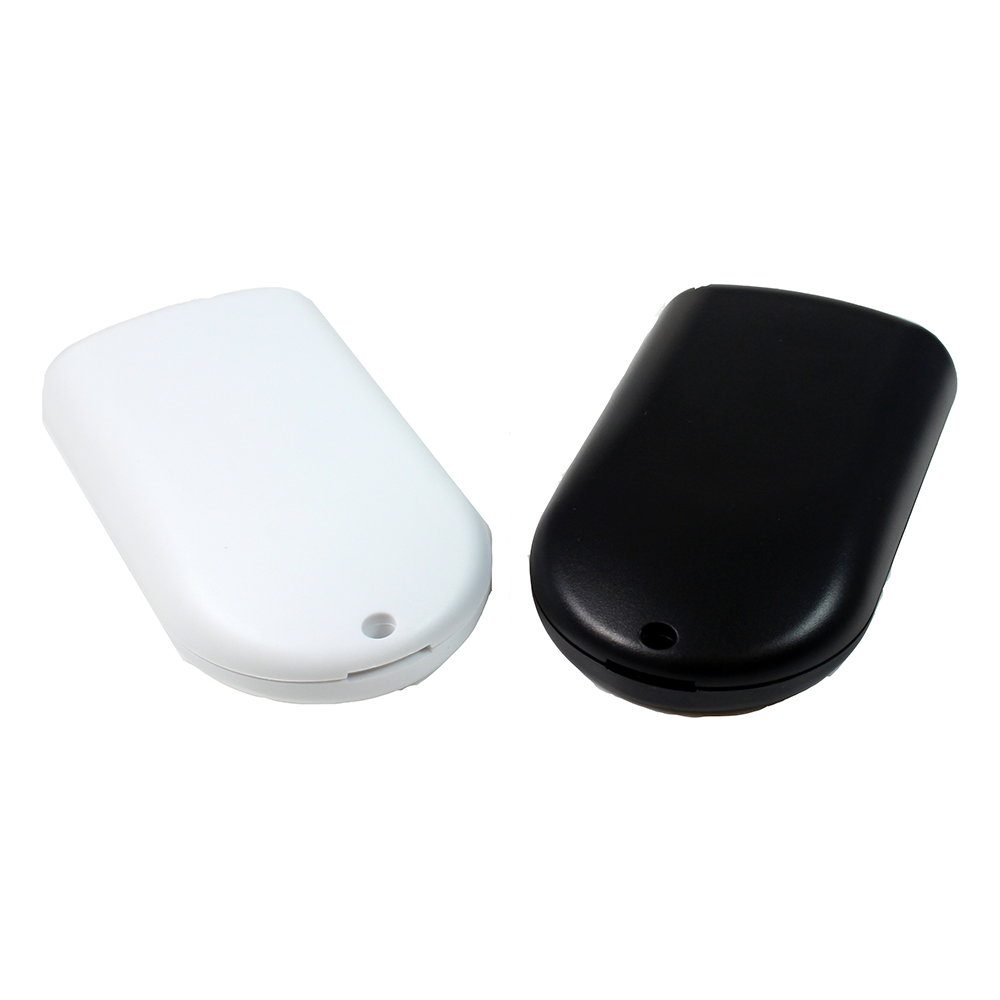

CHH81E2WH - 81 Series Round Edge Keyfob Enclosure, White, ABS UL94-HB, Size 2, 85x48x15mm
81 Series Fob Box, Size 2, White, 85x48x15mm

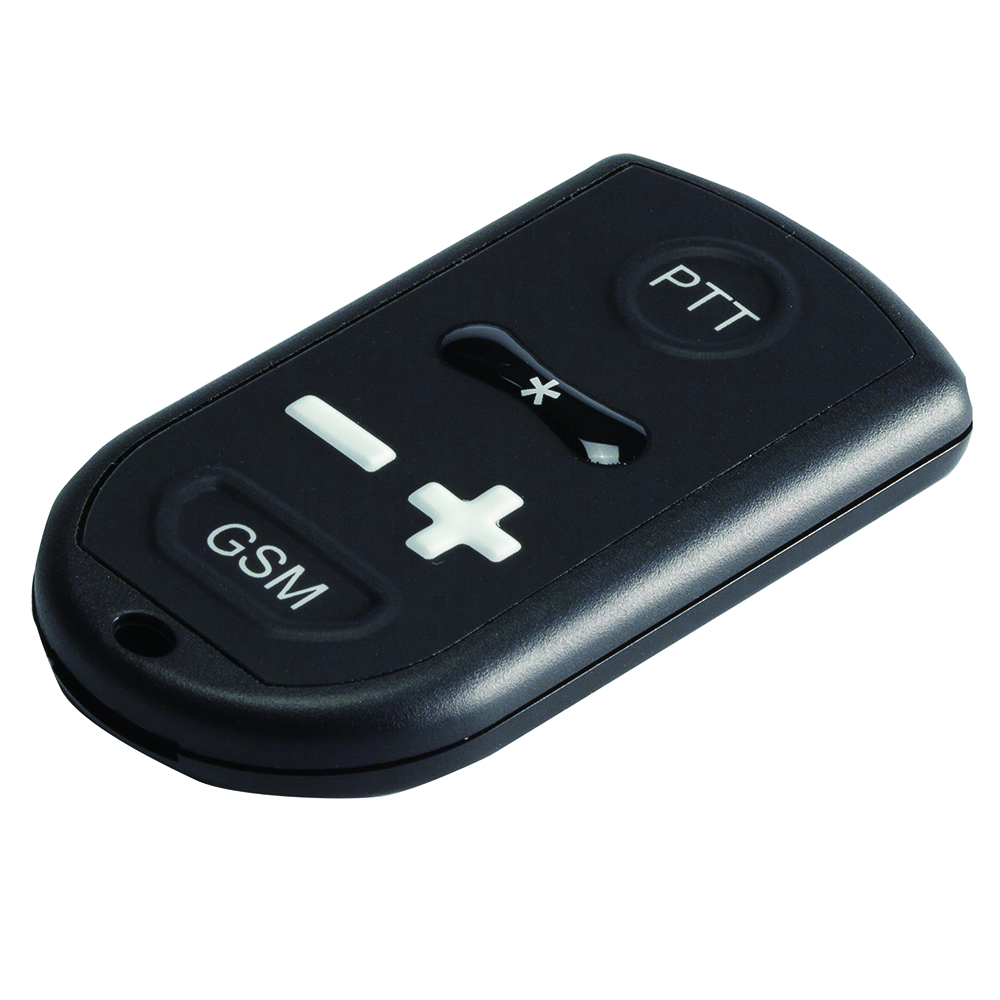

- Small ABS hand-held enclosures, for wireless remote control and RFID type products
- Tactile handheld fob box

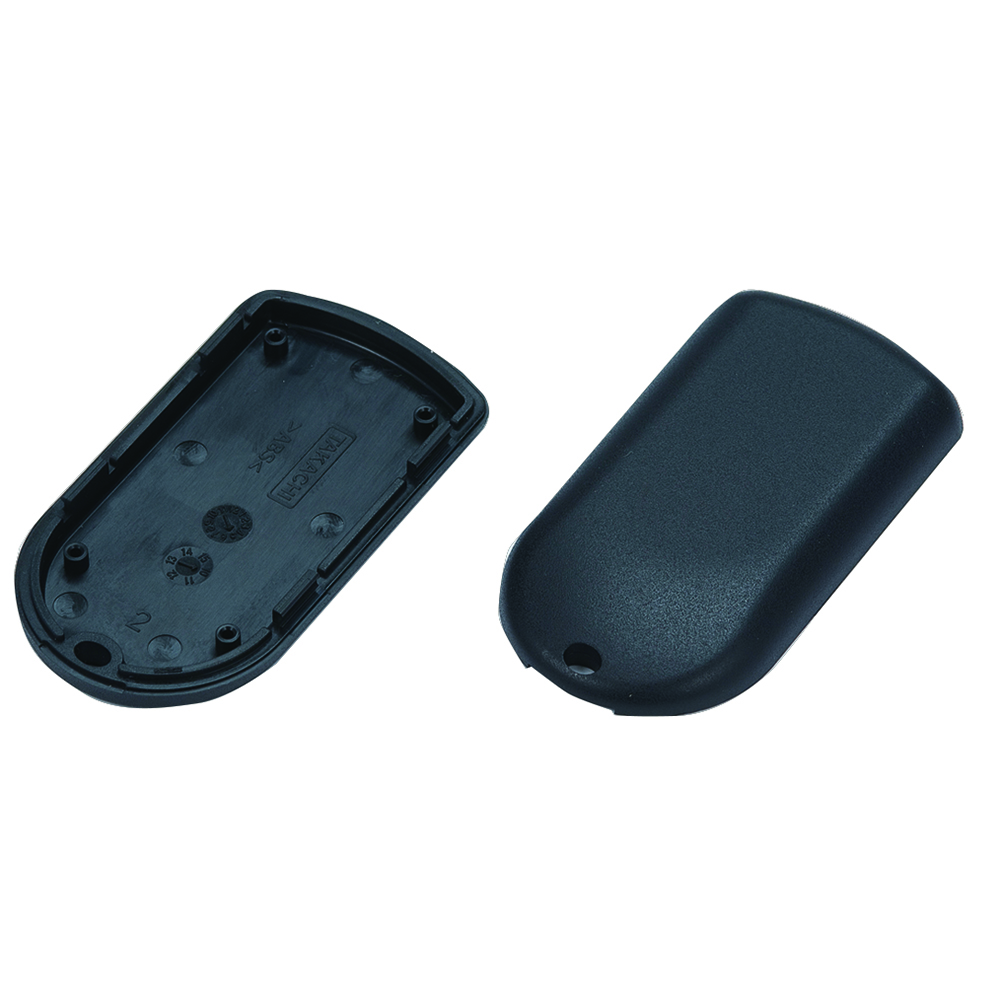

- Snap-in case without screws
- Ergonomic design
- Comfortable shape

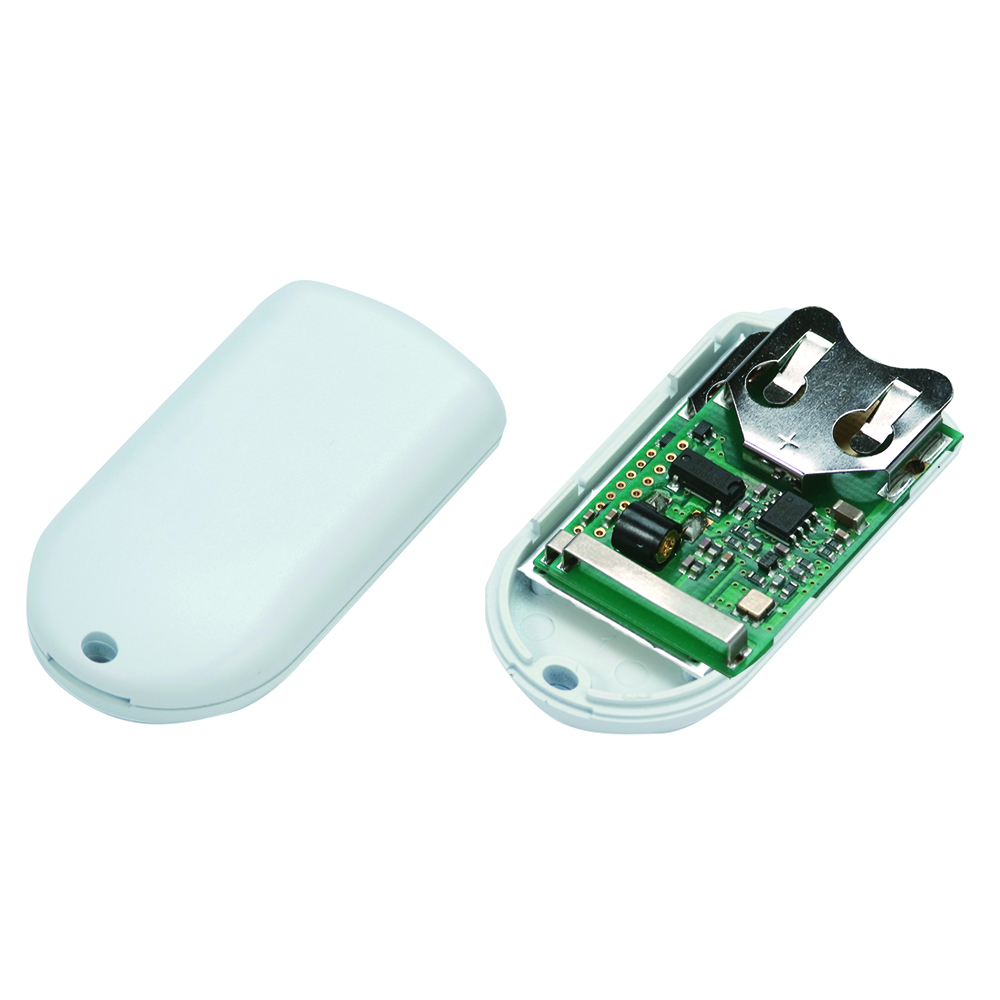

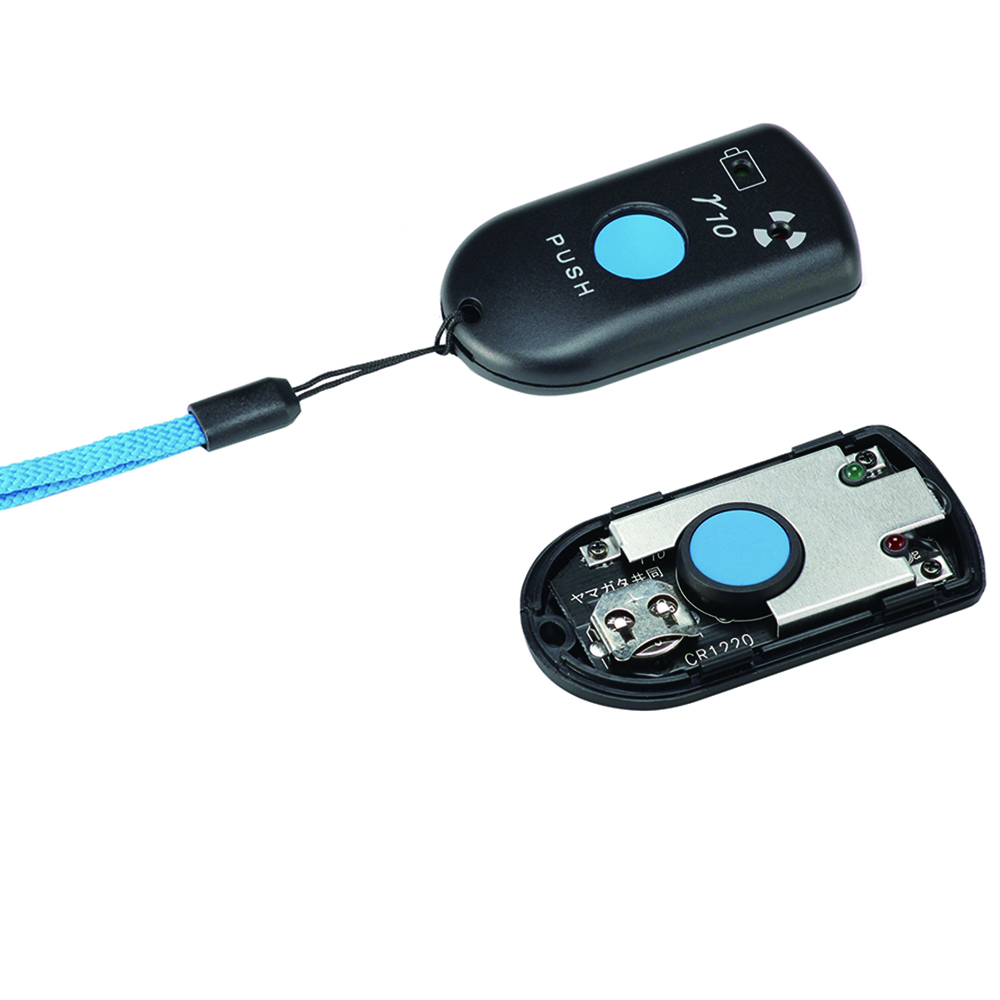

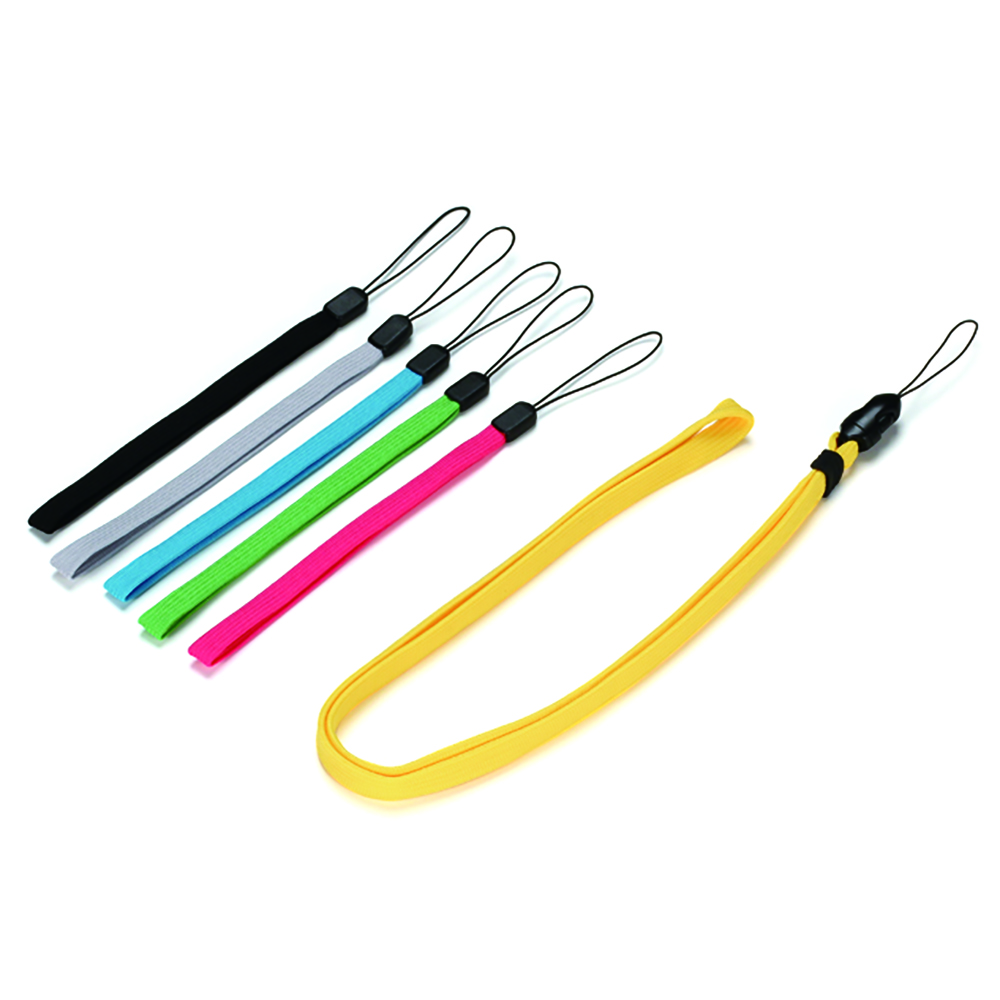

- Holes for strap, lanyard or PCB board pillars

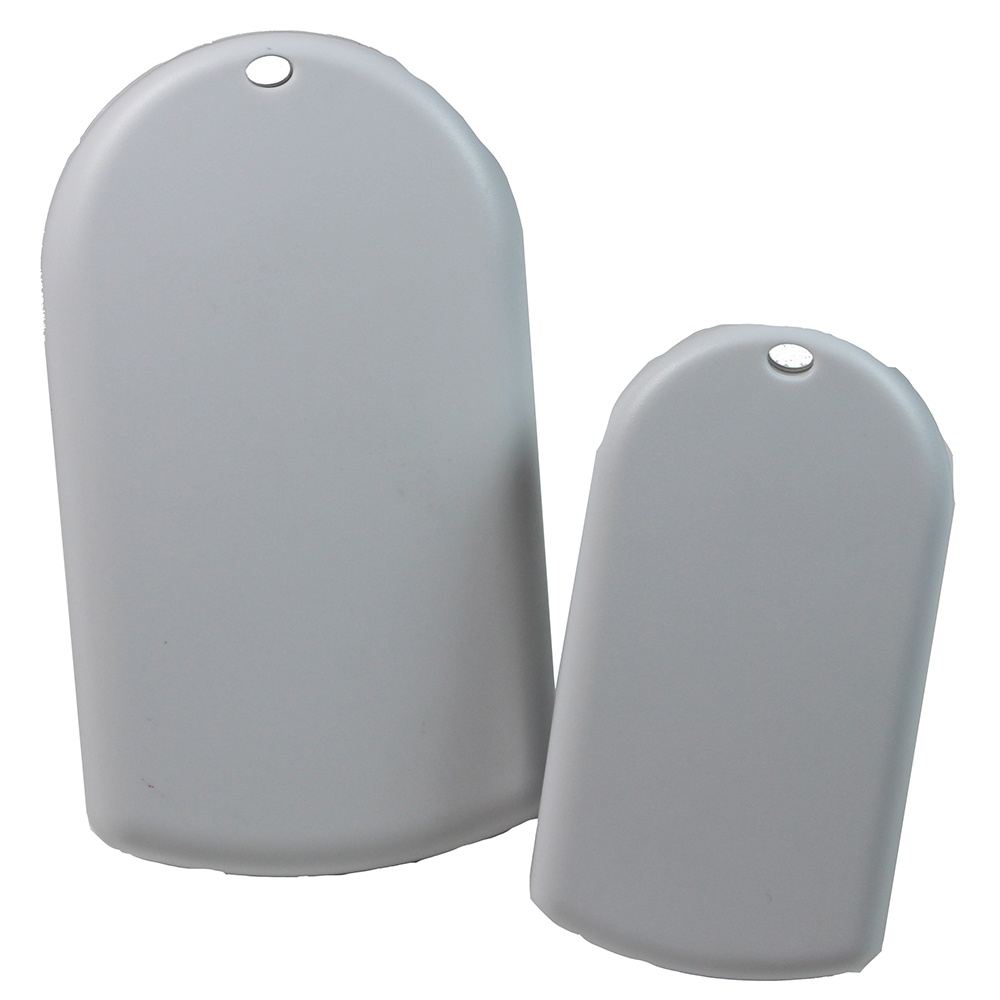

- New round model for size 3 available

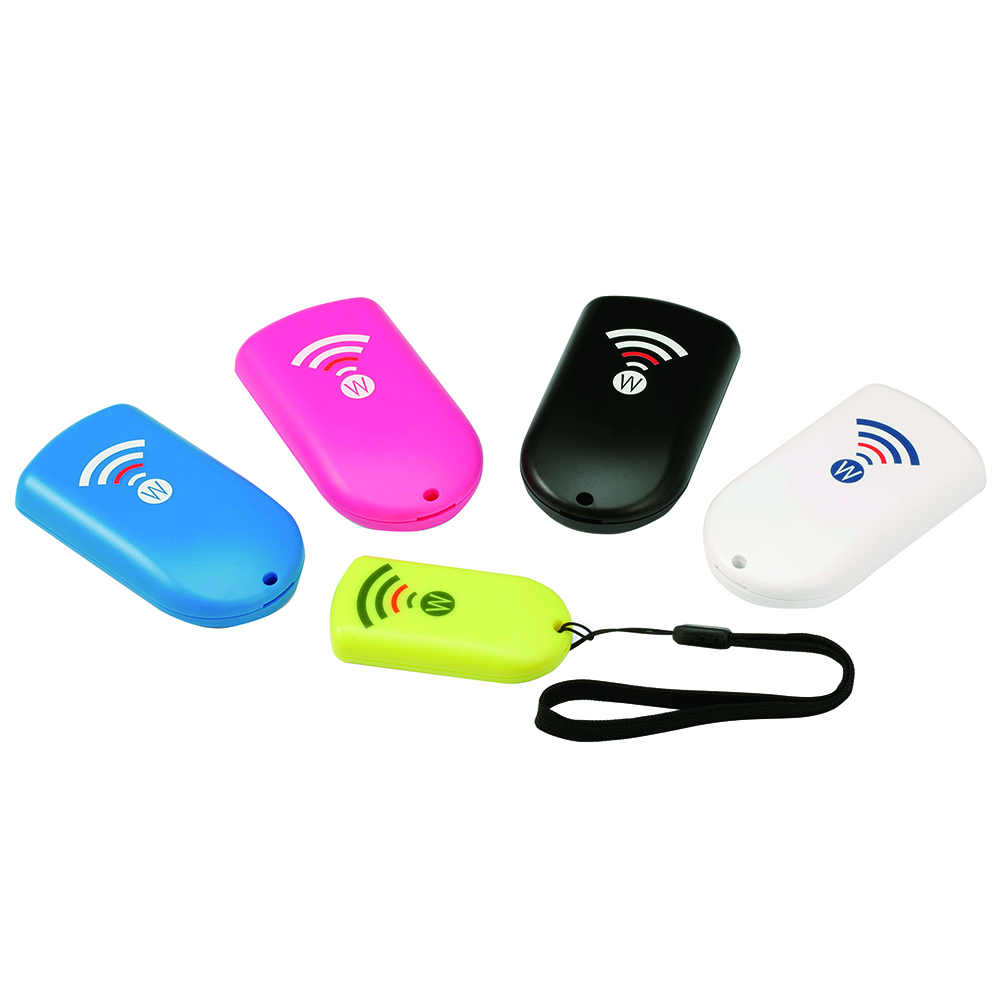

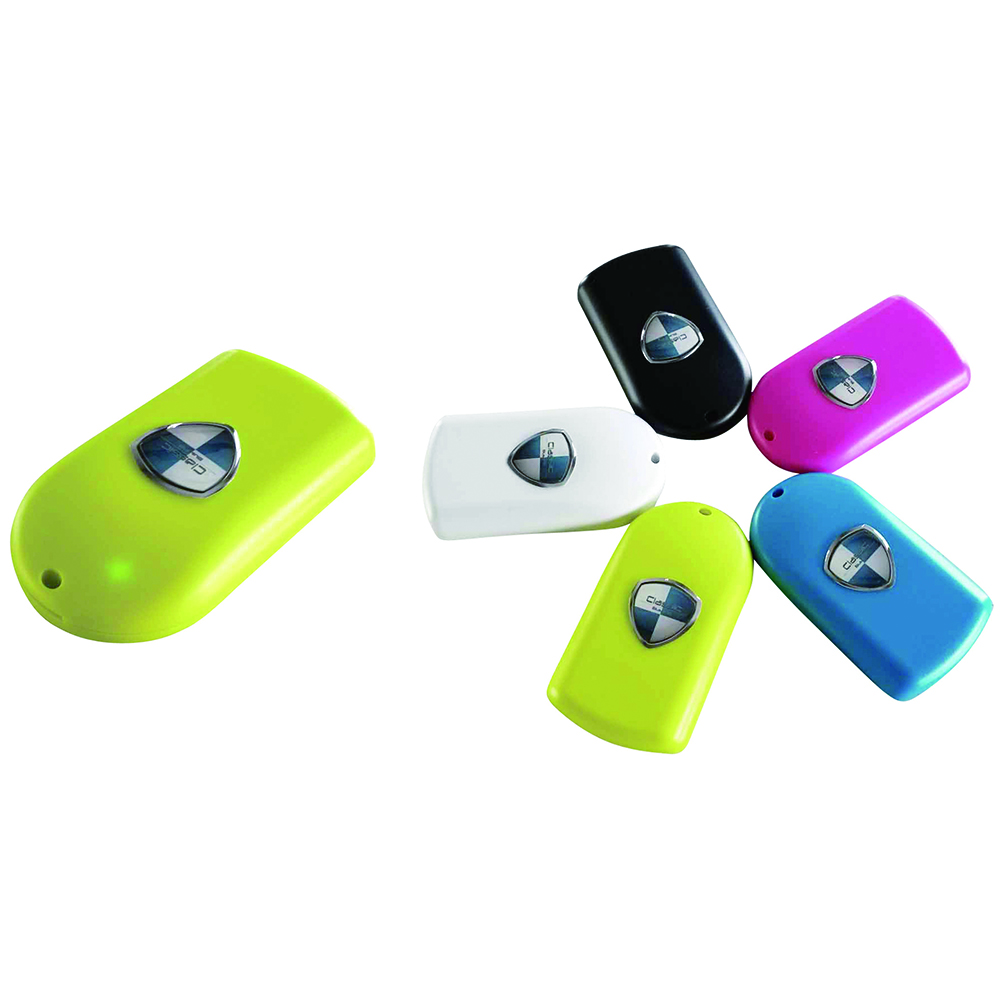

- Five new colours available, White & Black as standard, Blue, Green & Pink upon request
- 81 series has been designed to meet the requirements of IP40
| External Length (mm) | 85 |
| External Width (mm) | 48 |
| External Height (mm) | 15 |
| Internal Length (mm) | 69 |
| Internal Width (mm) | 41 |
| Internal Height (mm) | 11 |
| Weight (G) | 20 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | White |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | Takachi |
| Size | 85 x 48 x 15 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
