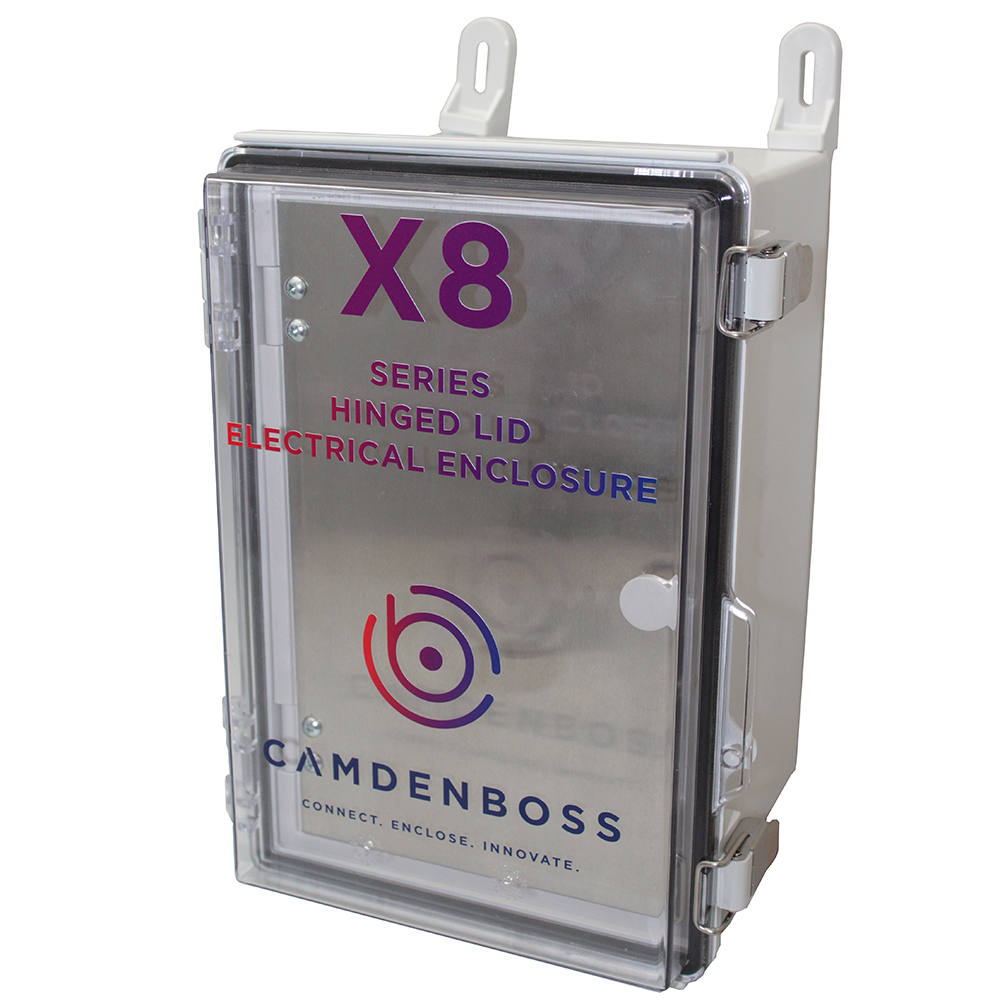

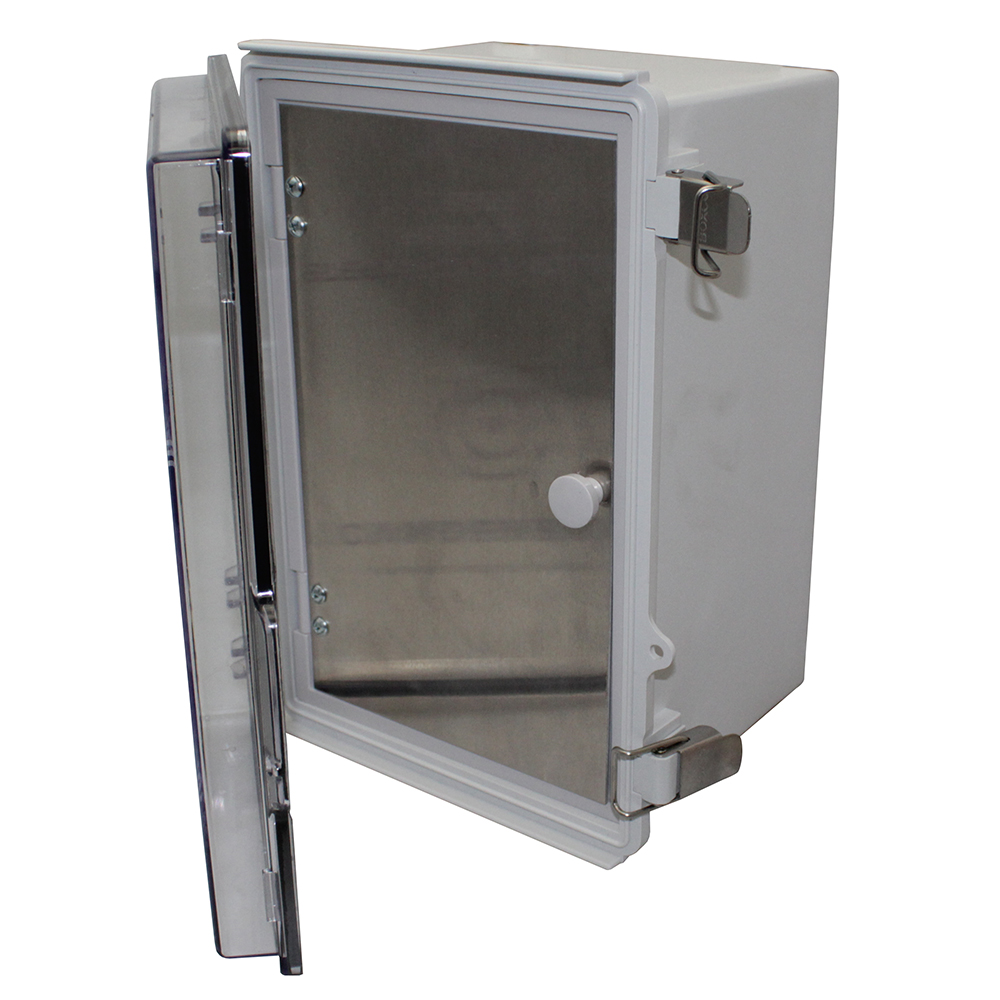

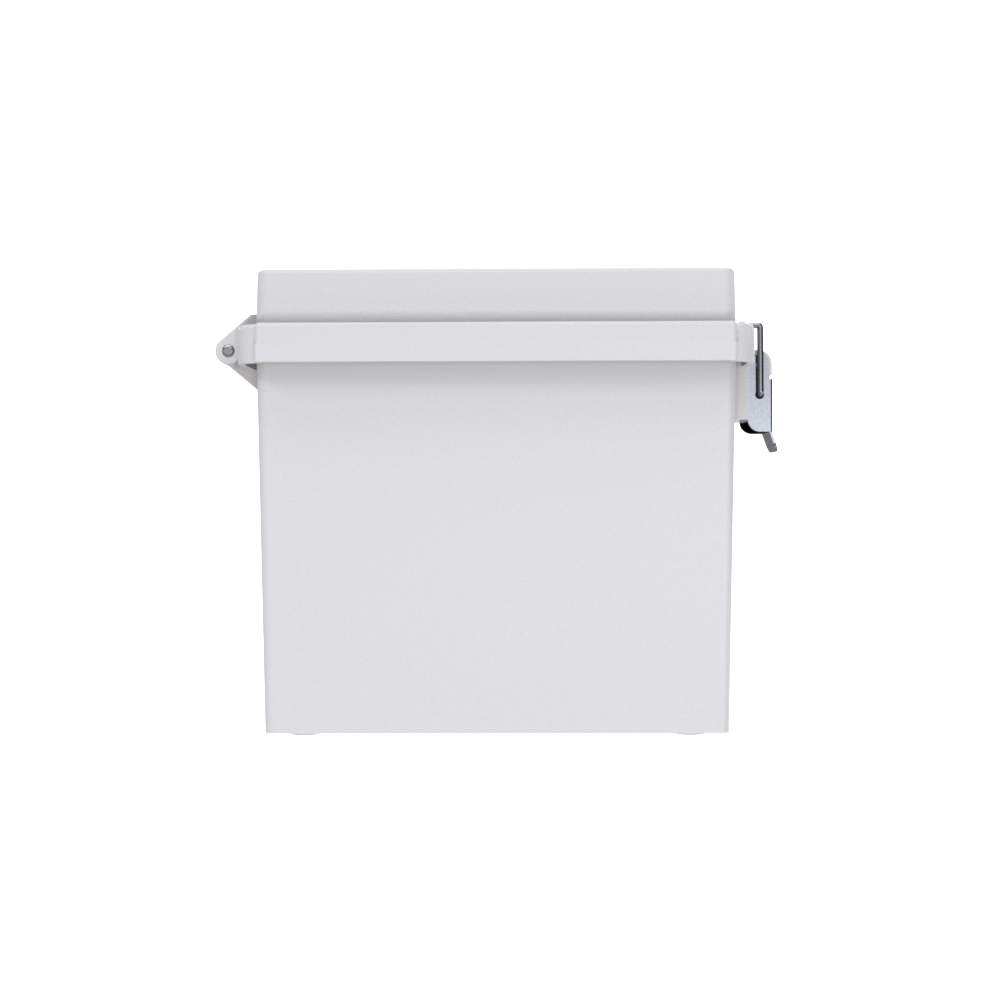

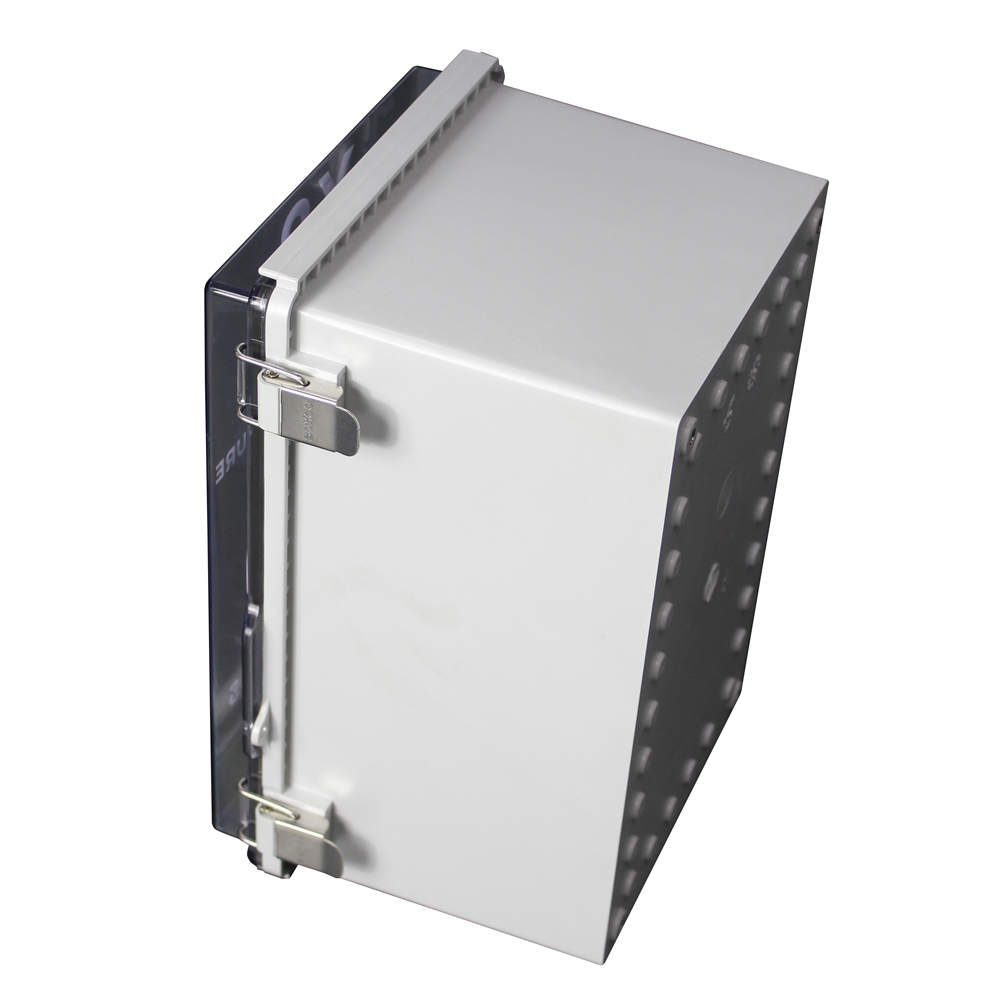

CHDX8-228 - X8 Series Waterproof Hinged Door Enclosure, Grey, Polycarbonate UL94-V0, 300x200x180mm
IP67 enclosure polycarbonate with a solid lid featuring a hinged lid with latches. IIoT ready enclosure suitable for industrial settings such as control enclosures, equipment sensor enclosures, and energy monitoring cases 300x200x180
- X8 series has been designed to meet the requirements of IP67
- IK07/08 impact tested

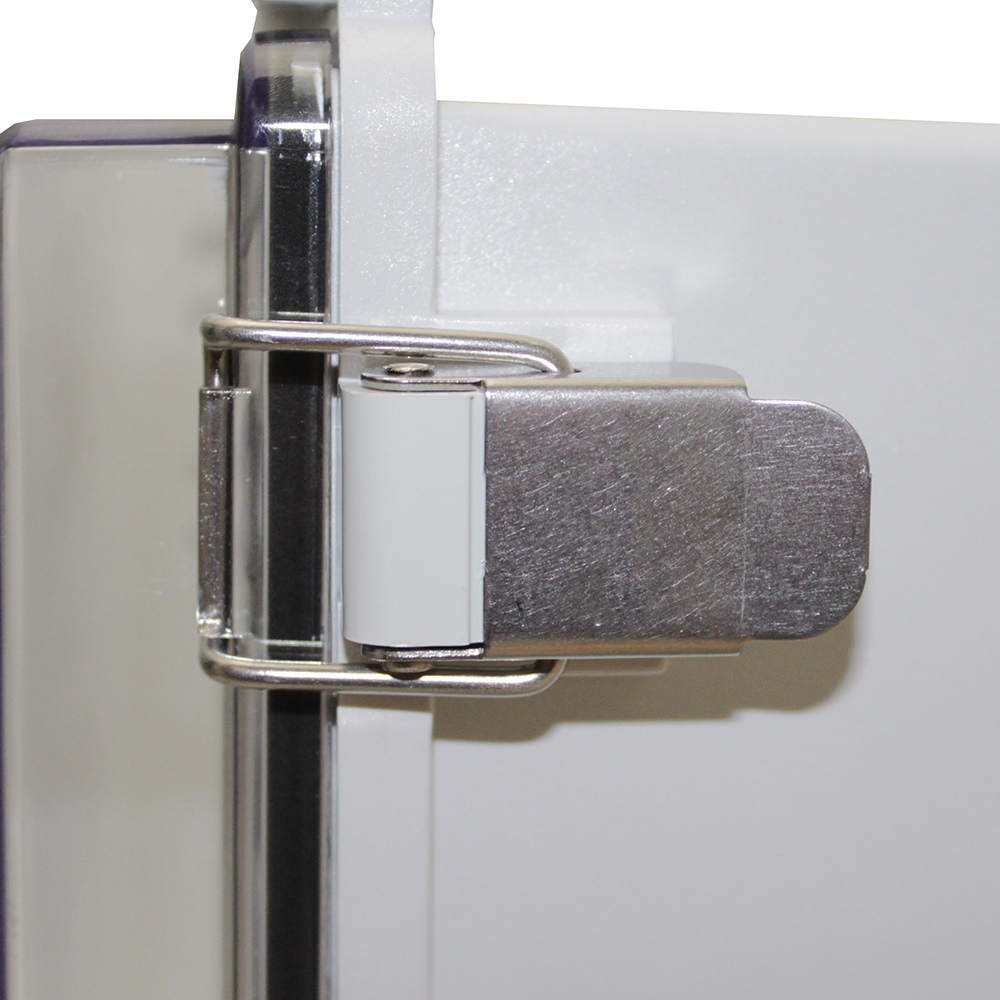

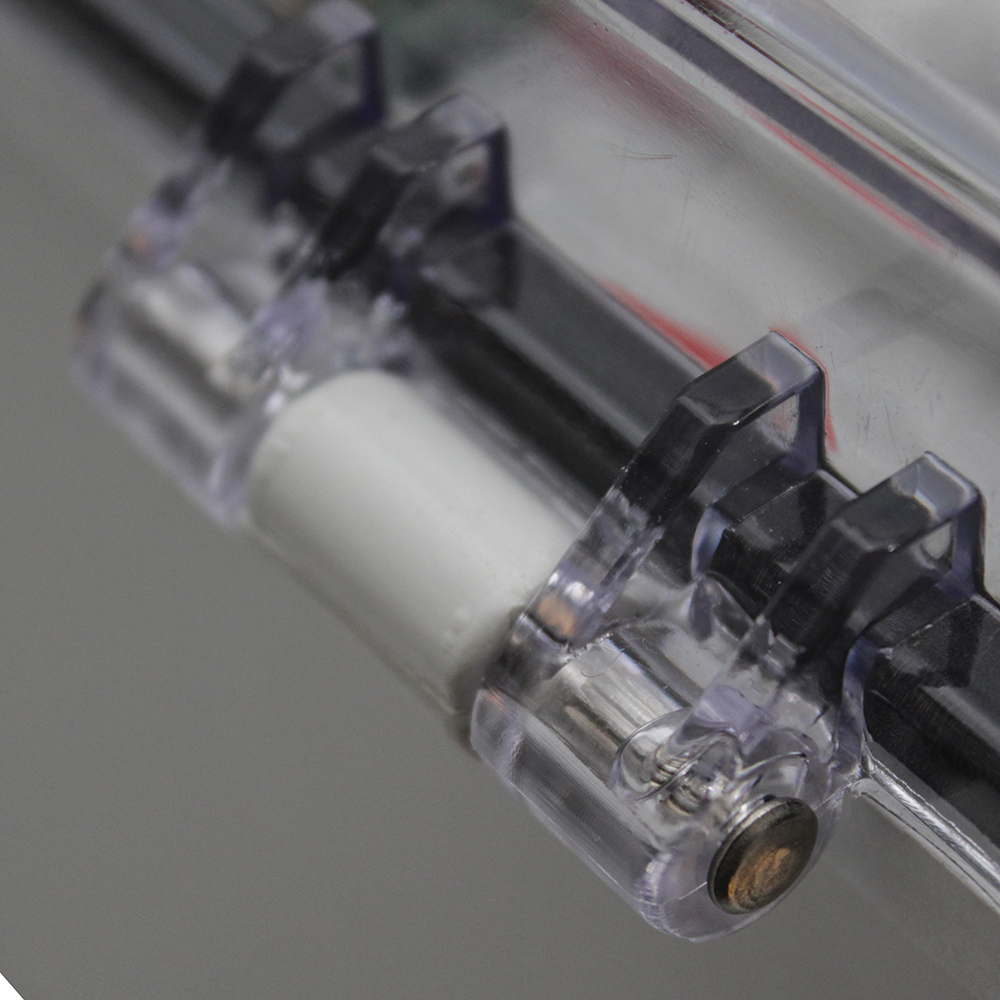

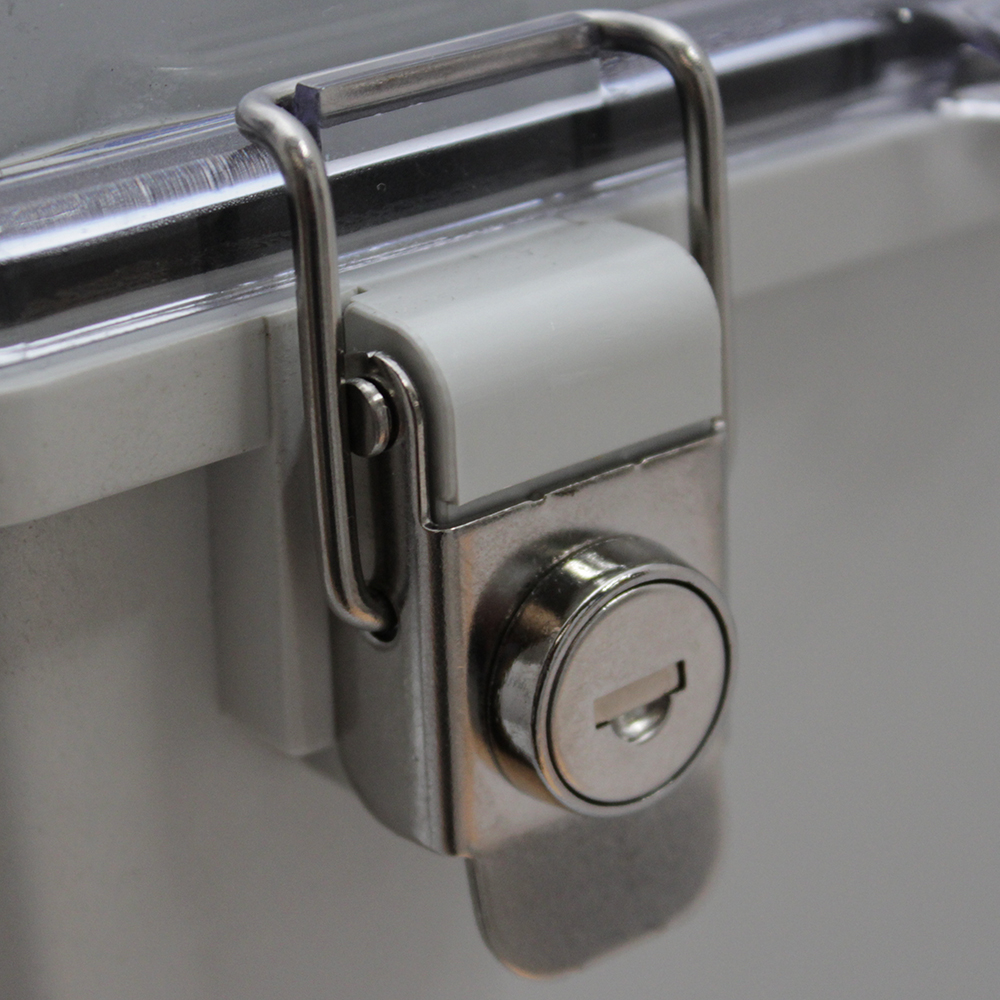

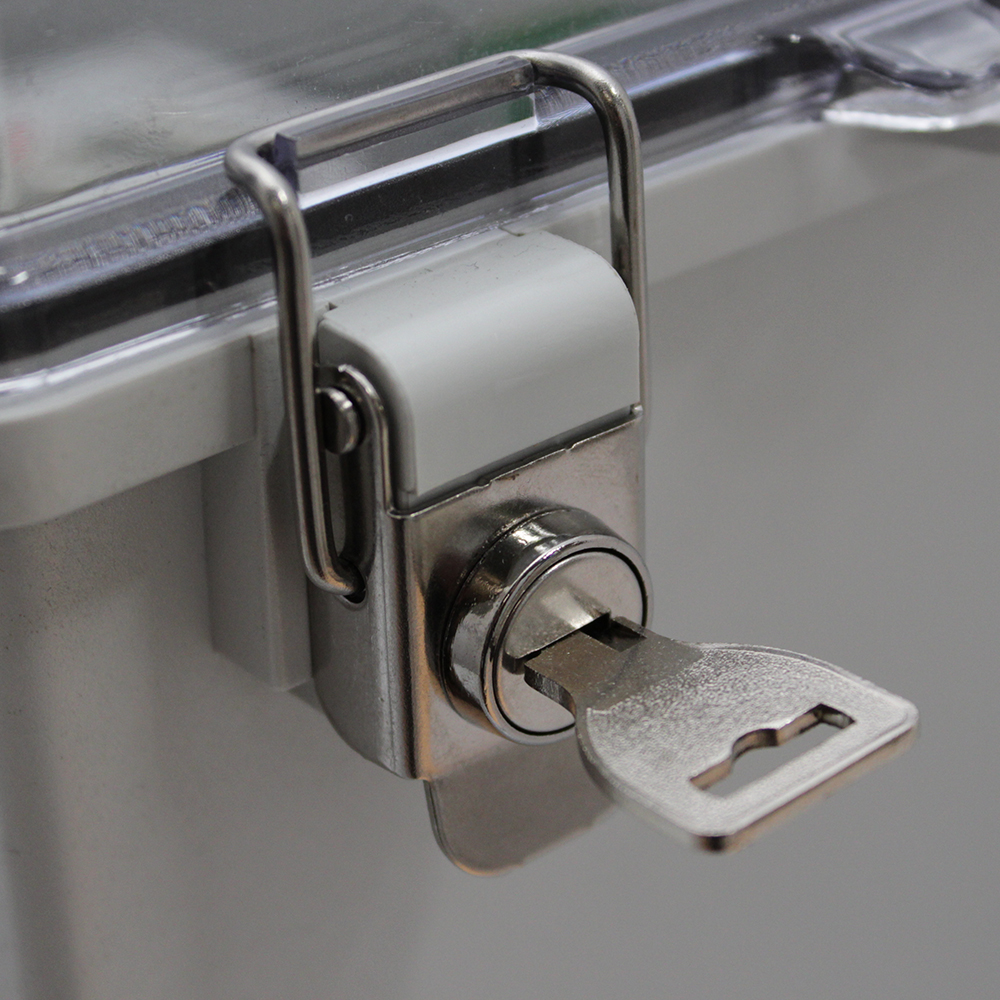

- Heavy duty hinge and latch enclosure
- Moulded in high quality Polycarbonate

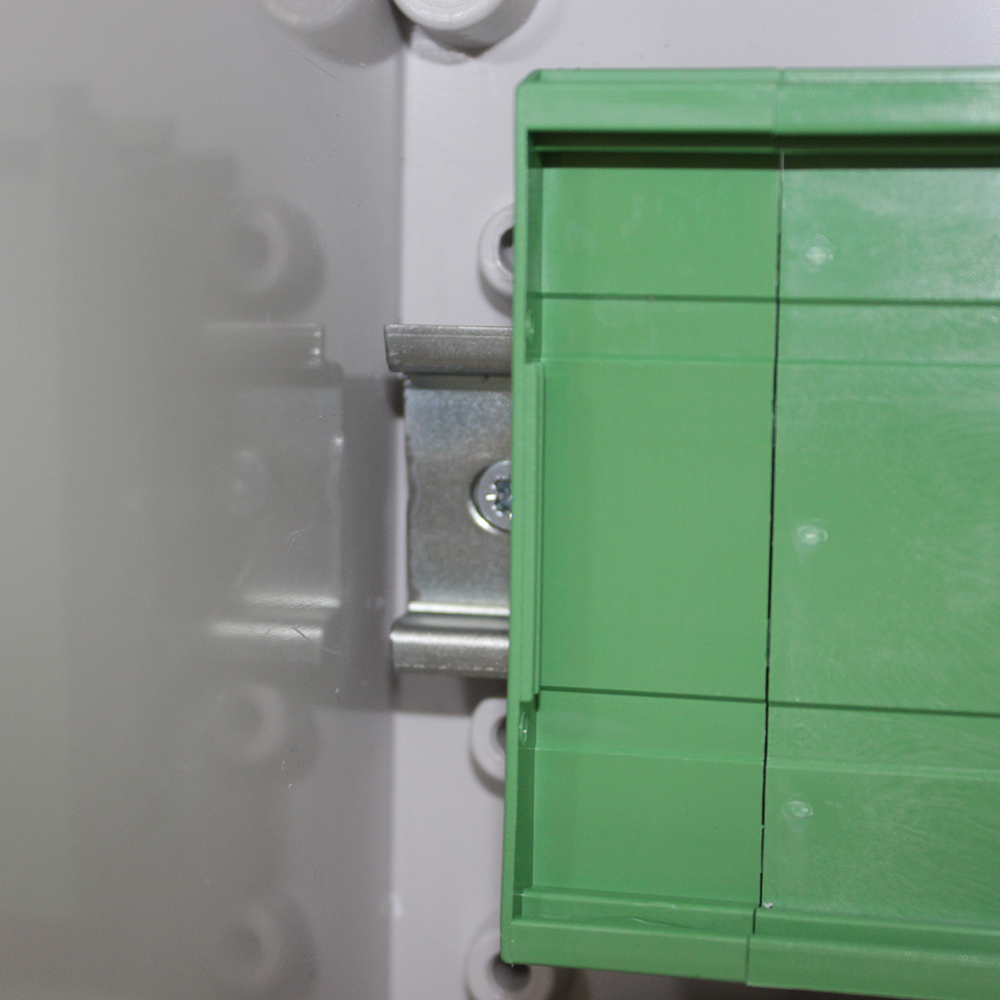

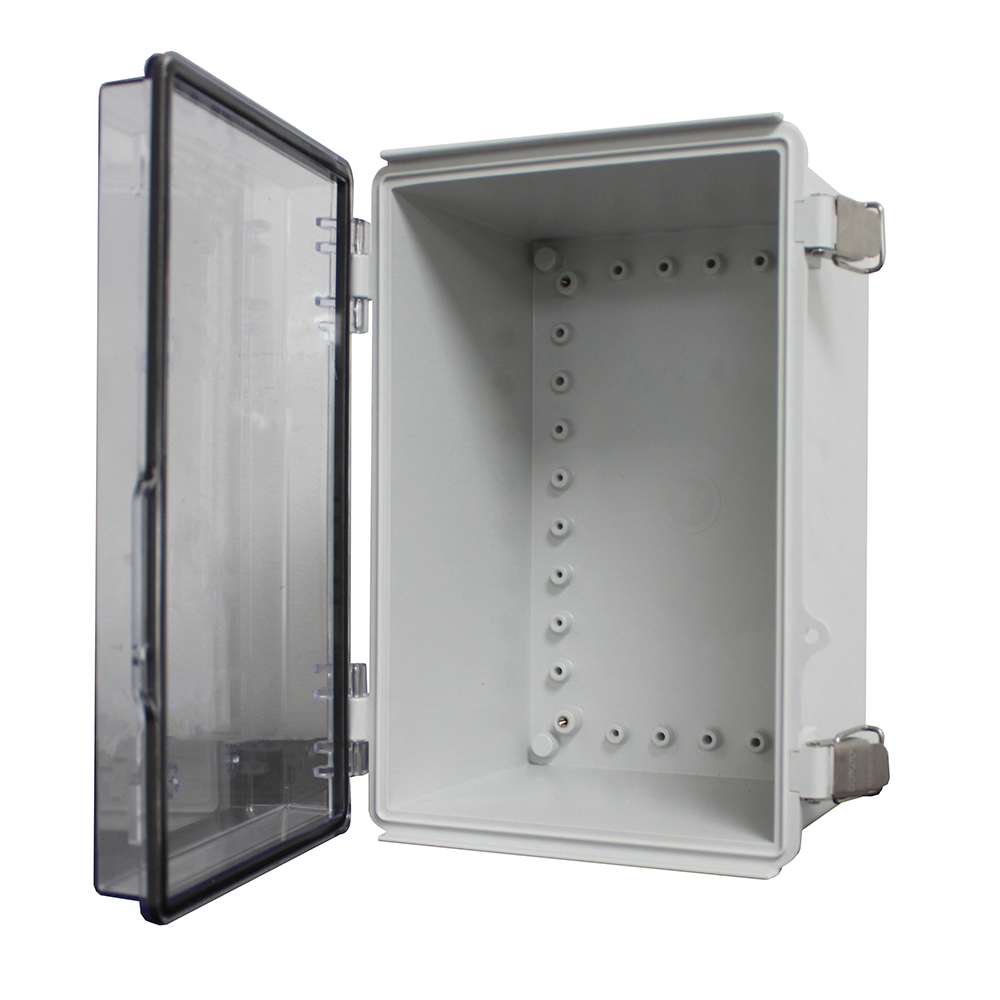

- PCB pillars in the base for PCB mounting
- Brass inserts in the base

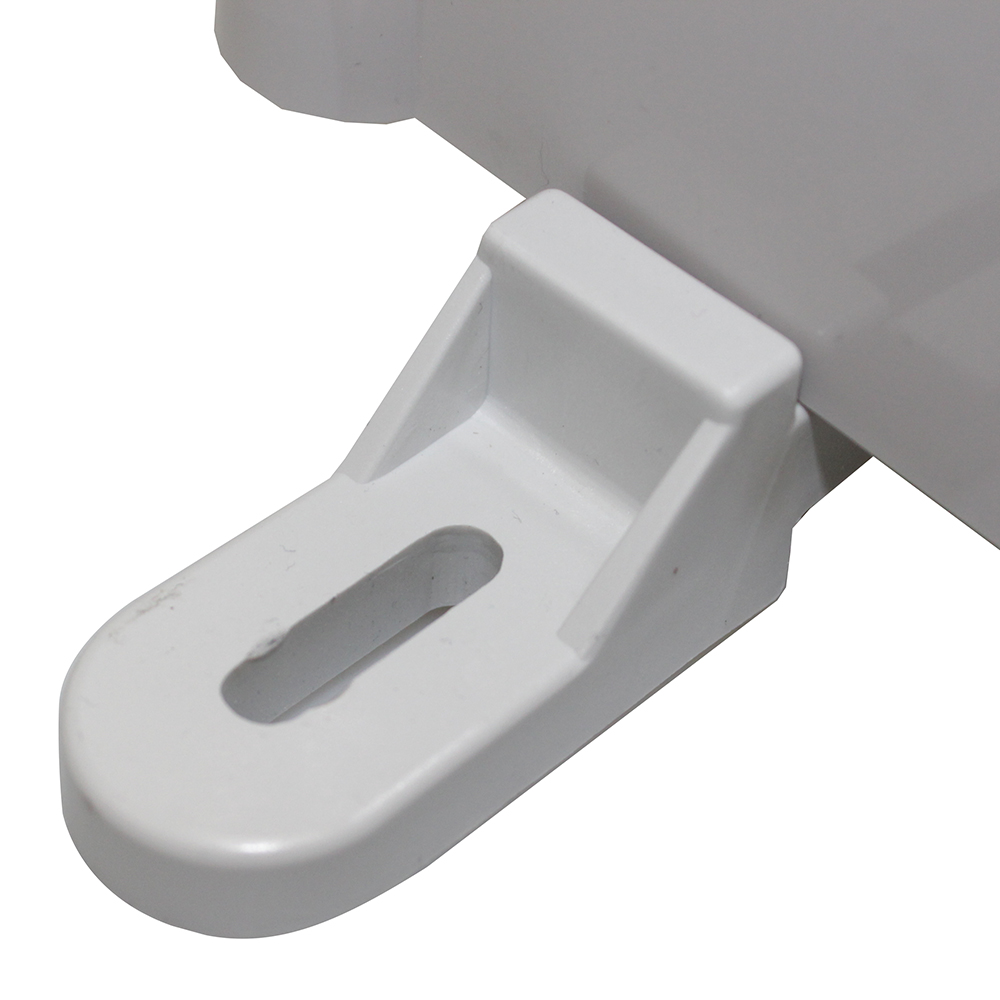

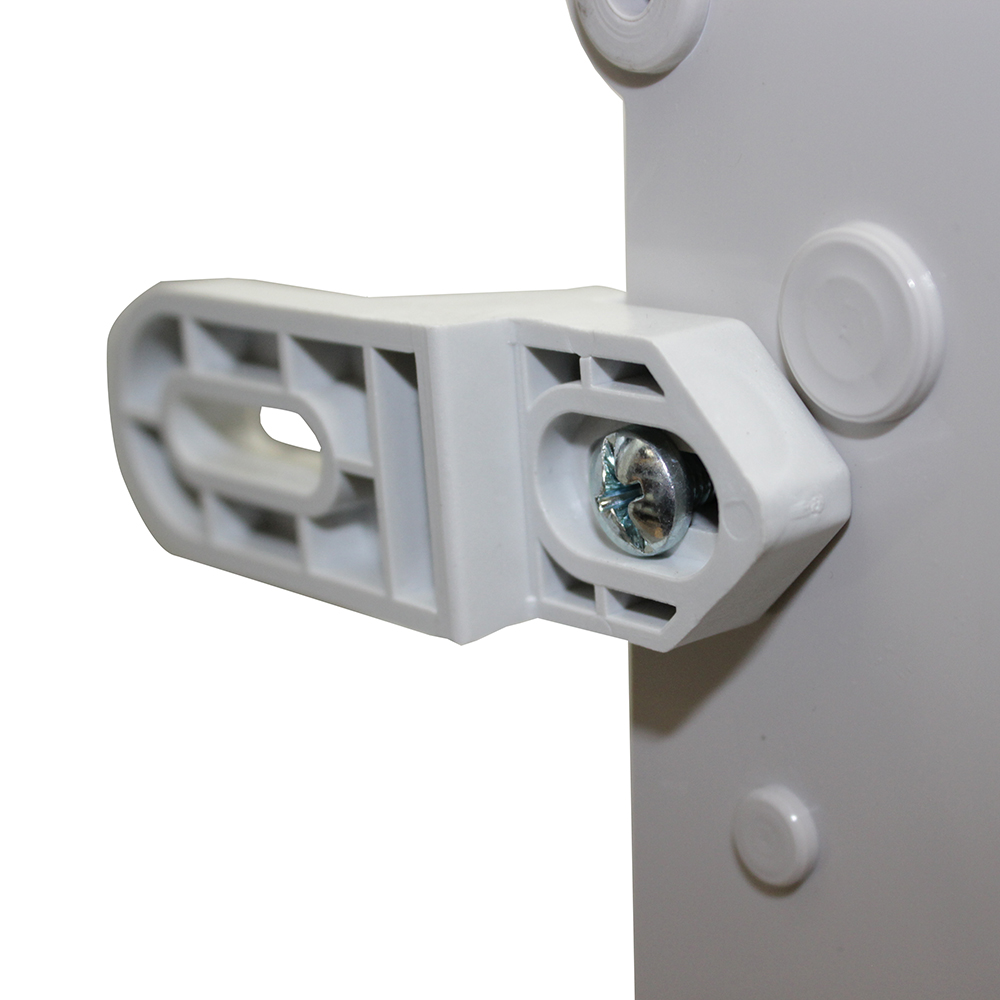

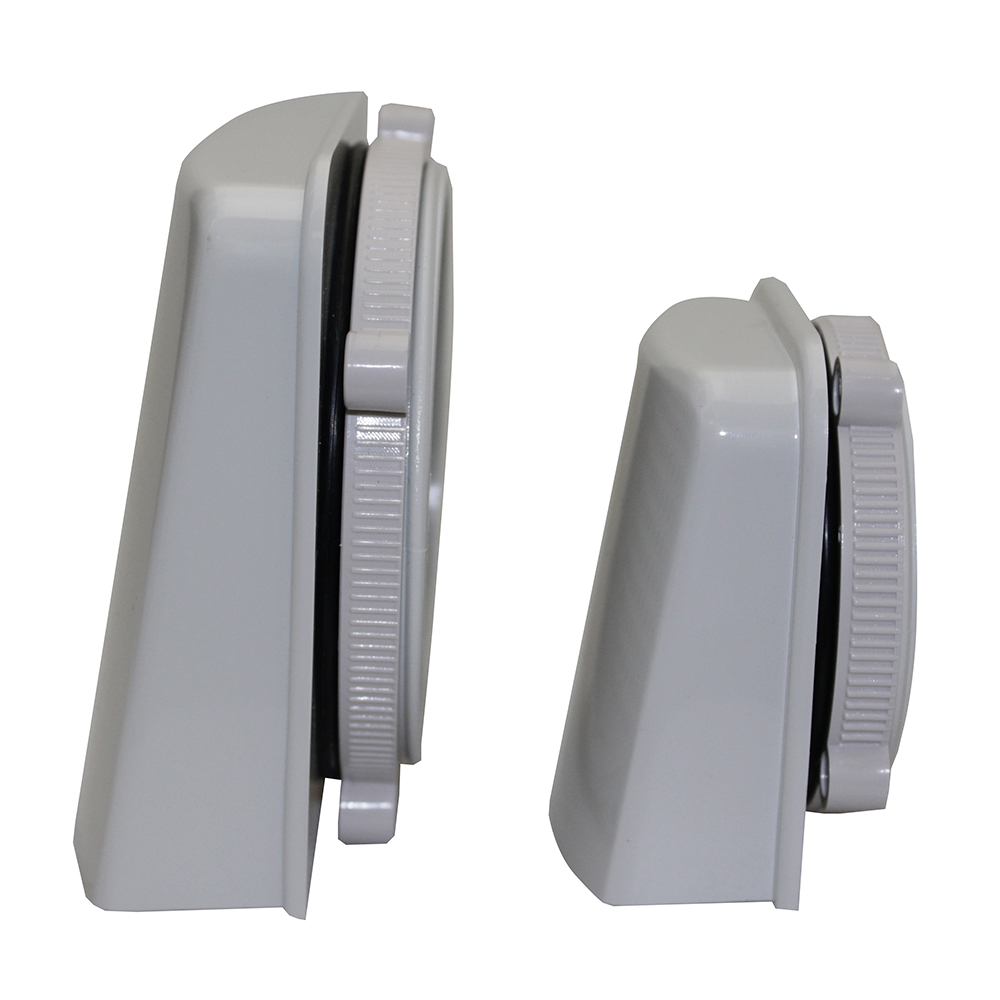

- Wall mounting facility accessories available
- Clear lid option available
- Smart building electronics enclosures

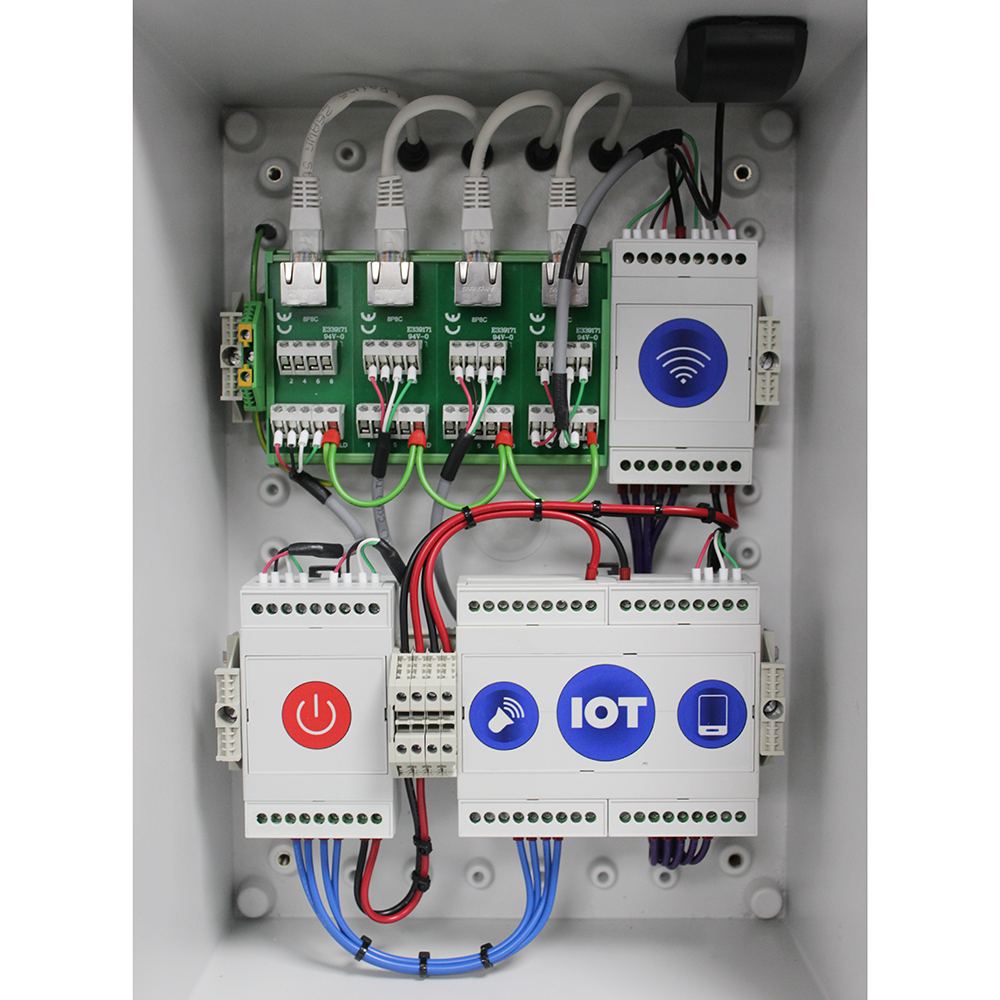

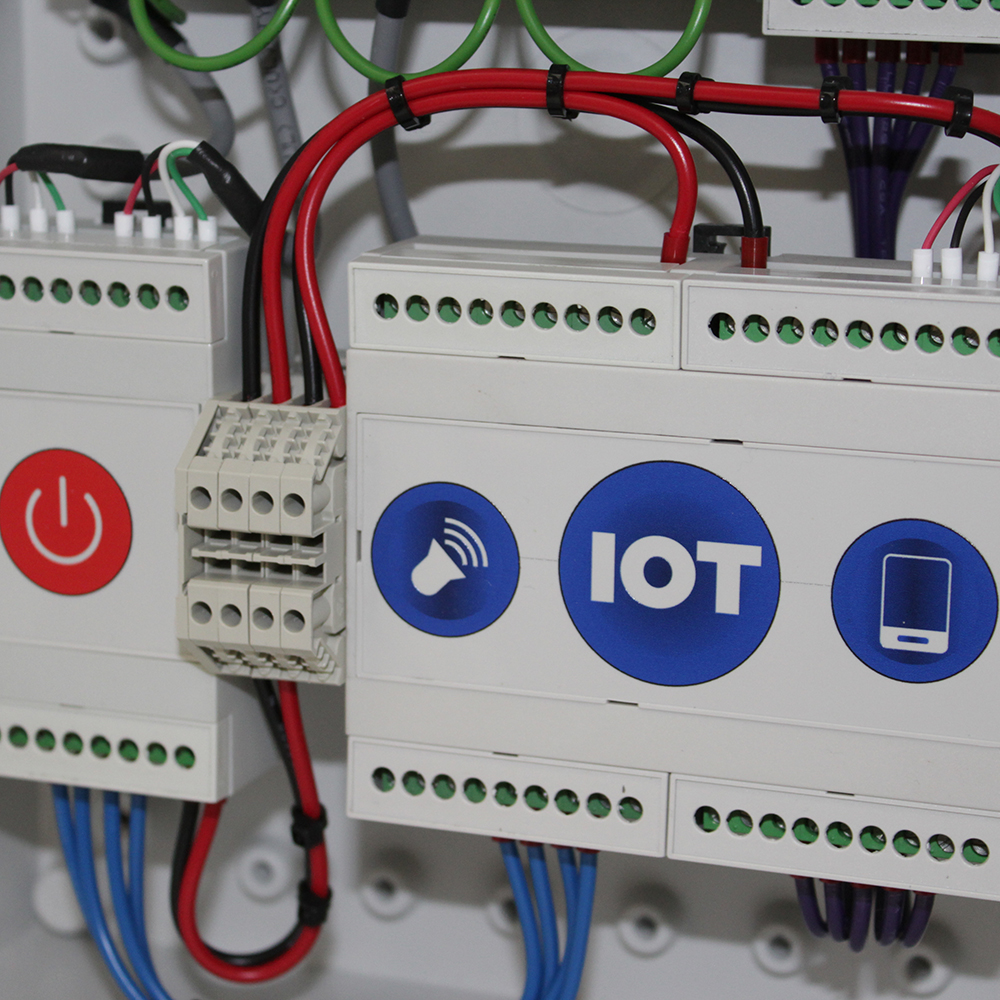

- IP rated case for monitoring equipment, IoT ready electronics enclosure
| External Length (mm) | 300 |
| External Width (mm) | 200 |
| External Height (mm) | 180 |
| Internal Length (mm) | 273 |
| Internal Width (mm) | 174 |
| Internal Height (mm) | 167 |
| Weight (G) | 1225 |
| Base Material | Plastic |
| Material Type | Polycarbonate UL94-V0 |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IK Rating | IK08 |
| IP Rating | IP67 |
| Wall Mount | Yes |
| Operating Temperature | -40 Deg C to 110 Deg C |
| Brand | CamdenBoss |
| Size | 300x200x180 |
| Development Board | N/A |

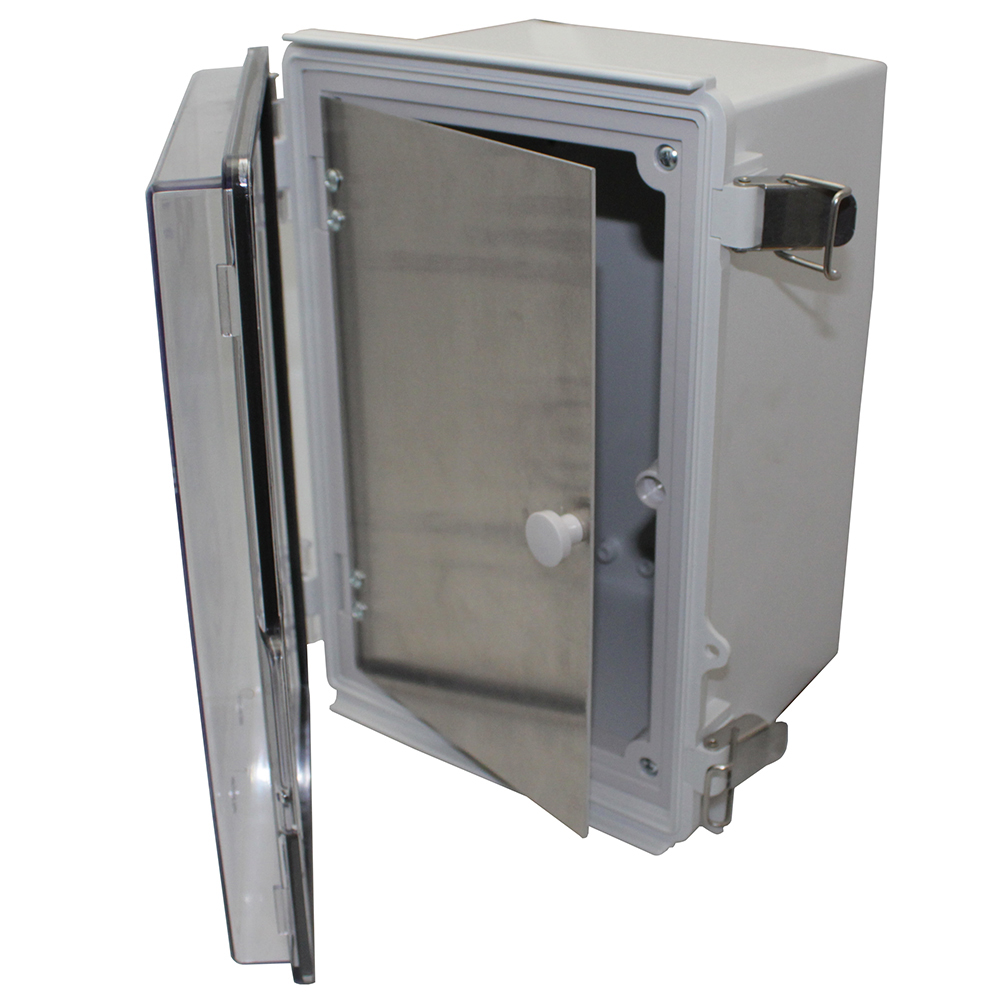

| Hinged Lid | Yes |
X8 series heavy duty enclosure

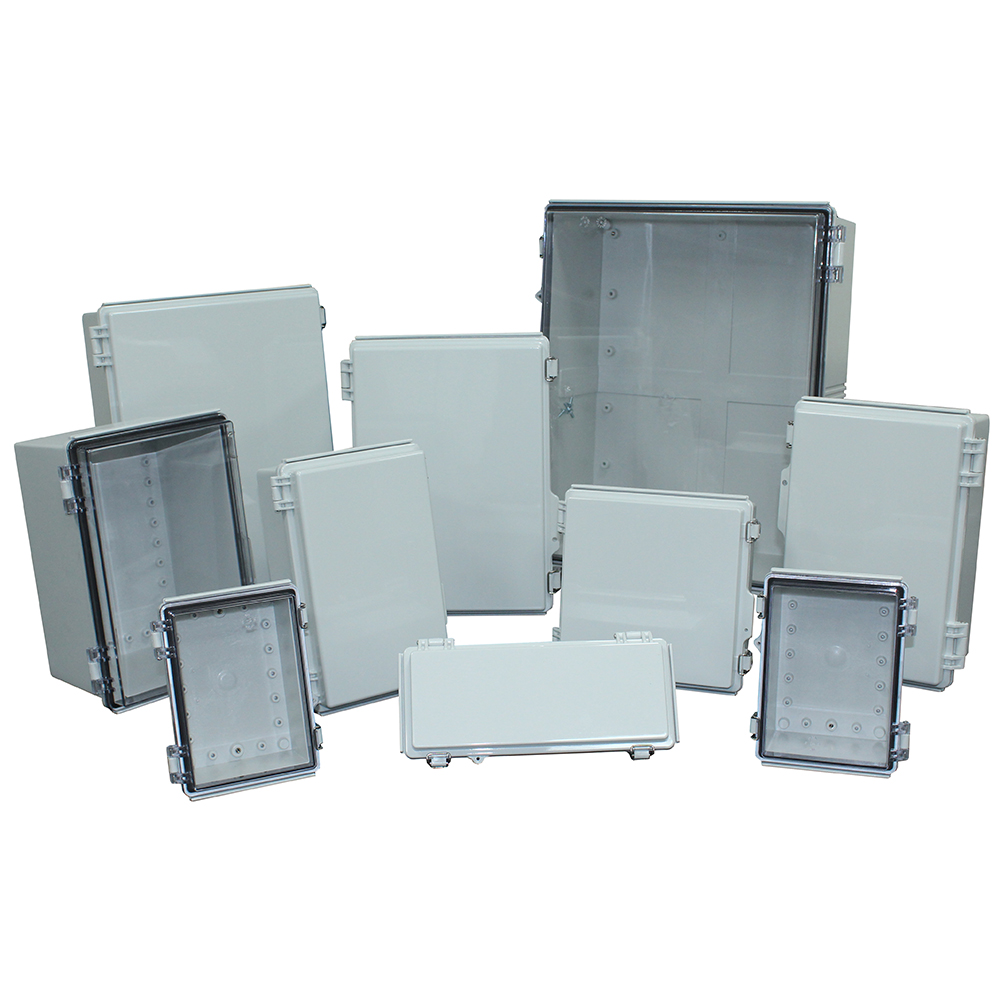

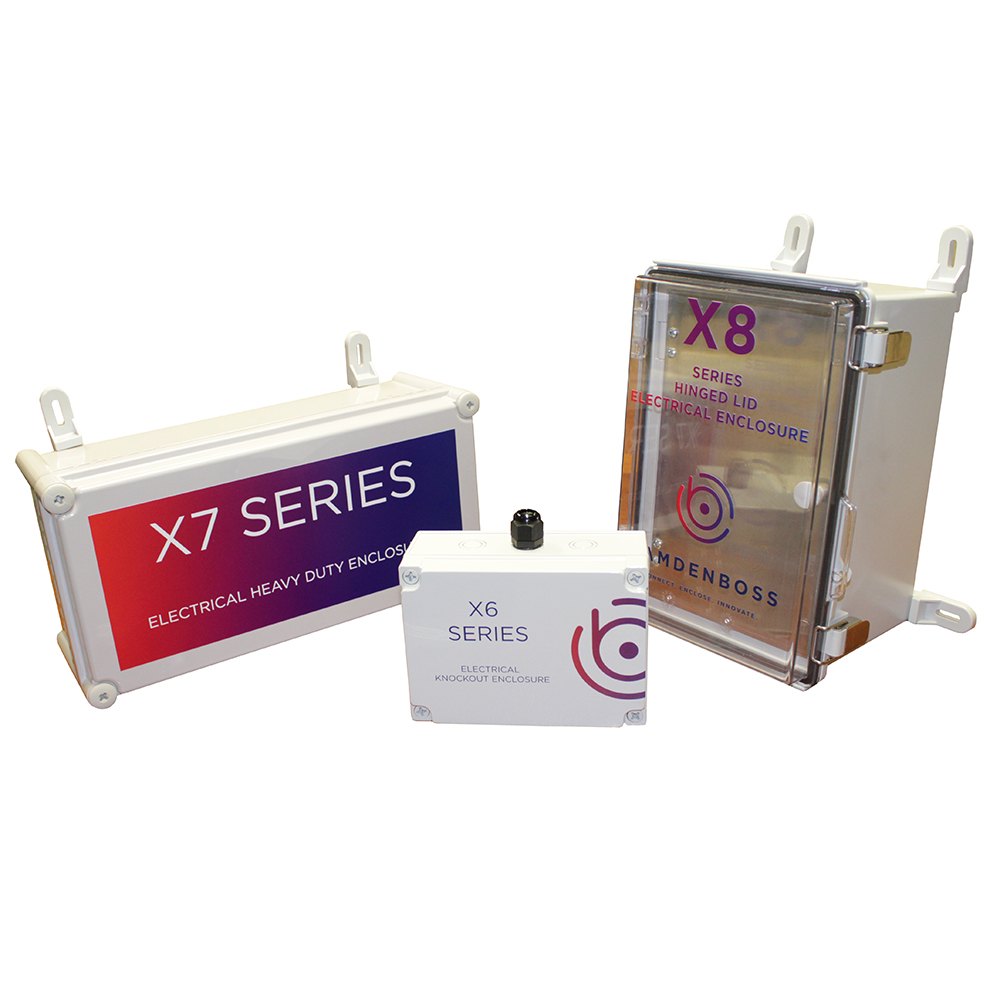

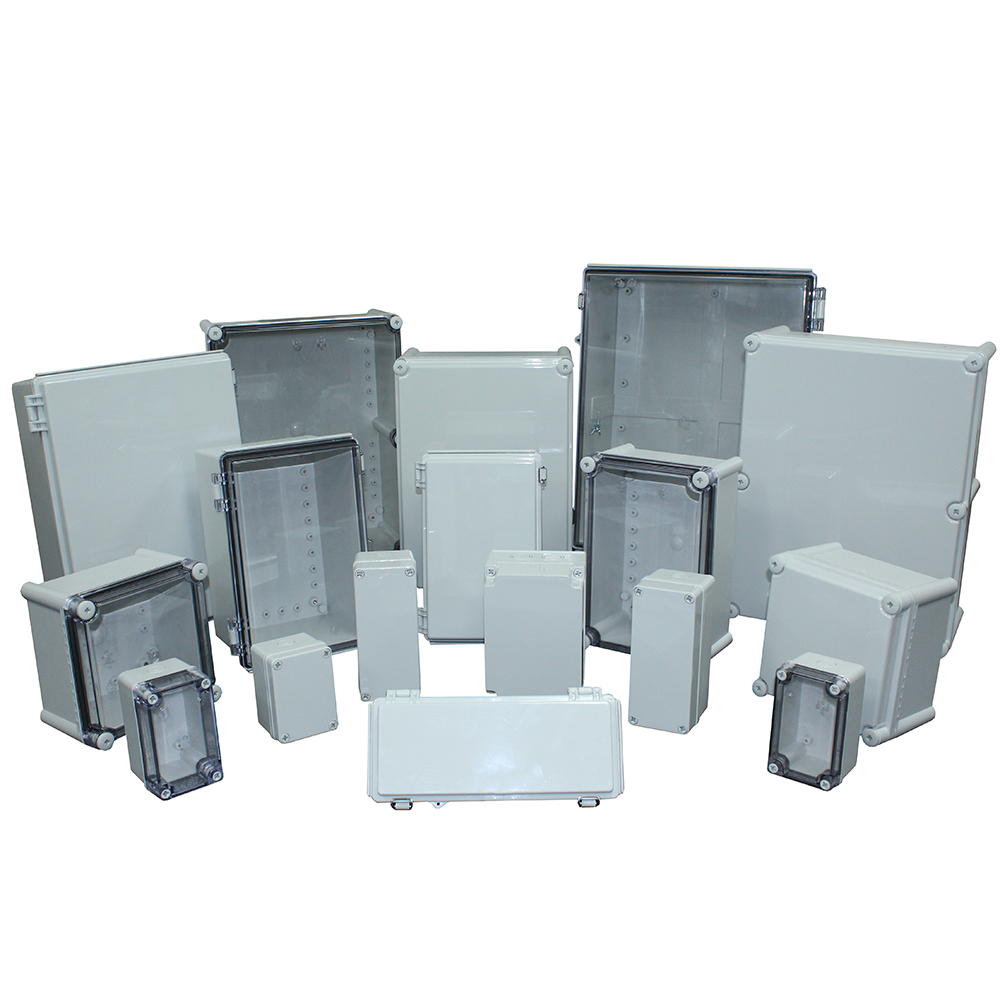

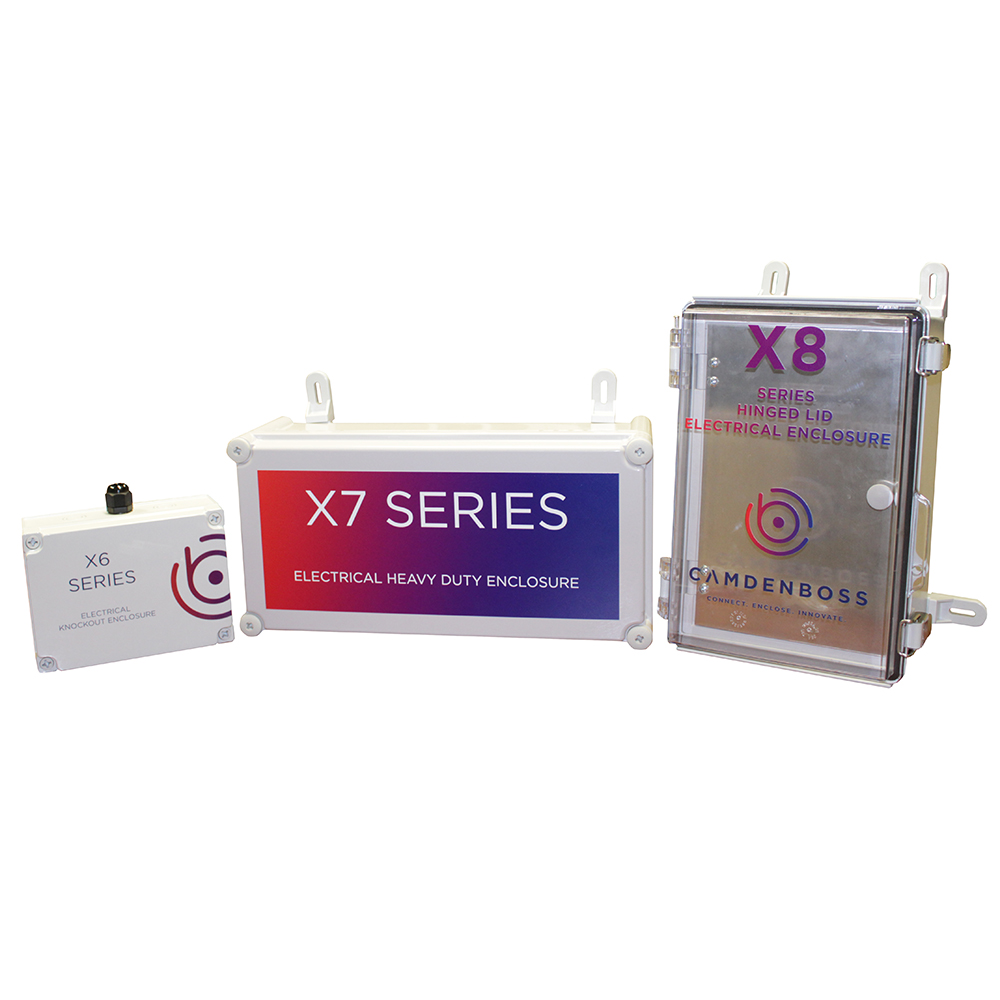

X series range
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
