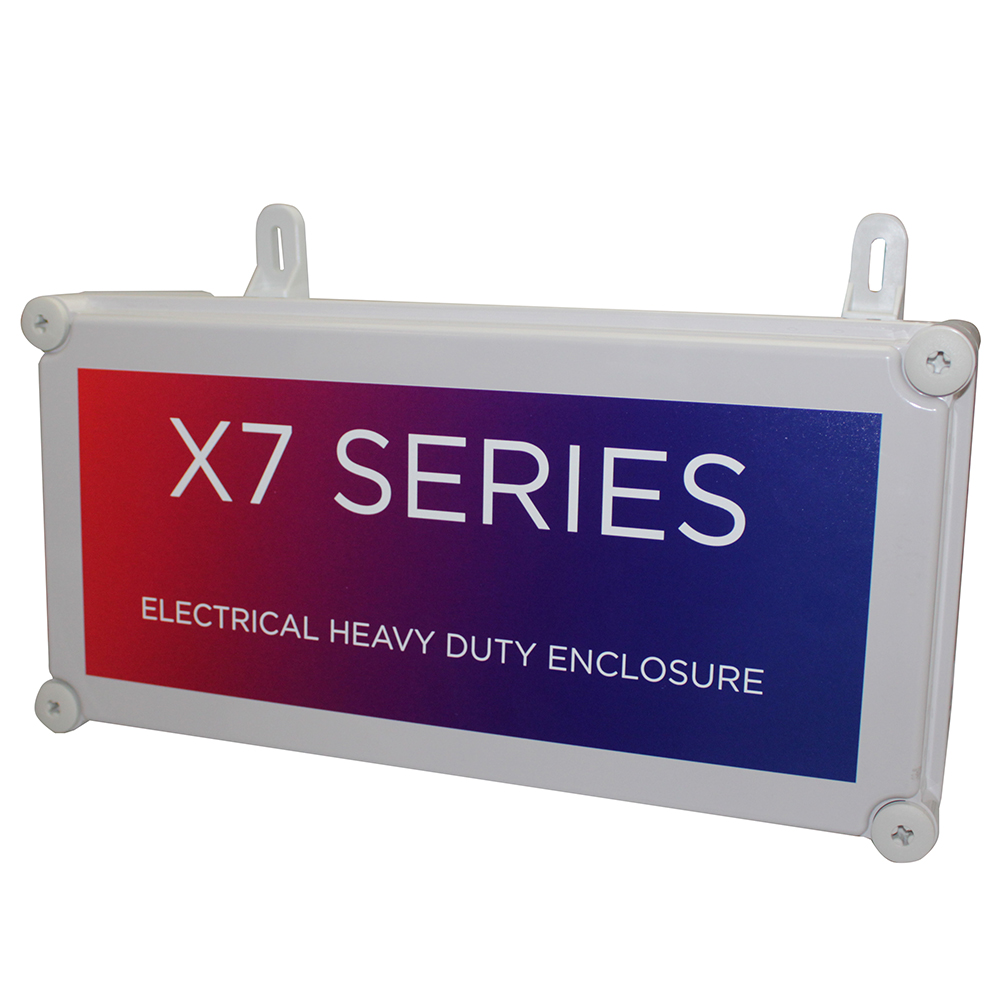

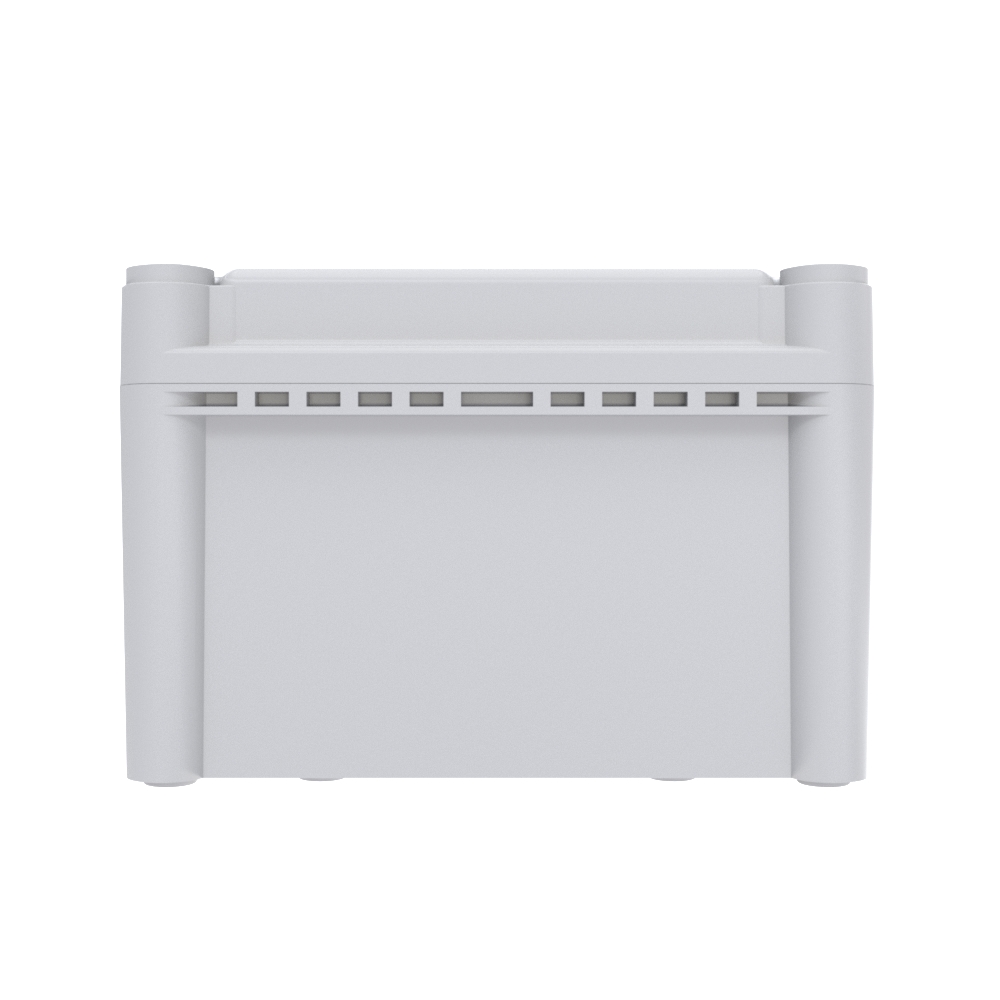

CHDX7-321 - X7 Series Electrical Heavy Duty Enclosure, Grey, ABS UL94-HB, 190x190x130mm
IP67 ABS enclosure with a solid lid featuring large heavy duty corners for added robustness. The ideal enclosure for tough environments such as control panel enclosures and industrial enclosures 190x190x130
- X7 series has been designed to meet the requirements of IP67
- IK07/08 impact tested

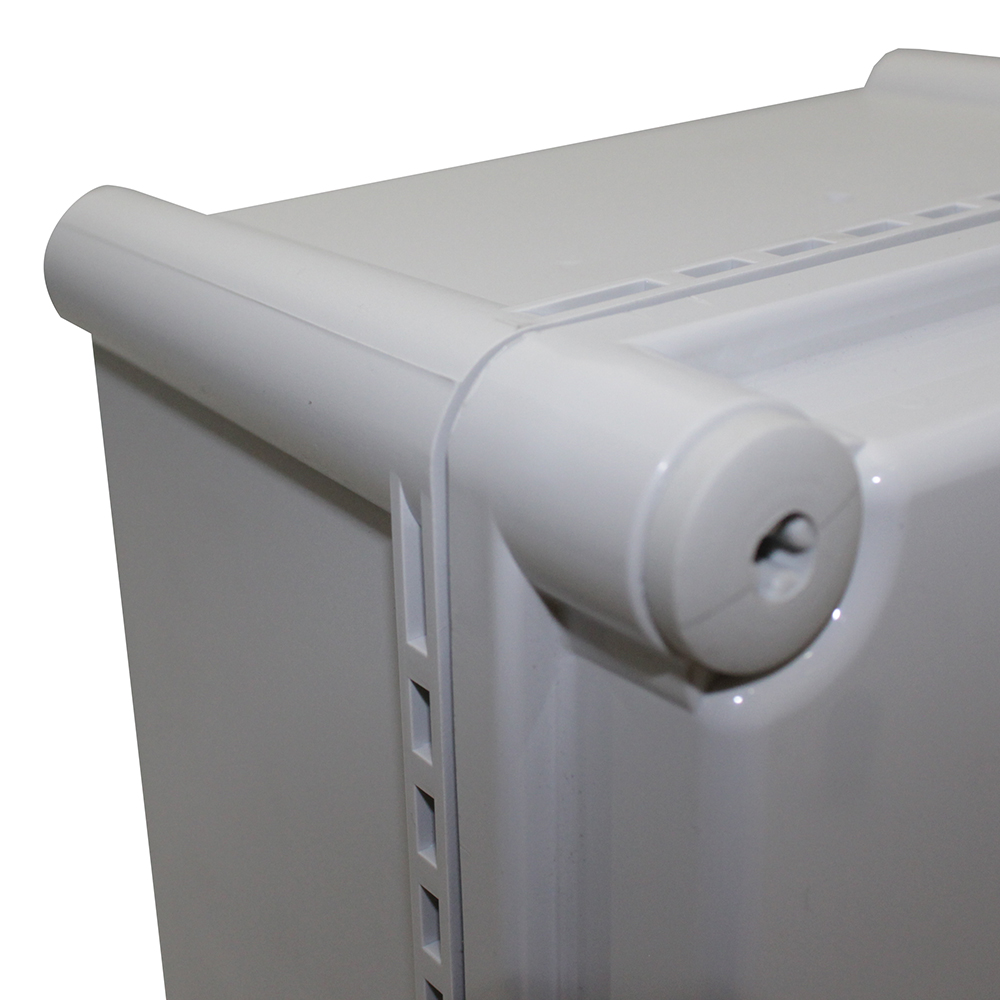

- Heavy duty screw type enclosure
- Moulded in high quality ABS

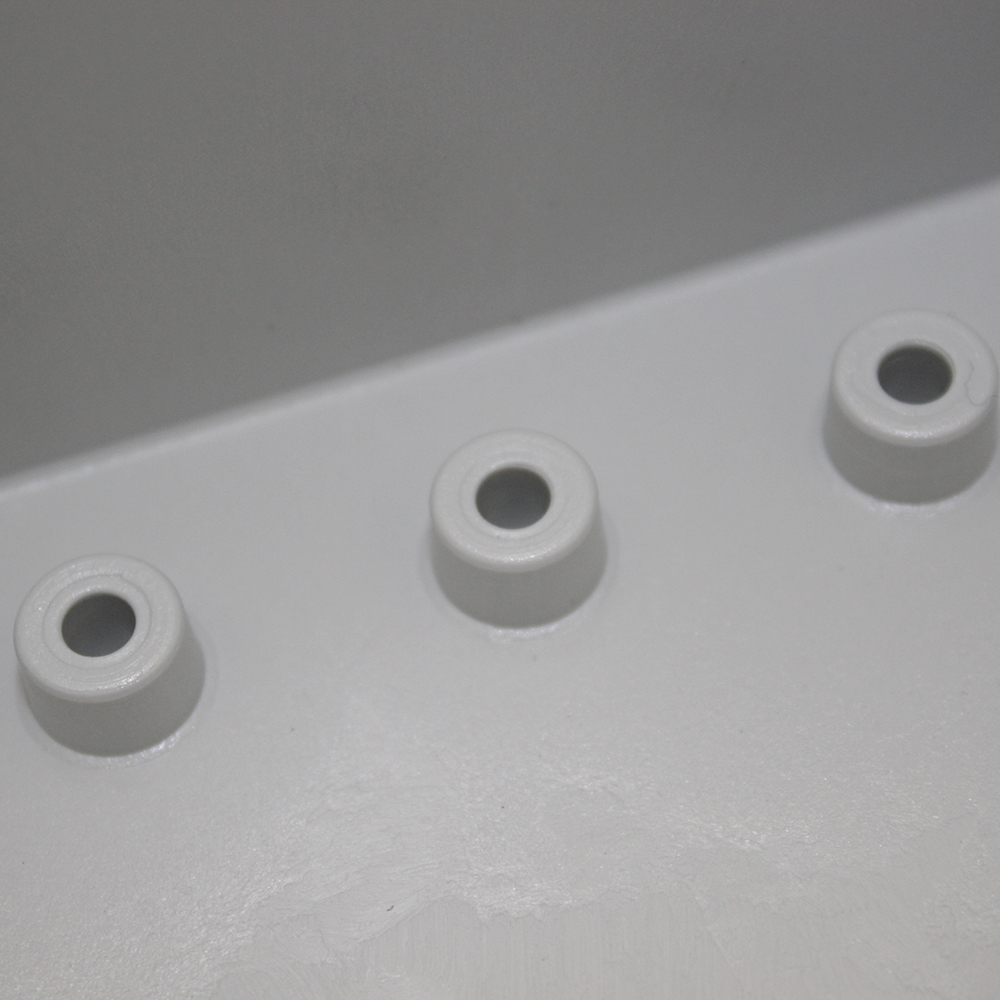

- PCB pillers in the base for PCB mounting

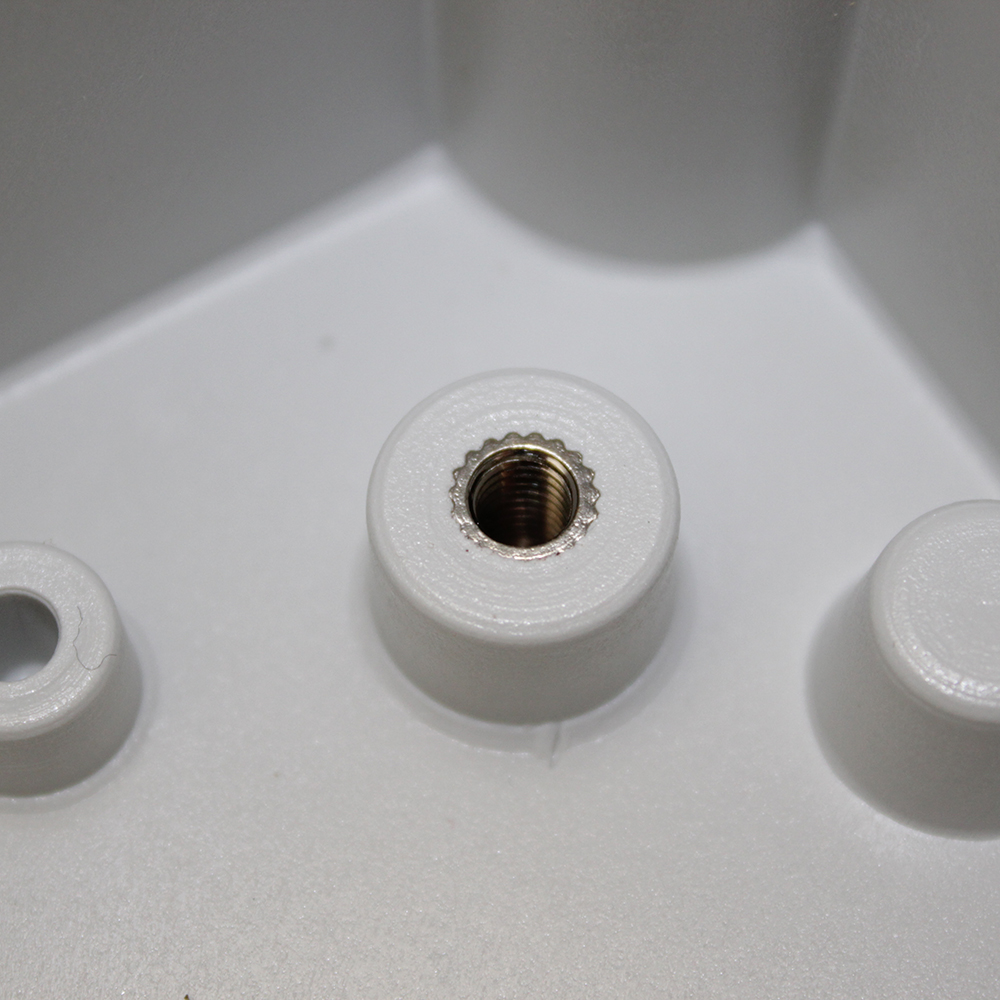

- Brass inserts in the base

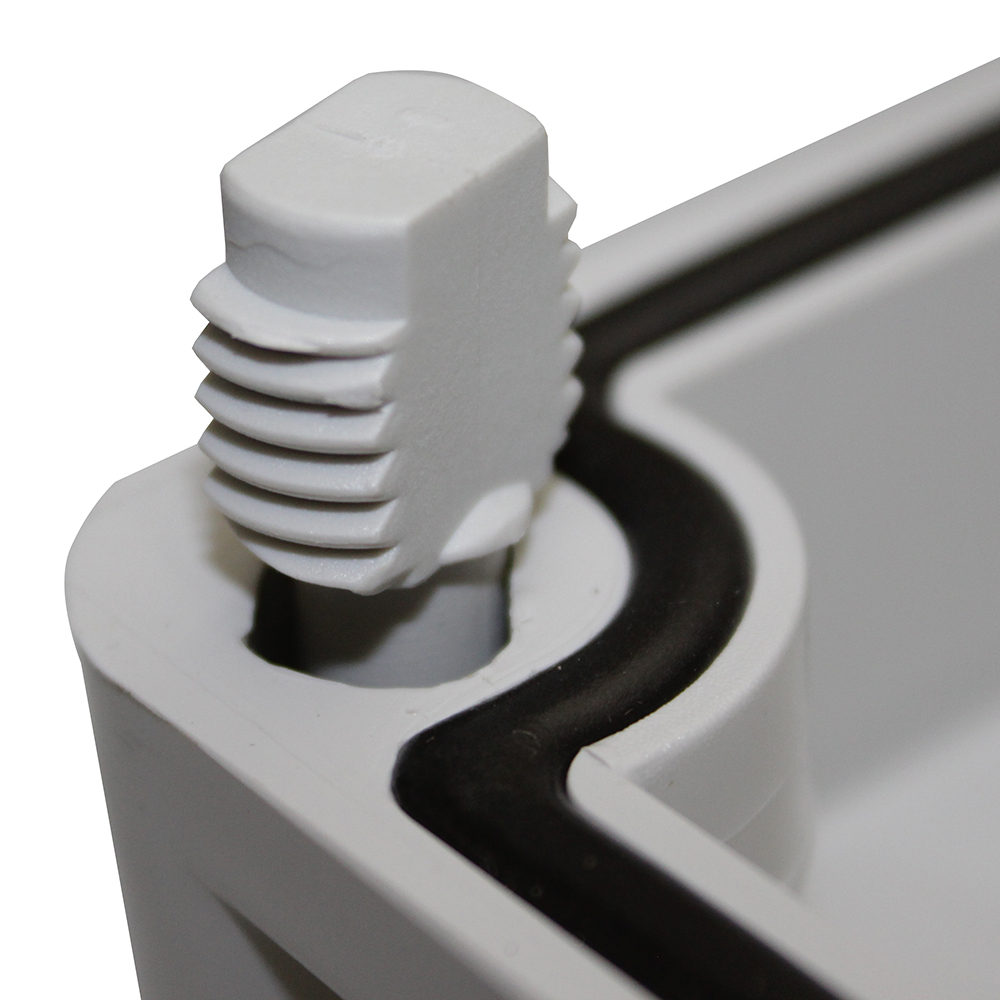

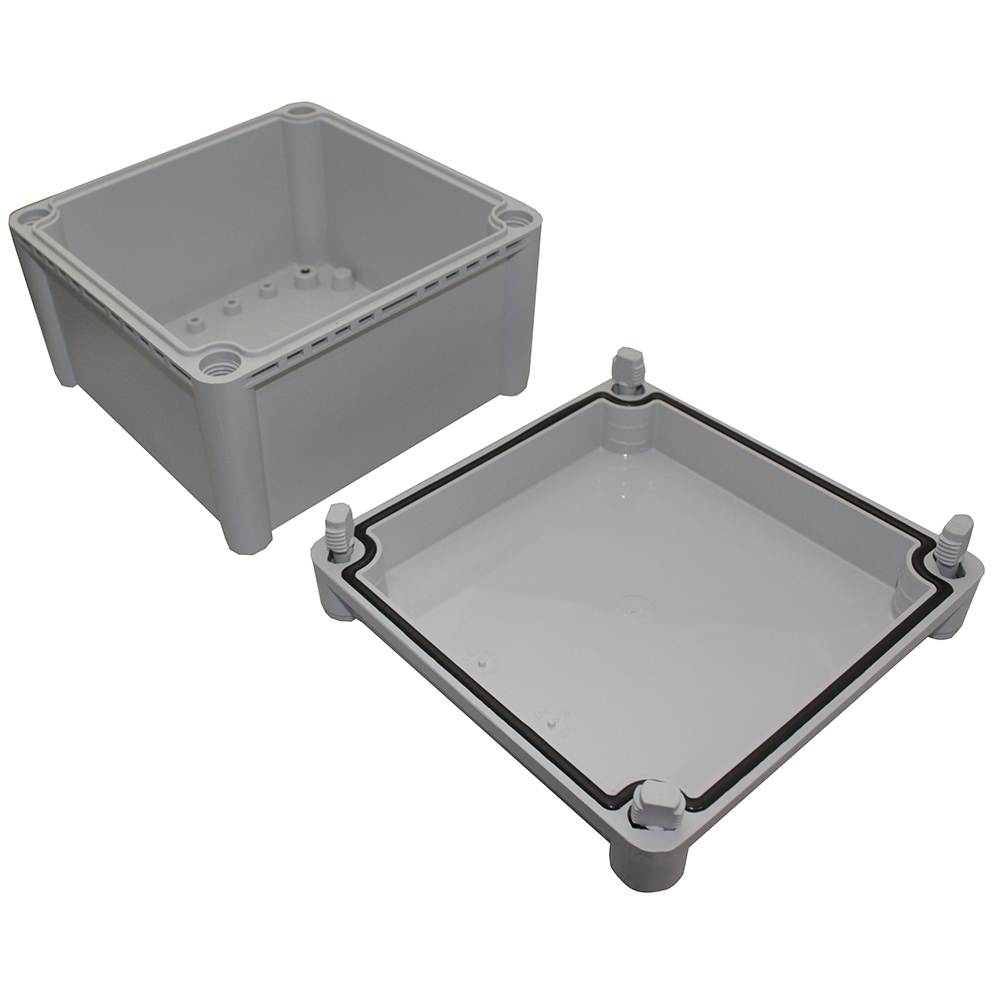

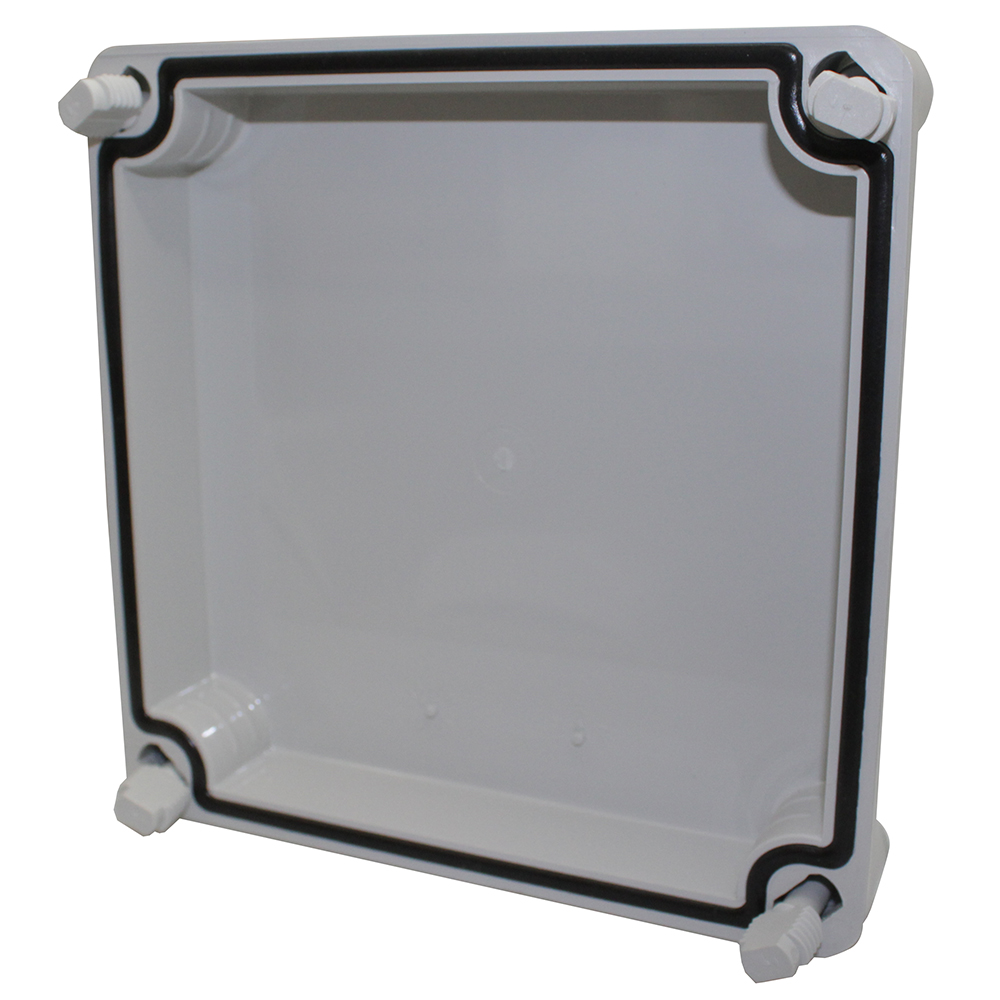

- Gasket supplied with the enclosure
- Clear lid option available

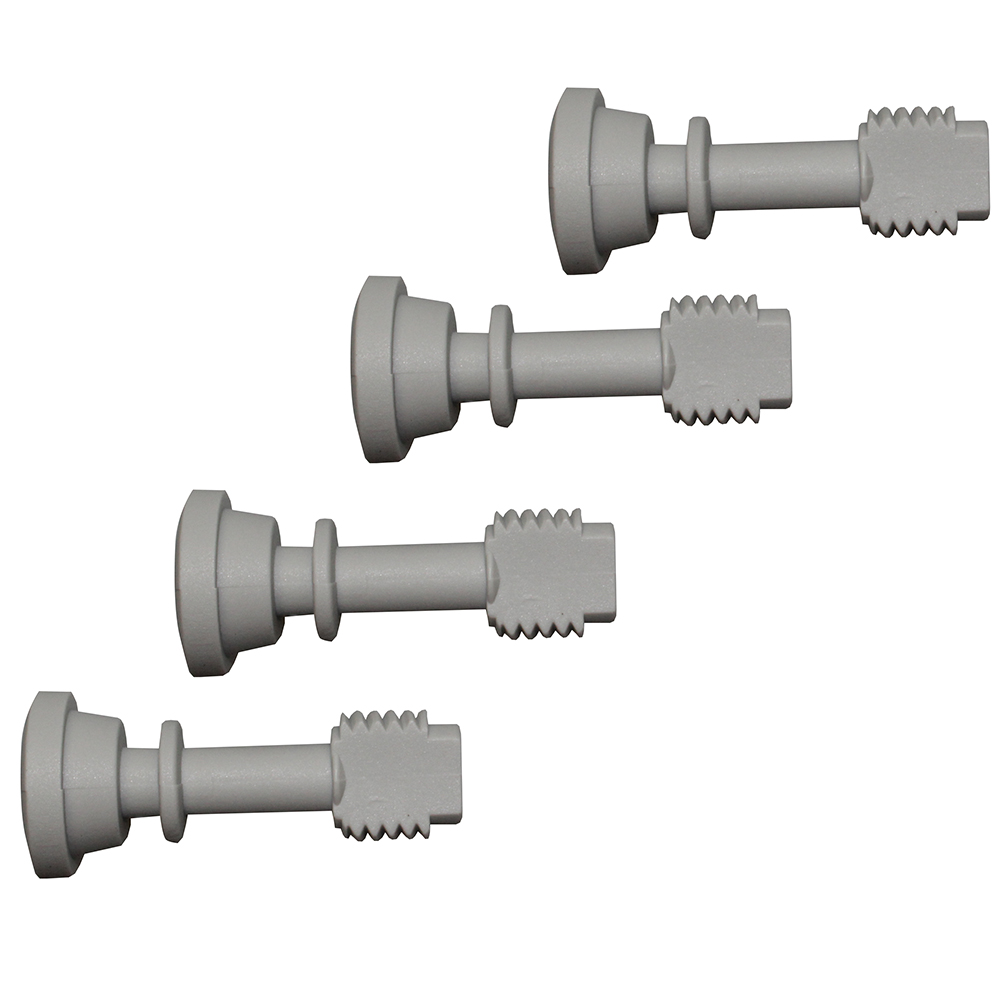

- Captive, polyamide screws included

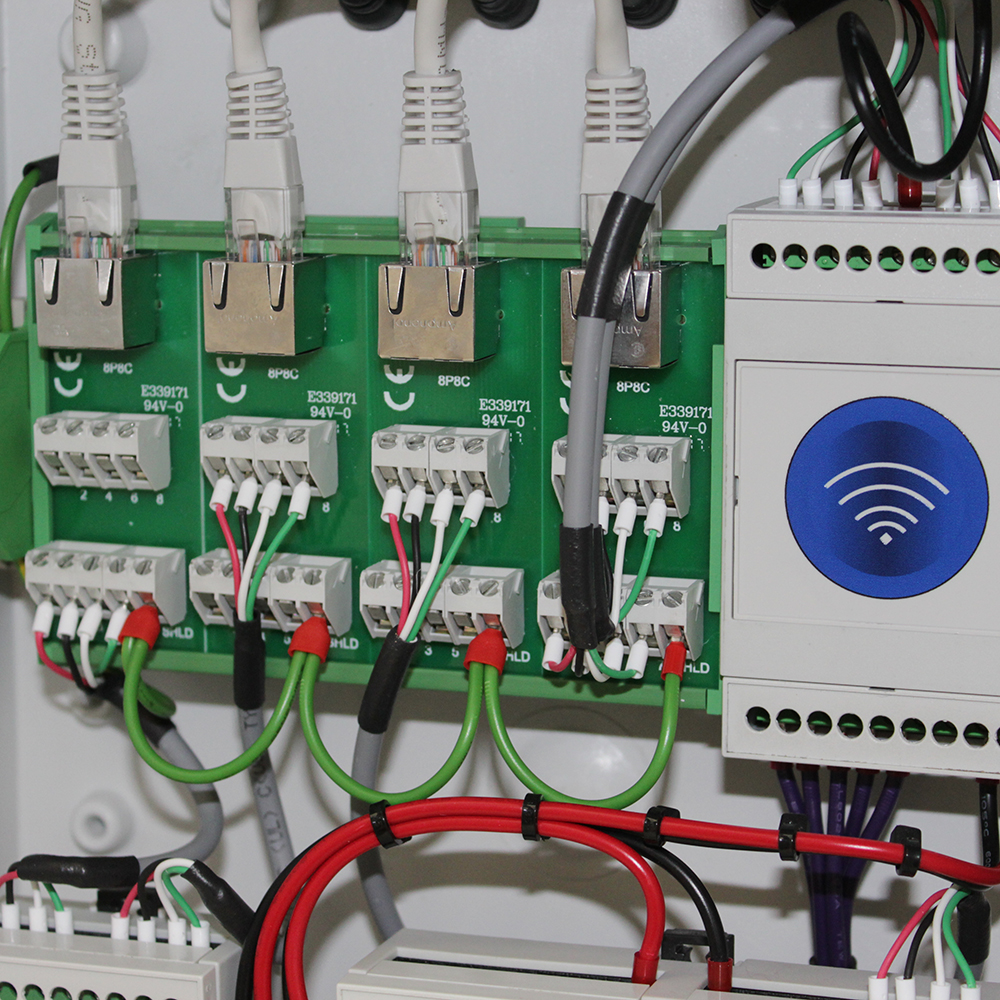

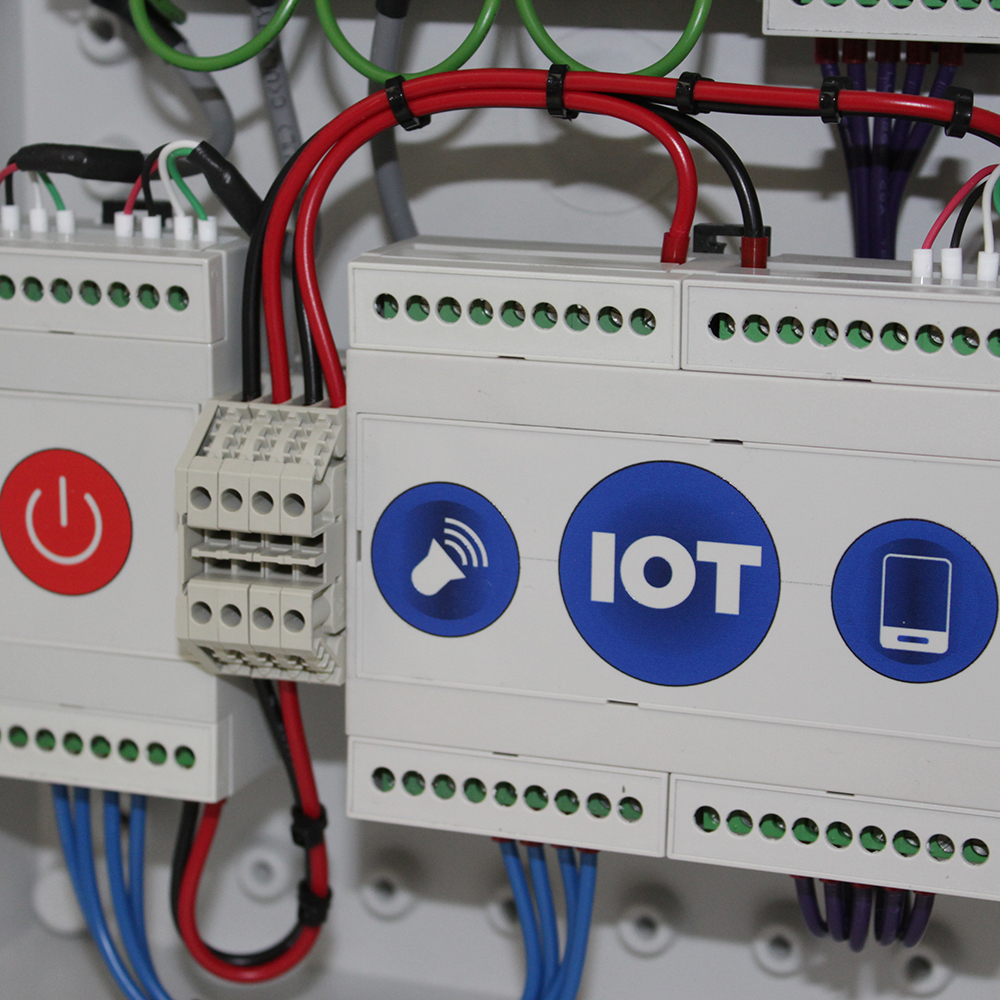

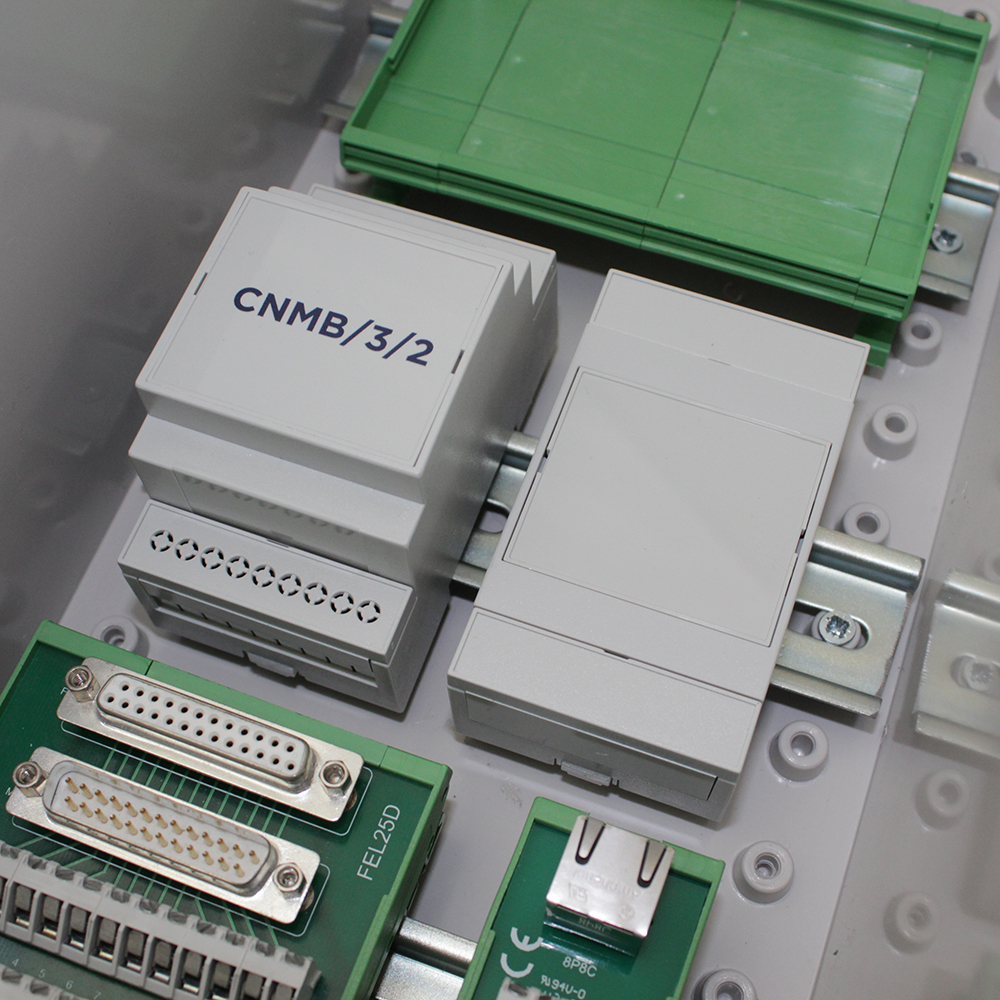

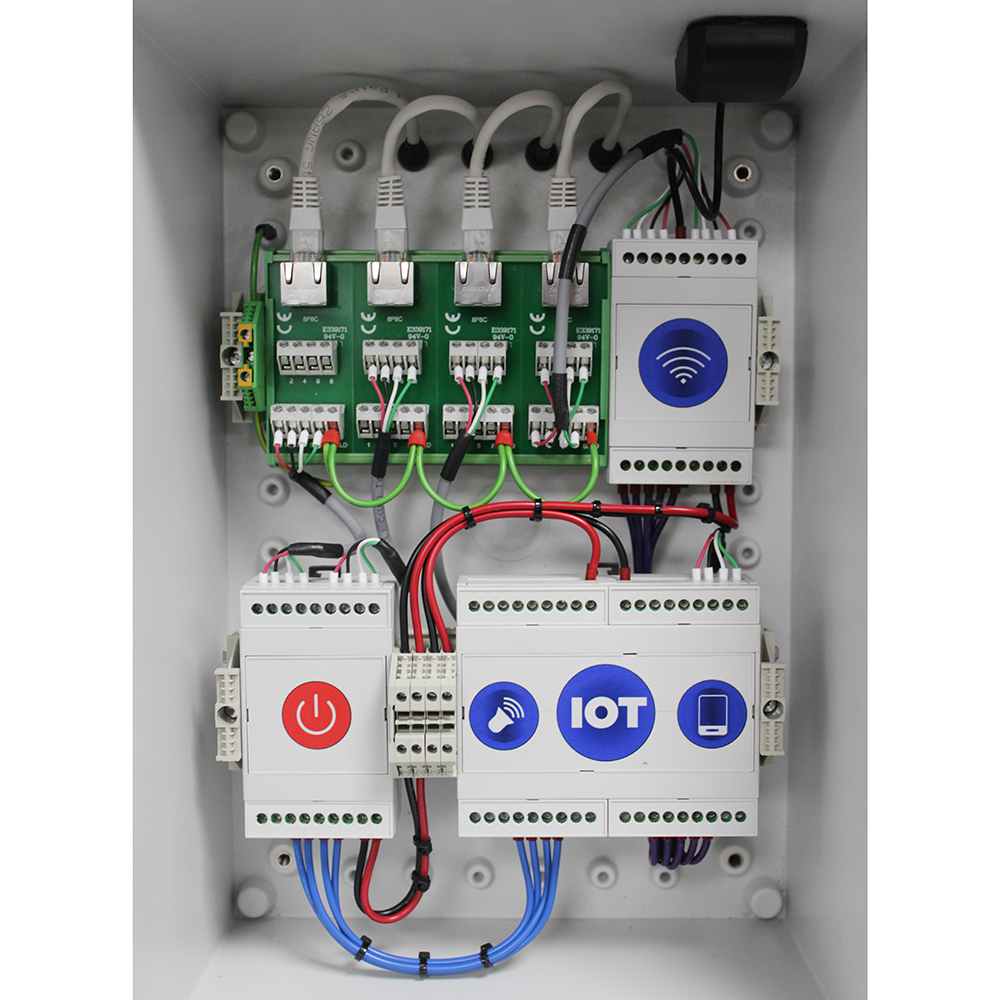

- Recently used to control automotive assembly lines as a control panel enclosure
| External Length (mm) | 190 |
| External Width (mm) | 190 |
| External Height (mm) | 130 |
| Internal Length (mm) | 165 |
| Internal Width (mm) | 165 |
| Internal Height (mm) | 117 |
| Weight (G) | 726 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | IK08 |
| IP Rating | IP67 |

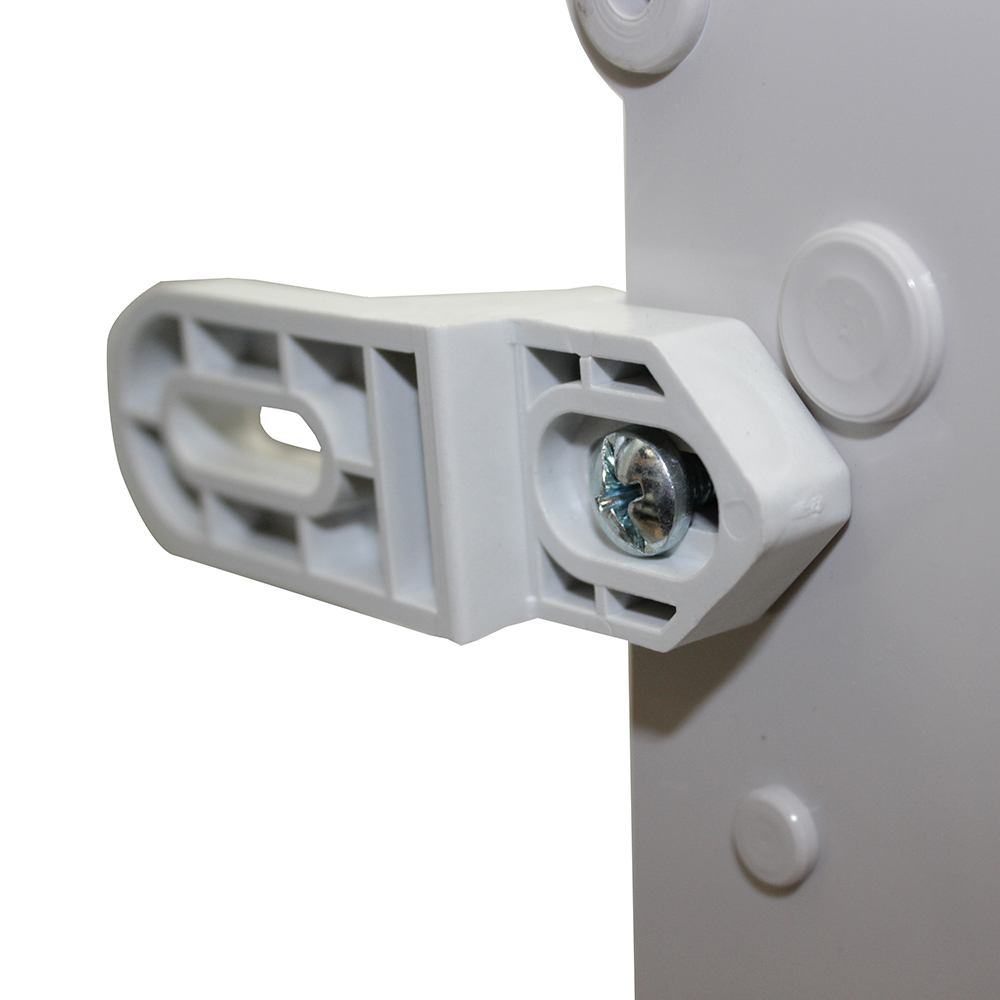

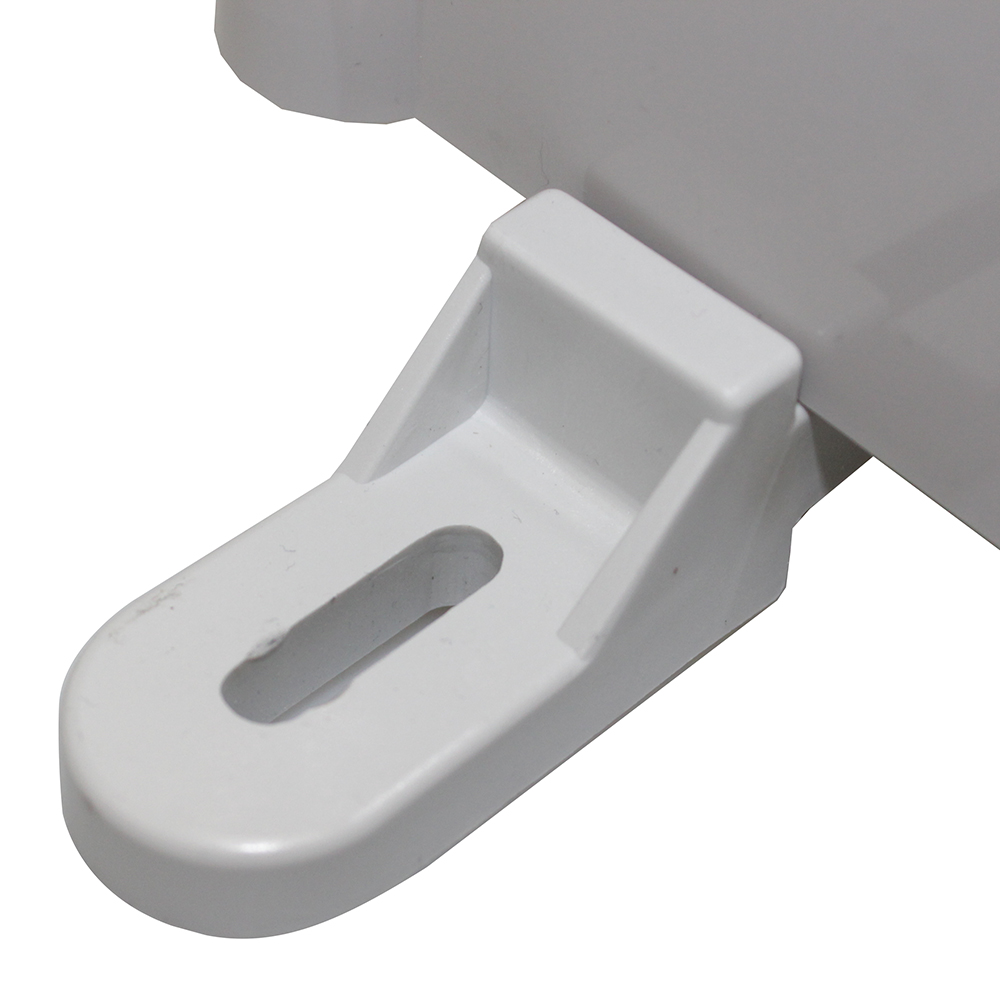

| Wall Mount | Yes |
| Operating Temperature | -40 Deg C to 70 Deg C |
| Brand | CamdenBoss |
| Size | 190x190x130 |
| Development Board | N/A |
X7 series heavy duty enclosure

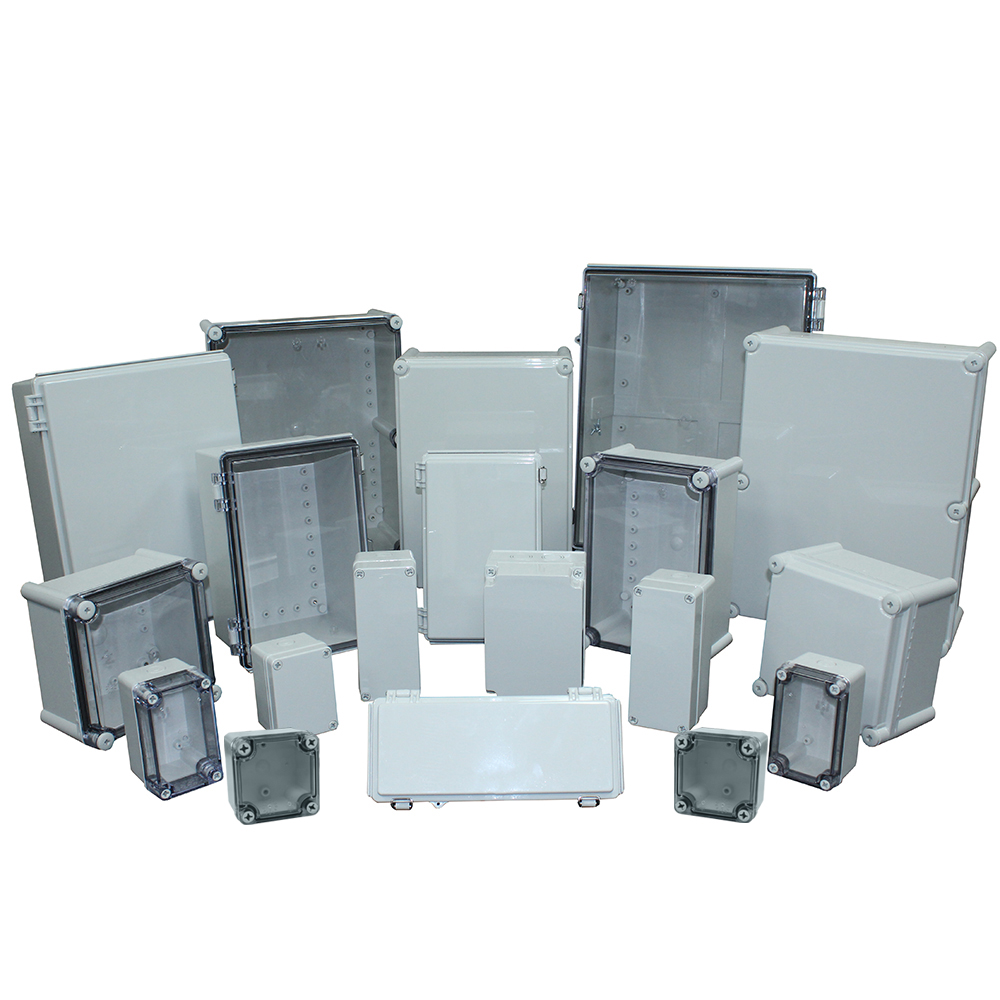

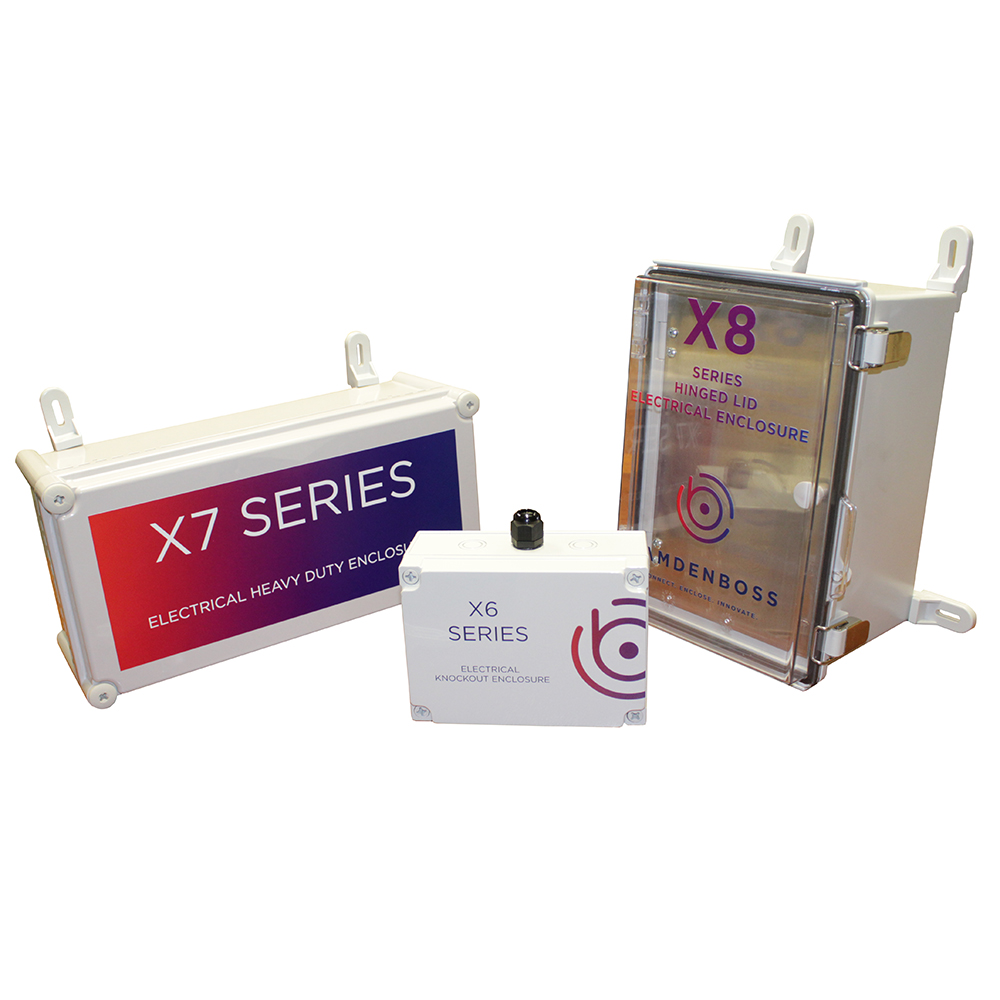

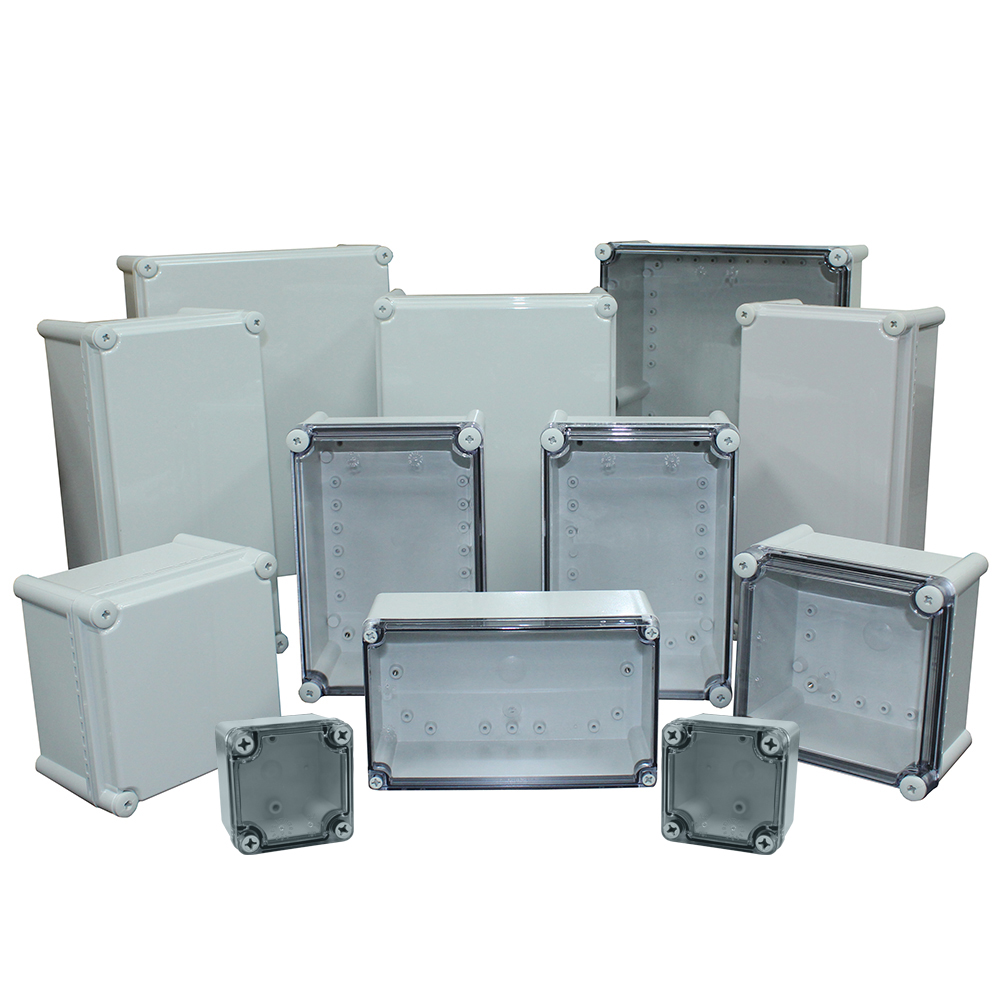

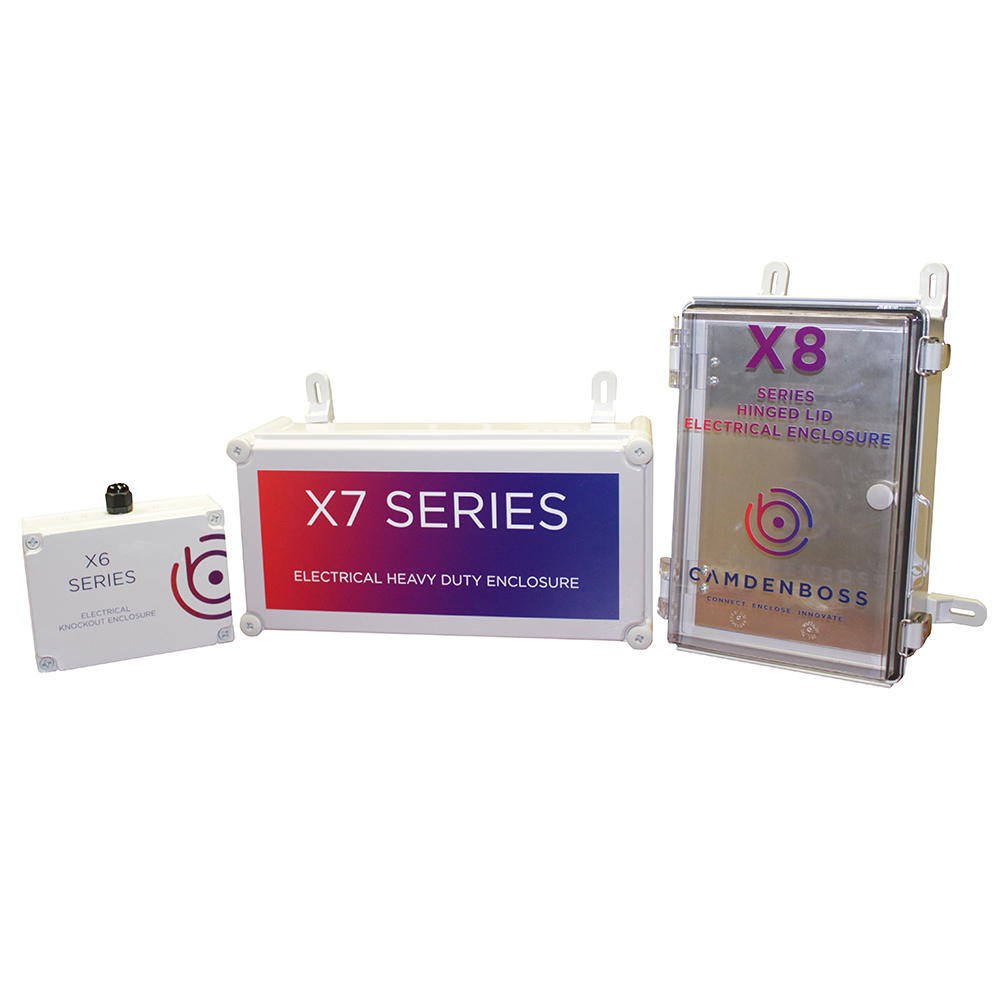

X series range
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
