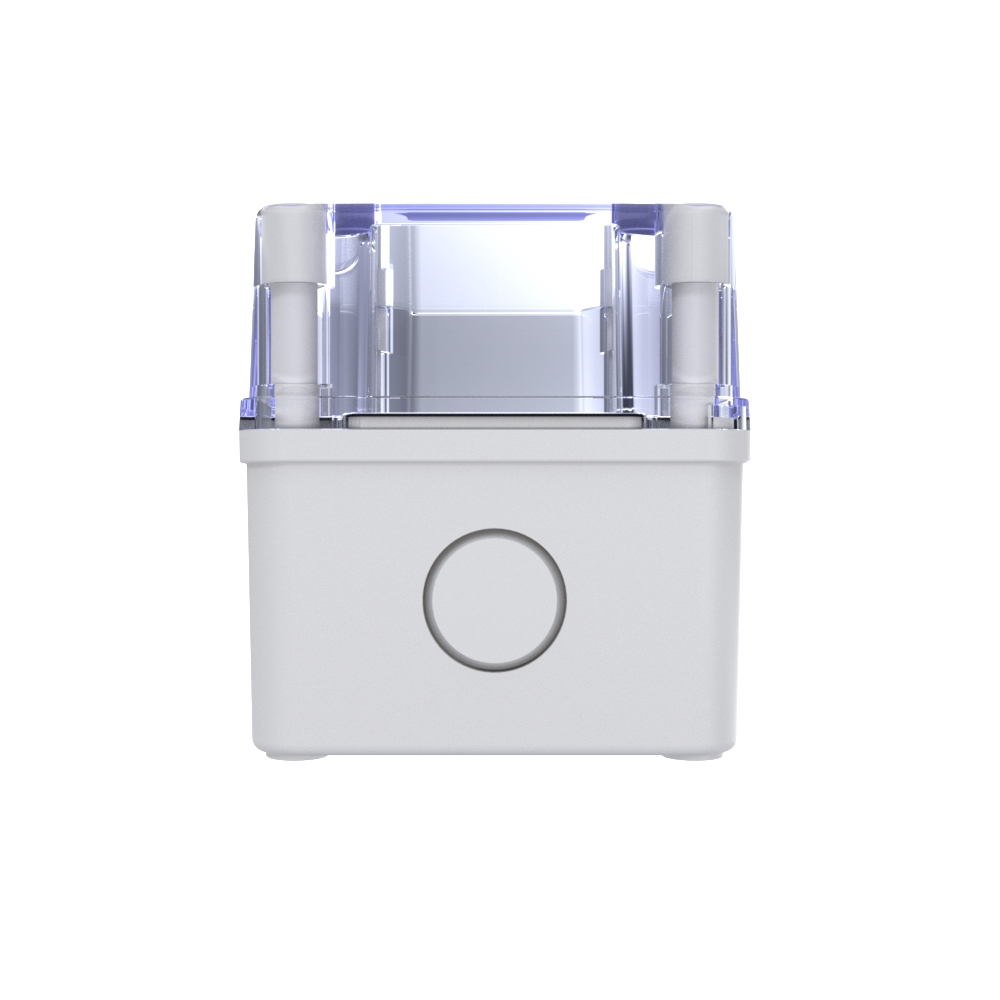

CHDX6-324C - X6 Series IP67 Electrical Knockout Enclosure with Clear Lid, Grey, PC/ABS UL94-HB, 130x80x85mm
IP67 ABS enclosure with a clear lid featuring metric knockouts for cable glands. Metric sized knockouts allow for conduit entry providing the ideal industrial enclosure solution 130x80x85
- X6 series has been designed to meet the requirements of IP67
- IK07/08 impact tested
- Screw type lid with knock out base
- Moulded in high quality ABS
- PCB pillars in the base for PCB mounting
- Gasket supplied with the enclosure
- Solid lid option available
- Captive, polyamide screws included
- Suitable for sensor enclosure, monitoring equipment enclosures and junction boxes
- IIoT enclosure ready
| External Length (mm) | 130 |
| External Width (mm) | 80 |
| External Height (mm) | 85 |
| Weight (G) | 263 |
| Base Material | Plastic |
| Material Type | PC/ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | IK08 |
| IP Rating | IP67 |
| Wall Mount | Yes |
| Transparent Lid | Yes |
| Operating Temperature | -40 Deg C to 70 Deg C |
| Brand | CamdenBoss |
| Size | 130x80x85 |
| Development Board | N/A |
X6 series heavy duty enclosure
X series range
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
