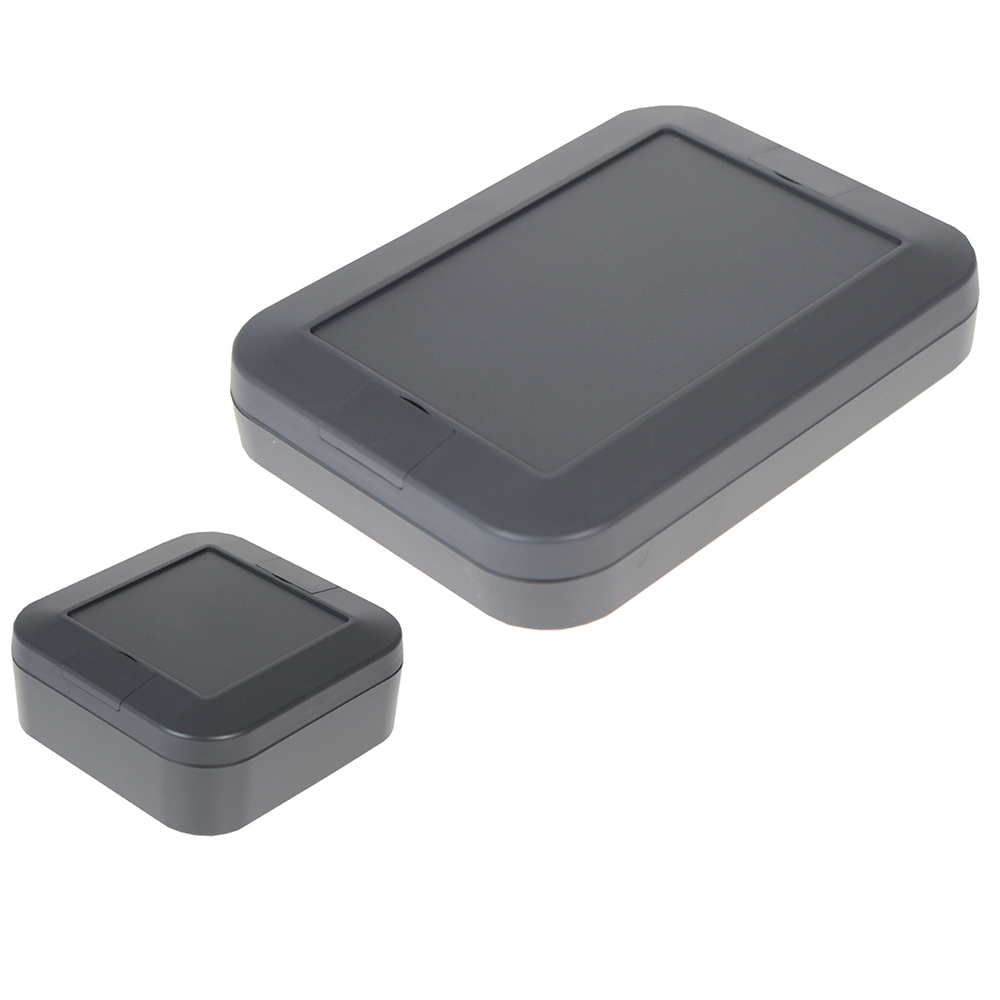

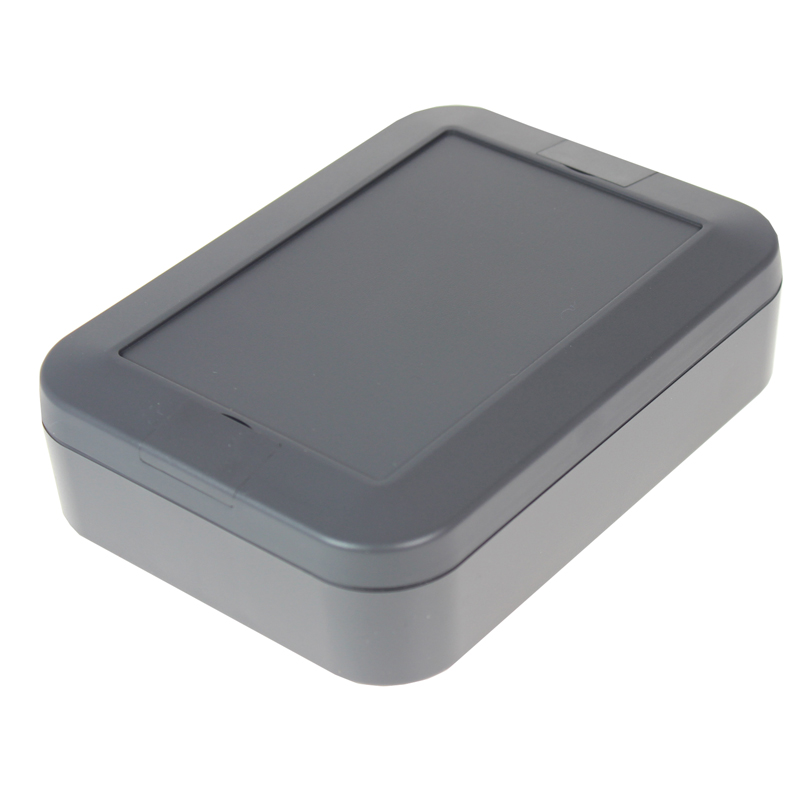

CHD91E6DG - 91 Series IP67 Low Profile Enclosure, Dark Grey, ABS UL94-V0, 150x110x40mm

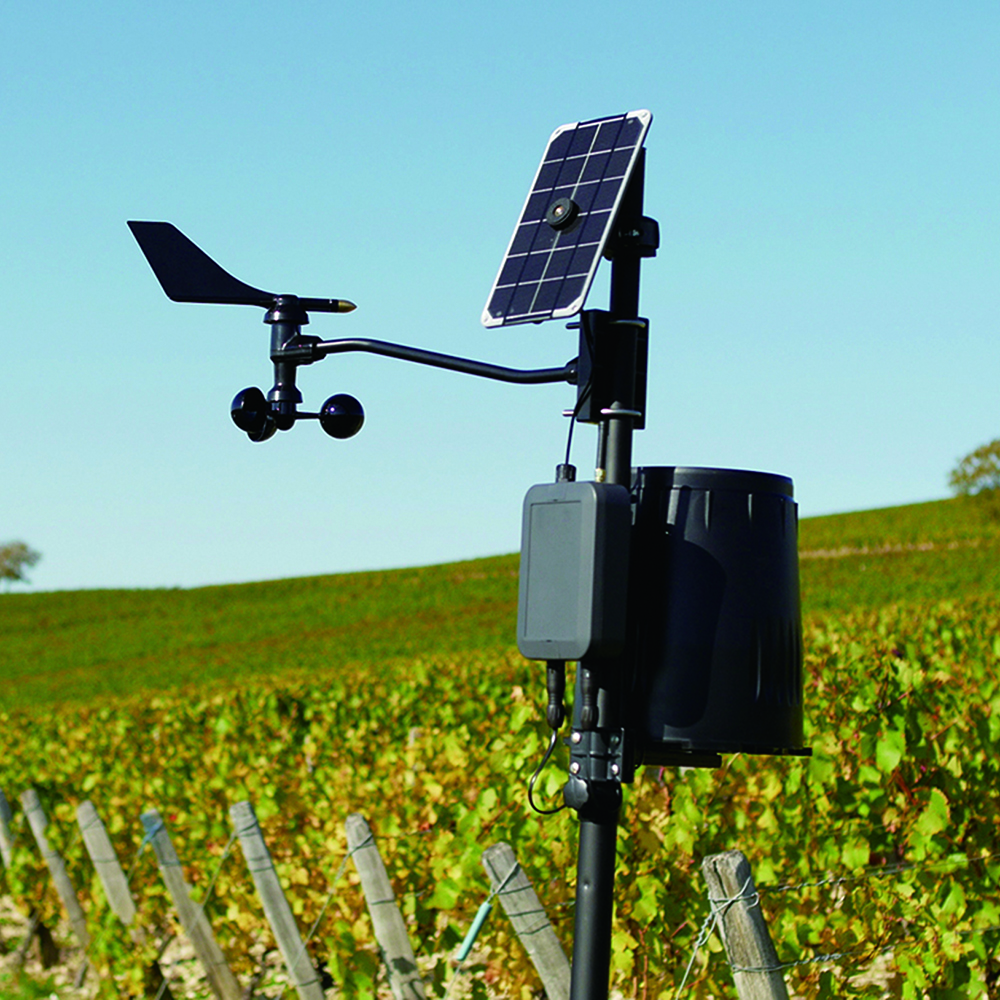

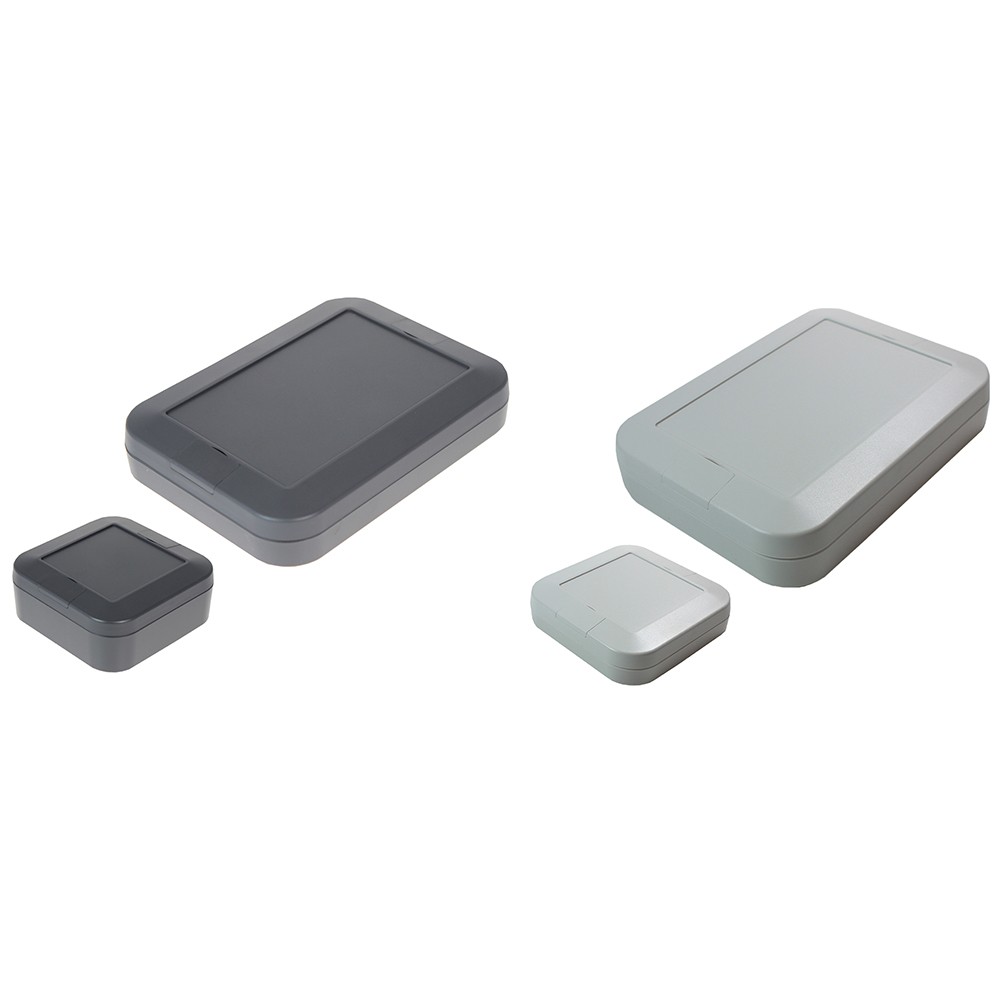

91 Series Low Profile Enclosure in ABS or ASA material is IP67 waterproof and deal for outdoor networking applications, pole mount bracket available to order.
- IP67 rated, perfect for outdoor applications
- White enclosures made from ASA UL94-HB plastic for high ultraviolet resistance
- Dark Grey enclosures made from ABS UL94-V0 plastic for high flammability rating

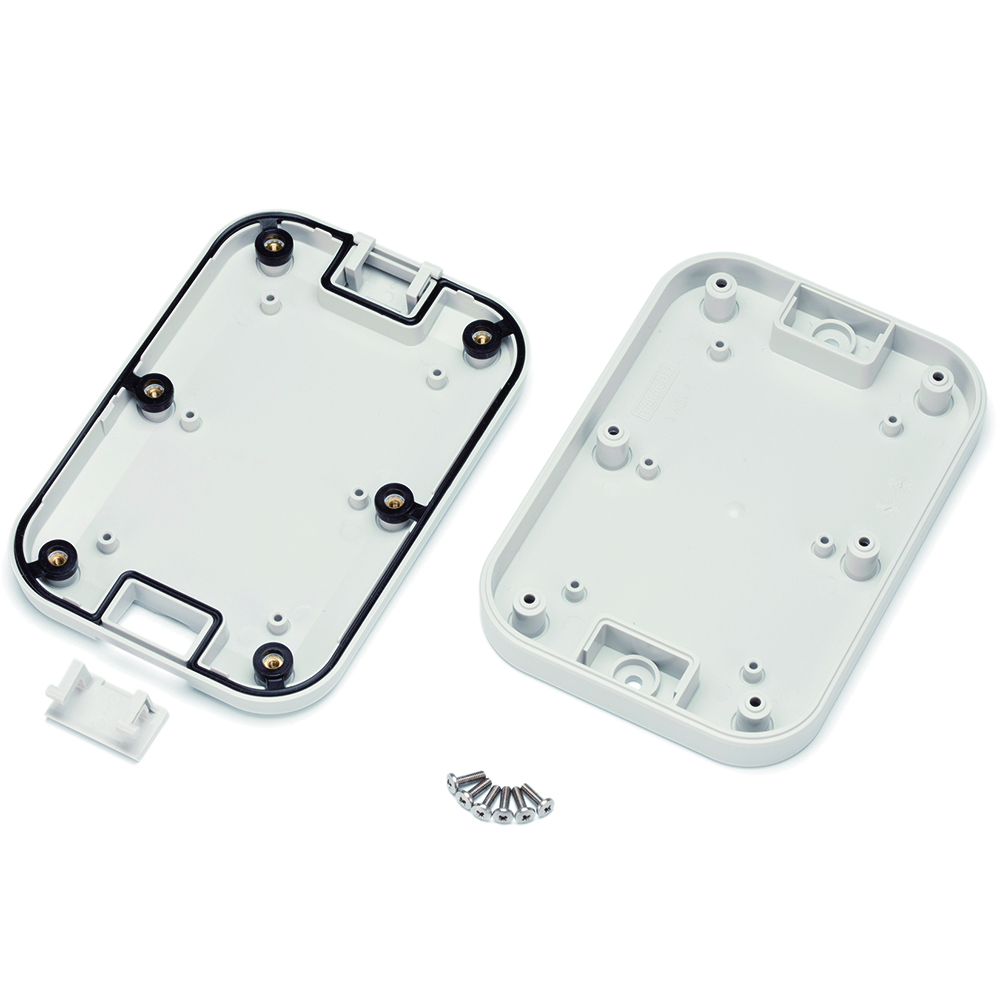

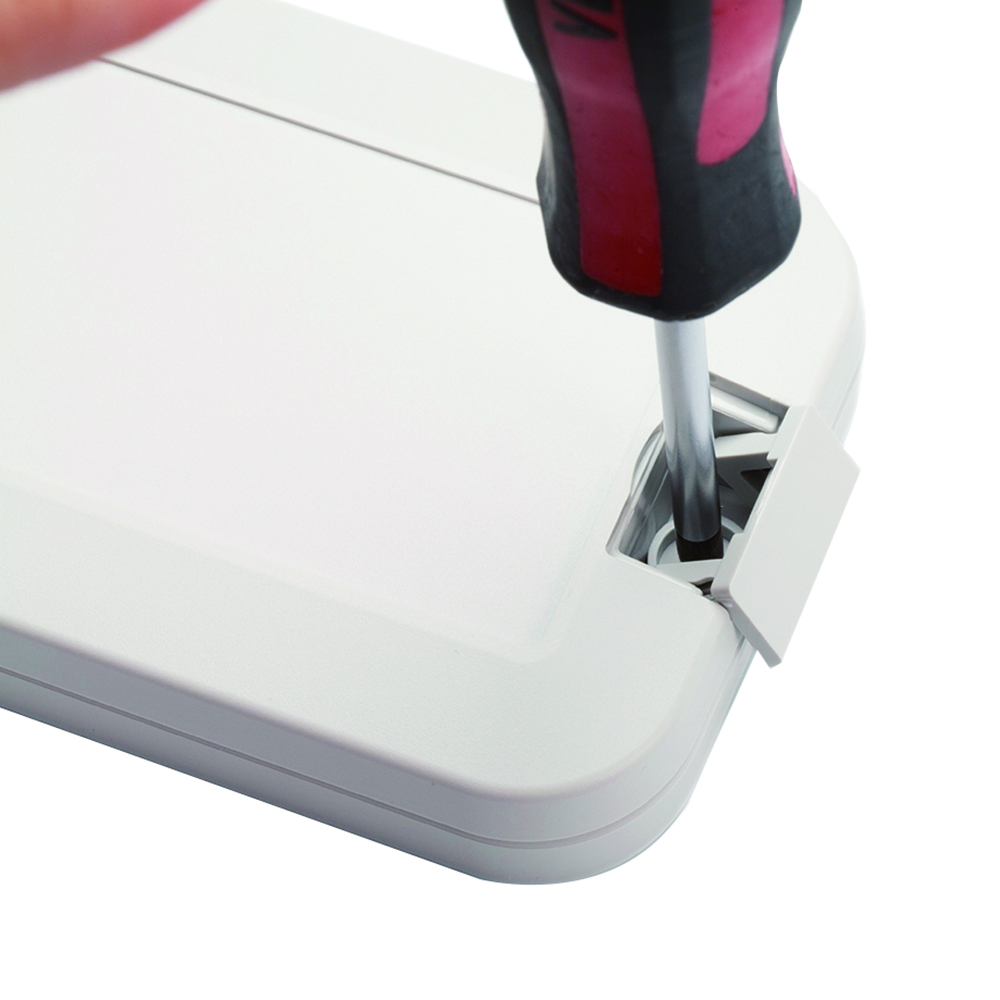

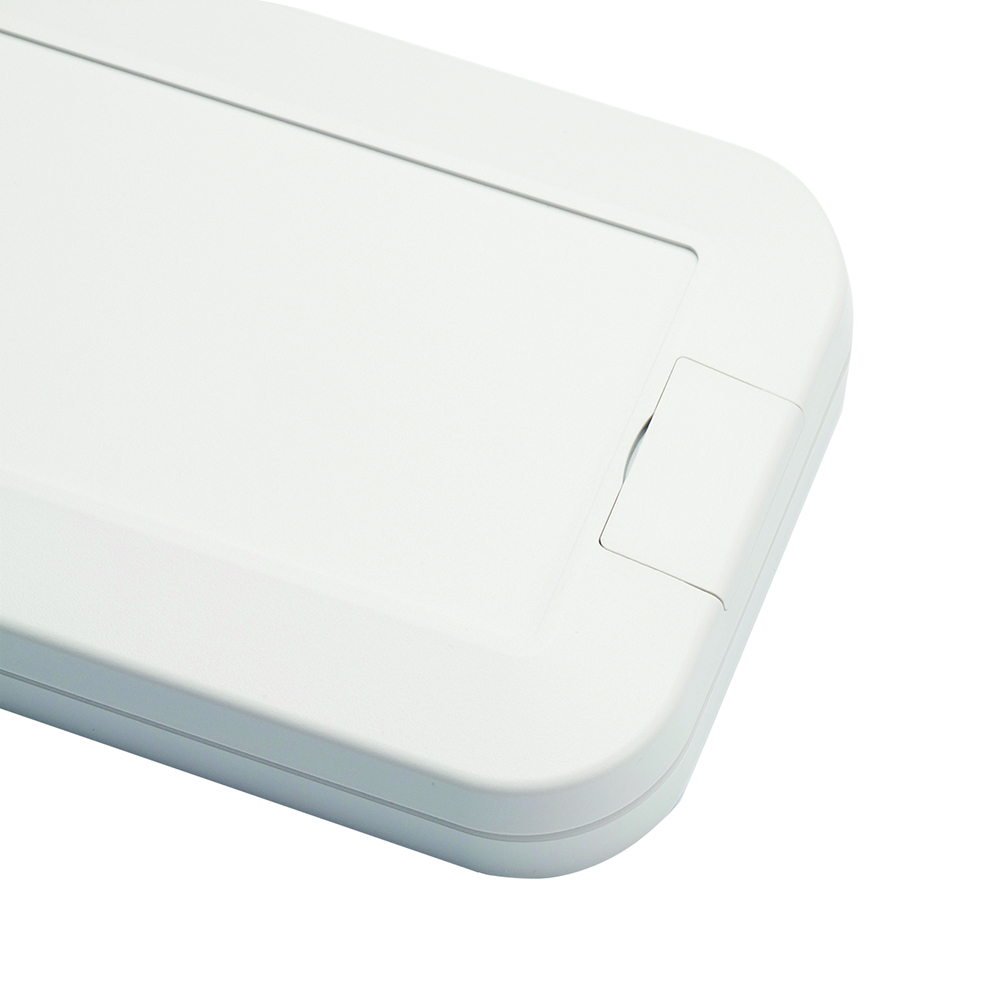

- Wall mount holes behind hinged caps for superior aesthetic finish

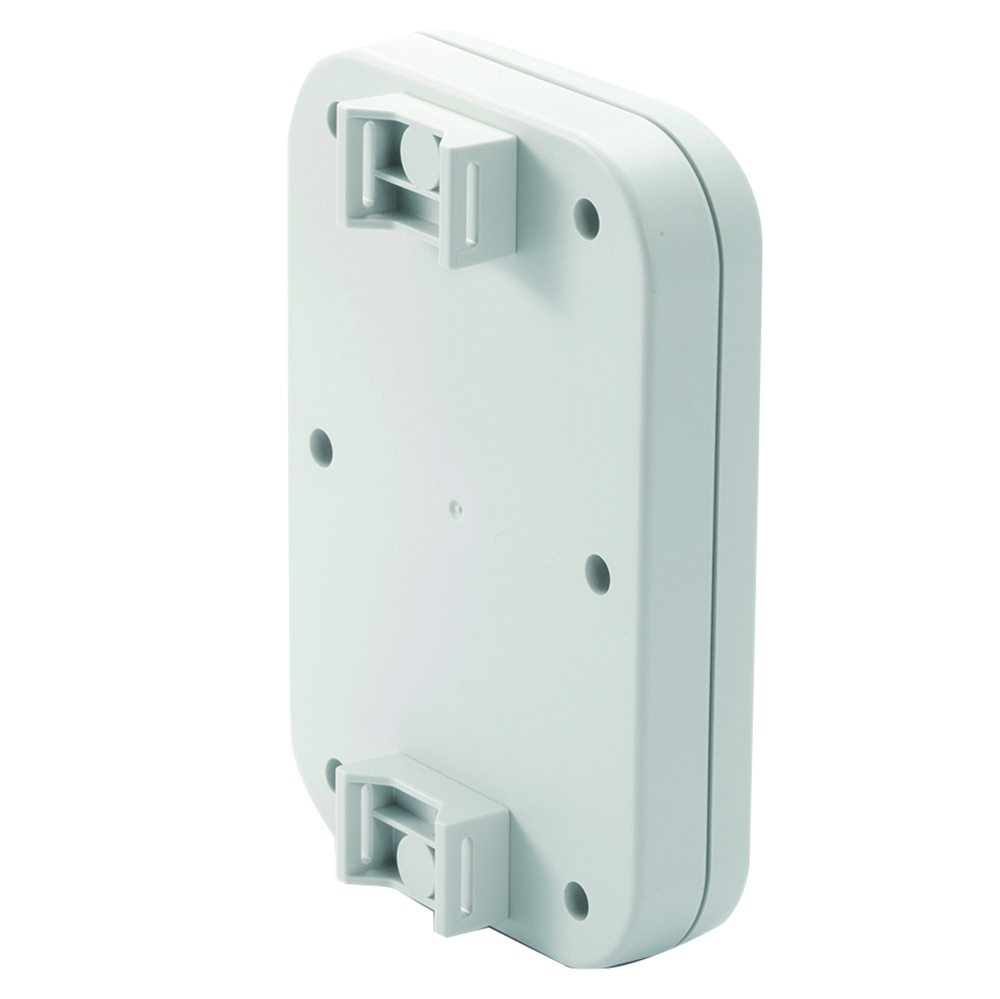

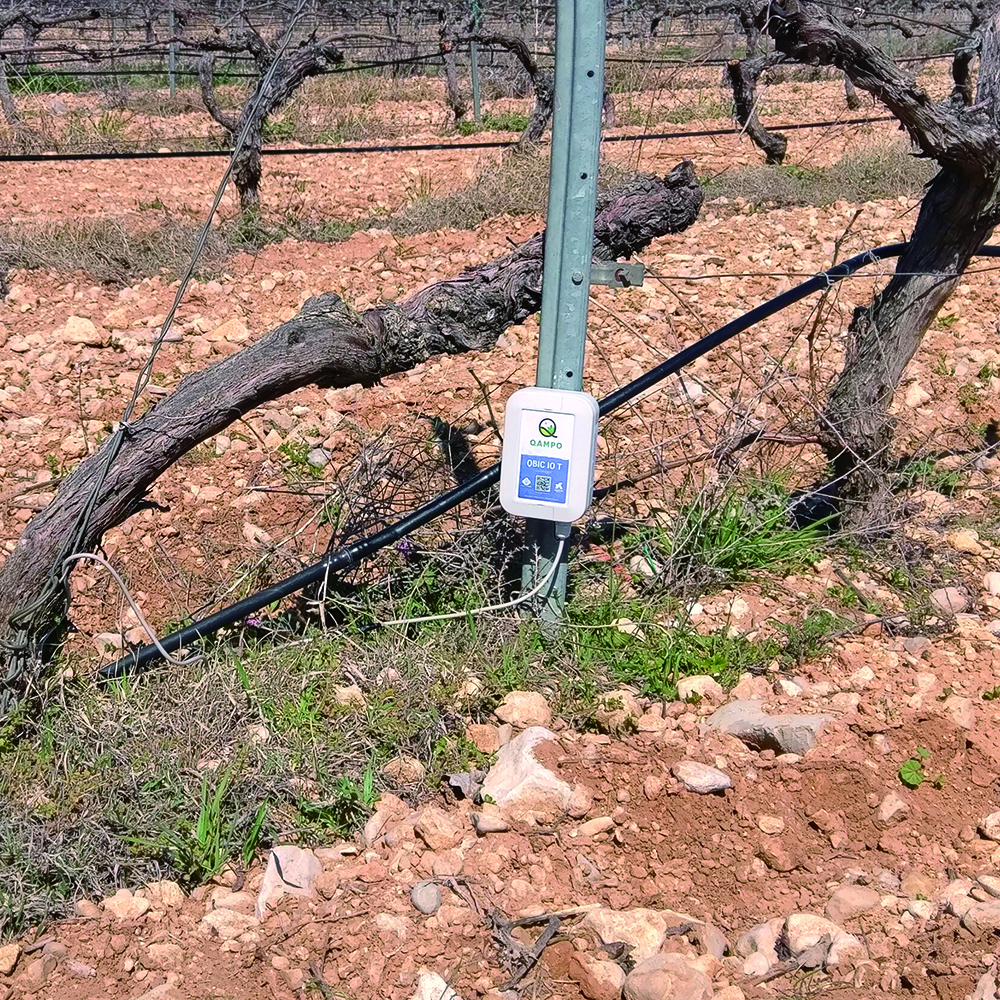

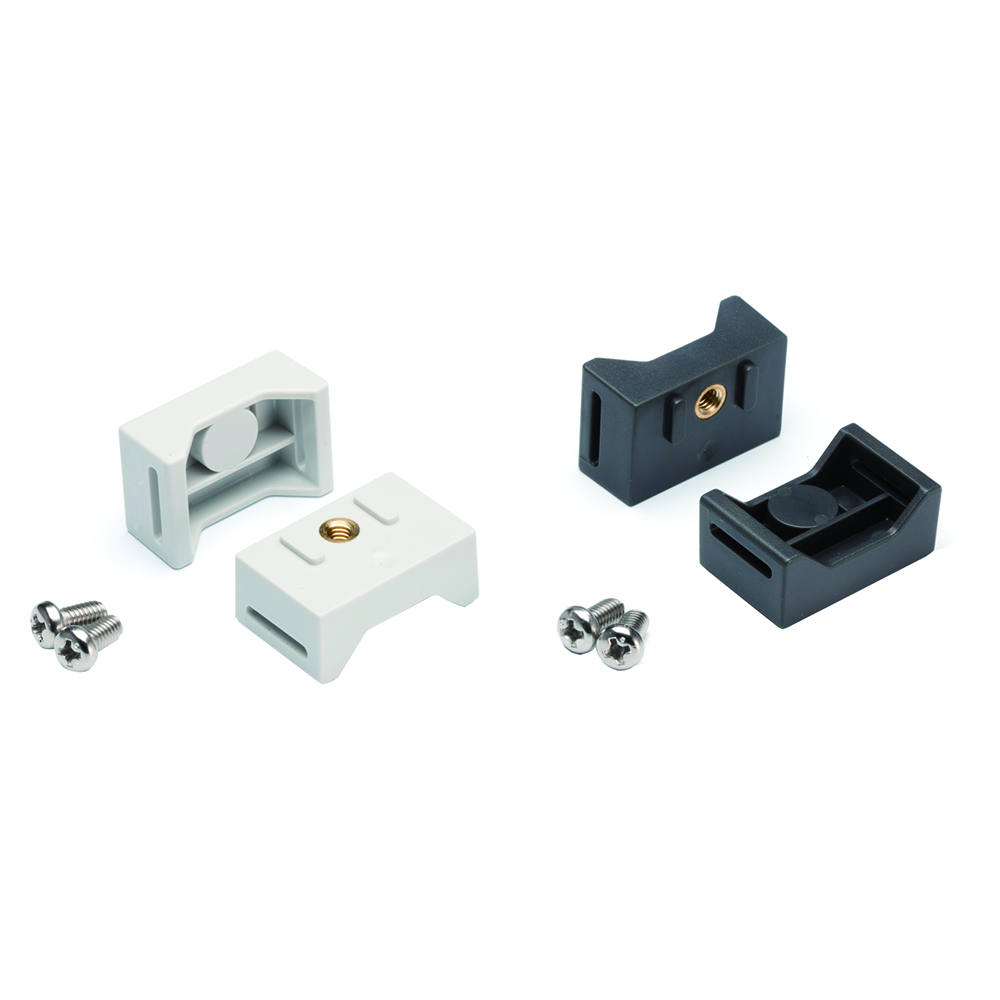

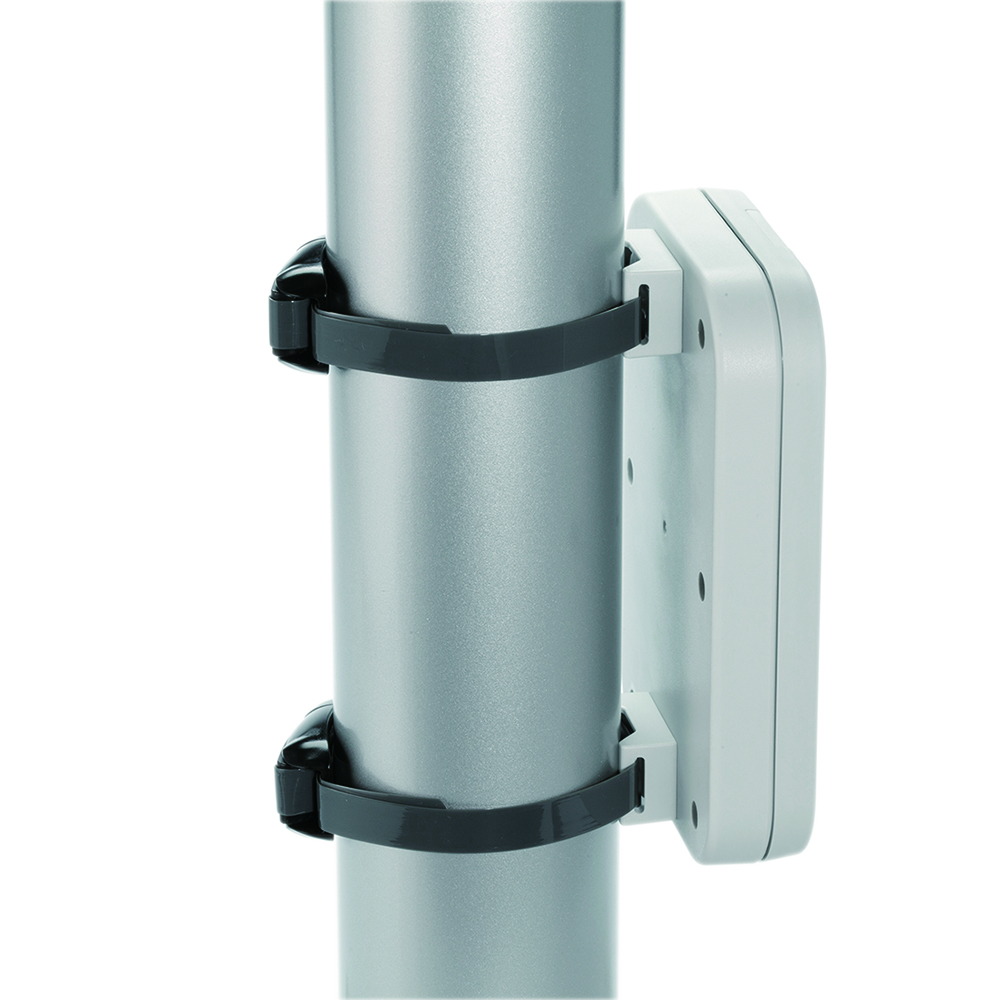

- Mounting kit accessory for easy mounting to poles, pillars, posts and lamp posts
| External Length (mm) | 150 |
| External Width (mm) | 110 |
| External Height (mm) | 40 |
| Internal Length (mm) | 100 |
| Internal Width (mm) | 68 |
| Internal Height (mm) | 28 |
| Weight (G) | 181 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Dark Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP67 |
| Operating Temperature | - 10 Deg C to 50 Deg C |
| Brand | Takachi |
| Size | 150 x 110 x 40 |
| Development Board | N/A |
| Pole Mount | Yes |
| Country Of Origin | Viet Nam |
