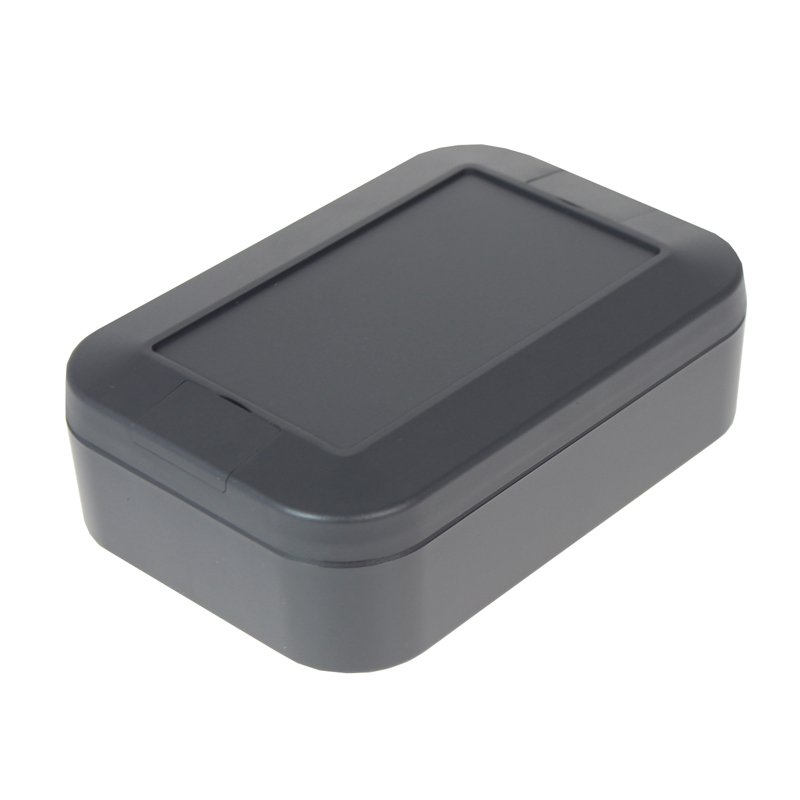

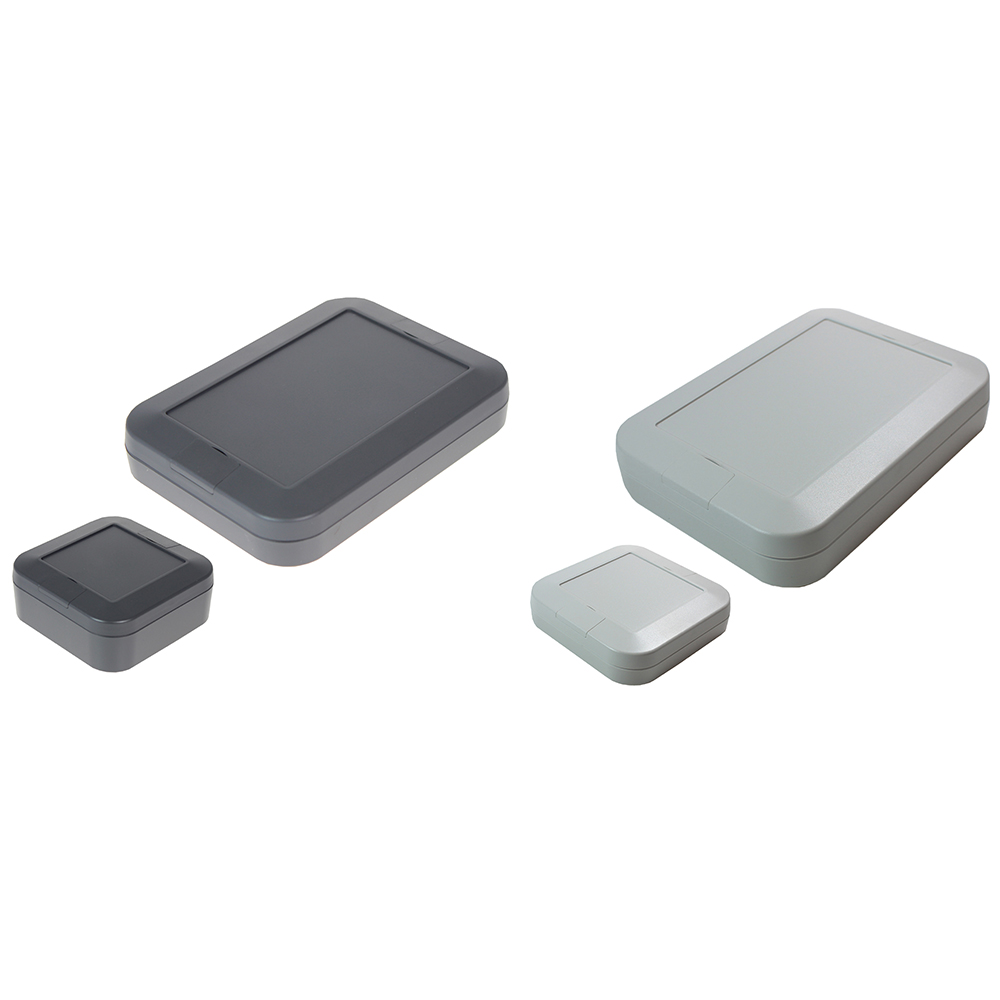

CHD91E2DG - 91 Series IP67 Low Profile Enclosure, Dark Grey, ABS UL94-V0, 130x90x40mm

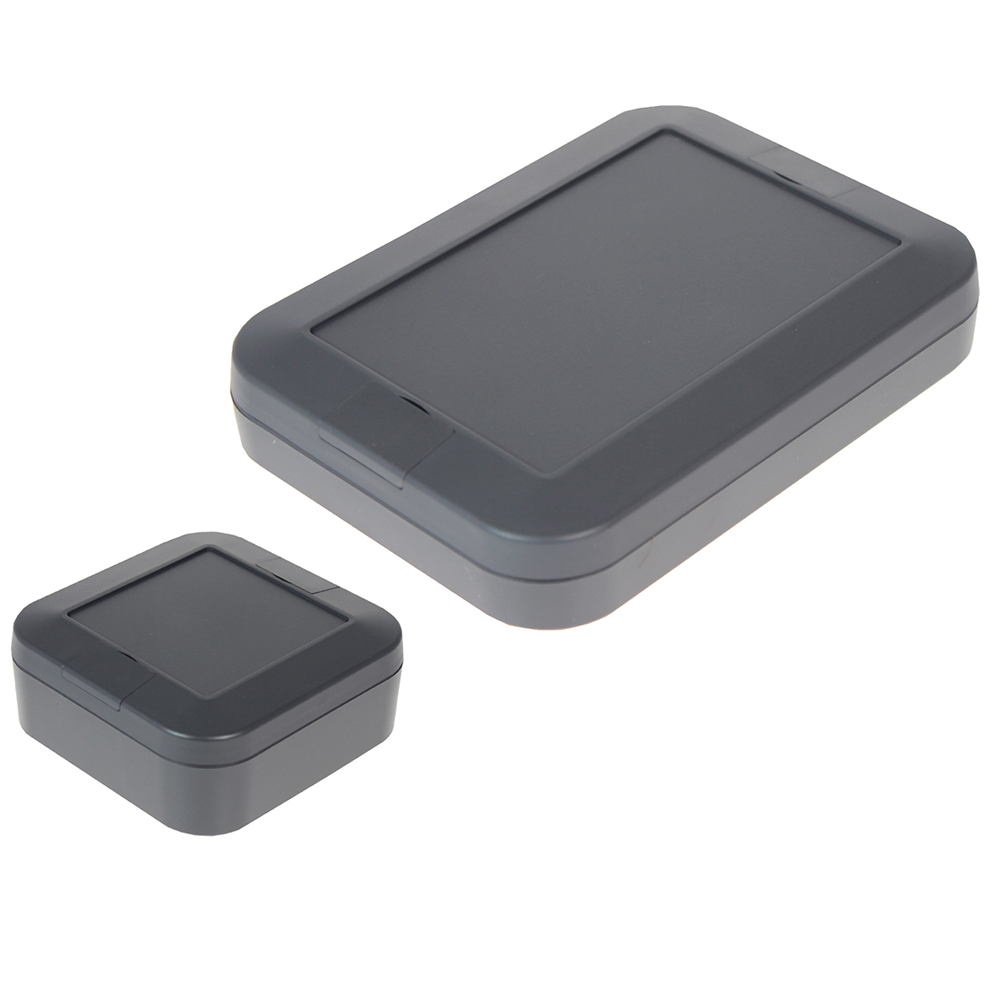

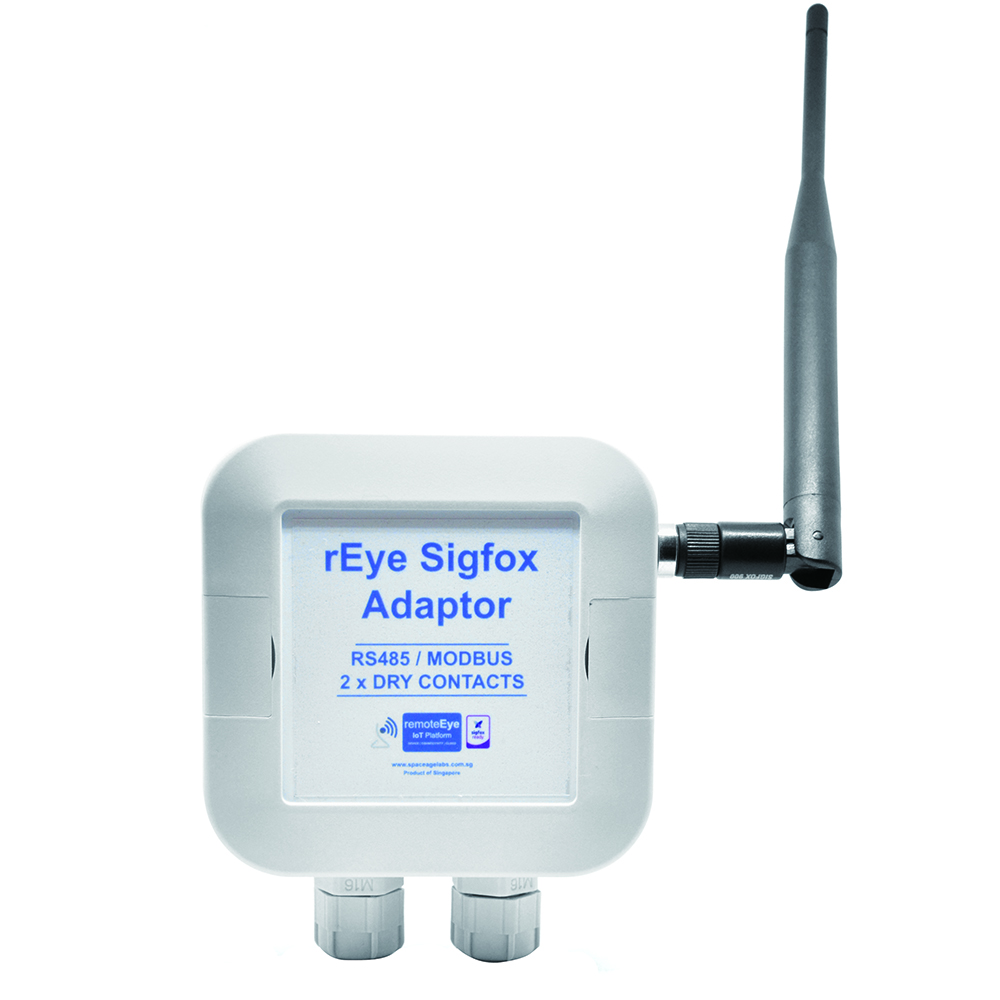

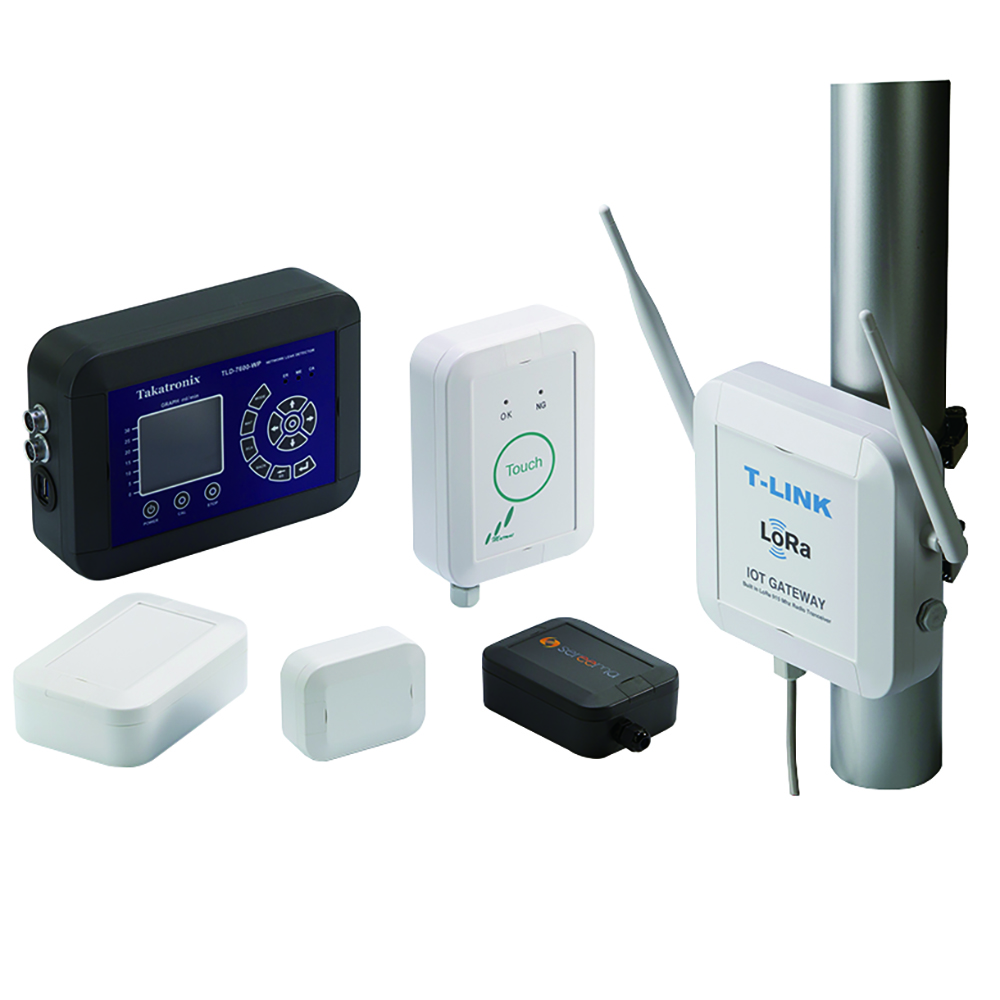

91 Series Low Profile Enclosure in ABS or ASA material is IP67 waterproof and deal for outdoor networking applications, pole mount bracket available to order.

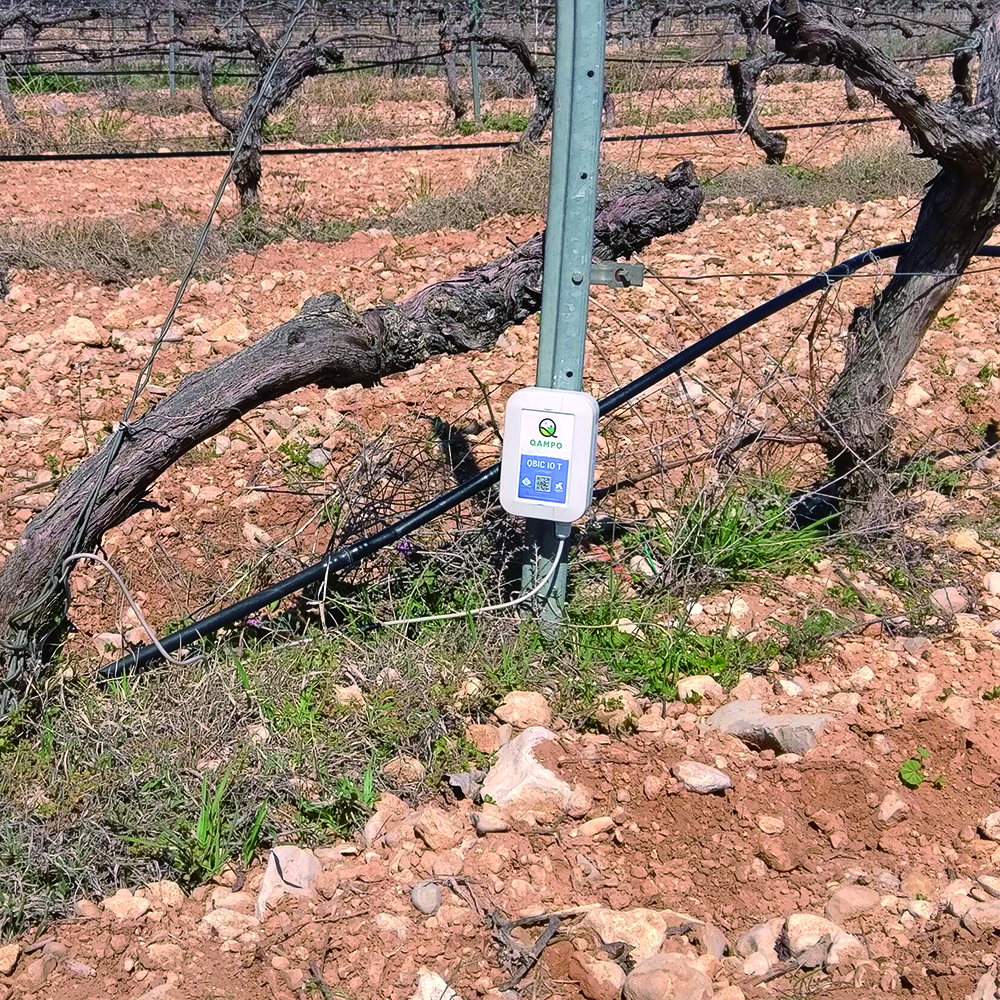

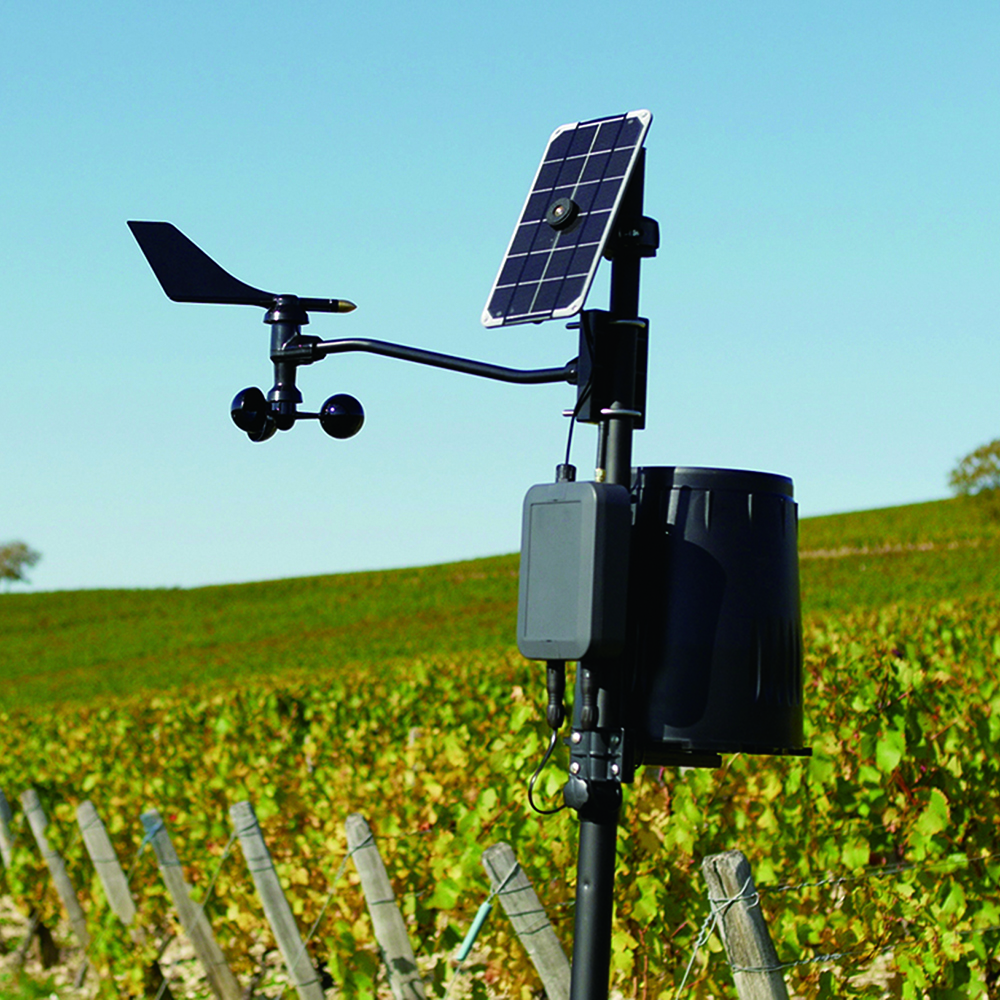

- IP67 rated, perfect for outdoor applications
- White enclosures made from ASA UL94-HB plastic for high ultraviolet resistance
- Dark Grey enclosures made from ABS UL94-V0 plastic for high flammability rating

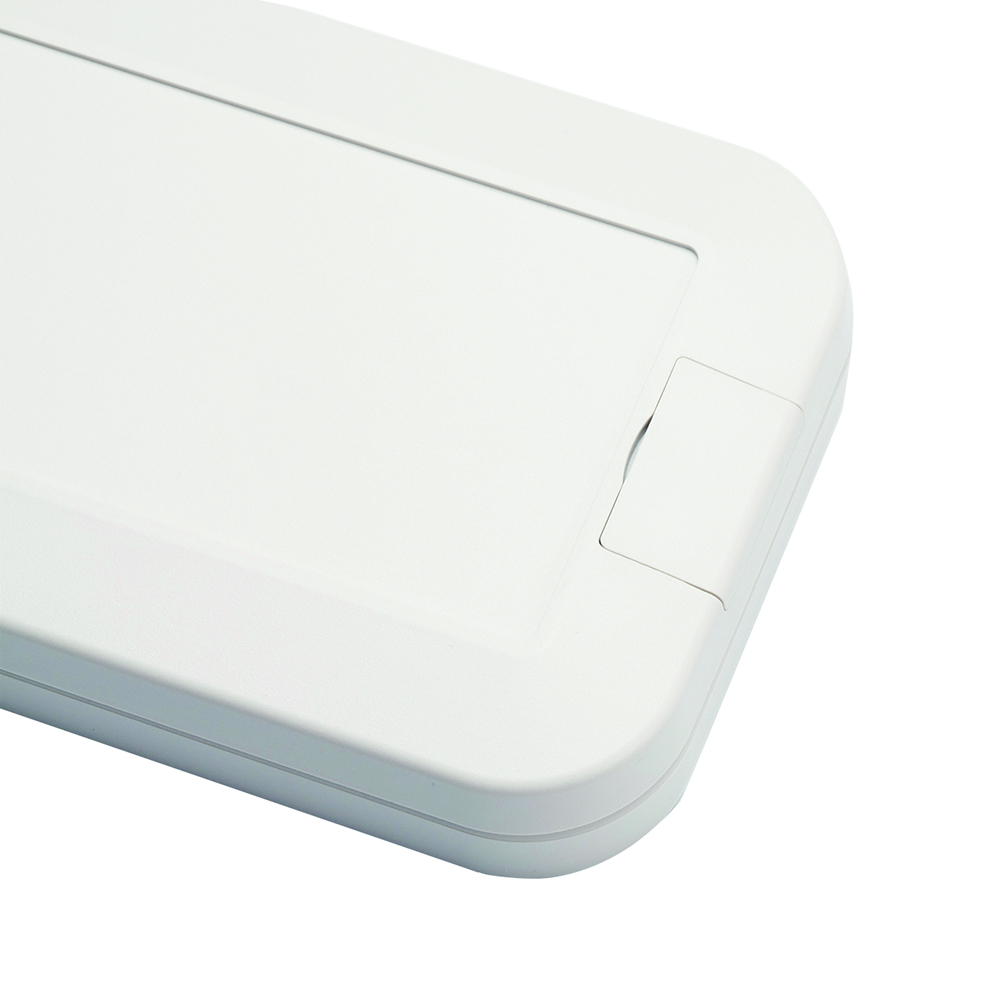

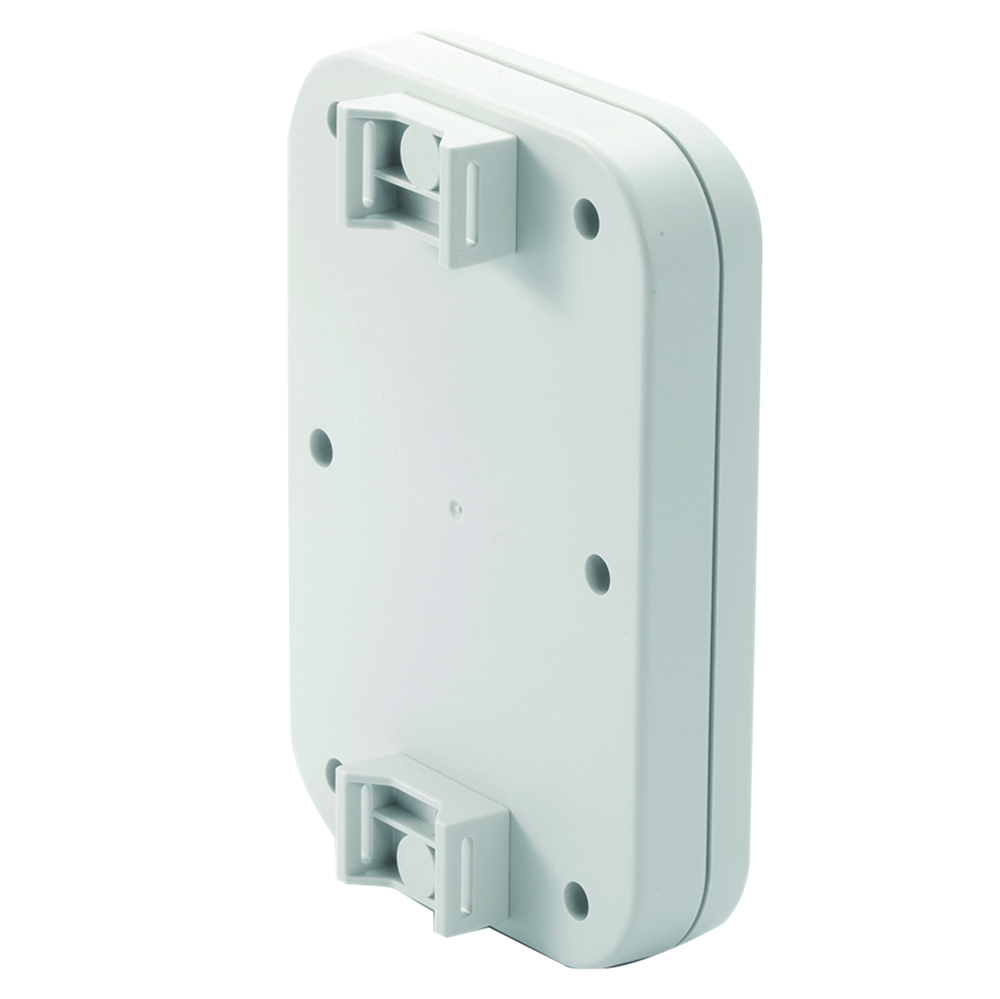

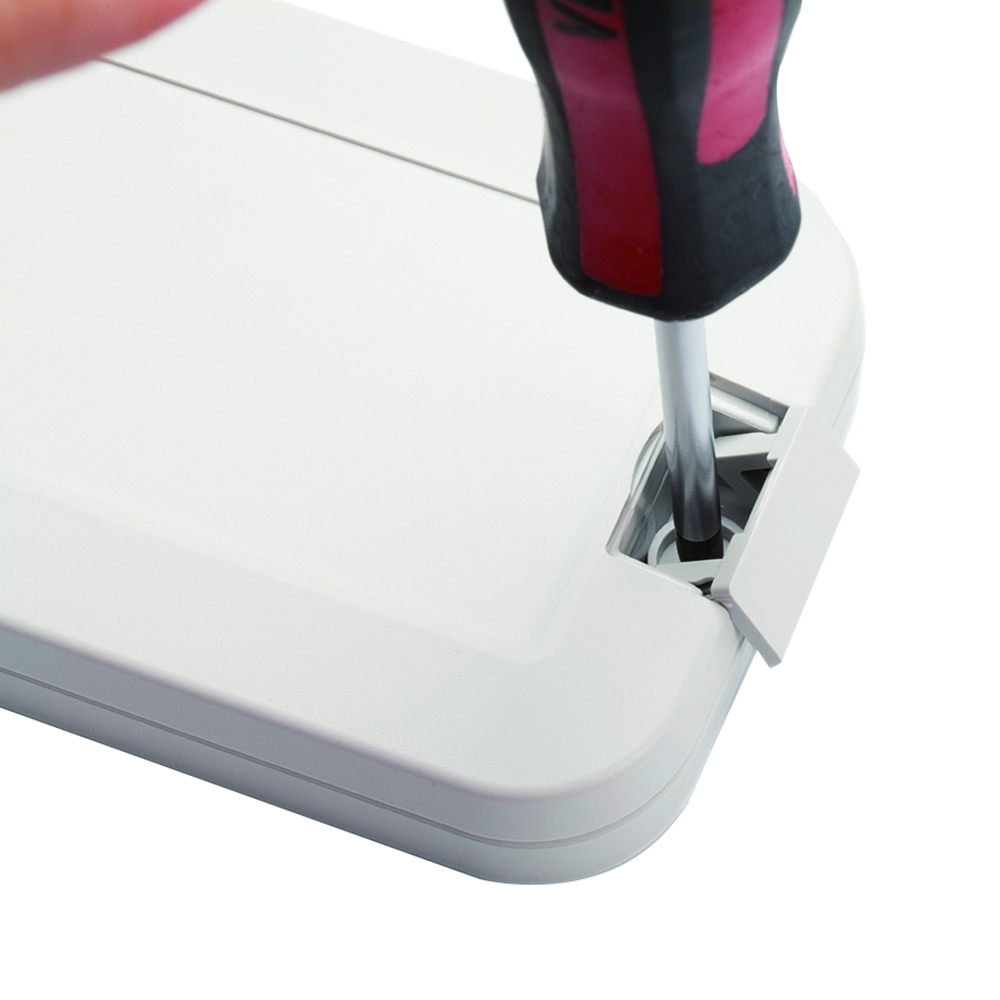

- Wall mount holes behind hinged caps for superior aesthetic finish

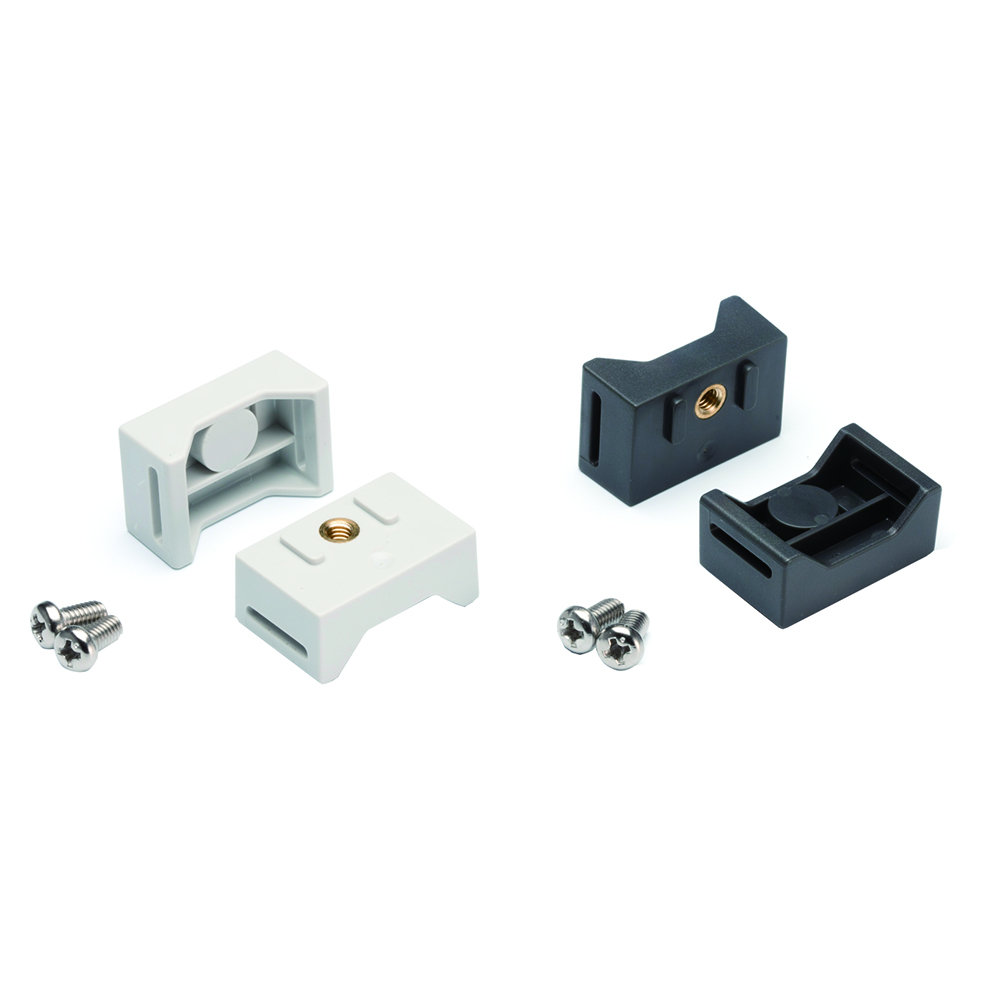

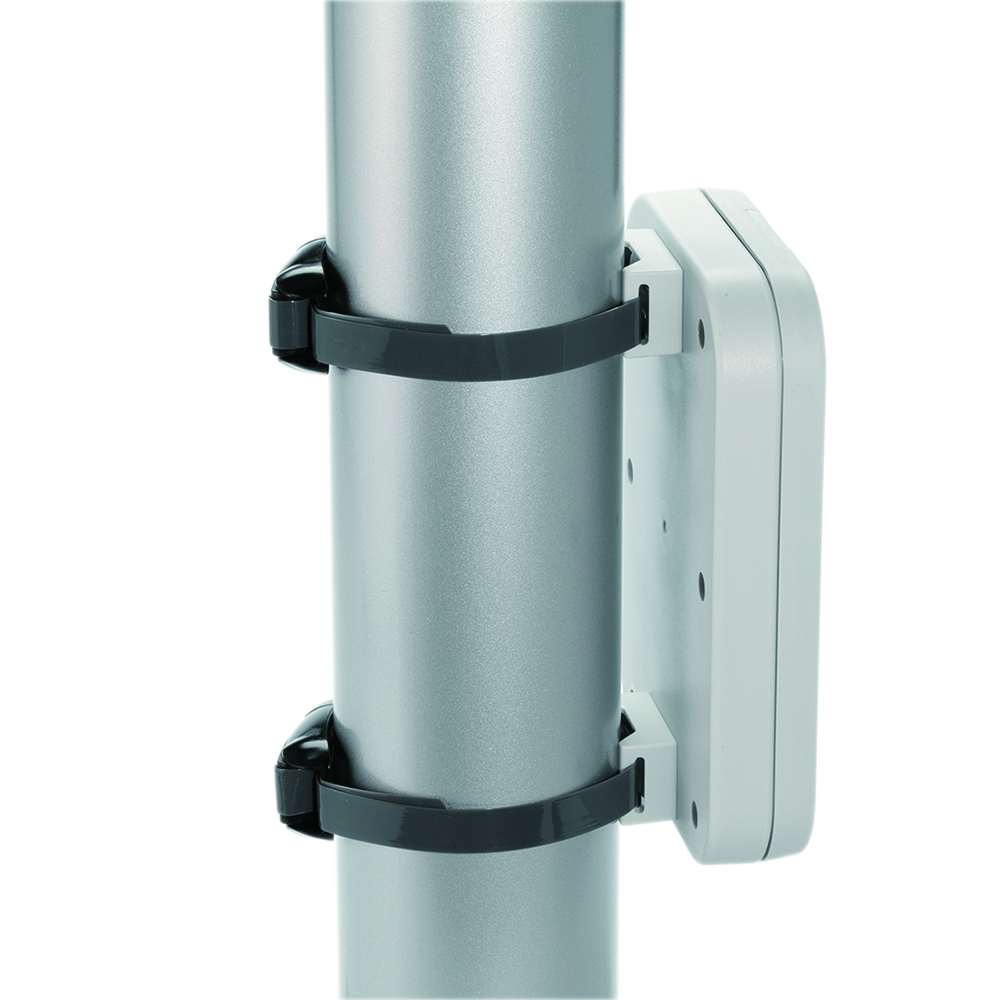

- Mounting kit accessory for easy mounting to poles, pillars, posts and lamp posts
External Length (mm) | 130 |
External Width (mm) | 90 |
External Height (mm) | 40 |
Internal Length (mm) | 80 |
Internal Width (mm) | 48 |
Internal Height (mm) | 25 |
Weight (G) | 141 |
Base Material | Plastic |
Material Type | ABS UL94-V0 |
Colour | Dark Grey |
UL Rating | UL94-V0 |
IK Rating | N/A |
IP Rating | IP67 |
Operating Temperature | - 10 Deg C to 50 Deg C |
Brand | Takachi |
Size | 130 x 90 x 40 |
Development Board | N/A |
Pole Mount | Yes |
Country Of Origin | Viet Nam |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
