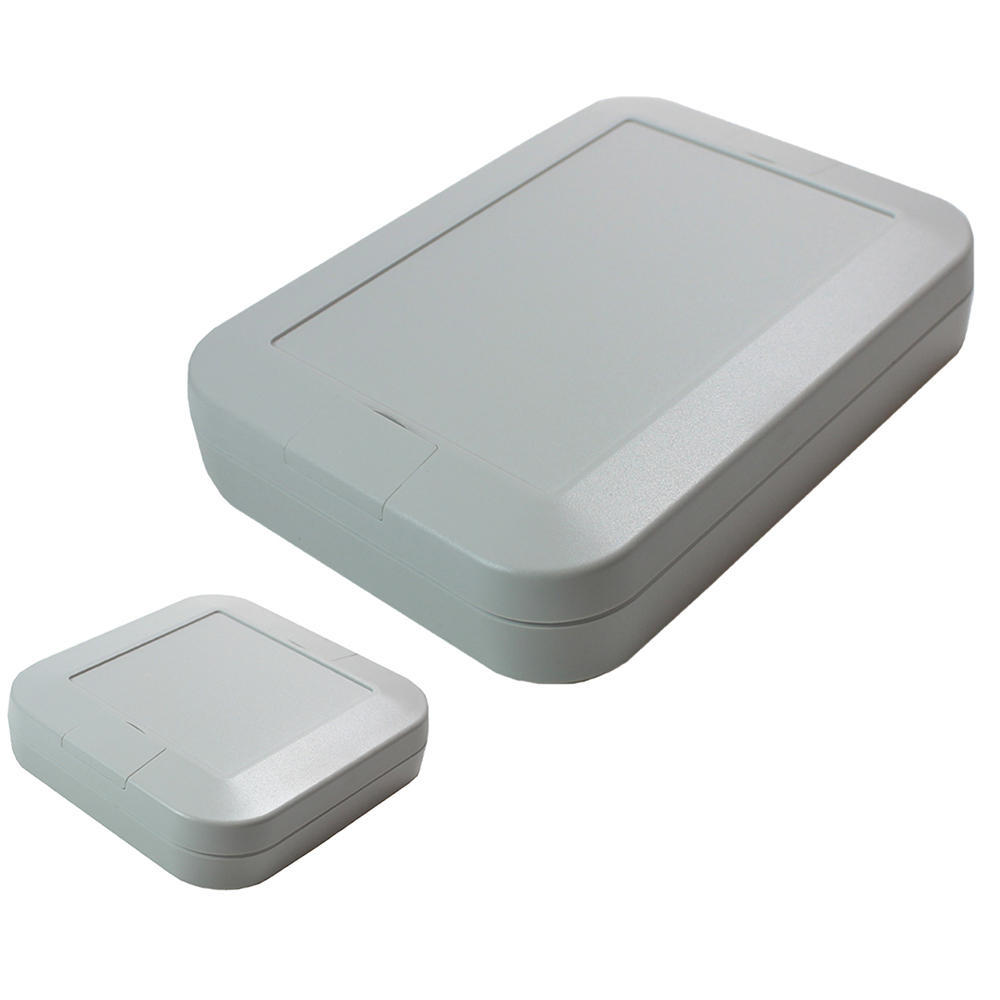

CHD91E14WG - 91 Series IP67 Low Profile Enclosure, White Grey, ASA, 100x75x35mm

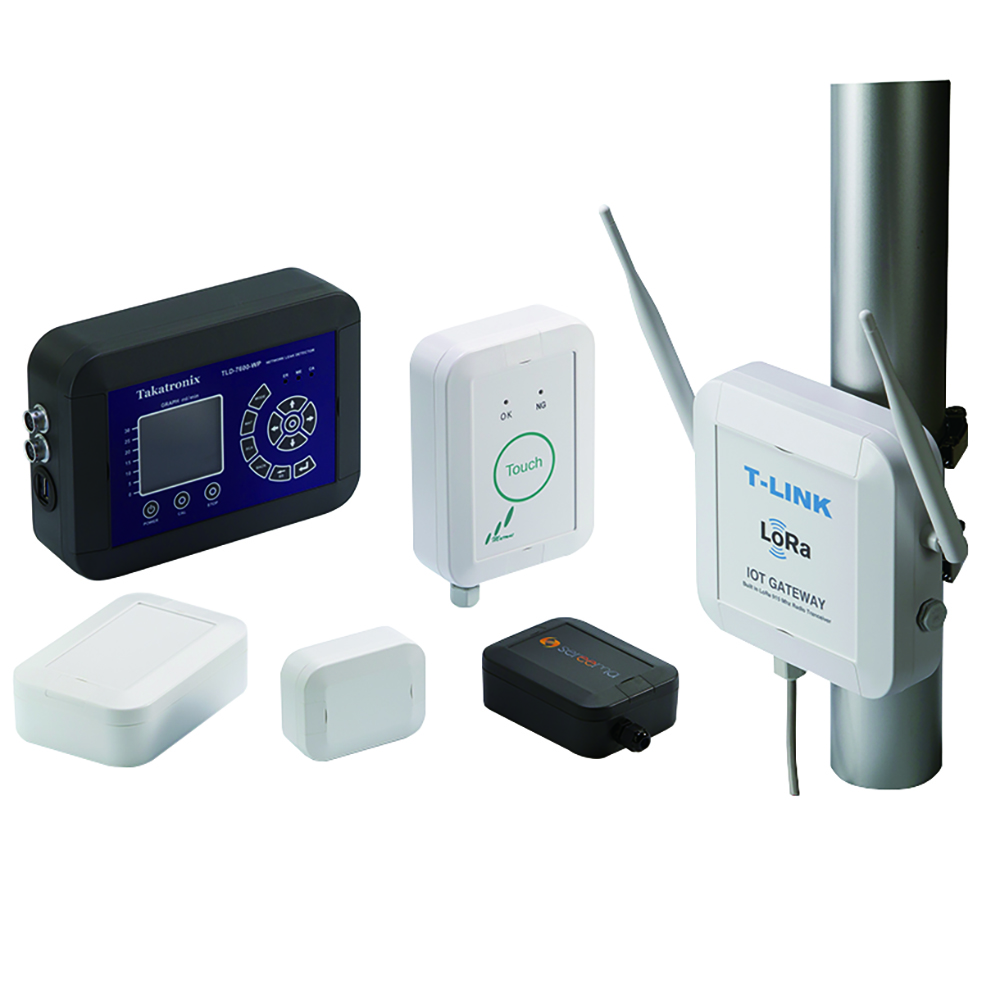

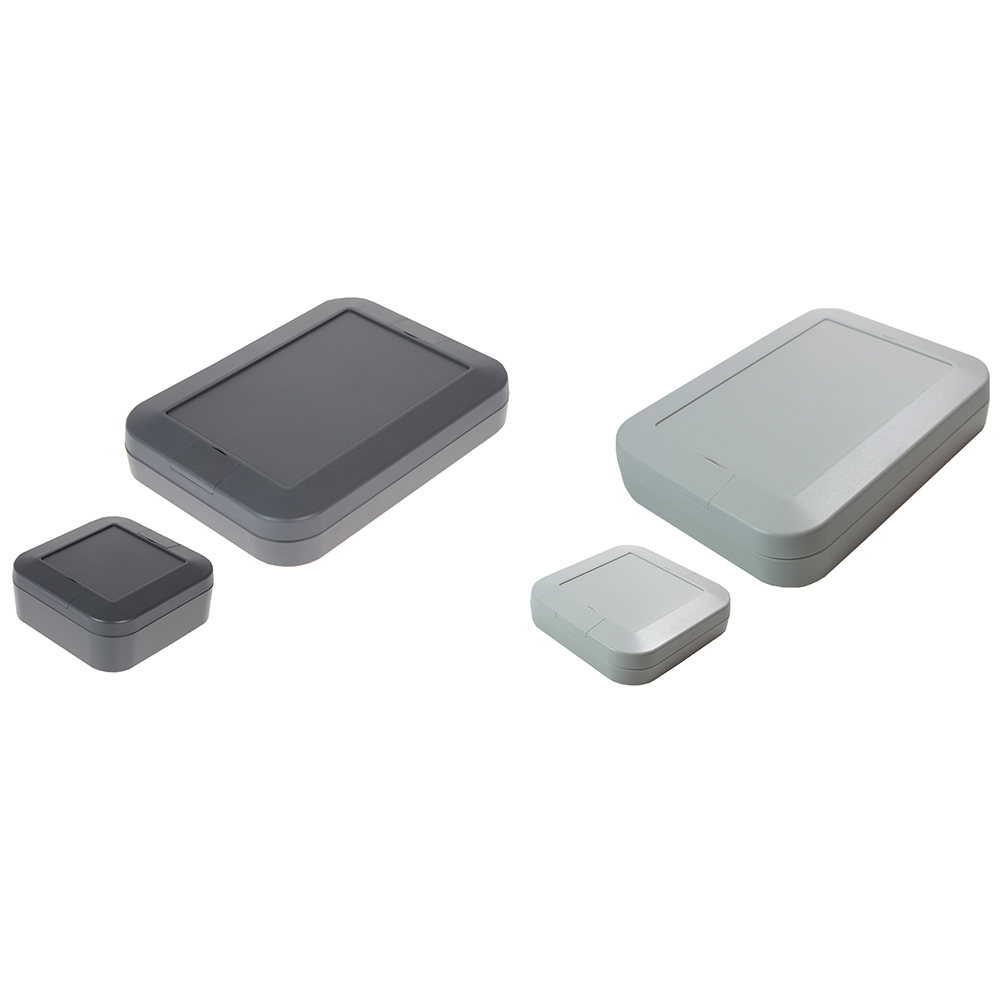

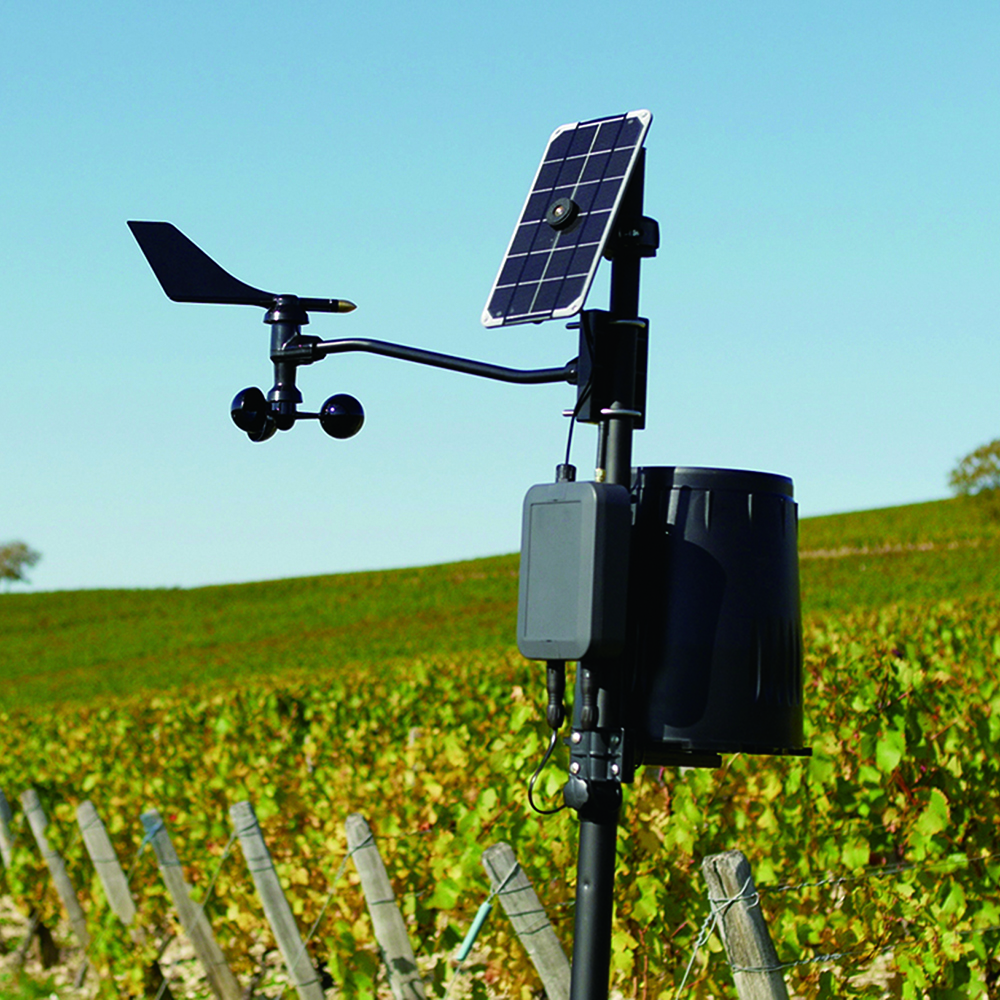

91 Series Low Profile Enclosure in ABS or ASA material is IP67 waterproof and deal for outdoor networking applications, pole mount bracket available to order.
- IP67 rated, perfect for outdoor applications
- White enclosures made from ASA UL94-HB plastic for high ultraviolet resistance
- Dark Grey enclosures made from ABS UL94-V0 plastic for high flammability rating

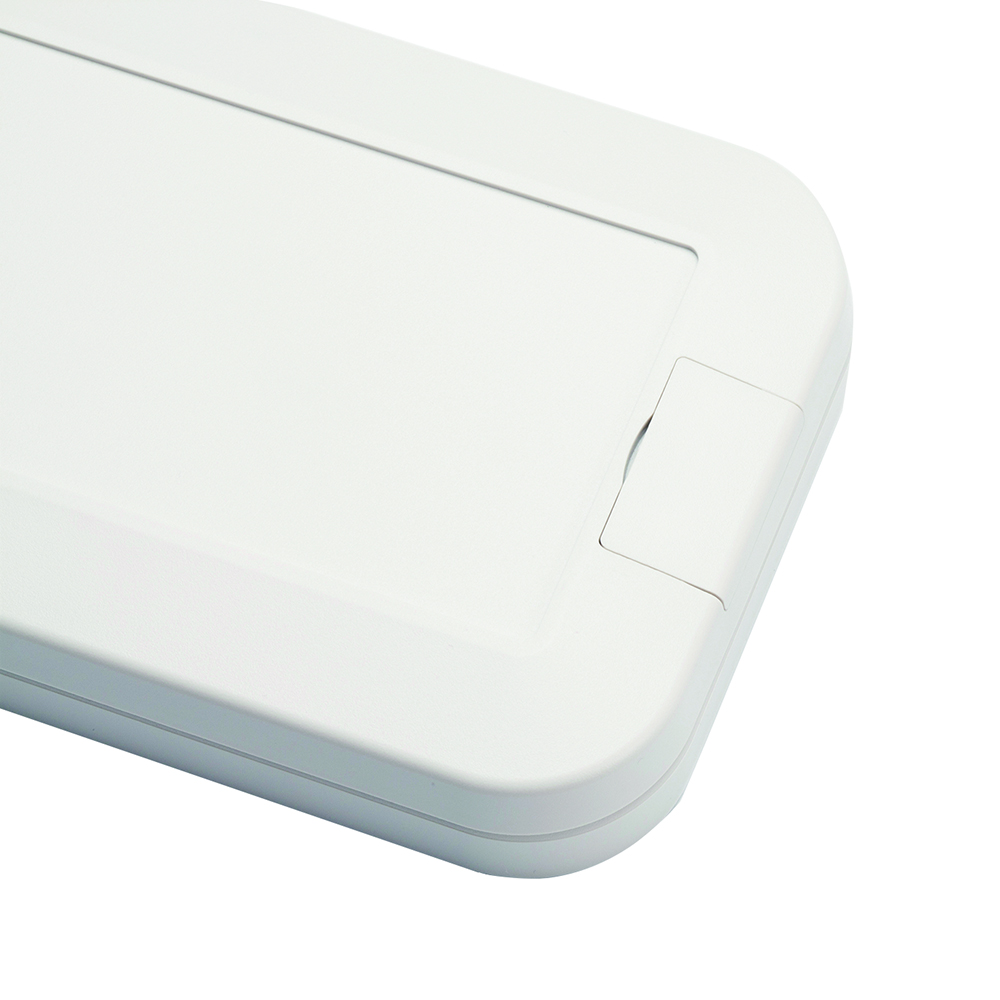

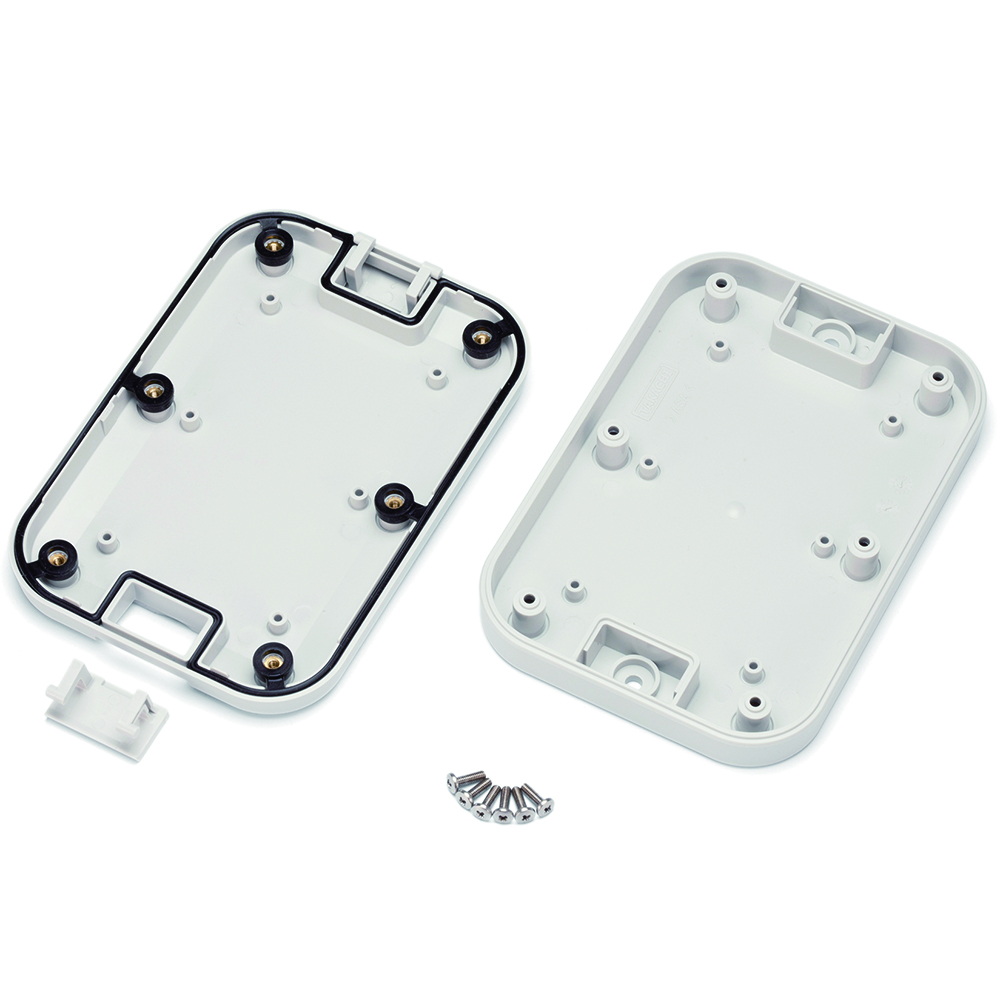

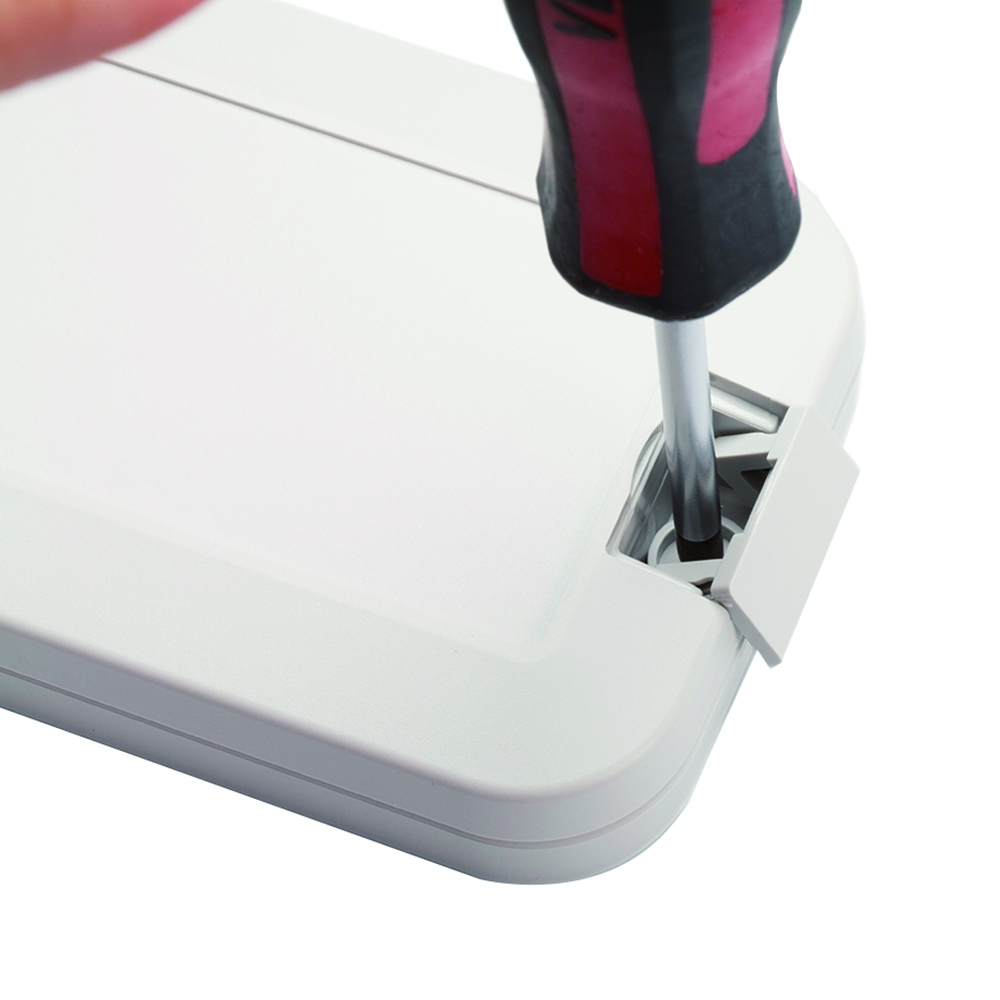

- Wall mount holes behind hinged caps for superior aesthetic finish

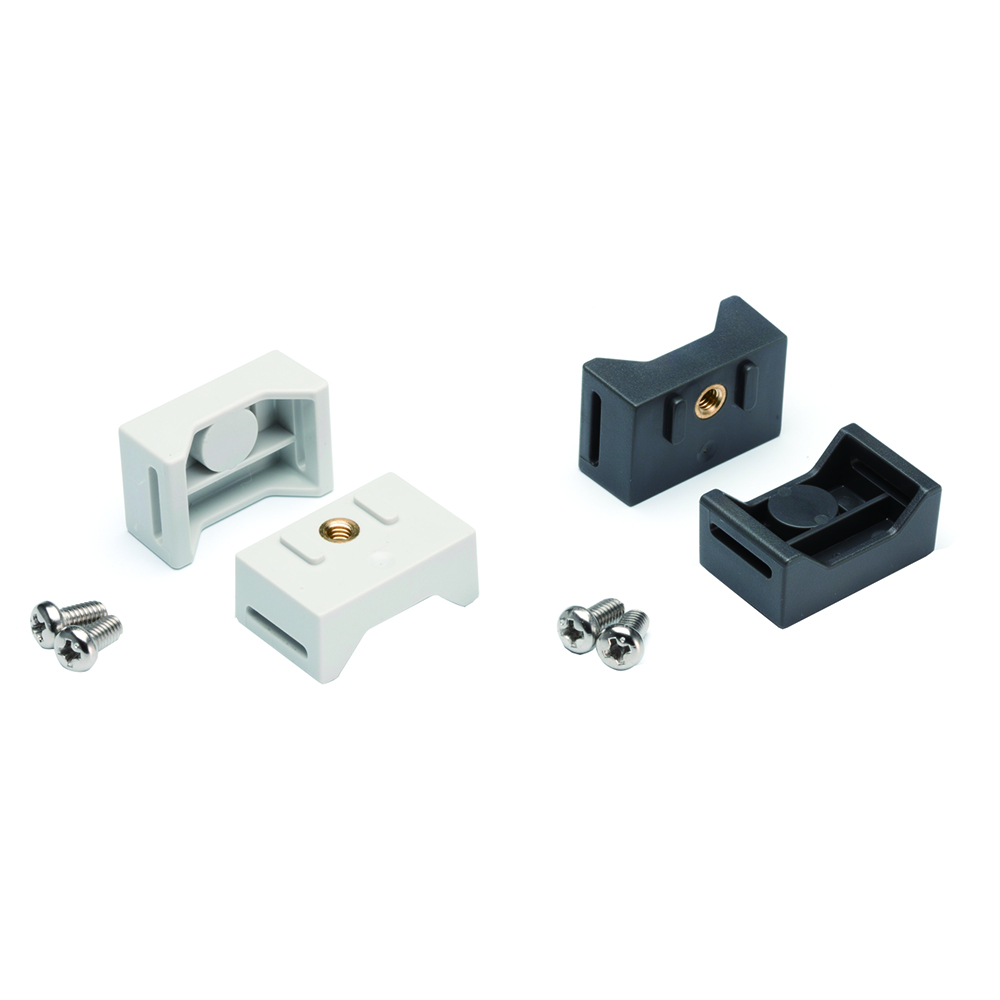

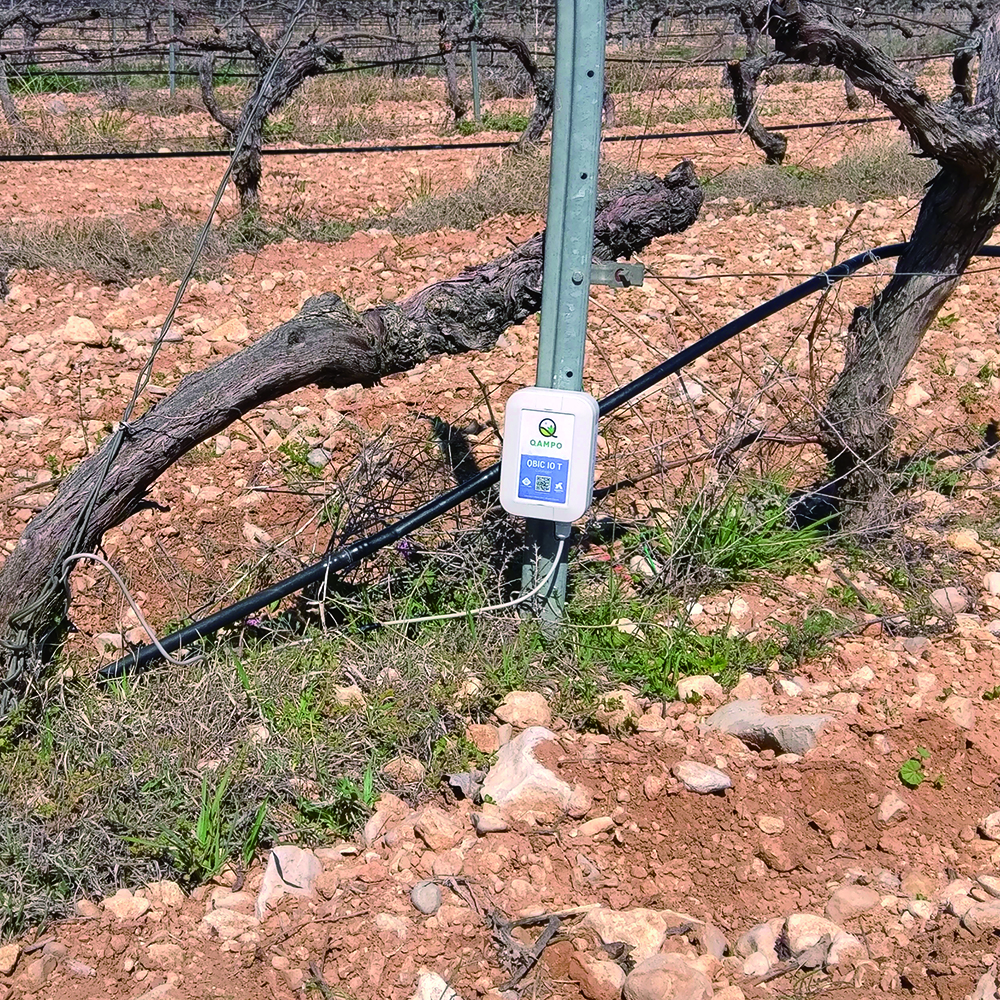

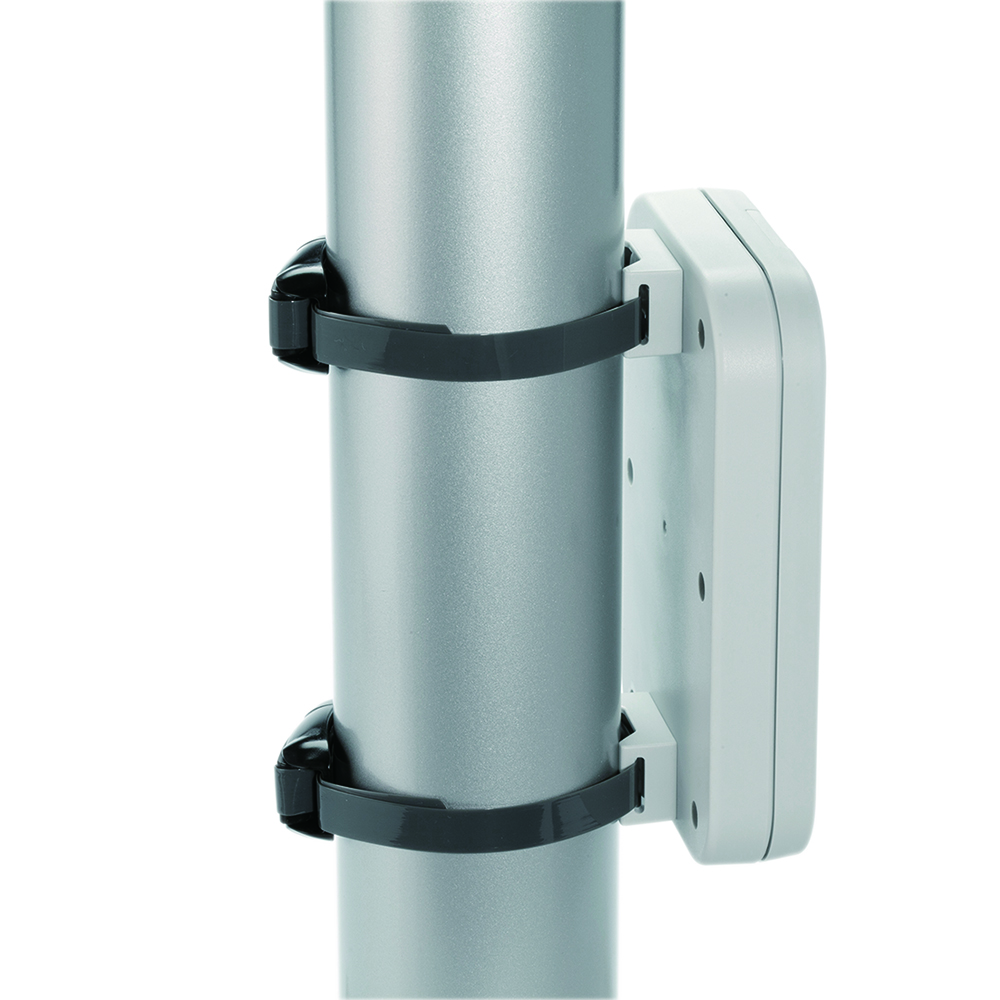

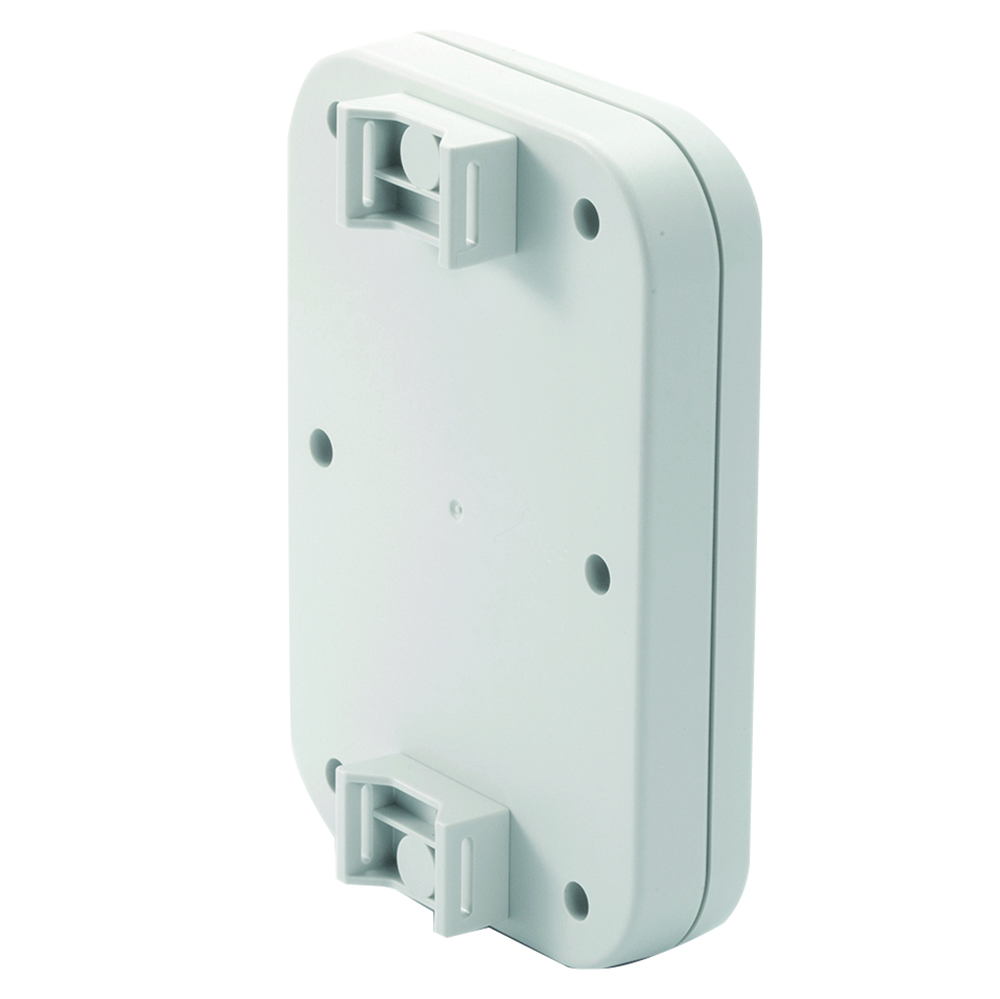

- Mounting kit accessory for easy mounting to poles, pillars, posts and lamp posts
| External Length (mm) | 100 |
| External Width (mm) | 75 |
| External Height (mm) | 35 |
| Internal Length (mm) | 67 |
| Internal Width (mm) | 67 |
| Internal Height (mm) | 29 |
| Weight (G) | 95 |
| Base Material | Plastic |
| Material Type | ASA |
| Colour | White Grey |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP67 |
| Operating Temperature | - 20 Deg C to 60 Deg C |
| CE Approval | Yes |
| UL Approval | Yes |
| Brand | Takachi |
| Size | 100 x 75 x 35 |
| Development Board | N/A |
| Pole Mount | Yes |
| Country Of Origin | Viet Nam |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
