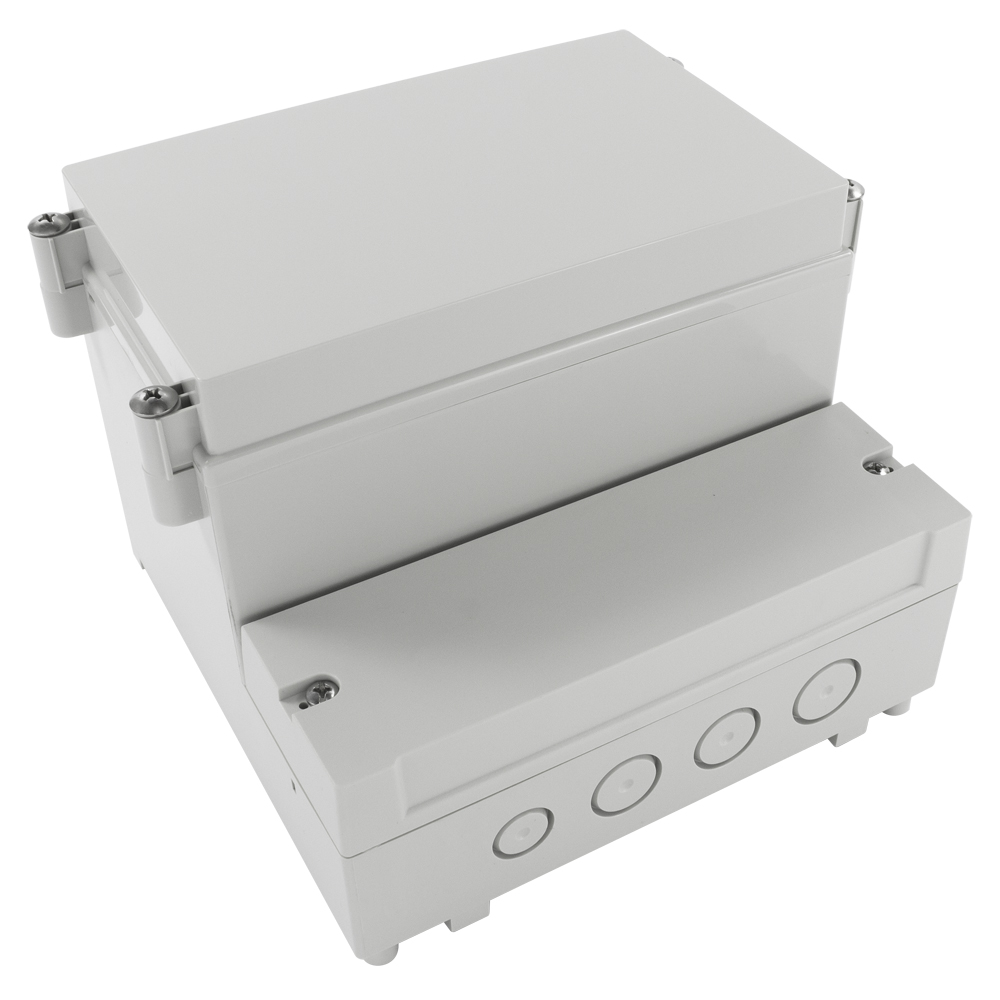

CHD774002 - 7740 Series Wall Mount Electrical Enclosure, Grey, ABS UL94-HB, 121x166x161mm
7740 Series Screw Fastening Wall Mount Enclosure, Grey Lid, 166x161x121mm. This heavy duty wall mount enclosure is ideal for industrial applications
- Wall mounted enclosures with two compartments, equipped with covers
- Moulded in high quality ABS
- Suitable for high temperatures
- Protects controls and components indoors or outdoors
- Fastening pillars and guide grooves for vertical and horizontal PCB mounting
- DIN Rail mountable
- 7740 series has been designed to meet the requirements of IP65
- Available in five sizes
| External Length (mm) | 121 |
| External Width (mm) | 166 |
| External Height (mm) | 161 |
| Weight (G) | 750 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IP Rating | IP65 |
| Brand | CamdenBoss |
| Size | 121 x 166 x 161 |
| Lid Colour | Grey |
| Development Board | N/A |
3D Step Drawing
Request
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
