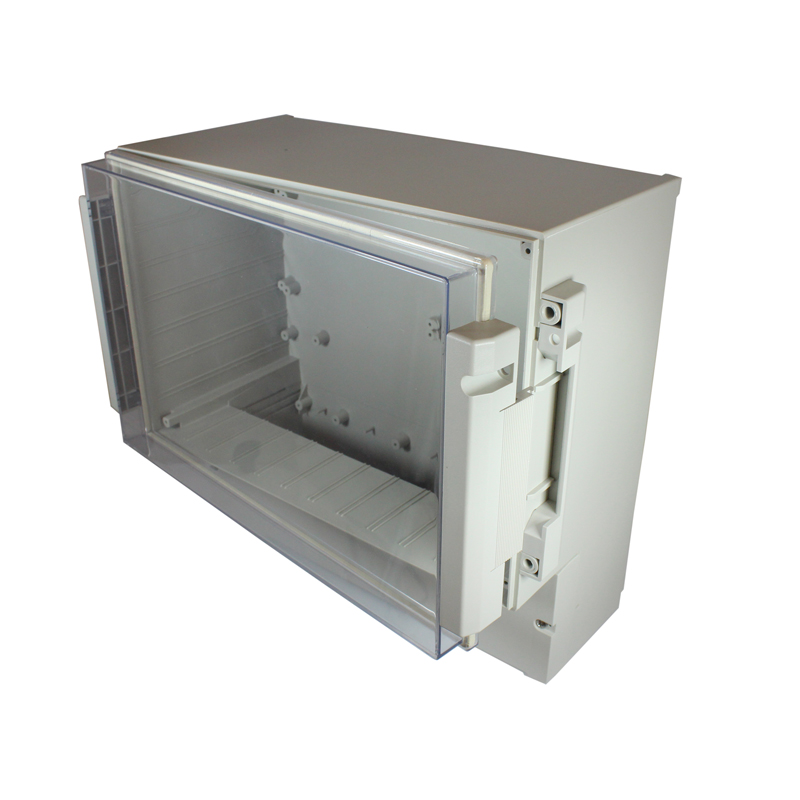

CHD771004 - 7710 Series Hinged Door Wall Mount Electrical Enclosure, Grey, PC/ABS UL94-V0, 132.5x256x217mm
7710 Series Hinged Wall Mount Enclosure, Clear Lid. This heavy duty wall mount enclosure is ideal for industrial applications
- Wall mounted enclosures with a transparent and hinged polycarbonate cover
- Moulded in high quality PC/ABS
- Suitable for high temperatures
- Protects controls and components indoors or outdoors
- Two detachable hinges for quick access
- Fastening pillars and guide grooves for vertical and horizontal PCB mounting
- Hinges can be left or right mounted
- DIN Rail mountable
- 7710 series has been designed to meet the requirements of IP65
- Available in five sizes
| External Length (mm) | 132.5 |
| External Width (mm) | 256 |
| External Height (mm) | 217 |
| Weight (G) | 1429 |
| Base Material | Plastic |
| Material Type | PC/ABS UL94-V0 |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP65 |
| Transparent Lid | Yes |
| Brand | CamdenBoss |
| Size | 132.5 x 256 x 217 |
| Lid Colour | Clear |
| Development Board | N/A |
| Hinged Lid | Yes |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
