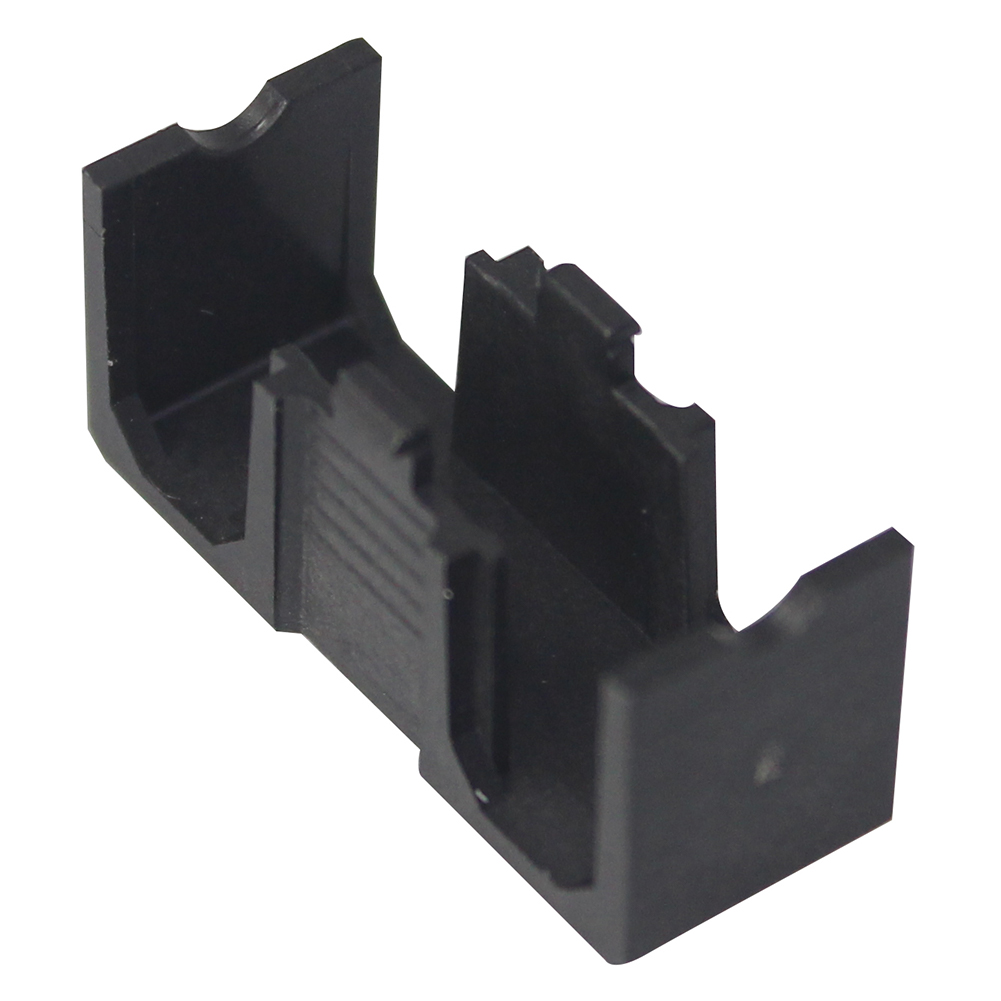

CFH22H - 5x20mm PCB Fuse Carrier Cover
Cover for CFH22SMD and CFH22THR 5x20mm PCB Fuse Carrier
- Designed and manufactured for SMT and THR processes
- Optional cover provides IP20 rated protection
- UL94-V0 material
- UL, VDE approved
| External Length (mm) | 22.7 |
| External Width (mm) | 9.6 |
| External Height (mm) | 13.1 |
| Weight (G) | 2 |
| Base Material | Thermoplastic |
| Colour | Black |
| UL Rating | UL94-V0 |
| Orientation | Horizontal |
| Operating Temperature | -55 Deg C to 125 Deg C |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Fuse Size | 5 x 20 |
3D Step Drawing
