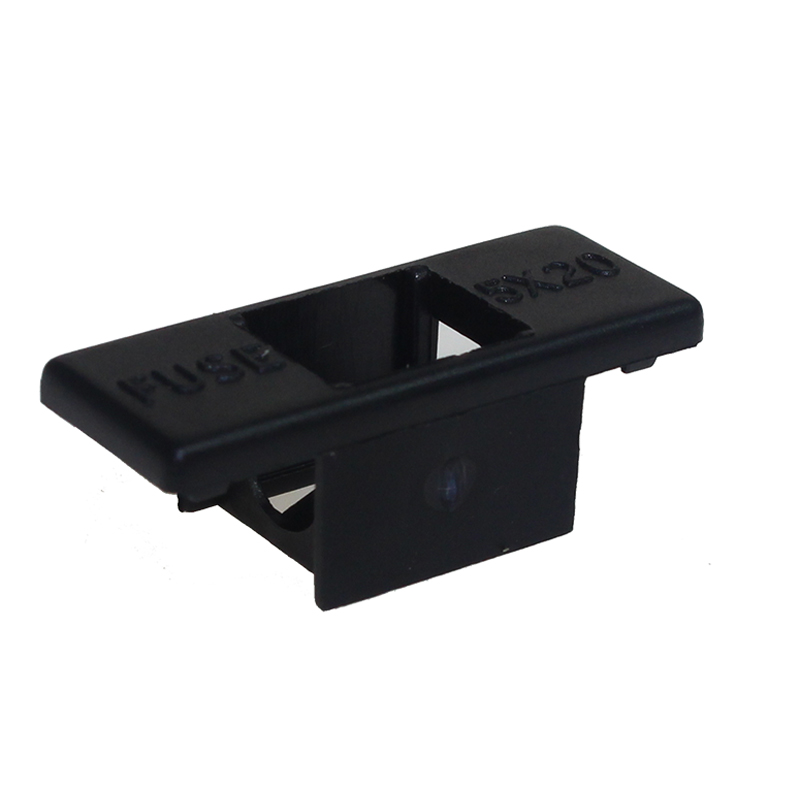

CFH14HB - 5x20mm PCB Fuse Carrier Cover
Cover for CFH14 5x20mm PCB Fuse Carrier
- PCB mounting
- Fuse retaining insulation cover
- Enclosed contacts
- Moulded in UL94-V0 retardant PA
- IEC 127-6
- UL, VDE, CE, Semko Approved
| External Length (mm) | 24.4 |
| External Width (mm) | 9.4 |
| External Height (mm) | 7 |
| Weight (G) | 0.57 |
| Base Material | Plastic |
| Material Type | Polyamide |
| Colour | Black |
| UL Rating | UL94-V0 |
| General Current Rating (A) | 6.3 |
| UL Current Rating (A) | 6.3 |
| UL Voltage Rating (V) | 250 |
| VDE Current Rating (A) | 6.3 |
| VDE Voltage Rating (V) | 250 |
| Orientation | Horizontal |
| Operating Temperature | -30 Deg C to 85 Deg C |
| CE Approval | Yes |
| UL Approval | Yes |
| VDE Approval | Yes |
| Fuse Size | 5 x 20 |
3D Step Drawing
