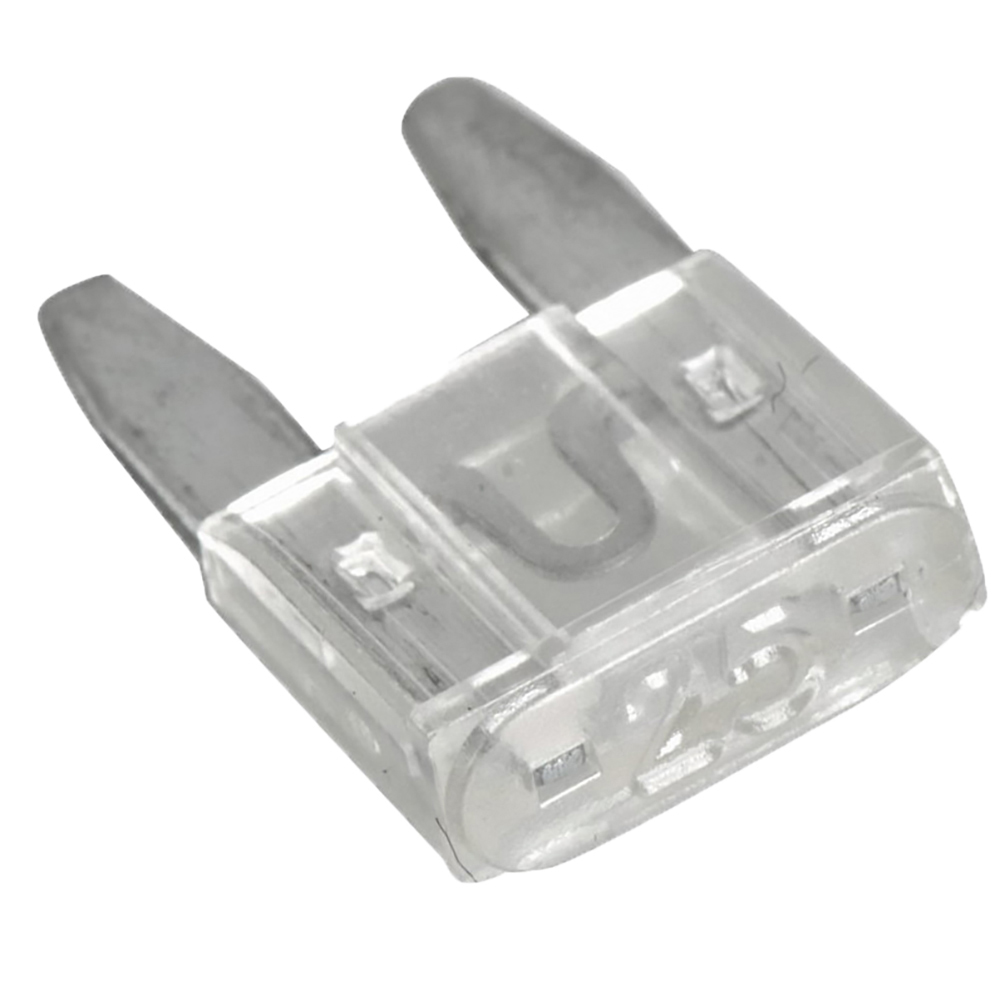

CFBB1612/25 - Miniblade Fuse, 25A
Camfuse Plus 16x12 Miniblade Fuse 25A, Natural
- Automotive and Automation Applications
- Manufactured to UL-248 and IEC60068-2-6
- Resistant to low temperatures and vibration
- Amp ratings moulded into fuse housing
- Fast acting overcurrent protection
- 32V
- Operating Temperature -25? to +85?
- 5A - 30A options
| External Length (mm) | 4 |
| External Width (mm) | 12 |
| External Height (mm) | 16 |
| Weight (G) | 3 |
| Base Material | Plastic |
| Colour | Natural |
| General Current Rating (A) | 25 |
| Operating Temperature | Operating Temperature -25° to +85° |
| Blow Speed | FAST |
| Fuse Size | 16 x 12 |
| Body Shape | Blade Fuse |
3D Step Drawing
