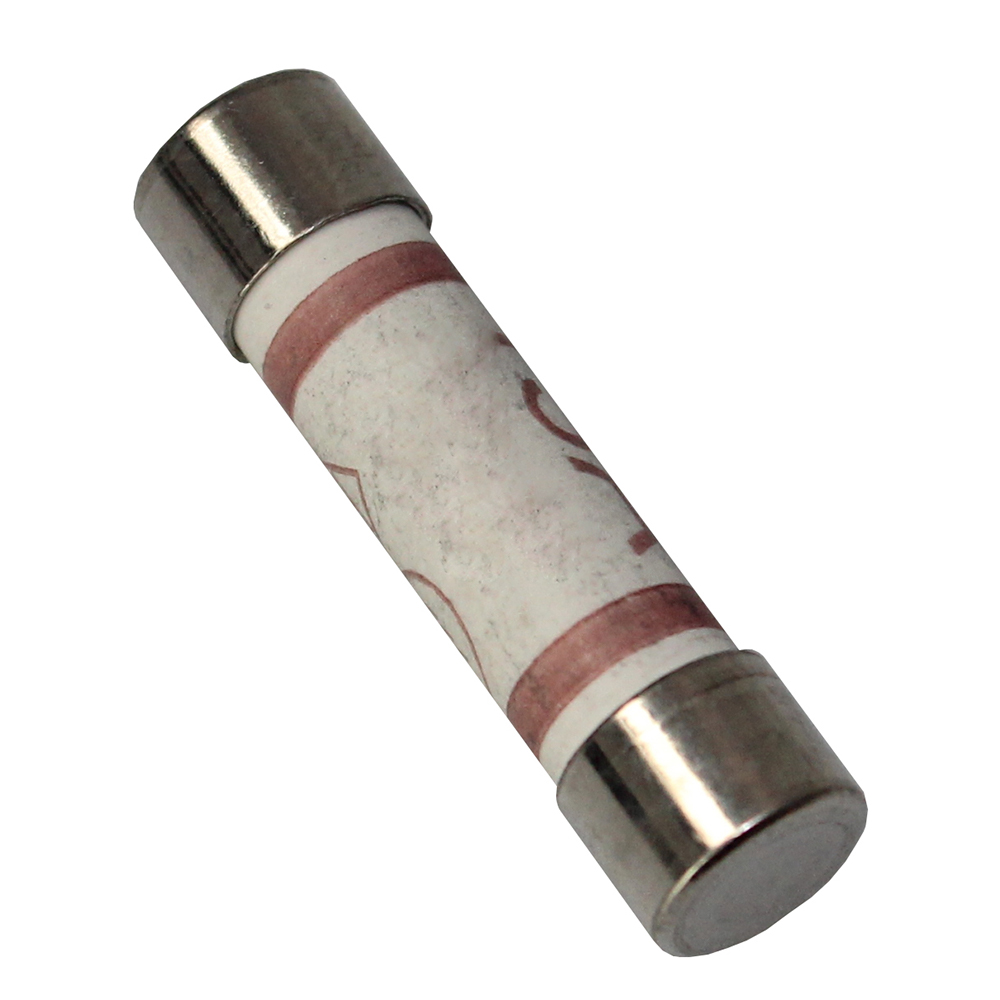

CFB1362/10A - British Plug Top Fuse
CamFuse Plus, 6.3x25mm British Plug Top Fuse, 10A
- Power dissipation max 1 Watt
- Ceramic tube, nickel plated brass end caps
- Break capacity, 6000A, 264VAC, 50Hz, p.f. 0.3 - 0.4
- BS1362
| External Length (mm) | 25 |
| External Width (mm) | 6.3 |
| External Height (mm) | 6.3 |
| Weight (G) | 2.4 |
| Base Material | Ceramic |
| General Current Rating (A) | 10 |
| UL Current Rating (A) | 10 |
| UL Voltage Rating (V) | 264 |
| VDE Current Rating (A) | 10 |
| VDE Voltage Rating (V) | 264 |
| Operating Temperature | -55 Deg C to 125 Deg C |
| Blow Speed | FAST |
| UL Approval | Yes |
| Fuse Size | 6.3 x 25.4 |
| Body Shape | Tube |
3D Step Drawing
