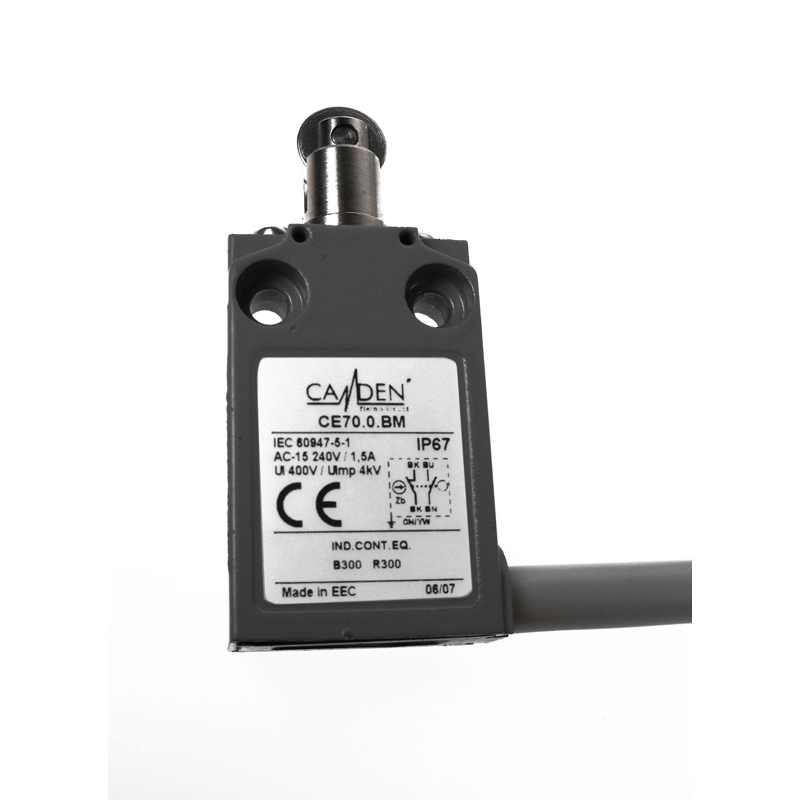

CE70.0.BM - Limit Switch
30mm Wide Pre-wired Limit Switch, IP67 Metal Casing, Roller Plunger, 1M Cable
- 30mm width
- Pre wired
- Metal casing
- IP67
- Snap action contacts
- Other types available
- UL Approved
| External Length (mm) | 16 |
| External Width (mm) | 30 |
| External Height (mm) | 70 |
| Weight (G) | 24.72 |
| Base Material | Metal |
| Colour | Grey |
| IP Rating | IP67 |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Roller Plunger |
| Pre-Wired | Yes |
