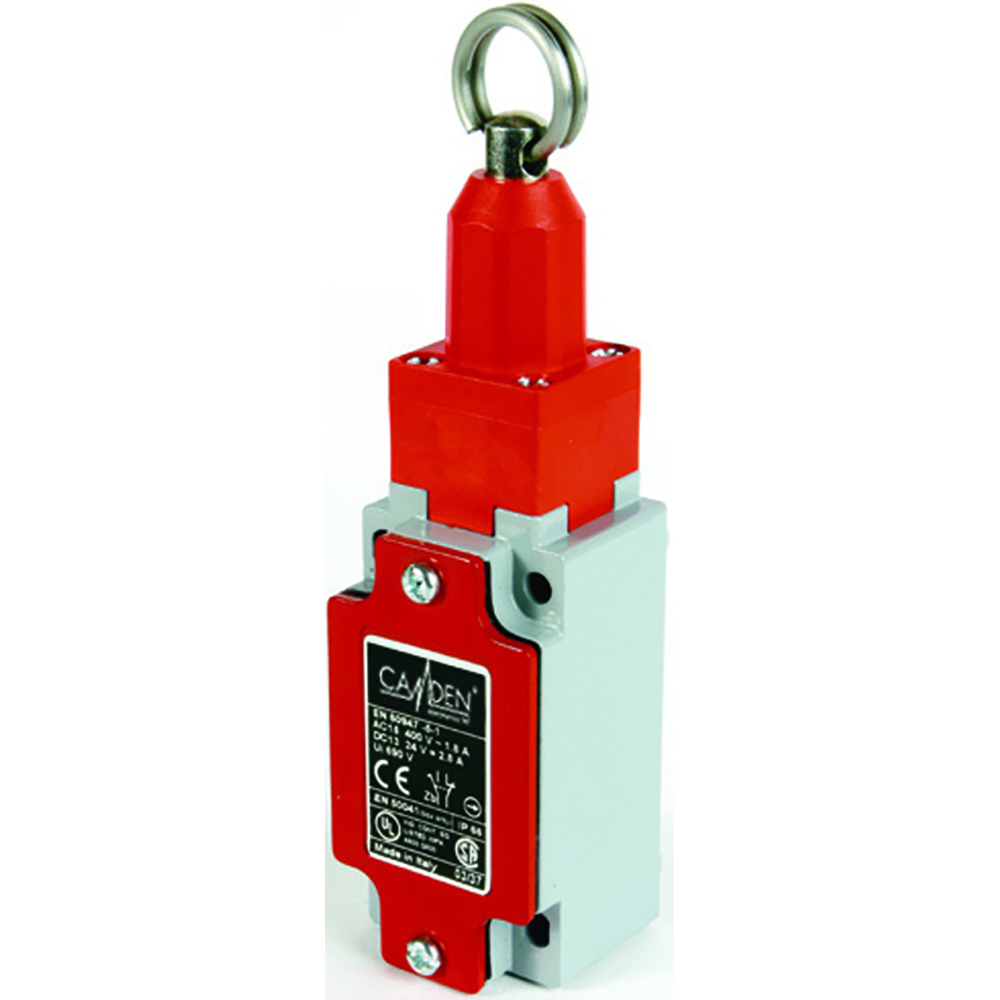

CE41.05.TM - Safety Switch
40mm Wide Safety Switch, IP66 Metal Casing, Pull Wire Operation, Contact Height 05
- 40mm width
- IP66 metal casing
- Visible operation electromechanical limit safety switch
- High switch current
- Precise operating points
- Snap action and slow action contact block options
- 1, 2 & 3 cable inlet options
- Polymeric IP65 and metal IP66 casing
- PG13.5 inlet as standard
- M20x1.5 inlet available
| External Length (mm) | 59 |
| External Width (mm) | 36 |
| External Height (mm) | 74.5 |
| Weight (G) | 30.9 |
| Base Material | Metal |
| Colour | Grey |
| IP Rating | IP66 |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Ring pull |
| Contact Block Operation | 1NO+1NC, slow action, break before make |
3D Step Drawing
