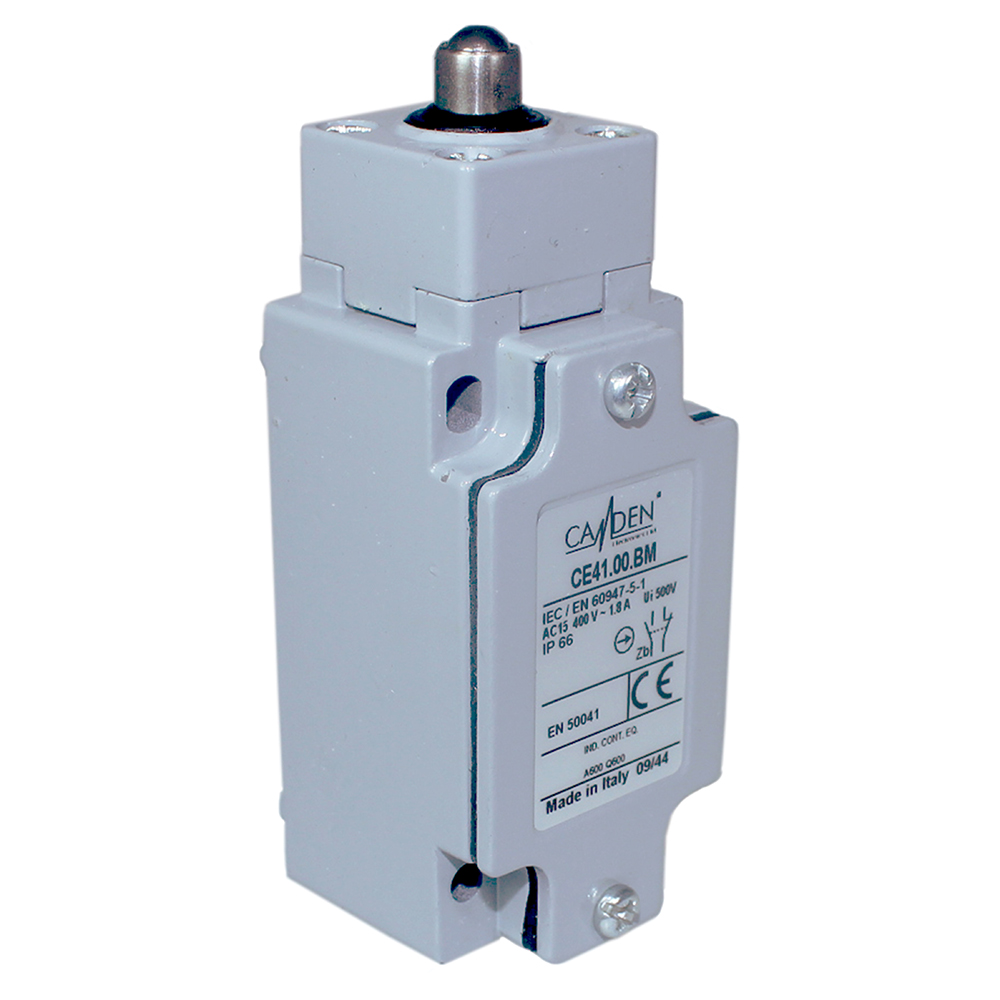

CE41.00.BM - Limit Switch
40mm Wide Limit Switch, IP66 Metal Casing, Steel Roller Plunger
- 40mm width
- IP66 metal casing
- Snap action contacts
- UL, IMQ approved
| External Length (mm) | 40 |
| External Width (mm) | 40 |
| External Height (mm) | 110 |
| Weight (G) | 30.9 |
| Base Material | Metal |
| Colour | Grey |
| IP Rating | IP66 |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Plain plunger |
3D Step Drawing
Request
