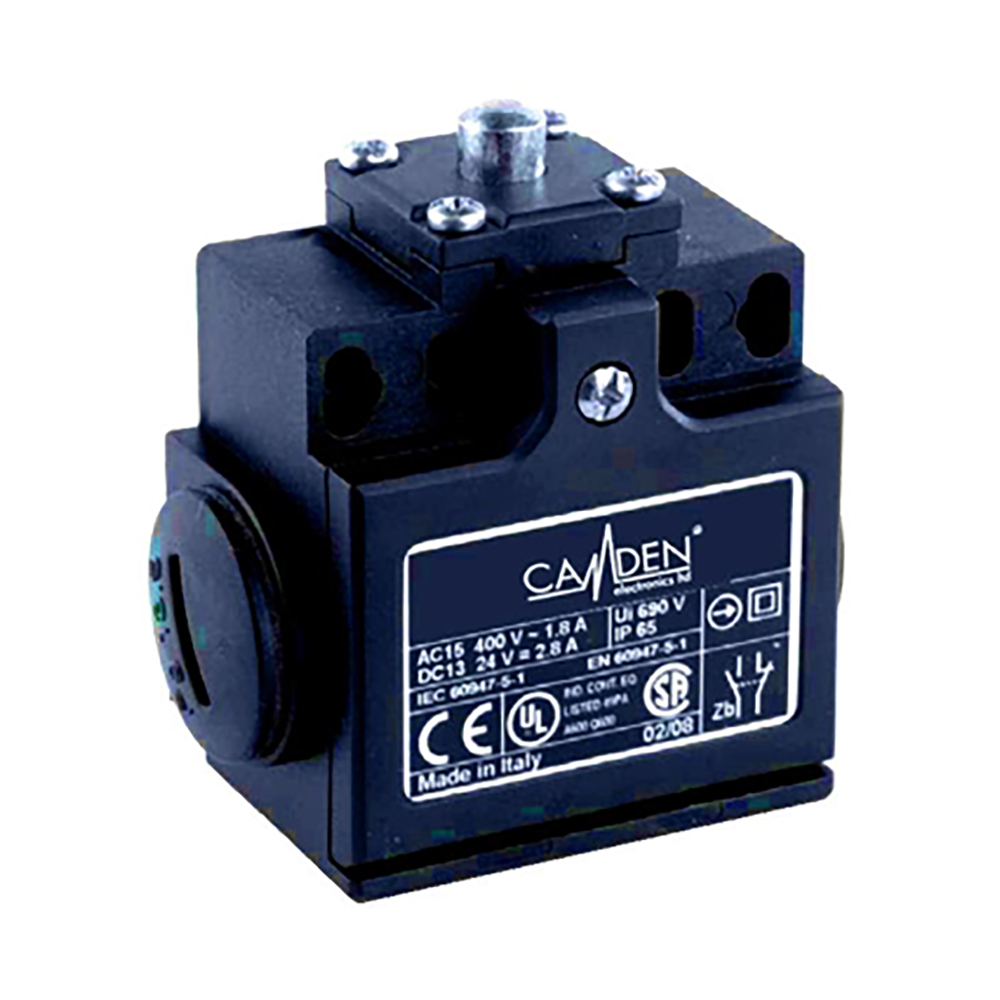

CE20.00.AP - Limit Switch
50mm Wide Limit Switch, IP65 Plastic Casing, Steel Plunger
- 50mm width
- IP65 plastic casing
- Snap action contacts
- Other types available
- UL, IMQ Approved
| External Length (mm) | 33 |
| External Width (mm) | 50 |
| External Height (mm) | 74.5 |
| Weight (G) | 28.22 |
| Base Material | Nylon |
| Colour | Grey |
| IP Rating | IP65 |
| General Current Rating (A) | 3 |
| UL Current Rating (A) | 3 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Plain Plunger |
3D Step Drawing
