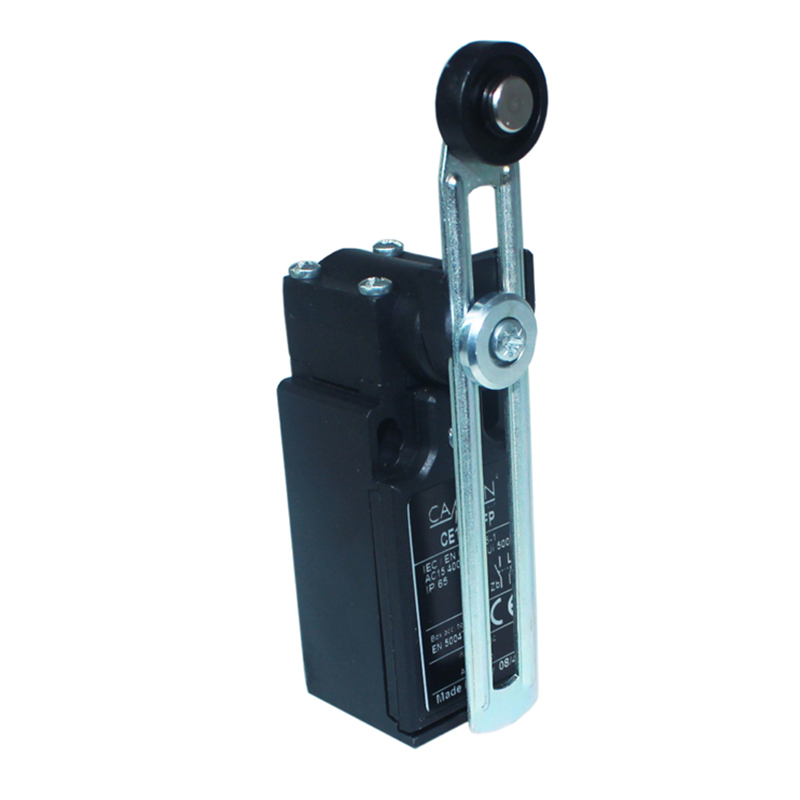

CE10.00.FP - Limit Switch
30mm Wide Limit Switch, IP66 Metal Casing, Adjustable Rubber Roller Lever
- 30mm width
- Double insulated plastic to IP65
- Metal casing to IP66
- Snap action contacts
- UL, IMQ Approved
| External Length (mm) | 30 |
| External Width (mm) | 30 |
| External Height (mm) | 172.5 |
| Weight (G) | 23 |
| Base Material | Plastic |
| Colour | Black |
| IP Rating | IP65 |
| General Current Rating (A) | 240 |
| UL Current Rating (A) | 240 |
| UL Voltage Rating (V) | 240 |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Actuator | Adjustable Roller Lever |
3D Step Drawing
