CDM9606LG - 96 Series IP67 Diecast Aluminium Enclosure, 90x90x60mm, light grey
Robust IP67 diecast aluminium electronics enclosure. Ideal for harsh environments and IoT applications where protection is essential.
- Provides exceptional protection and shock resistance to the housed electronics
- Grey and natural colour options
- Weather resistance and tough powder coated finish

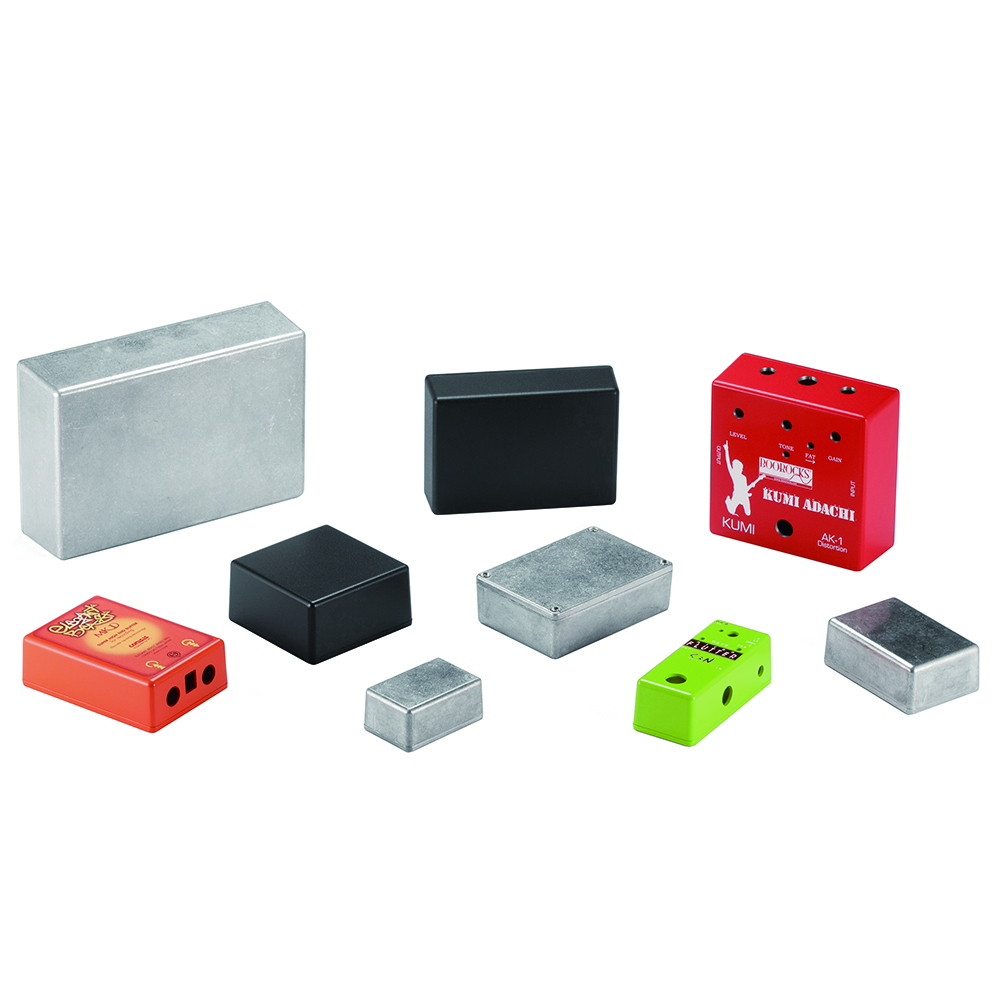

- 8 different sizes available
- Shock resistant diecast alumunium box
- Ideal for tough environments such as factories, coastal areas and offshore rigs
- Easily customised to feature cable entries, component controls, LCD?s and more
- 96 series has been designed to meet the requirements of IP67
| External Length (mm) | 90 |
| External Width (mm) | 90 |
| External Height (mm) | 60 |
| Internal Length (mm) | 78 |
| Internal Width (mm) | 78 |
| Internal Height (mm) | 48 |
| Weight (G) | 395 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Light Grey |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP67 |
| Operating Temperature | -40 Deg C to 105 Deg C |
| Brand | CamdenBoss |
| Development Board | N/A |
| Diecast | Yes |
3D Step Drawing
Request
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
