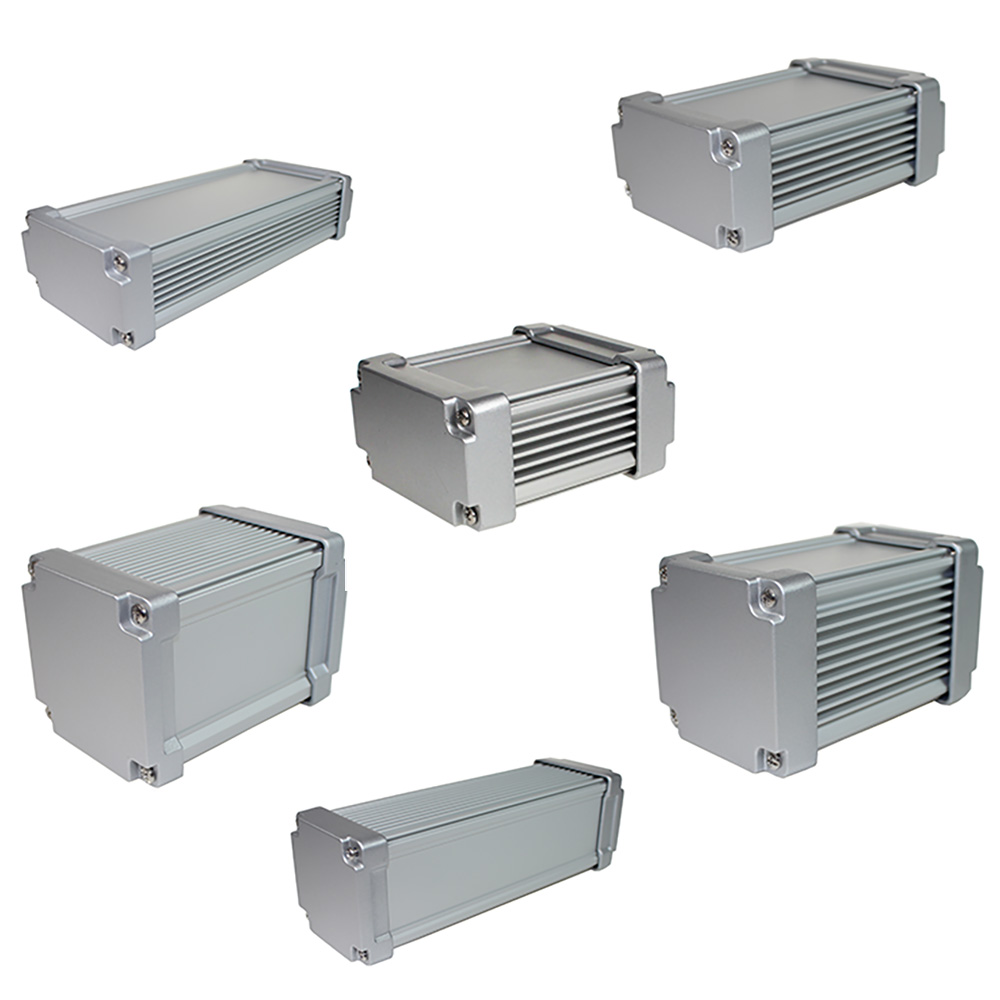

CDM8822SL - 88 Series Waterproof Heatsink Aluminium Enclosure, IP68, Silver, Size 22, 275x156.3x81.3mm

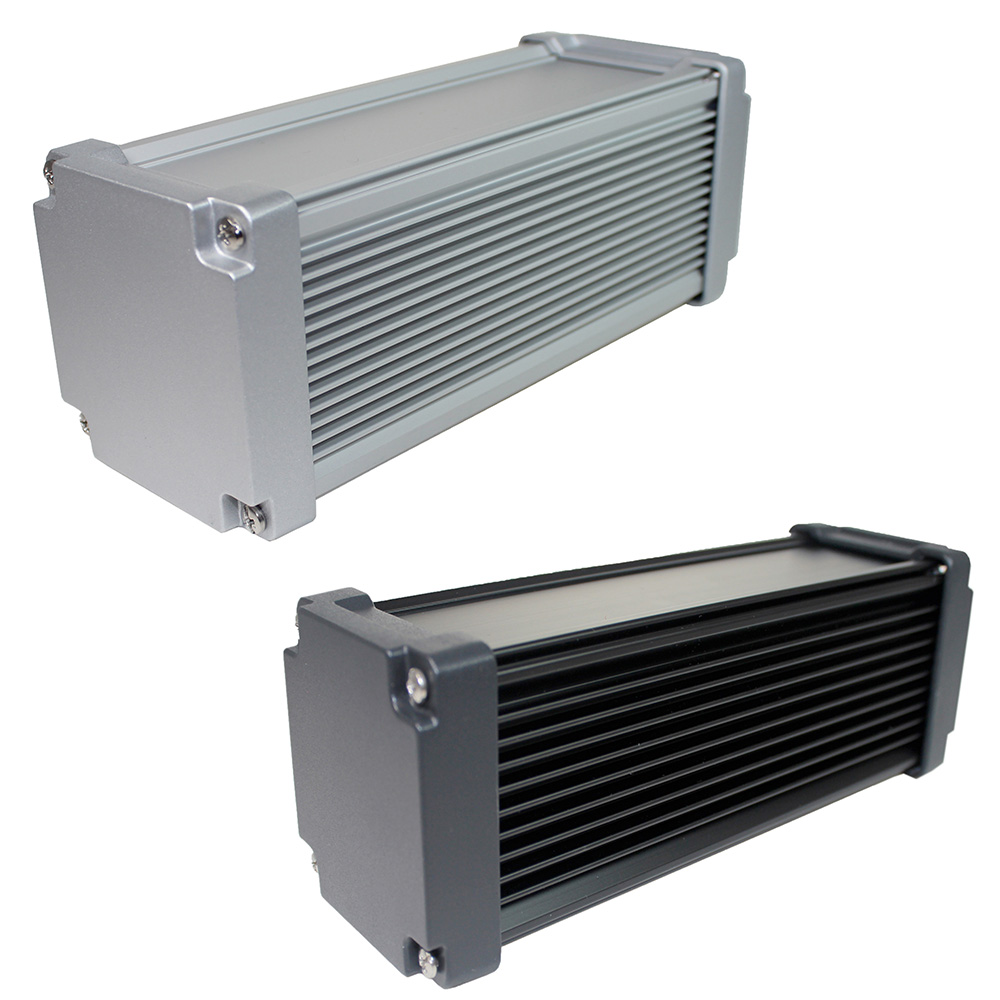

This enclosure provides superior protection by providing a tough extruded shell and an IP68 rated seal, keeping out dust and water. Heatsink sides are extruded into the enclosure, preventing heat build up.

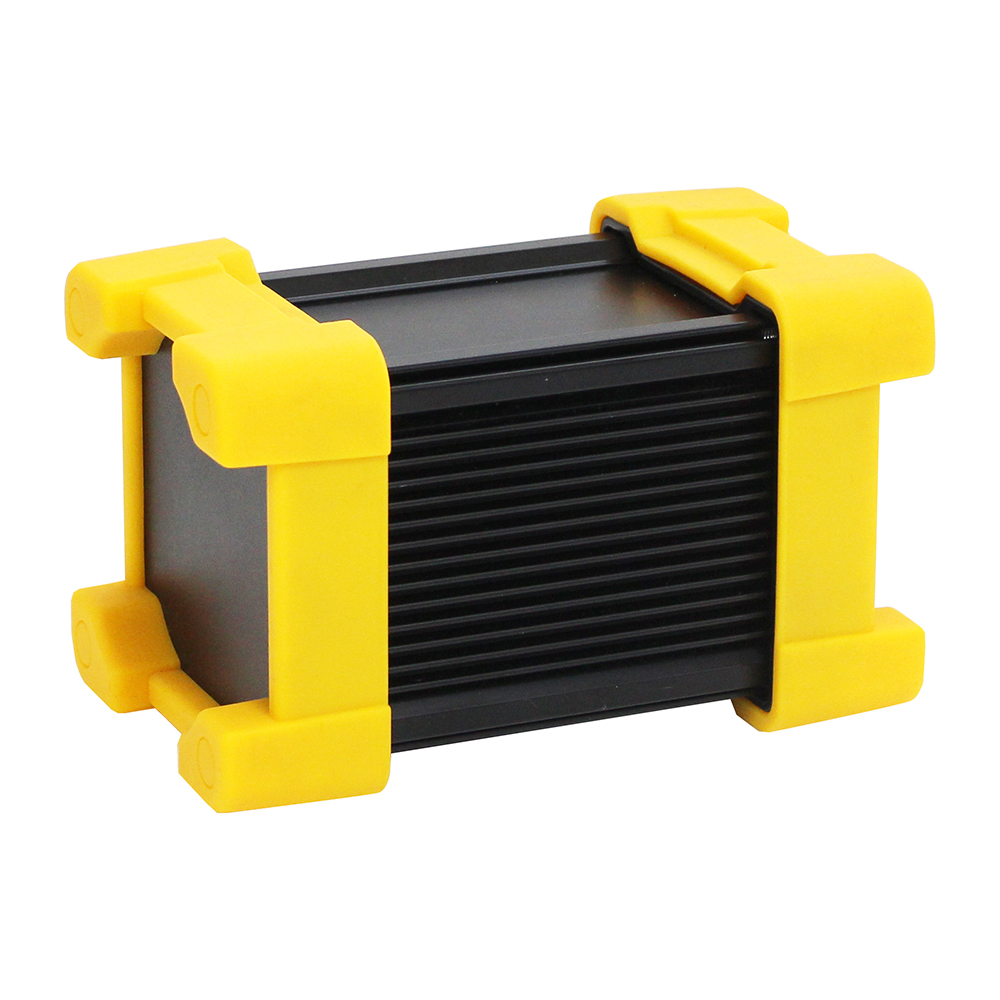

- EMC shielded aluminium heatsink enclosures with optional protective silicone boot
- Heavy duty enclosure, heatsink extrusion body and die-cast panels
- EMI-shielded (Non-shielded available upon request)
- PCB or chassis are horizontally mountable by sliding into body frame
- Designed for a tough environment
- Heavy duty, highly waterproof and heat resistant.

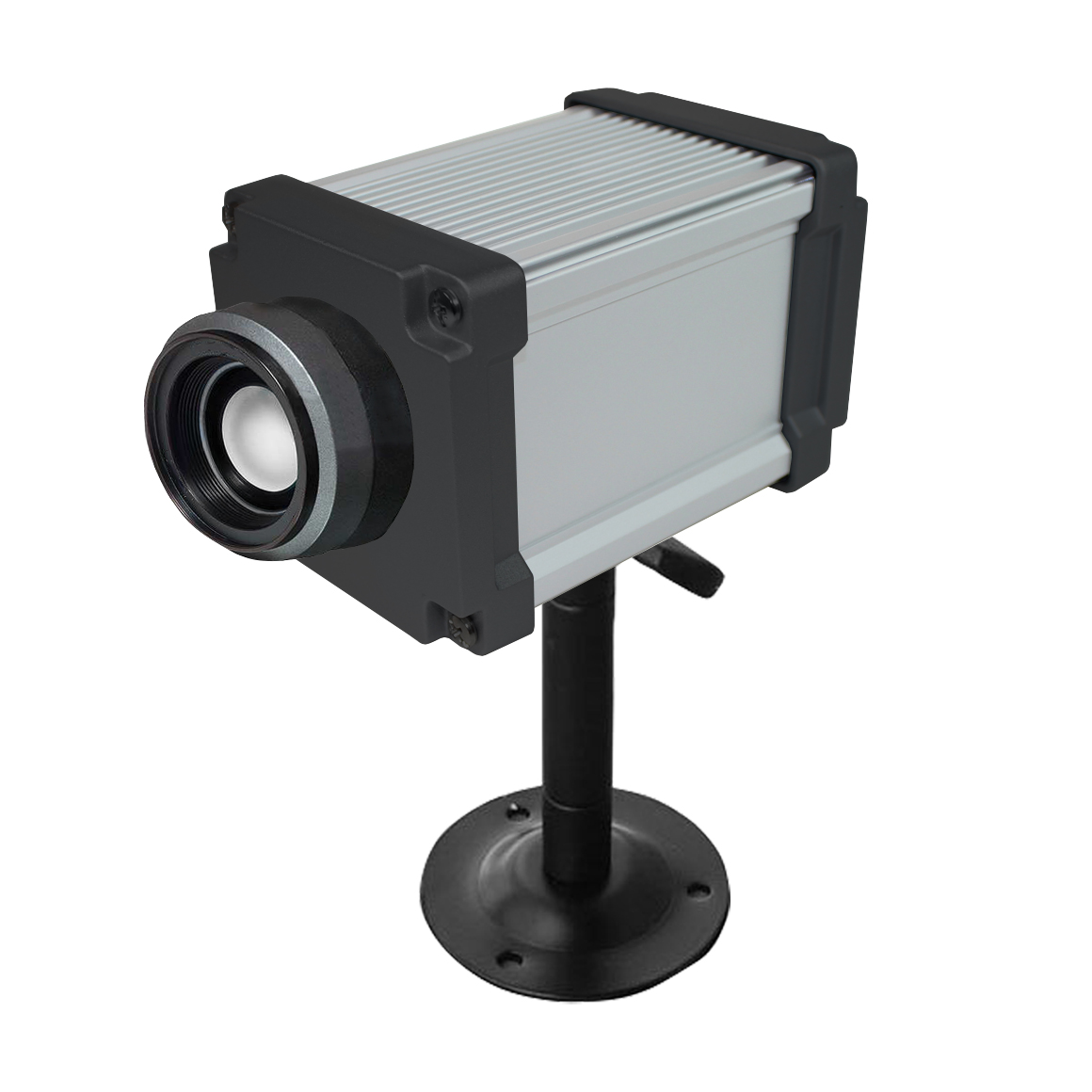

- Suitable for measuring instruments, industrial camera housing
- 88 series has been designed to meet the requirements of IP68
| External Length (mm) | 275 |
| External Width (mm) | 156.3 |
| External Height (mm) | 81.3 |
| Internal Length (mm) | 256 |
| Internal Width (mm) | 137 |
| Internal Height (mm) | 62 |
| Weight (G) | 1419 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Silver |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP68 |
| Brand | Takachi |
| Development Board | N/A |
| Extrusion | Yes |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
