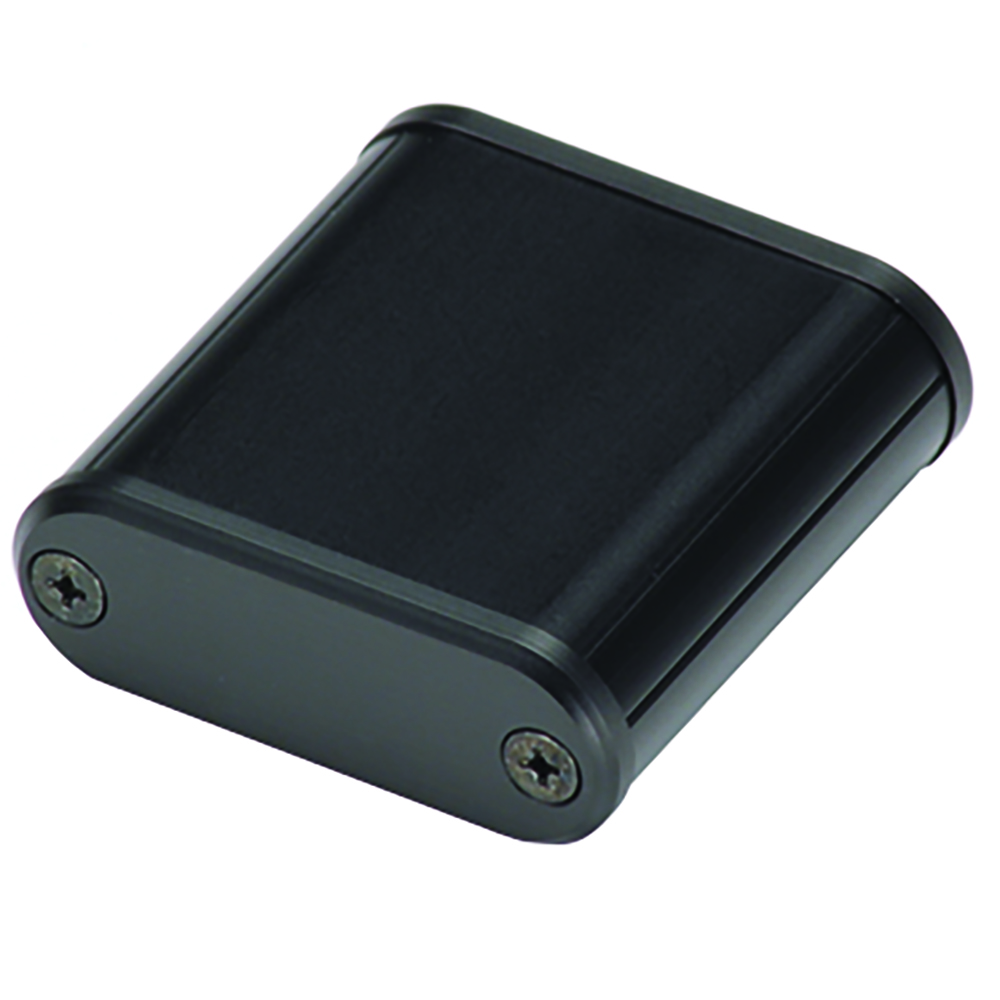

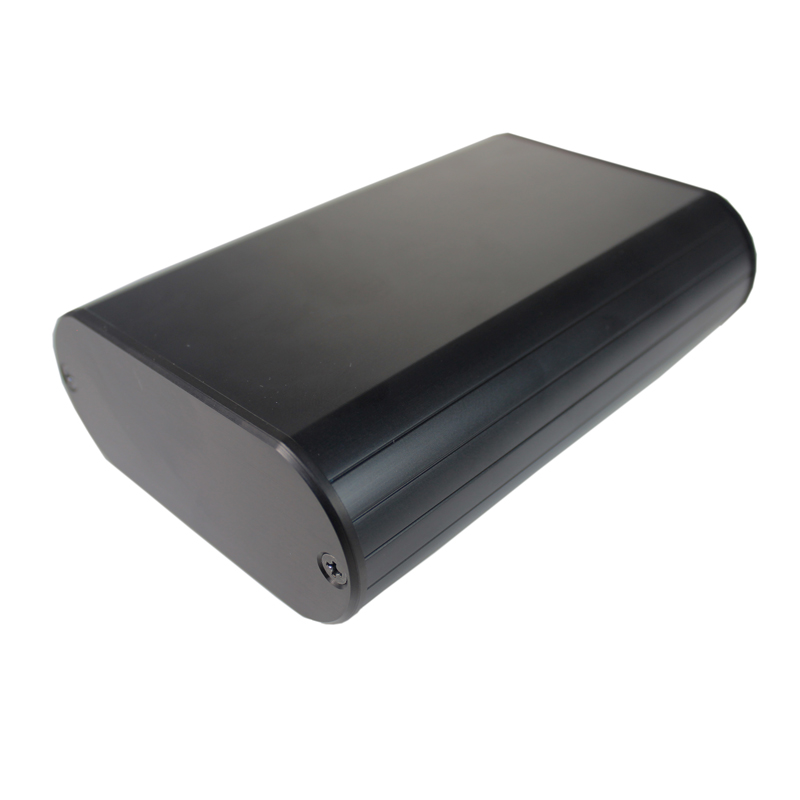

CDM8527BK - 85 Series Rounded Extruded Enclosure, Size 27, Black 140x95x40
This two-part aluminium enclosure is constructed using slide together halves, extruded into set lengths, allowing the PCB to be easily slid into the enclosure with the end panels holding it in place.

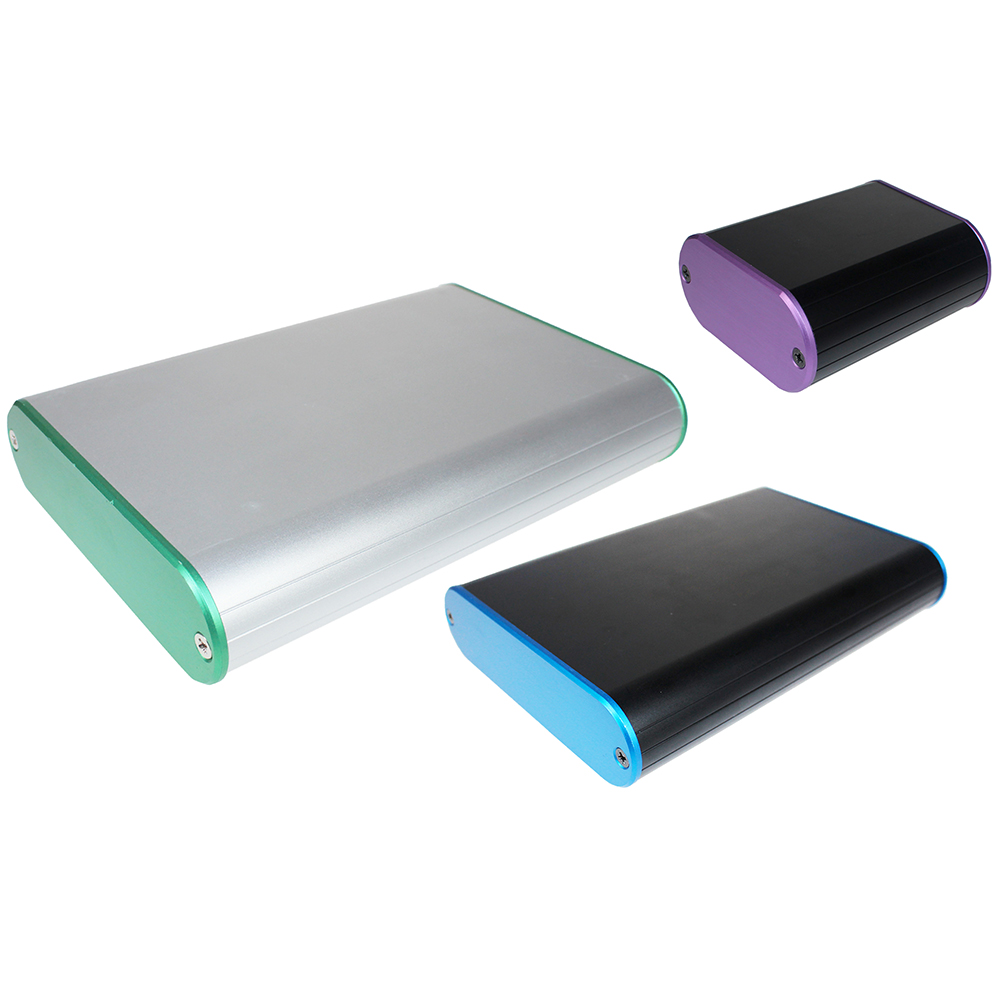

- Round aluminium mobile cases.
- Extruded aluminium case

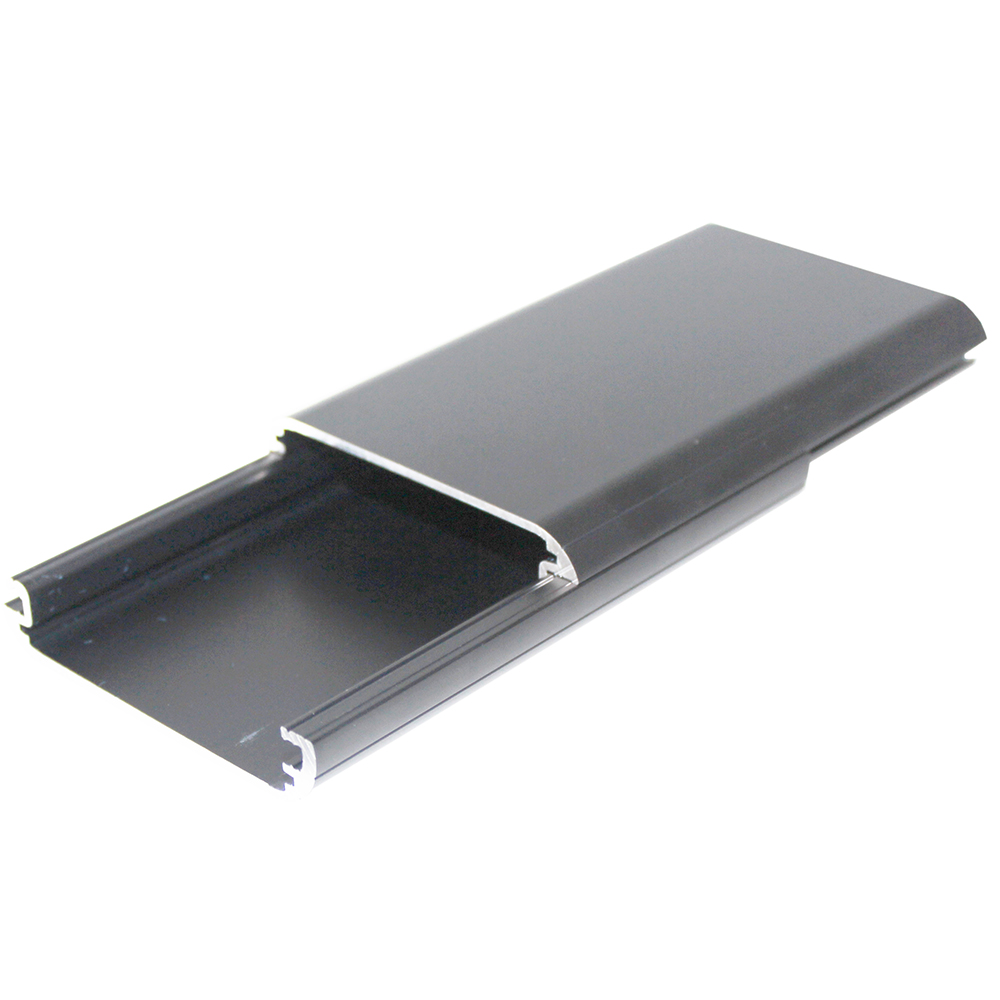

- Extrusion is split through the center for two part extrusion
- Two part extrusion gives a flush finish

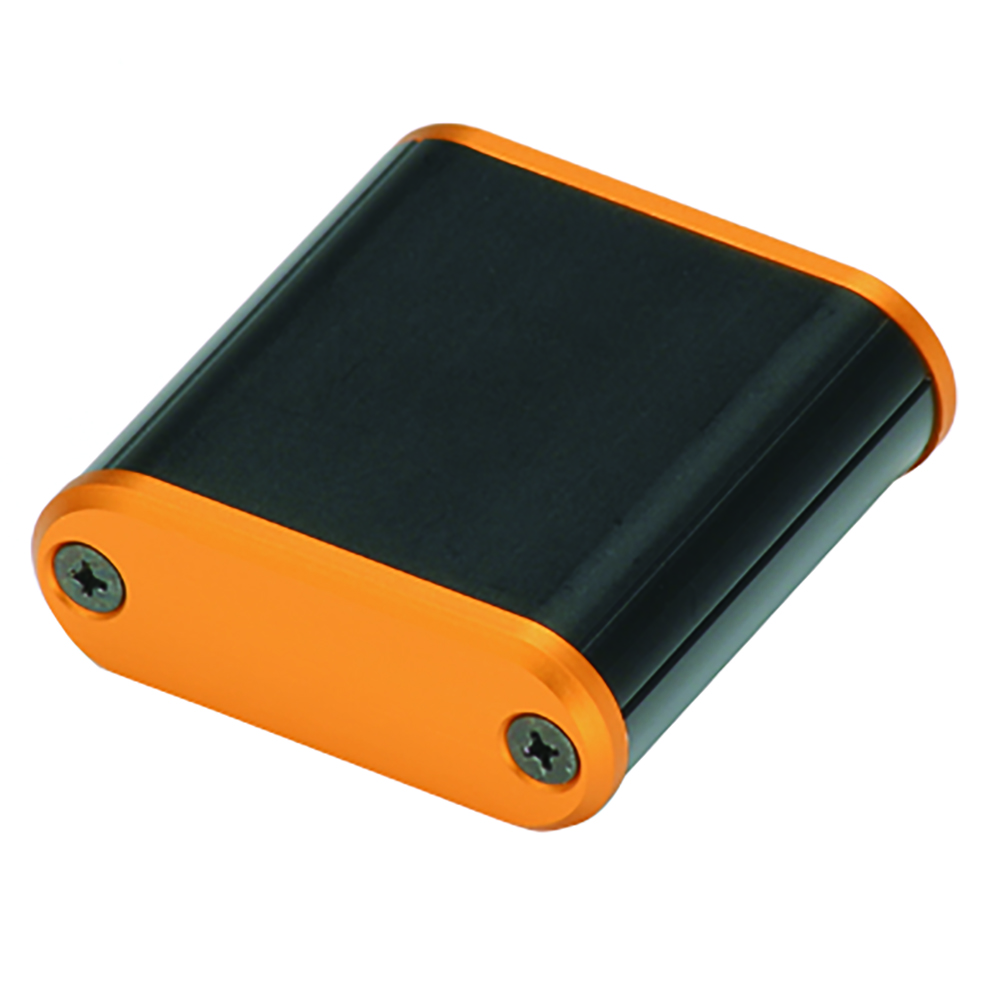

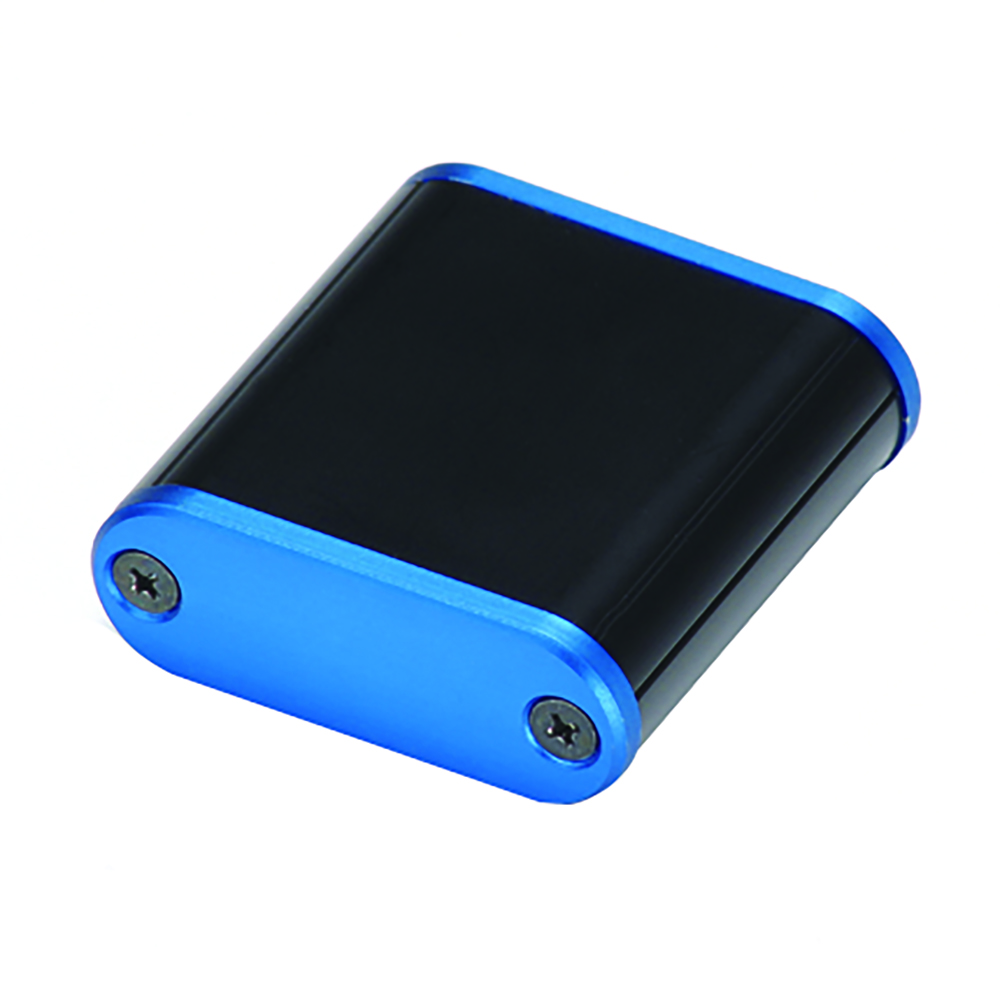

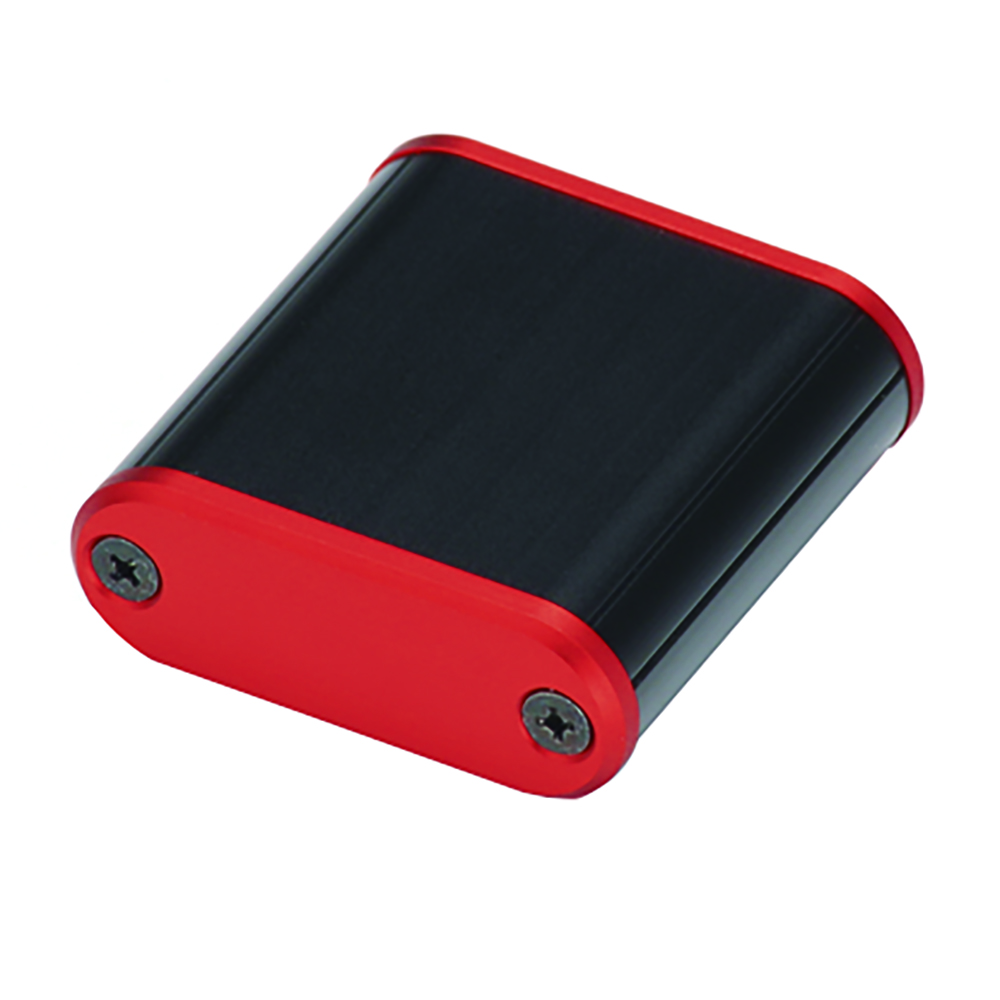

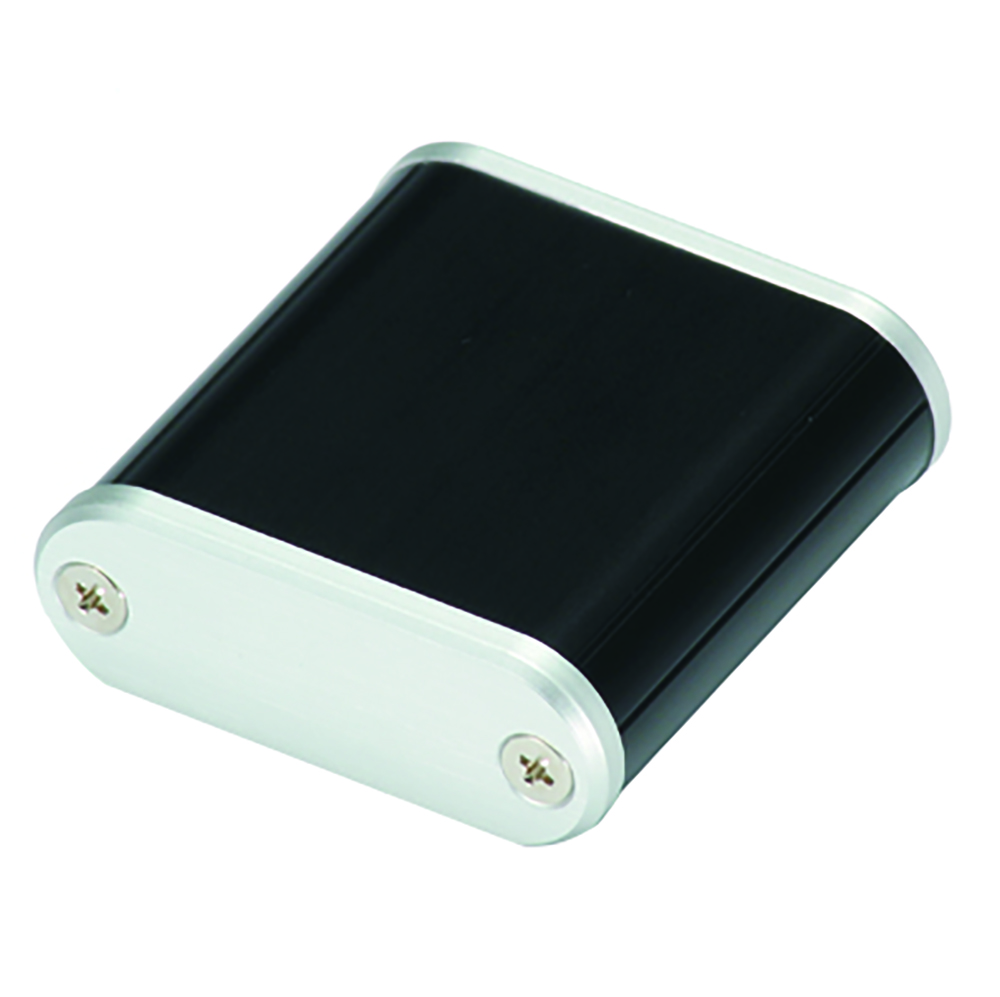

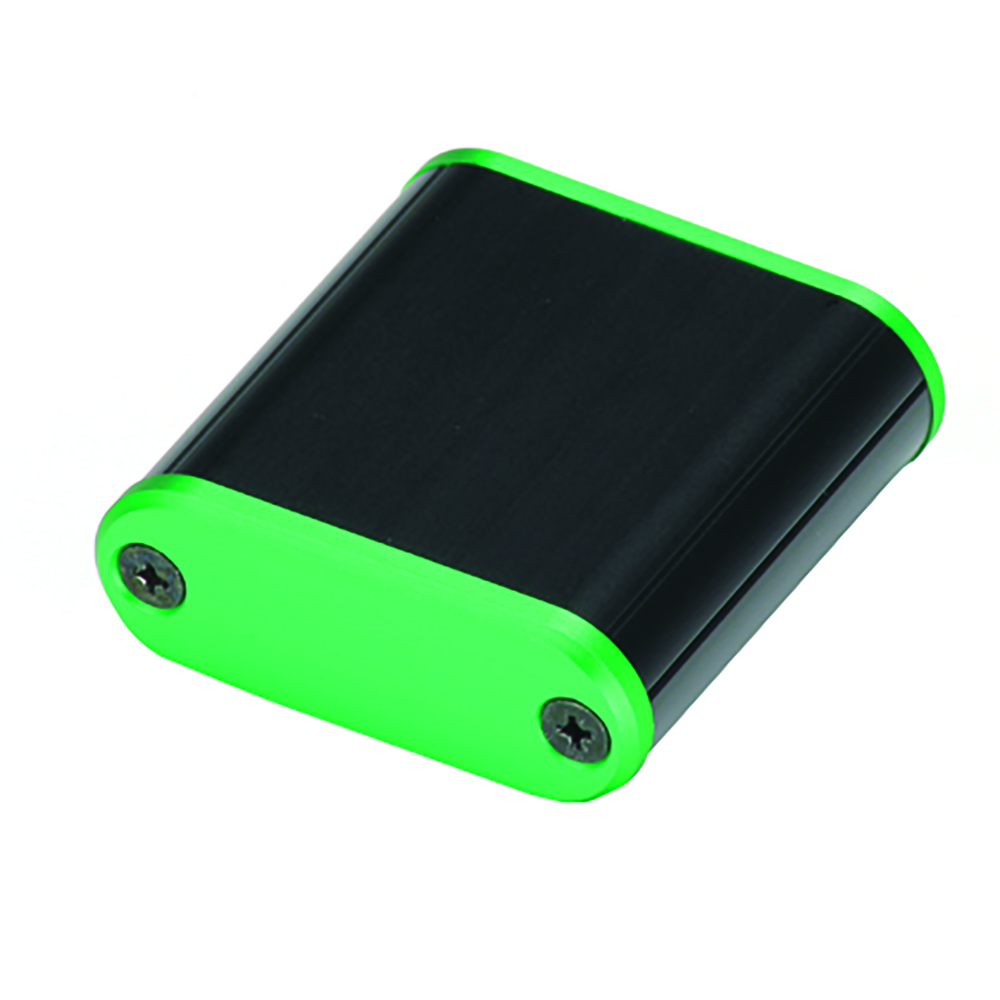

- Screw on end panels (Coloured end panels available on request)
- Rubber feet supplied
- PCB can slide into the enclosure (excludes sizes 1 & 3)
- 85 series has been designed to meet the requirements of IP40
| External Length (mm) | 140 |
| External Width (mm) | 95 |
| External Height (mm) | 40 |
| Internal Length (mm) | 134 |
| Internal Width (mm) | 78 |
| Internal Height (mm) | 36 |
| Weight (G) | 215 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Black |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | Takachi |
| Size | 140 x 95 x 40 |
| Development Board | N/A |
| Extrusion | Yes |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
