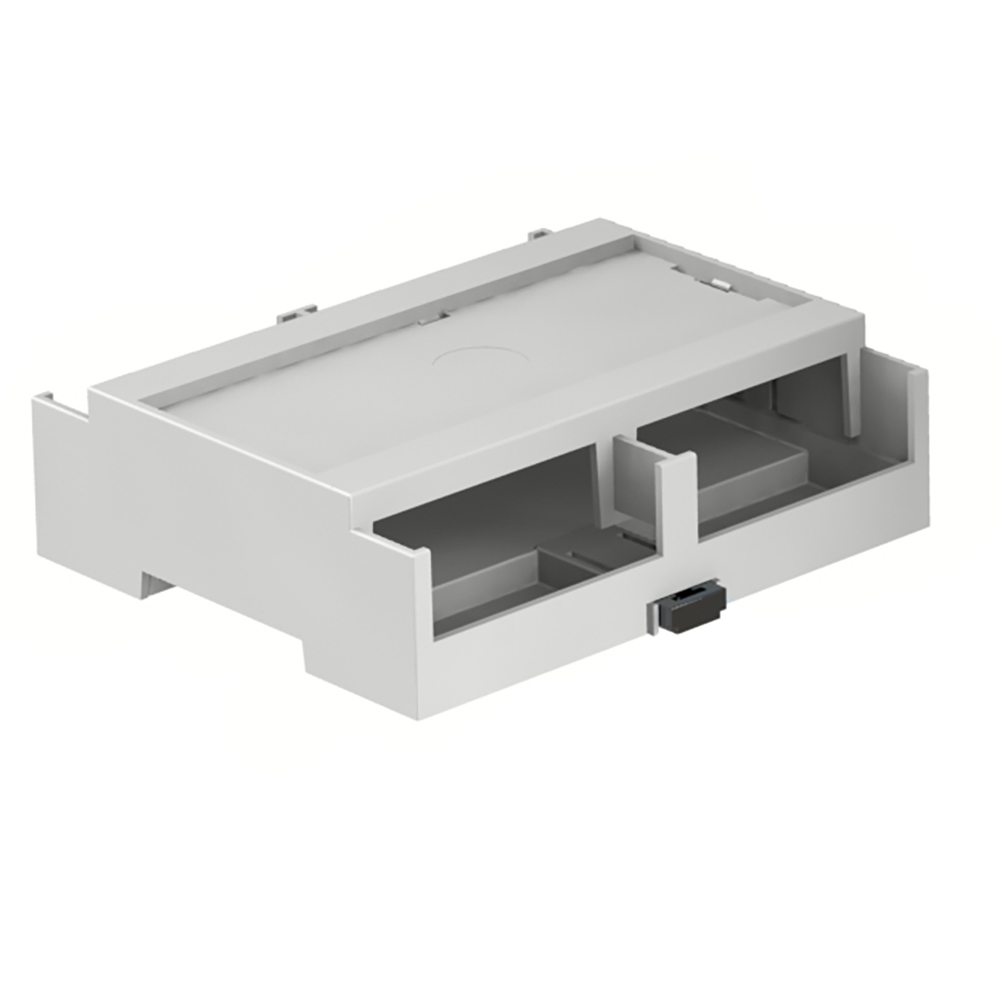

CDIB/6ST/L2 - DIN Rail Low Profile Enclosure with Solid Top, 31.9x90x106.2mm
High and Low Profile DIN Rail Enclosure Series. Solid Top, Low Profile. Ideal for industrial, networking and drives and control electronics
- X2 pillars in the base for screw fixing PCB
- Designed for 35mm DIN Rail Mounting
- DIN Clips can also be used for surface mounting the housing
- Multiple snap-in PCB positions available (horizontal & vertical)
| External Length (mm) | 90 |
| External Width (mm) | 106.2 |
| External Height (mm) | 31.9 |
| Weight (G) | 70 |
| Base Material | Plastic |
| Material Type | Polycarbonate UL94-V0 |
| Colour | Light Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP20 |
| Brand | CamdenBoss |
| DIN Rail Mounting | Yes |
| Solid Top | Yes |
| Development Board | N/A |
| Country Of Origin | Great Britain (GB) |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
