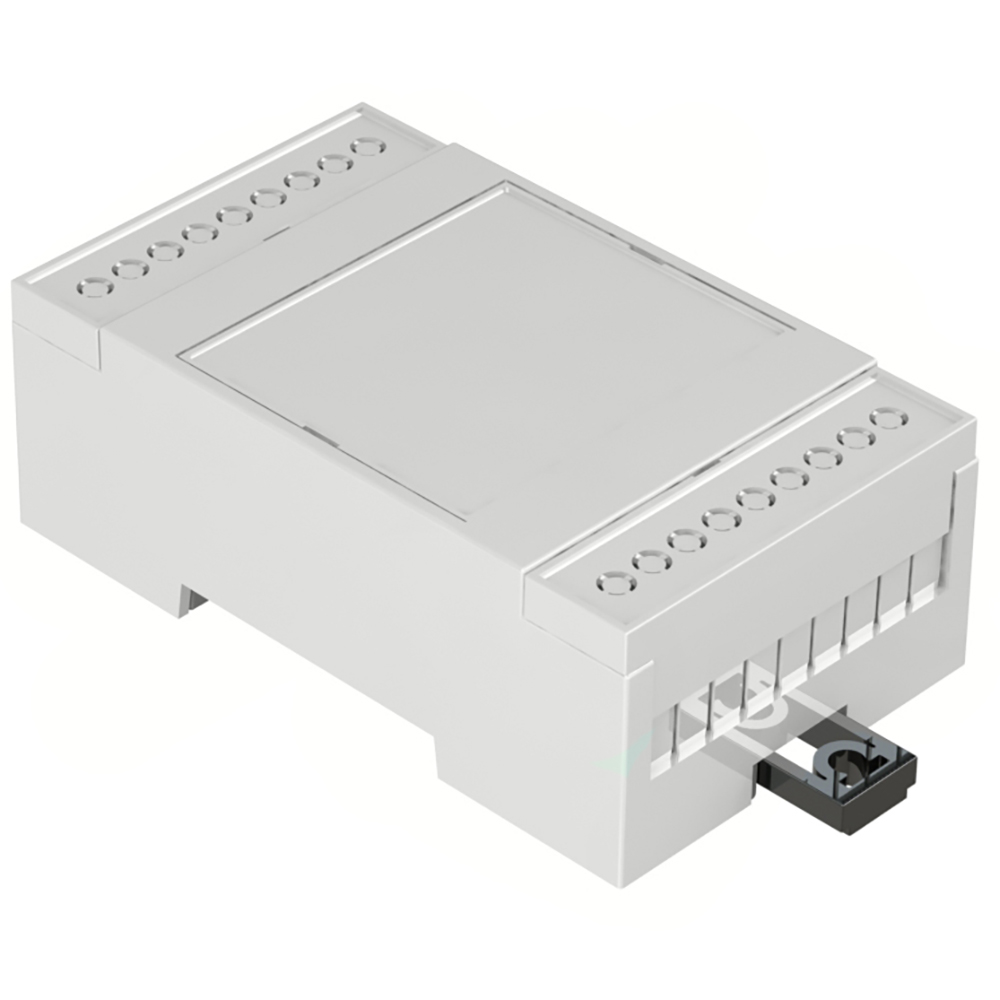

CDIB/3ST/L2/KIT - DIN Rail Low Profile Enclosure Kit with Solid Top, 31.9x90x53mm
High and Low Profile DIN Rail Enclosure Series. Solid Top, Low Profile. Kit includes one solid and two perforated terminal guards. Ideal for industrial, networking and drives and control electronics
- X2 pillars in the base for screw fixing PCB
- Designed for 35mm DIN Rail Mounting
- DIN Clips can also be used for surface mounting the housing
- Multiple snap-in PCB positions available (horizontal & vertical)
| External Length (mm) | 90 |
| External Width (mm) | 53 |
| External Height (mm) | 31.9 |
| Weight (G) | 42 |
| Base Material | Plastic |
| Material Type | Polycarbonate UL94-V0 |
| Colour | Light Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP20 |
| Brand | CamdenBoss |
| DIN Rail Mounting | Yes |
| Solid Top | Yes |
| Development Board | N/A |
| Country Of Origin | Great Britain (GB) |
