CDE9401WH - 94 Series Flanged Comms And Network Enclosure, White, ABS UL94-V0, 67.3x124.3x22.5mm

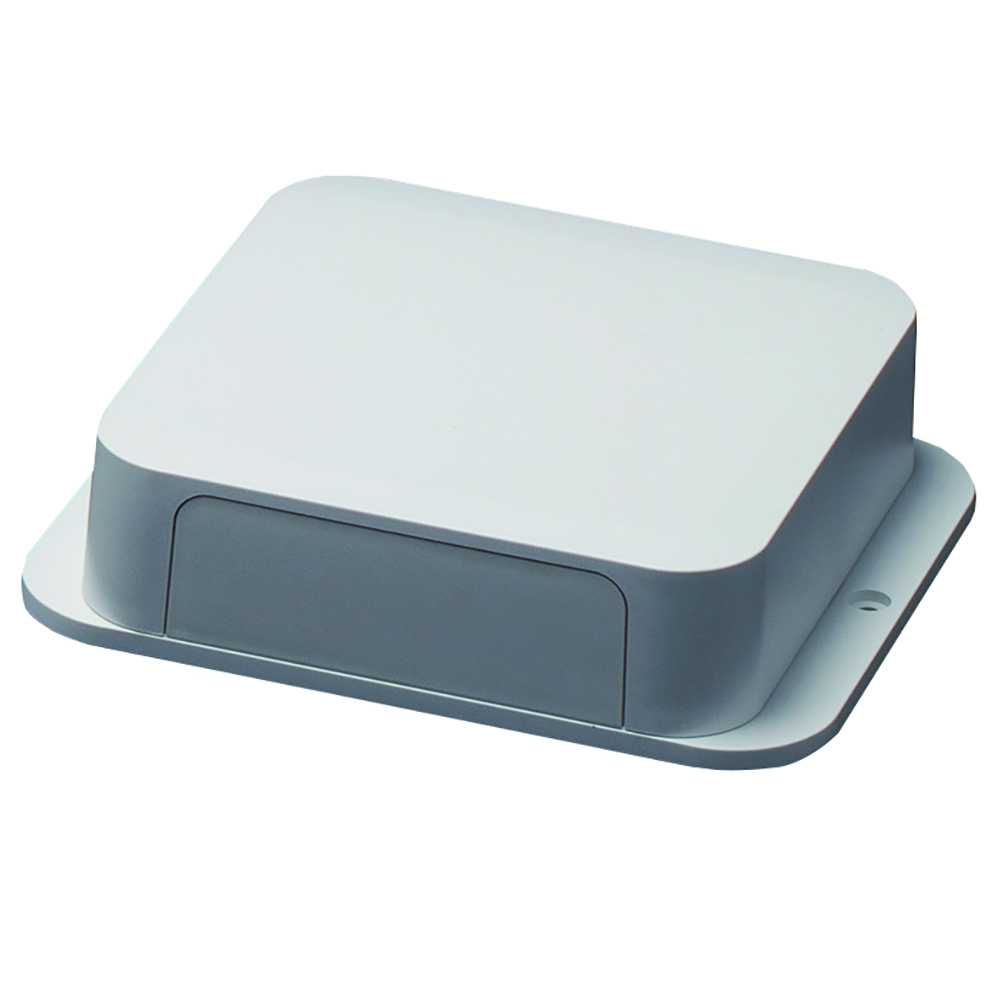

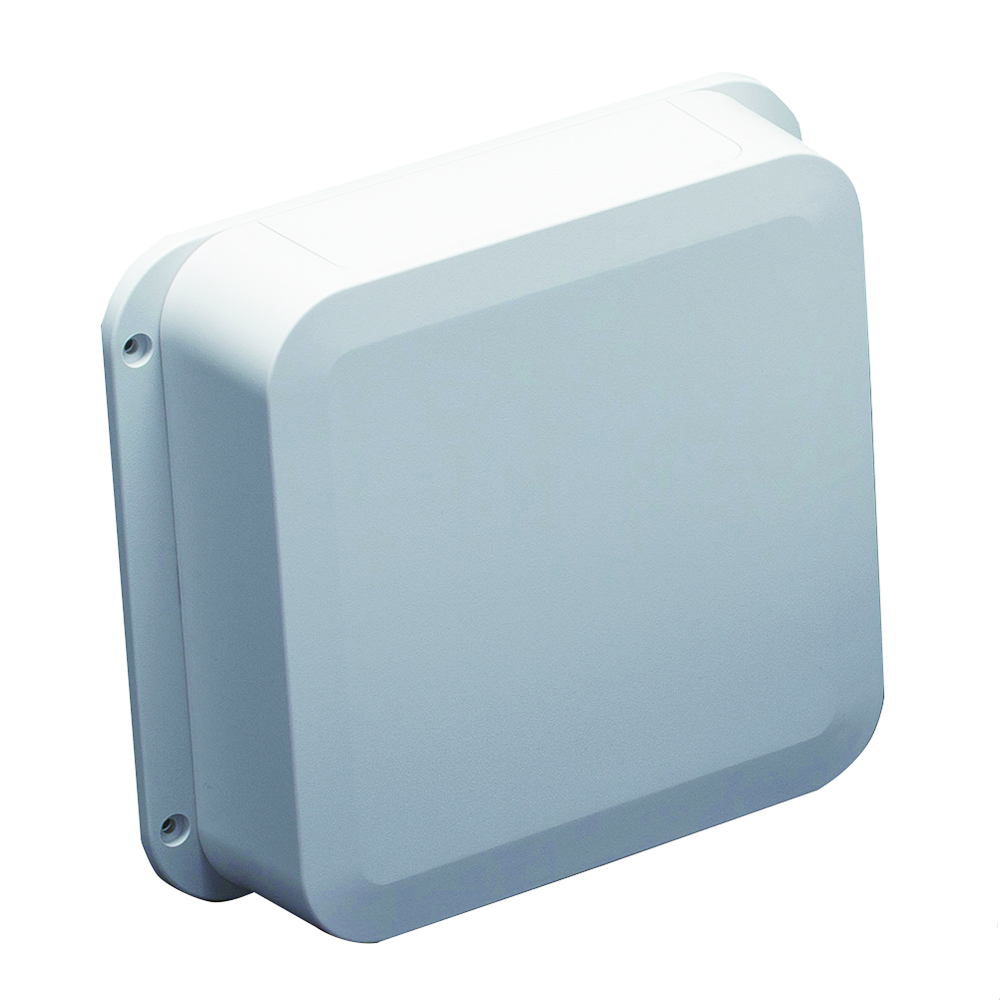

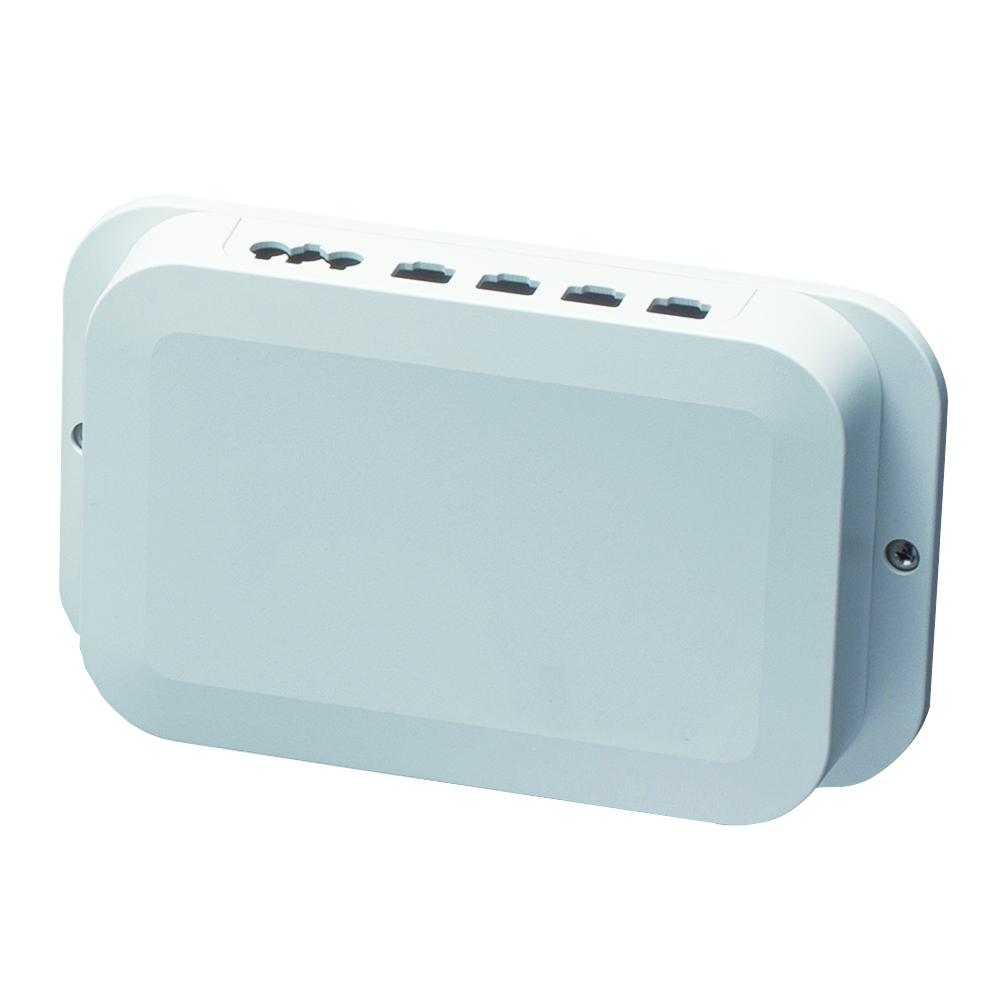

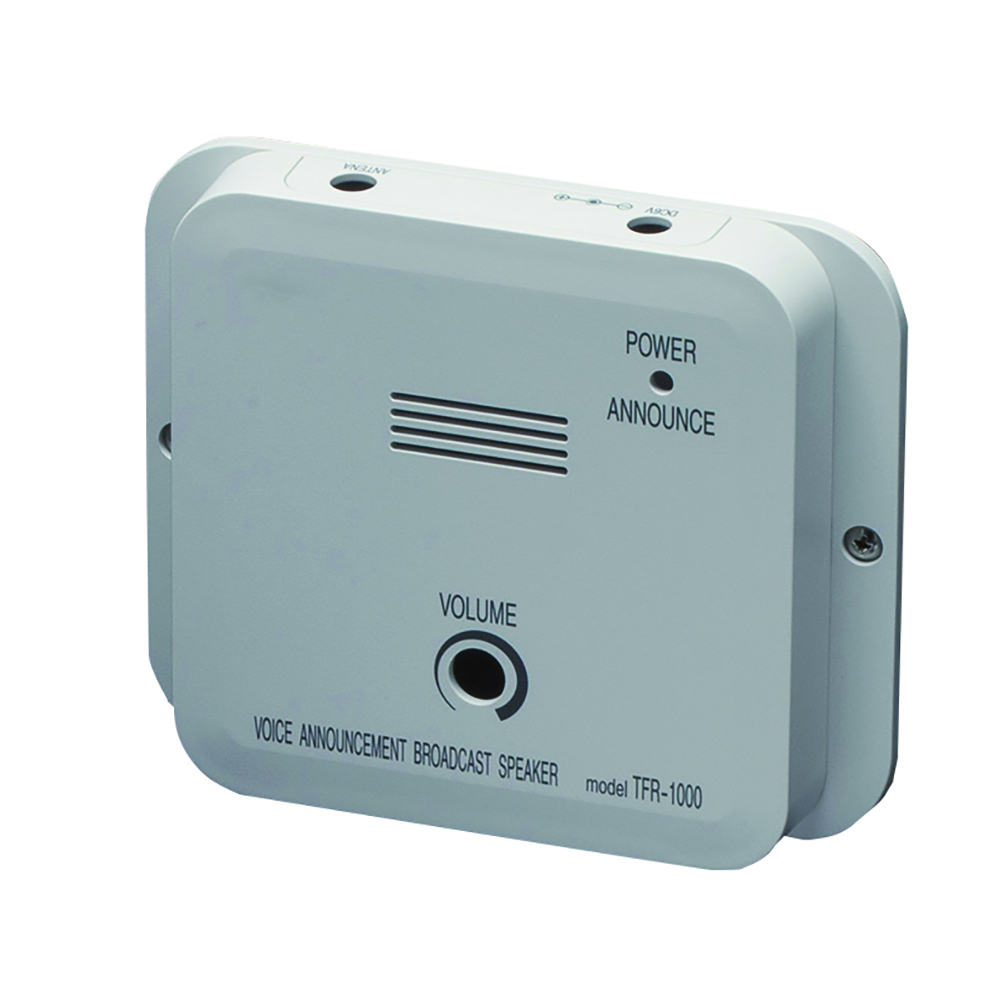

A flanged surface mountable IoT enclosure with removable side panels, suitable for a broad range of wall mount applications
- Stylishly designed ABS plastic case with double detachable panels
- Flanged sides for surface or wall mounting
- Flame resistant ABS (UL94-V0), 24 sizes, available in off-white
- Equipped with built-in bosses for PCB mounting
- Suitable for WiFi access points and communication applications
- 94 series has been designed to meet the requirements of IP40
| External Length (mm) | 67.3 |
| External Width (mm) | 124.3 |
| External Height (mm) | 22.5 |
| Weight (G) | 60.8 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | White |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP40 |
| Wall Mount | Yes |
| CE Approval | Yes |
| UL Approval | Yes |
| Brand | Takachi |
| Flanges/Lugs | Yes |
| Size | 67.3 x 124.3 x 22.5 |
| Development Board | N/A |

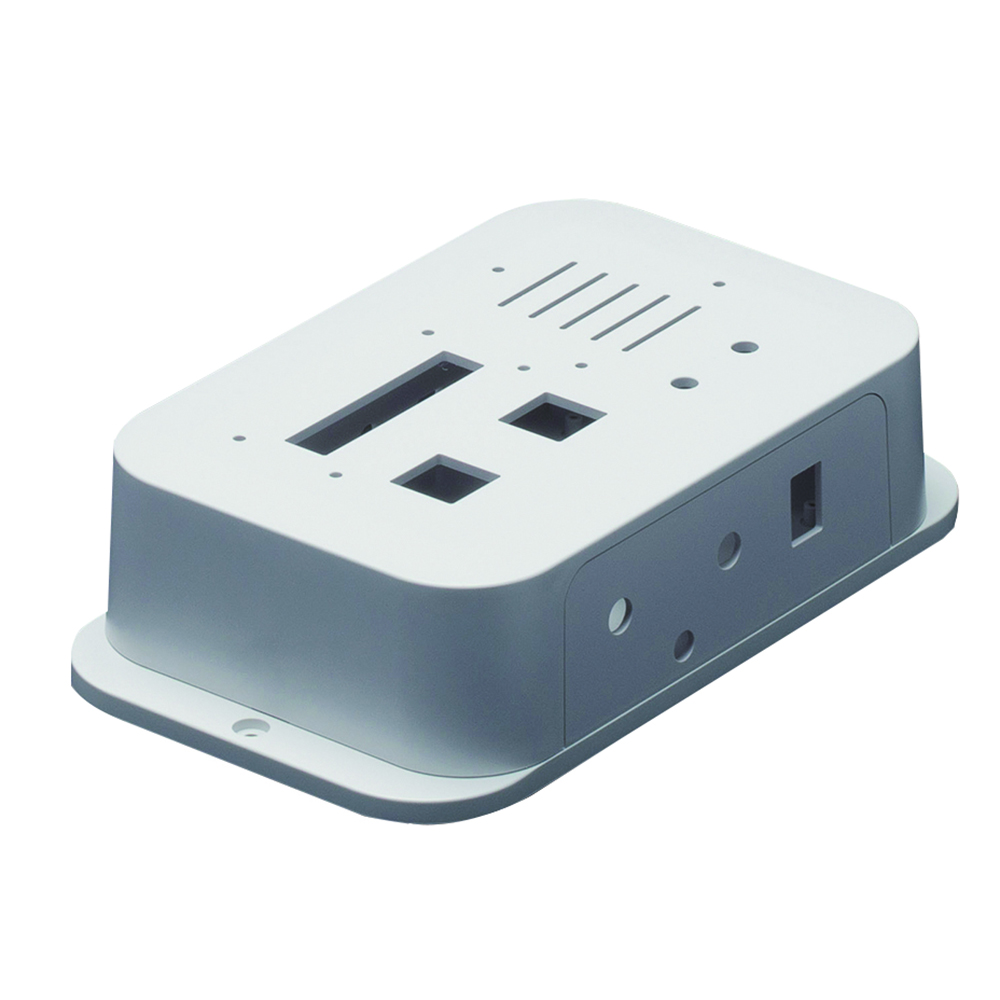

CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand

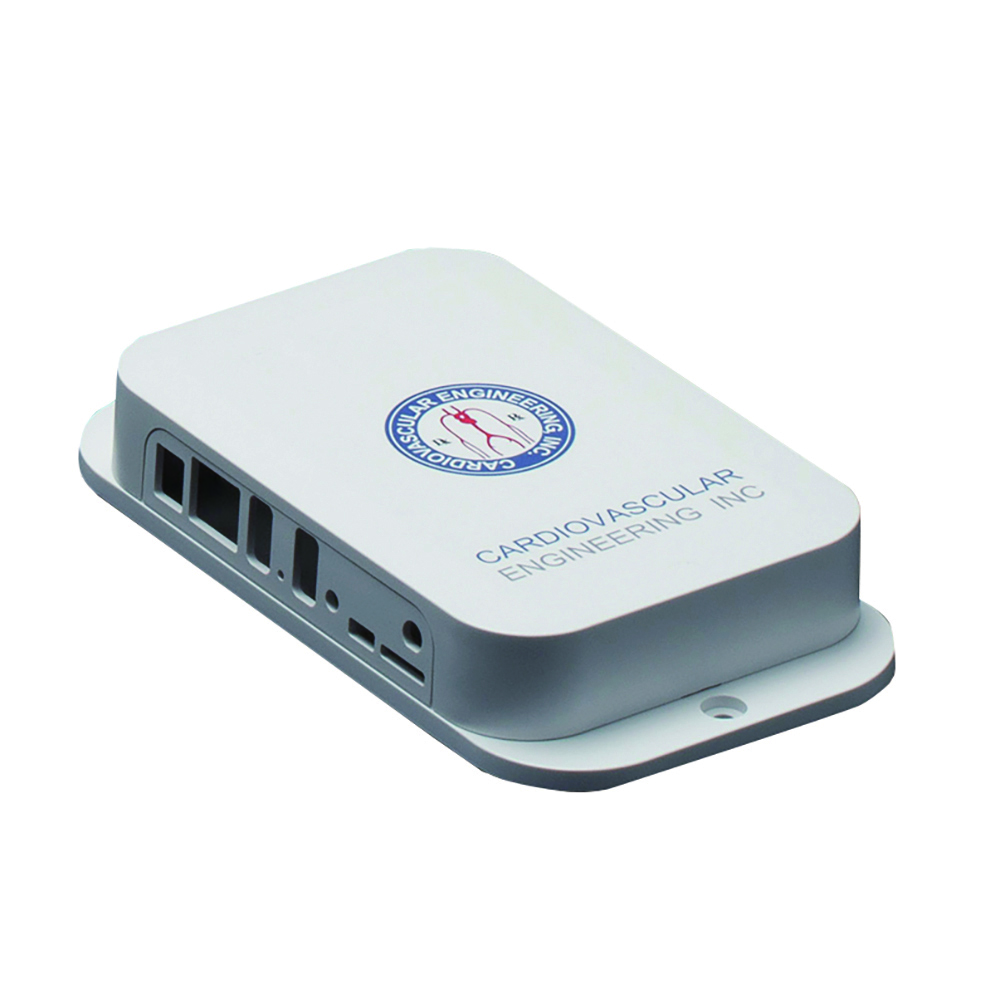

Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
