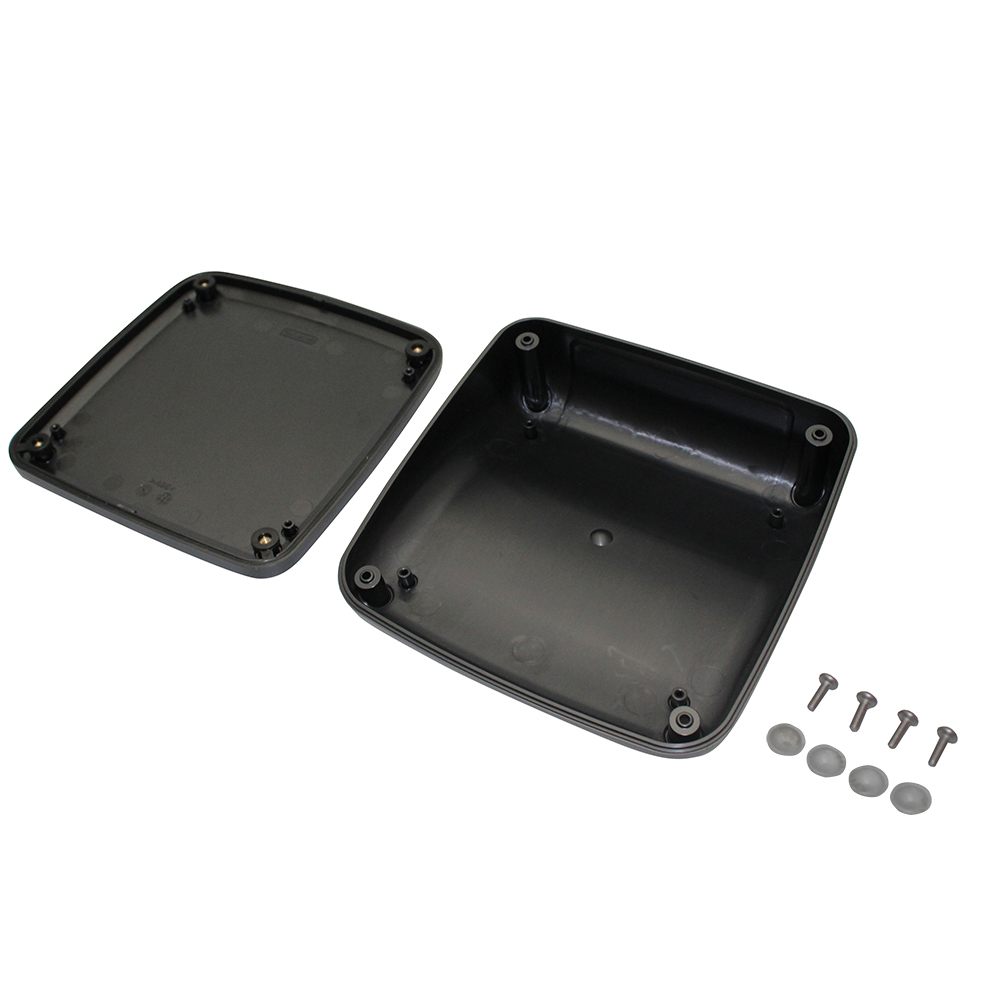

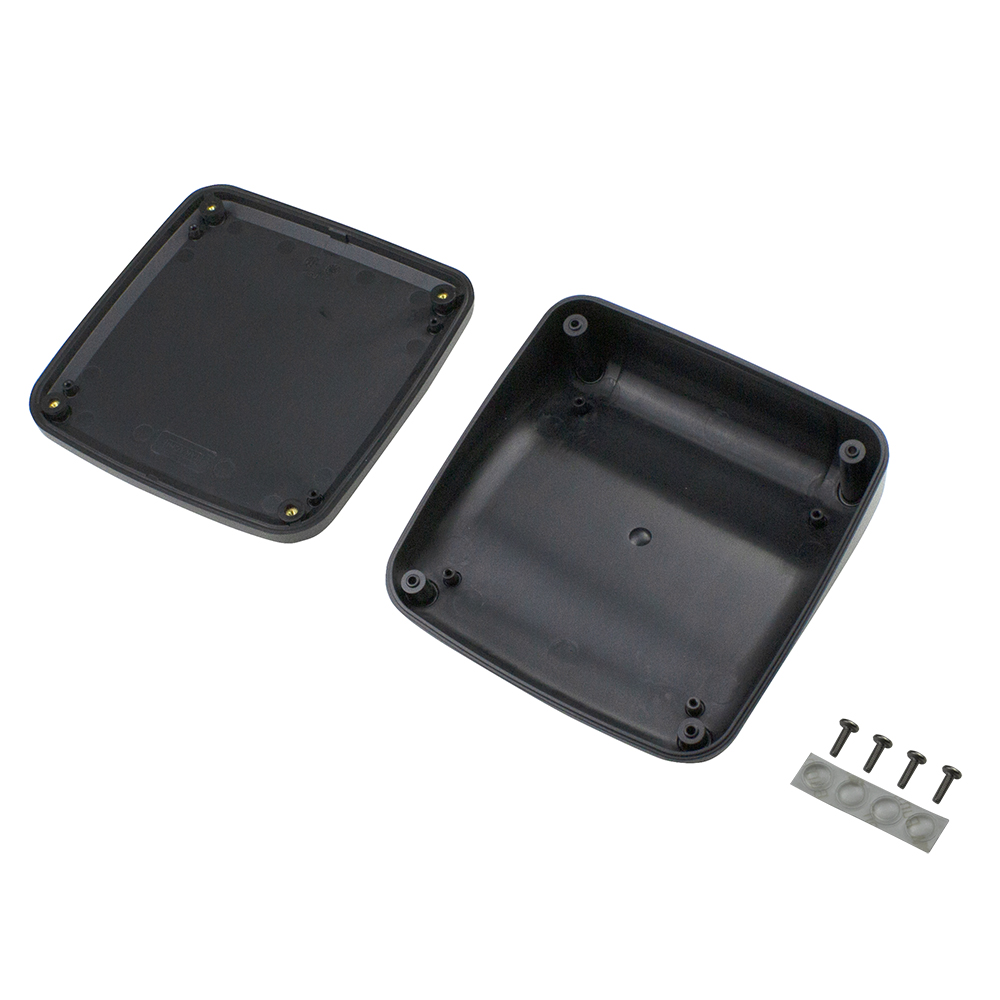

CDE2120BK - 21 Series IP67 Desktop Instrument Case, Black, ABS UL94-V0, 140x140x52mm

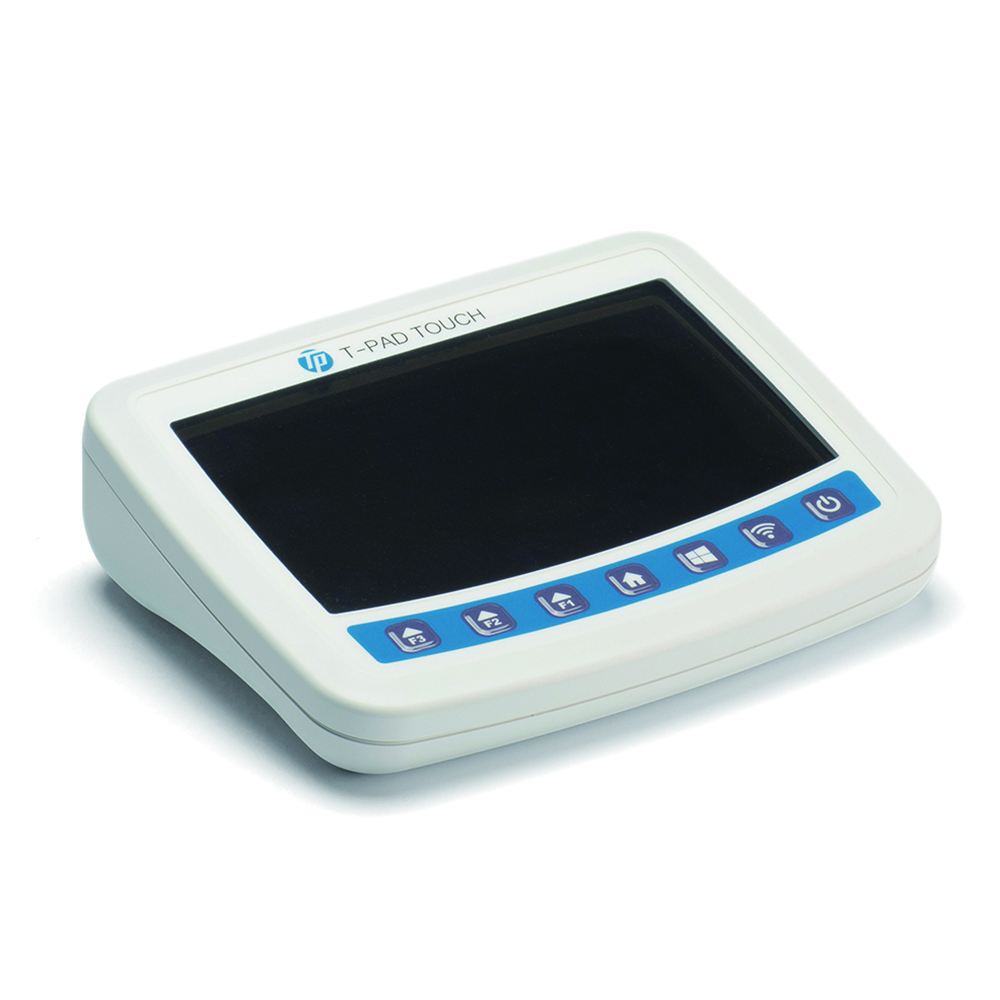

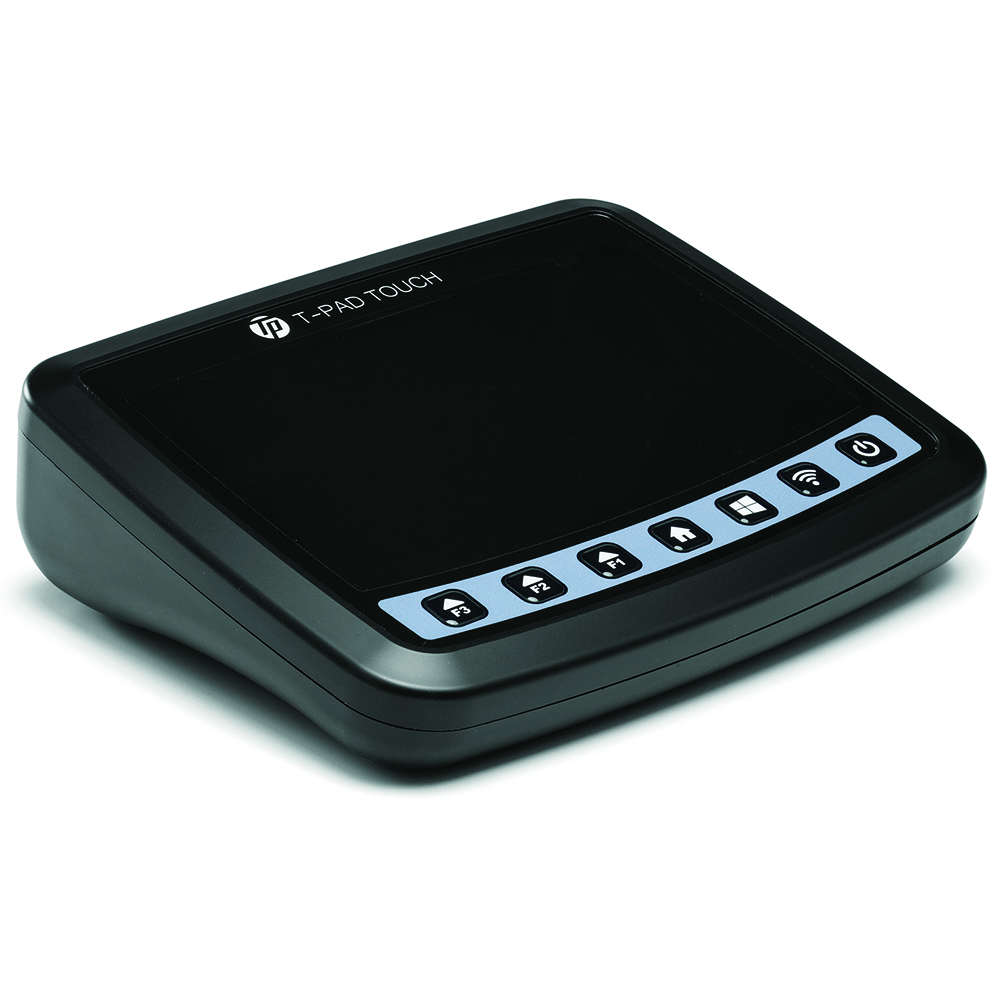

21 Series IP67 sloped electronic enclosure with a 13 degree angle, ideal for desktop and handheld electronics

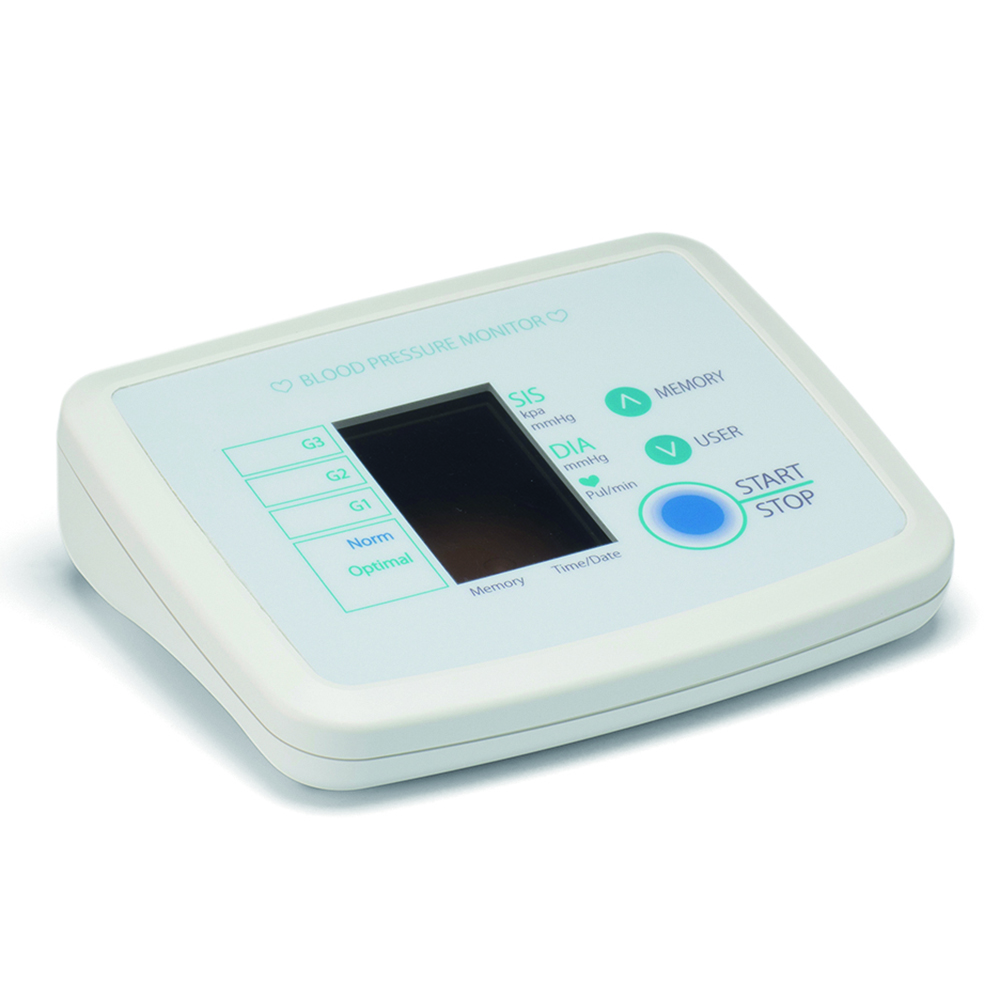

- Ergonomic design for desktop applications

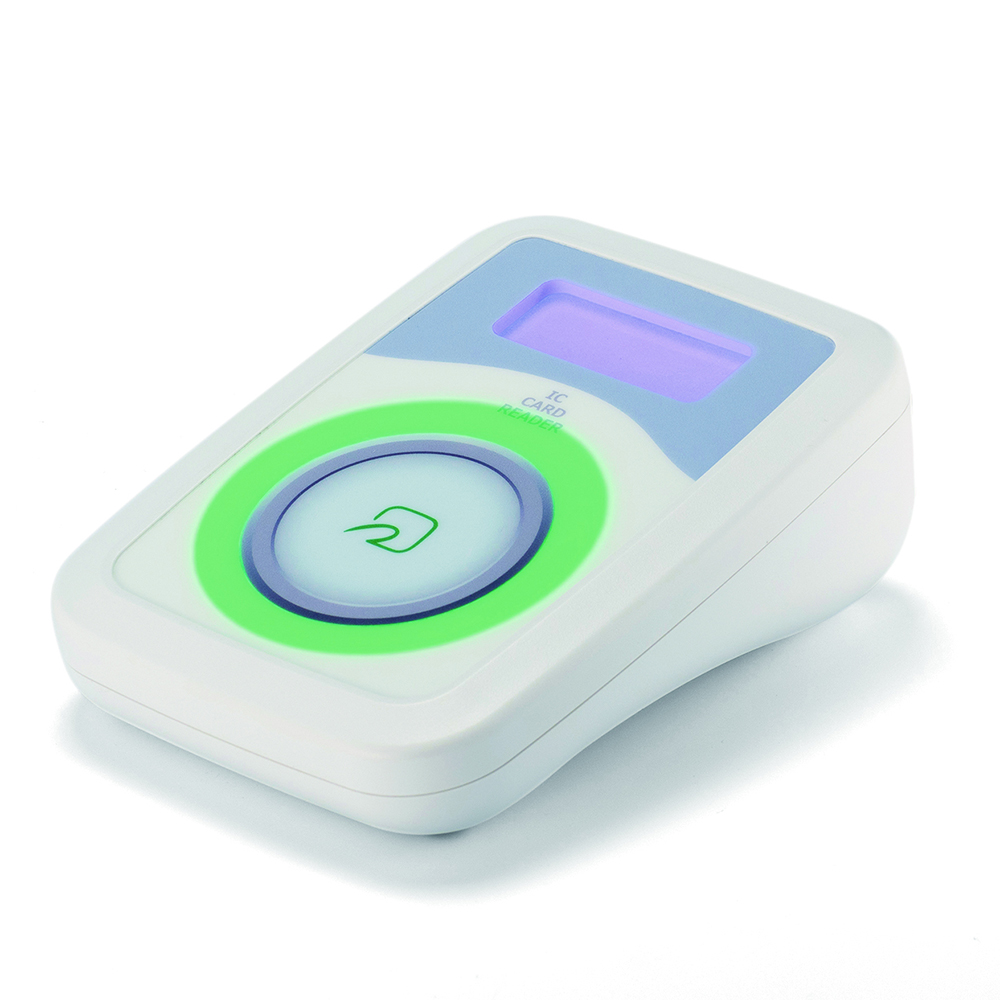

- Streamlined shape provides a comfortable grip for handheld applications

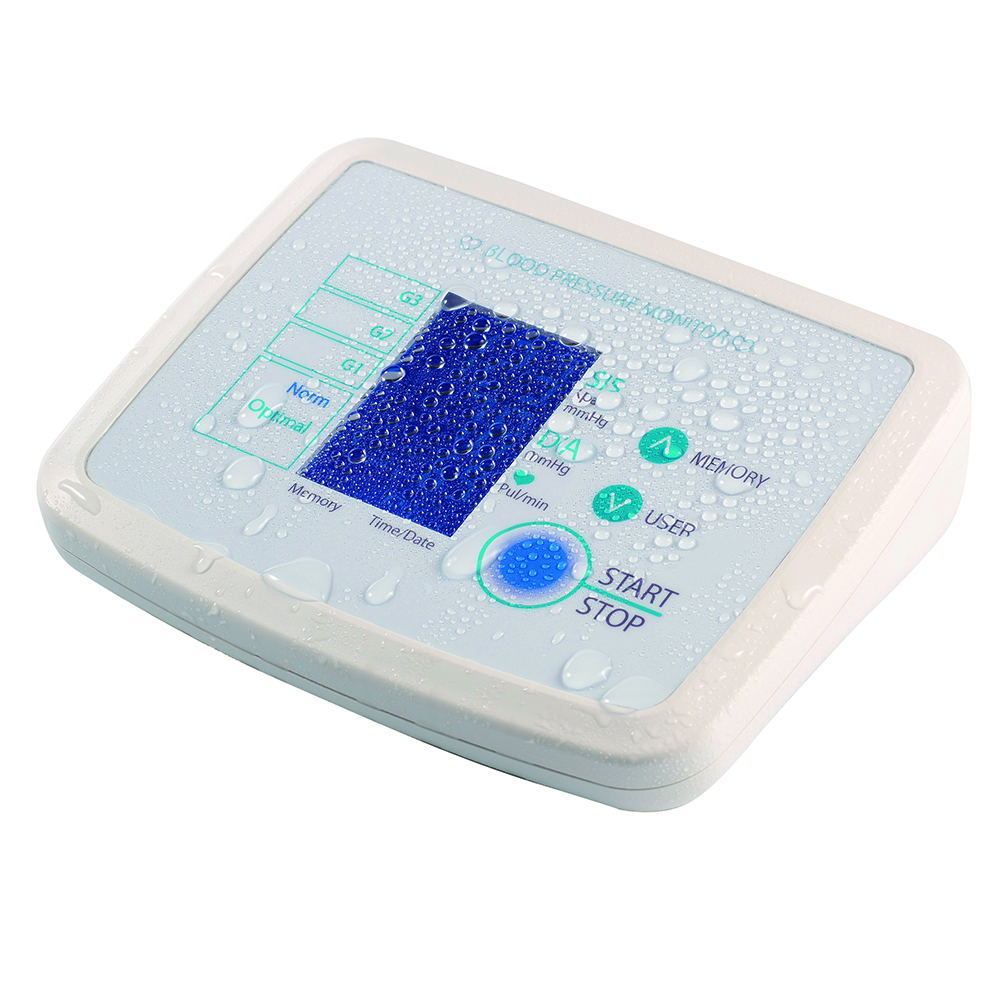

- IP67 protection allows outdoor or indoor use susceptible to splashes

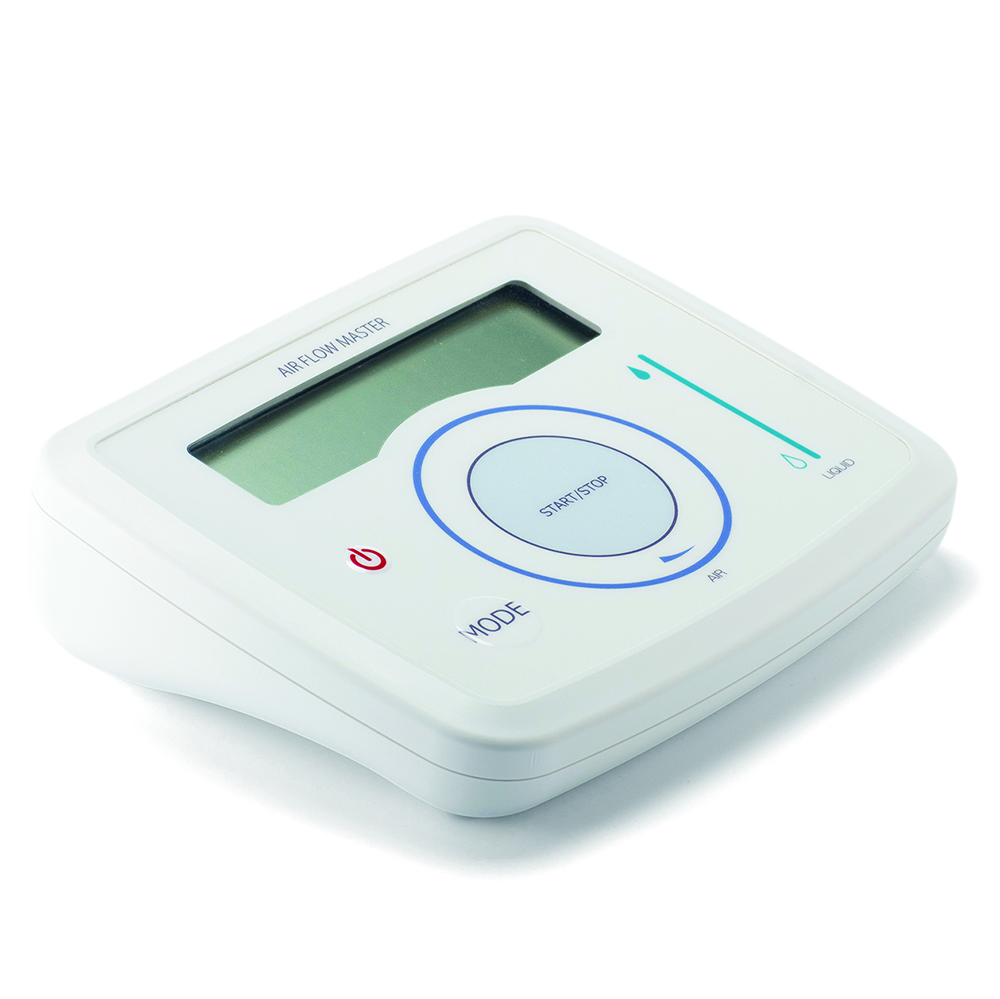

- Recessed top face to accommodate membrane keypads and displays
- Moulded in flame resistant ABS

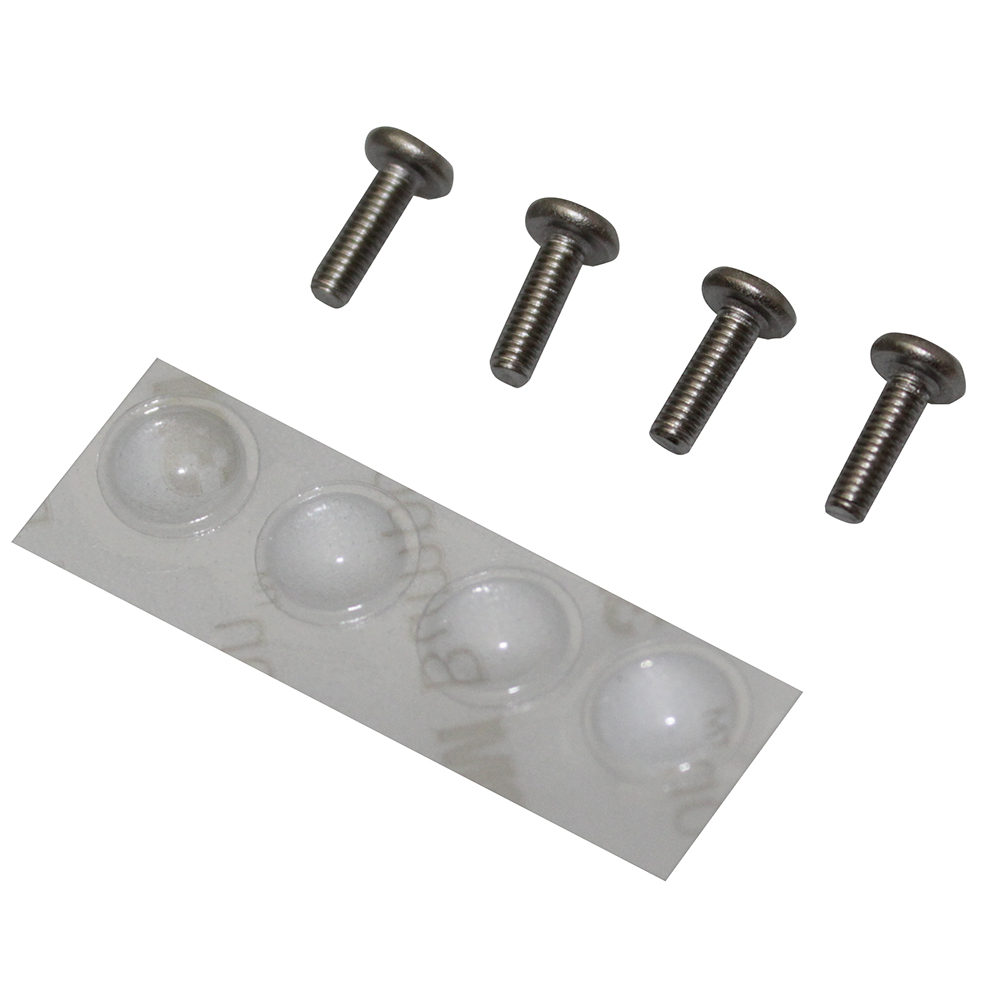

- Transparent self adhesive feet included

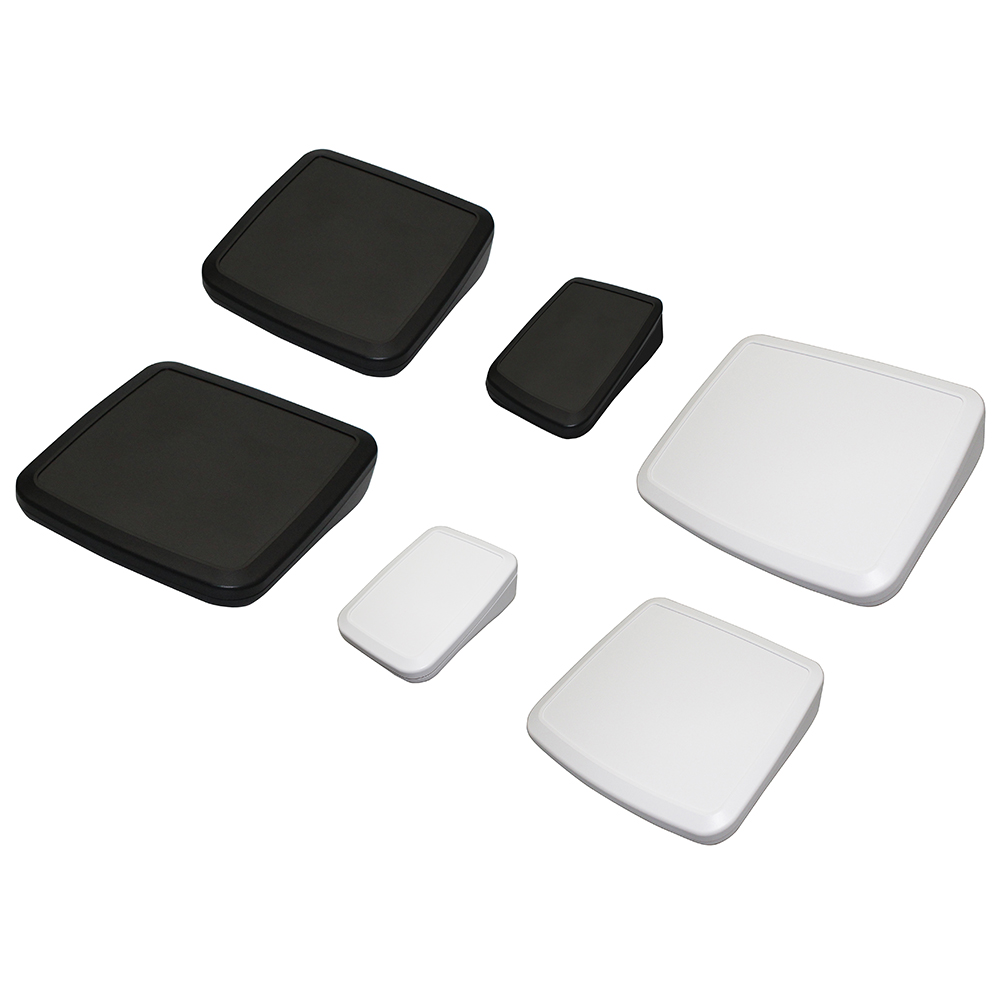

- Available in black or off-white.

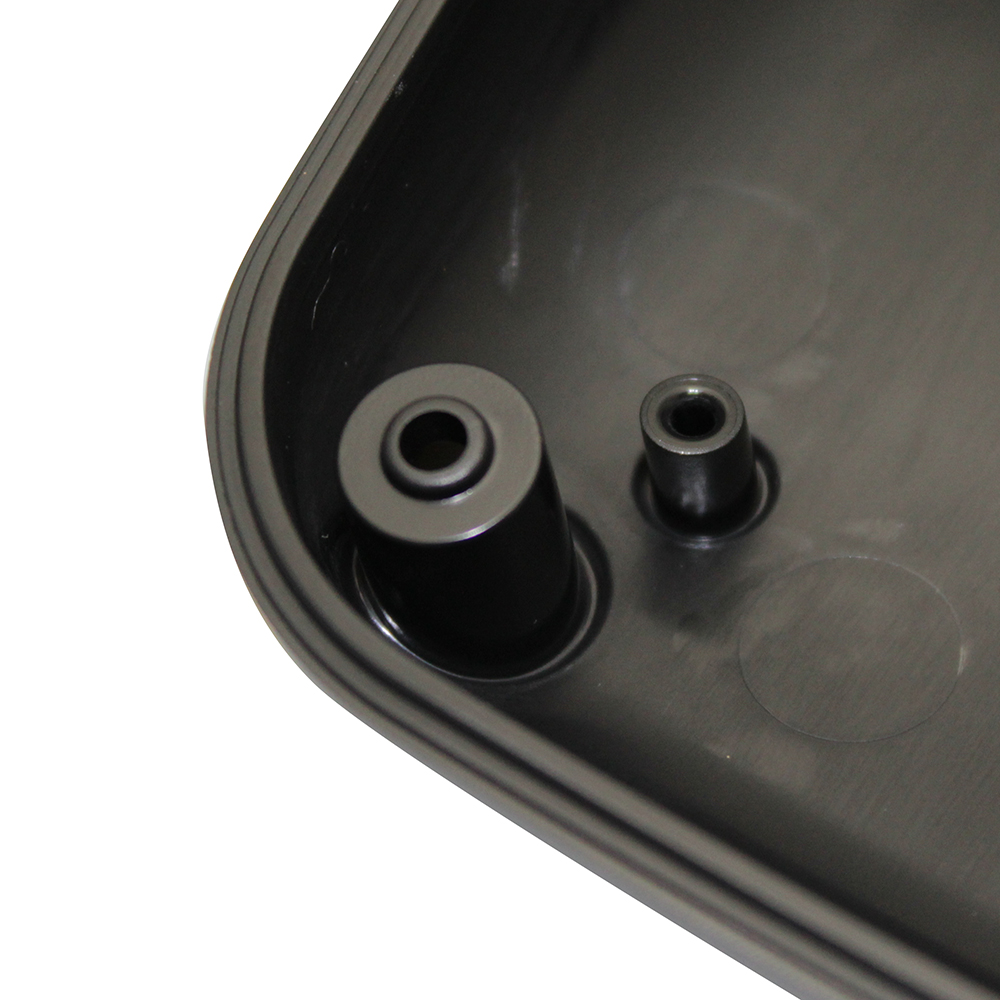

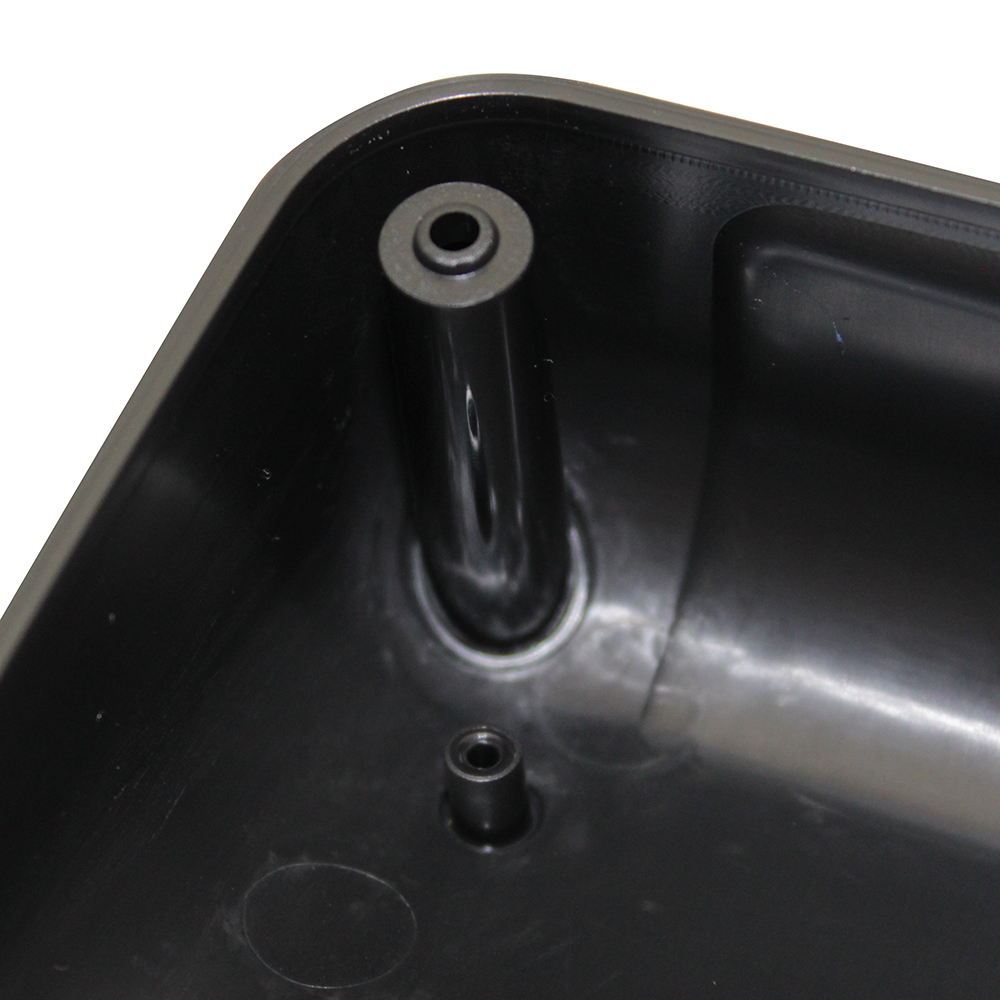

- Optional inclined spacer available to aid mounting PCBs into case lower

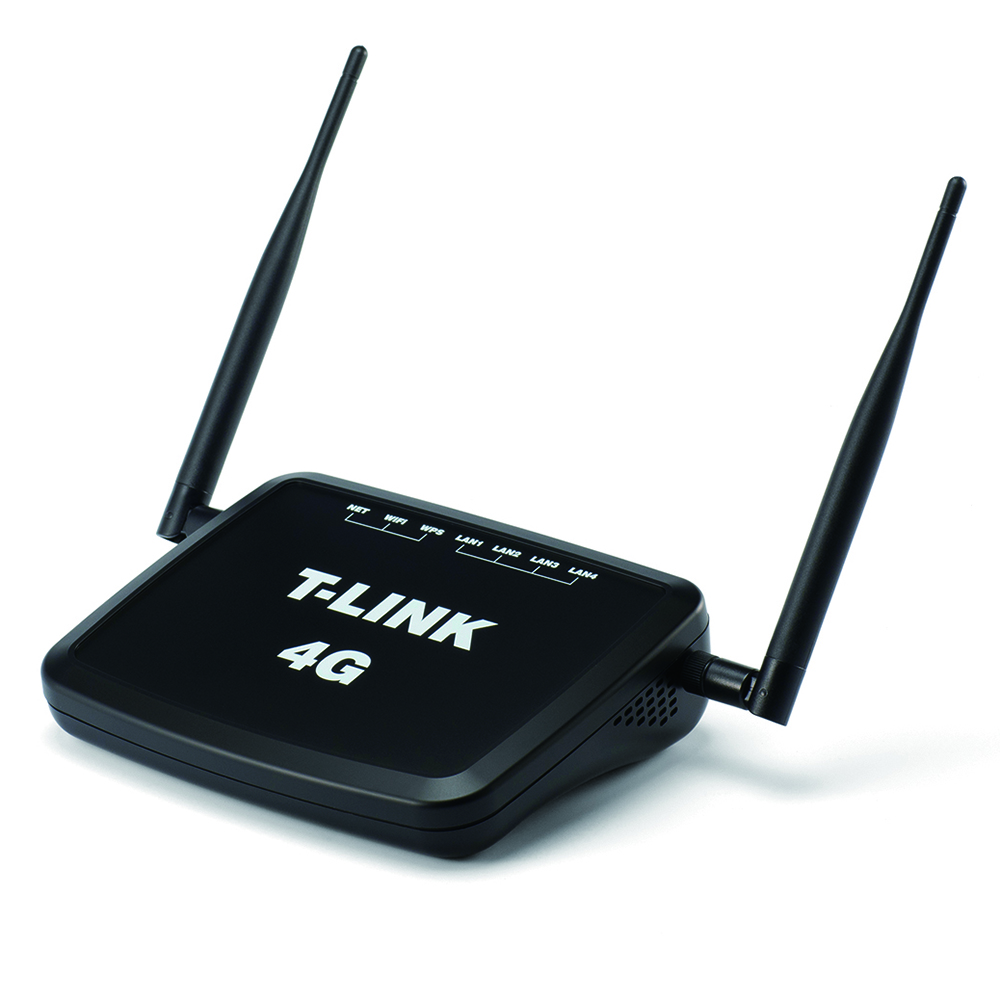

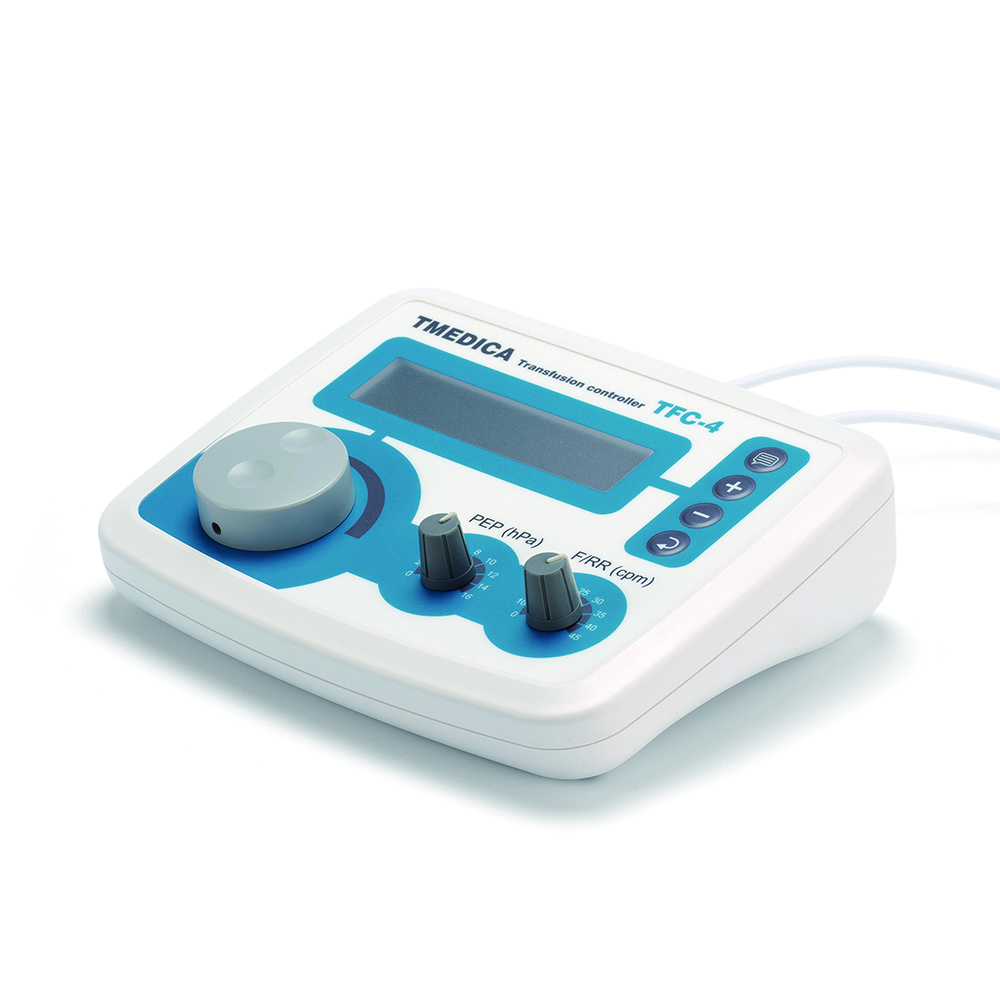

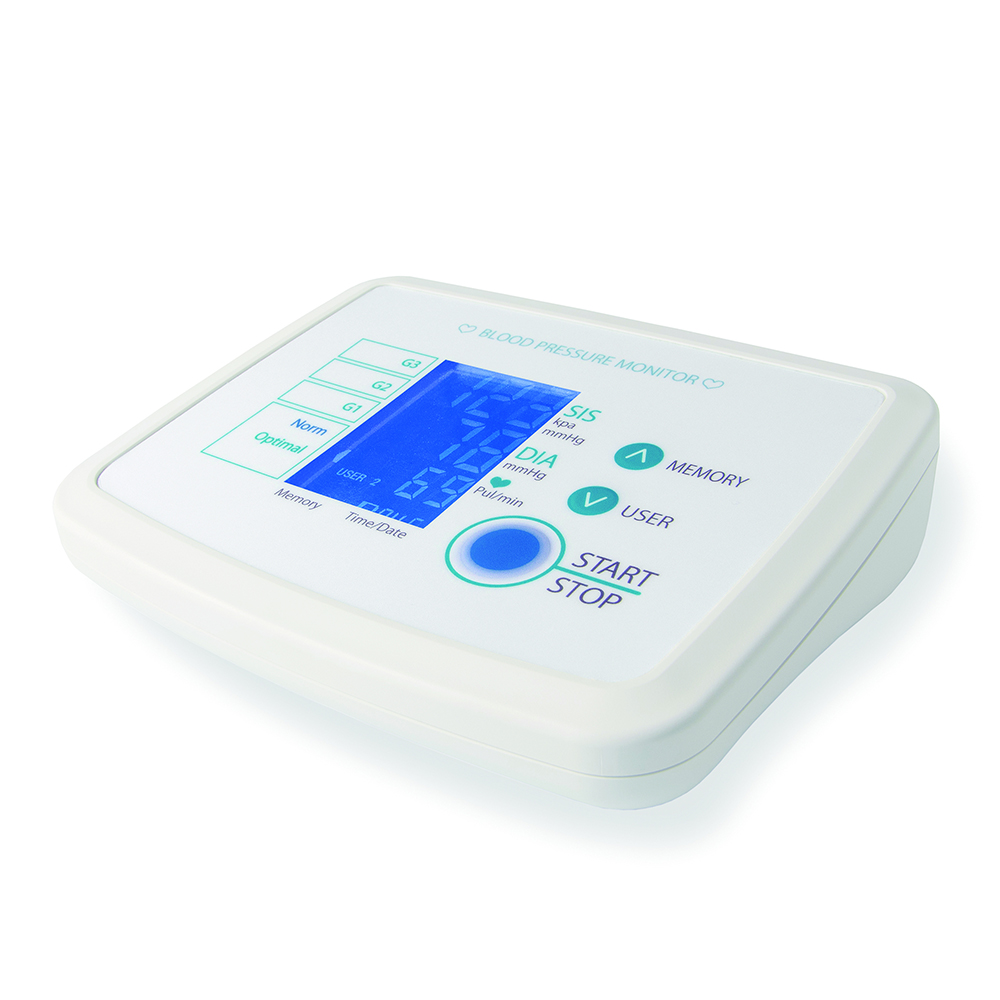

- Suitable for IoT and industry 4.0 applications/ sectors such as: Medical, industrial or marine
| External Length (mm) | 140 |
| External Width (mm) | 140 |
| External Height (mm) | 52 |
| Weight (G) | 188 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Black |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP67 |
| Brand | Takachi |

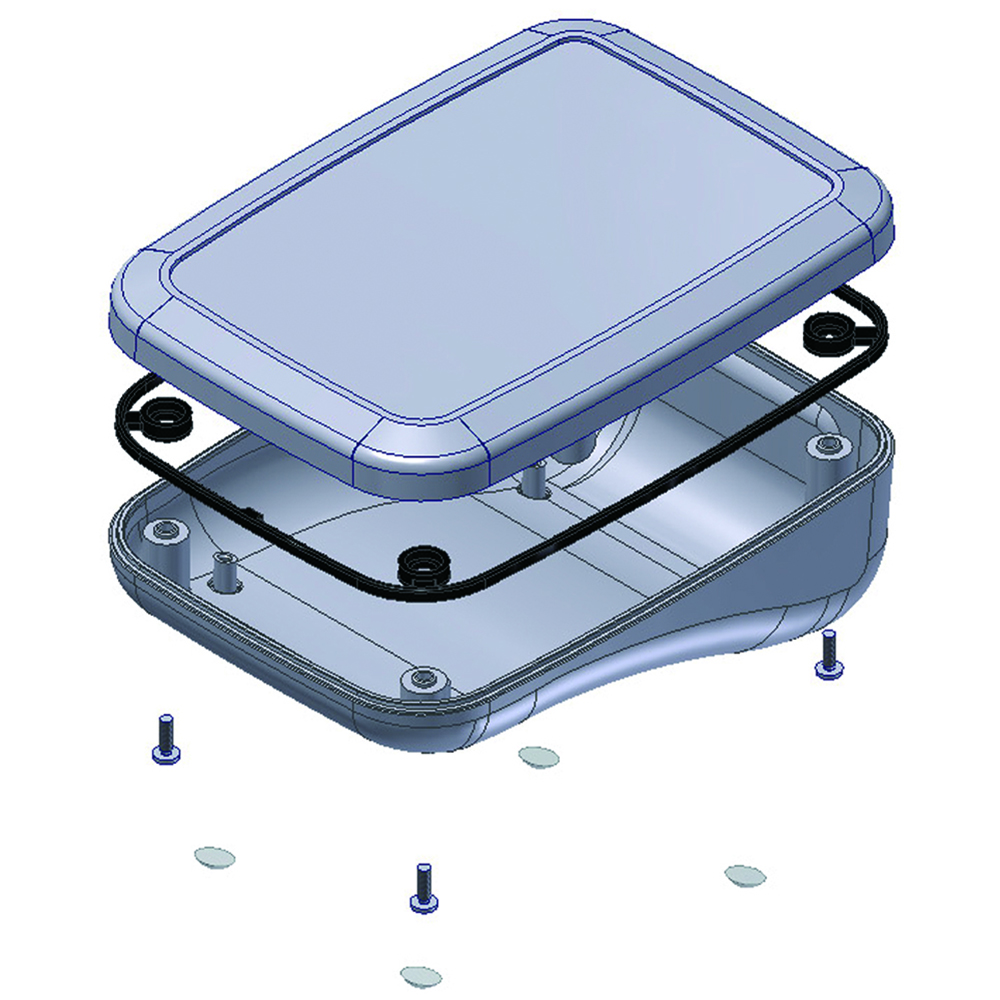

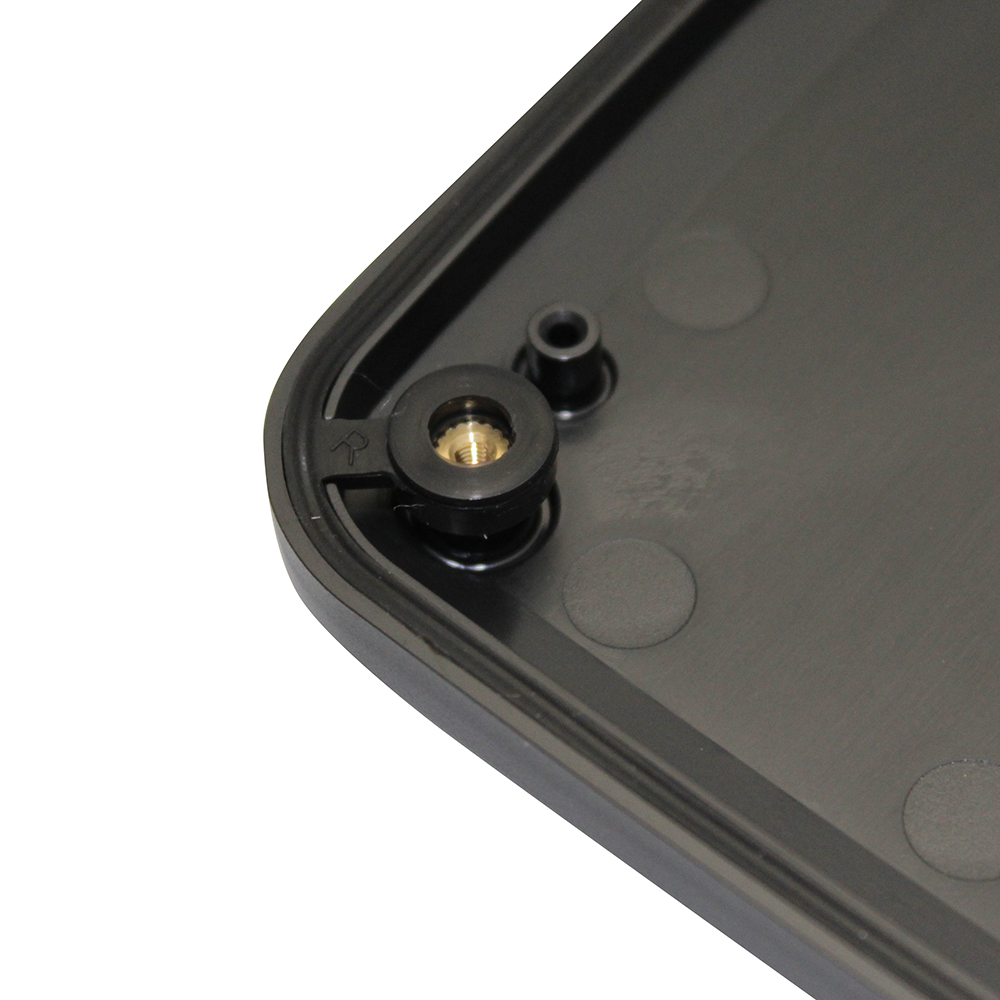

| IP Gasket | Yes |
| Development Board | N/A |
3D Step Drawing
Request
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
