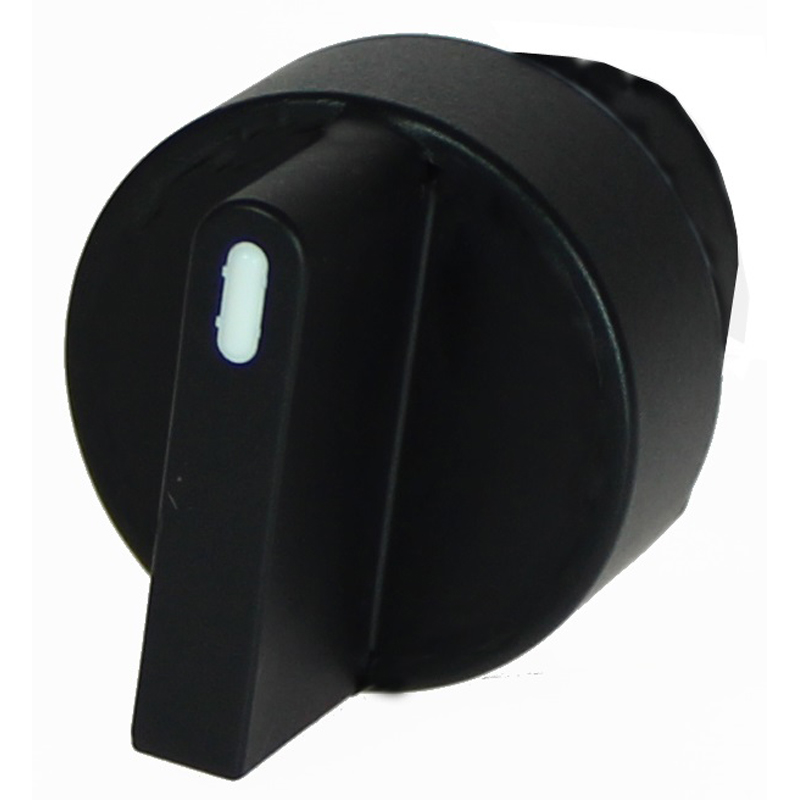

CCTPSS311 - Selector Switch, Maintained Contact, Plastic Bodied Switch, IP65 Switch
22mm Selector Switch, Plastic Body, Selector, maintained Left, Center and Right
- Metal and plastic bodied control selector switches
- Rated 600V, 10A max AC
- Operating frequency 3,600 per hour
- Panels mount 1-6mm thick
- Positive opening operation
- Conform to IEC 947-5-1 & EN 60947-5-1
- Terminal marking to EN 50013
- Other button options available to order
- UL, IMQ, CE Approved
| External Length (mm) | 27 |
| External Width (mm) | 29.5 |
| External Height (mm) | 29.5 |
| Weight (G) | 20 |
| Base Material | Plastic |
| Colour | Black |
| IP Rating | IP65 |
| No. of Poles | 3 |
| Operation | Maintained |
3D Step Drawing
