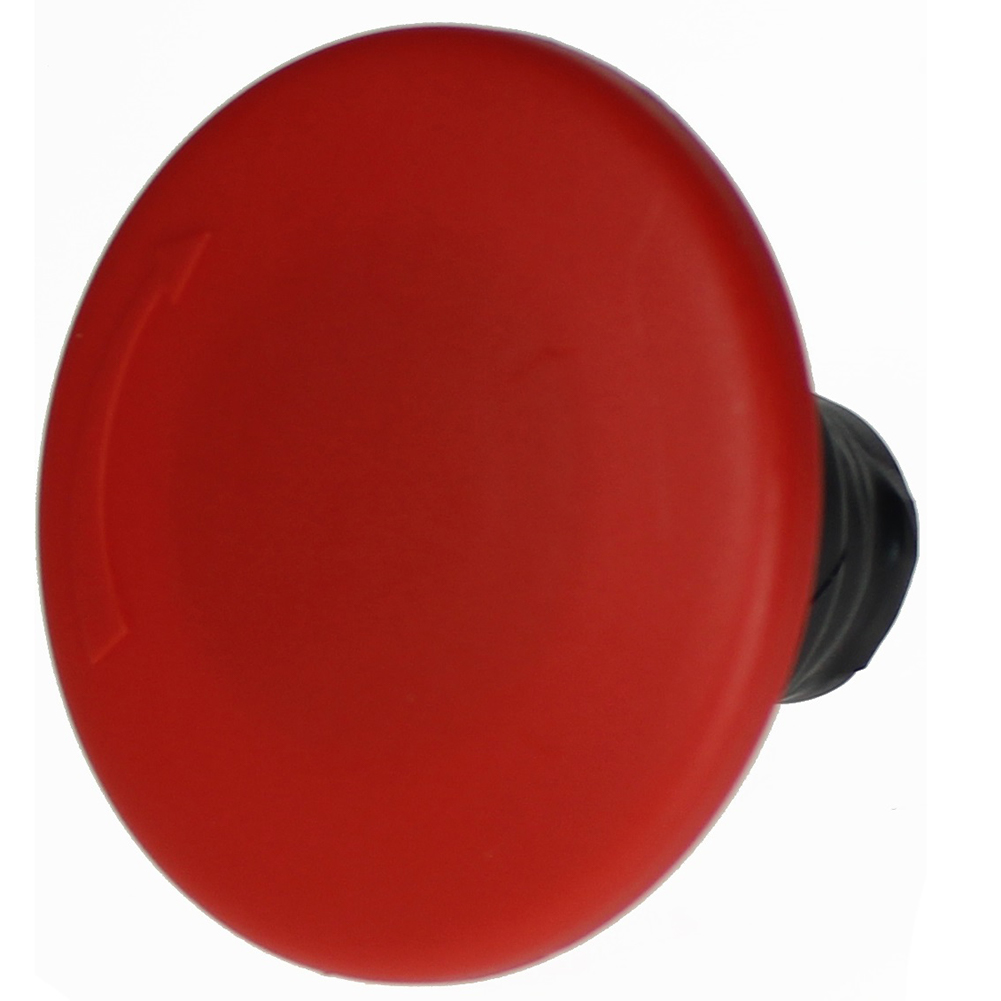

CCTPM60LR - Emergency Stop Button, Plastic Bodied Switch, IP65 Switch
Emergency Stop Button, Plastic Body, 60mm Twist Release, Red
- Metal and plastic bodied control Push-Buttons, E-stops & selector switches
- Rated 600V, 10A max AC
- Operating frequency 3,600 per hour
- Panels mount 1-6mm thick
- Positive opening operation
- Conform to IEC 947-5-1 & EN 60947-5-1
- Terminal marking to EN 50013
- Other button options available to order
- UL, IMQ, CE Approved
| External Length (mm) | 31 |
| External Width (mm) | 60 |
| External Height (mm) | 60 |
| Weight (G) | 90 |
| Base Material | Plastic |
| Colour | Red |
| IP Rating | IP65 |
| Diameter (mm) | 60 |
| Operation | Twist Release |
3D Step Drawing
Request
