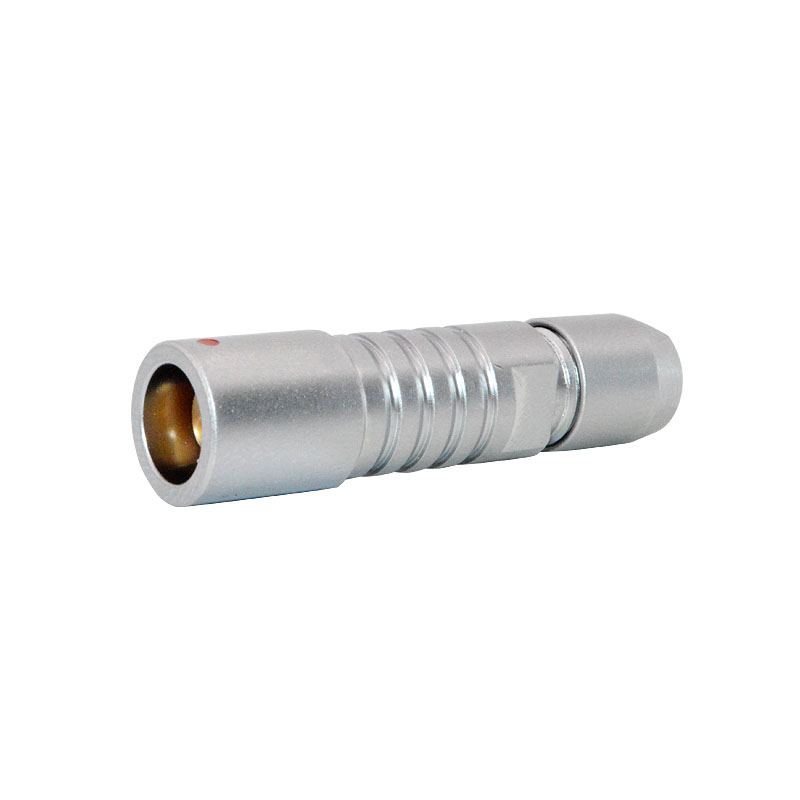

CCT2S1/07 - Circular Connector Socket, 7 Pole Cable Mount Connector
CamCirc Circular Connector Cable Mount Socket, 103 Size, 7 Pole
- 7 Poles
- Cable mount
- Receptacle
- Key coded to prevent mis-connection
- Tested to IEC 60512-3-5a
- Does not disconnect when the cable is under load or stress
- Tough, high performance interconnection solution
- Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
- Ideal for harsh environments.
| External Length (mm) | 10 |
| External Width (mm) | 10 |
| External Height (mm) | 35 |
| Weight (G) | 25 |
| IP Rating | IP68 |
| Brand | CamCirc |
| No. of Poles | 7 |
3D Step Drawing
