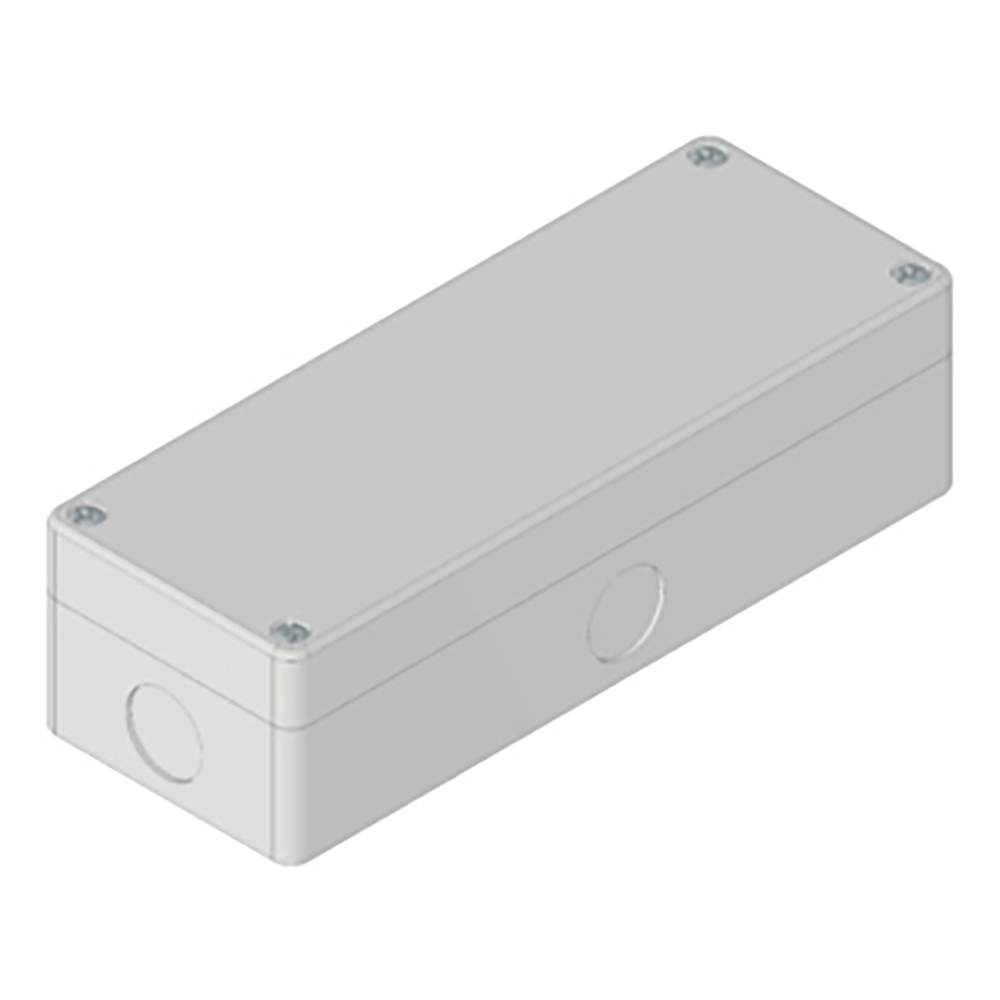

CCS10GY00 - Waterproof Electrical Control Switch Enclosure, Grey Lid, 0 Hole, 185x70x74mm
An IP65 industrial enclosure suitable for e stop and pushbutton applications available with or without a pre cut apperture
- Grey and Yellow lid colour options
- Standard box holes moulded for 22mm diameter control switches
- Diameter 21mm (PG13.5) knockouts moulded in enclosure
- Pre assembled control station and control switching avaliable to order
- Larger sizes to order
- This series has been designed to meet the requirements of IP65
| External Length (mm) | 185 |
| External Width (mm) | 70 |
| External Height (mm) | 74 |
| Weight (G) | 225 |
| Base Material | Plastic |
| Material Type | ABS UL94-V0 |
| Colour | Grey |
| UL Rating | UL94-V0 |
| IK Rating | N/A |
| IP Rating | IP65 |
| Brand | CamdenBoss |
| Lid Colour | Grey |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
