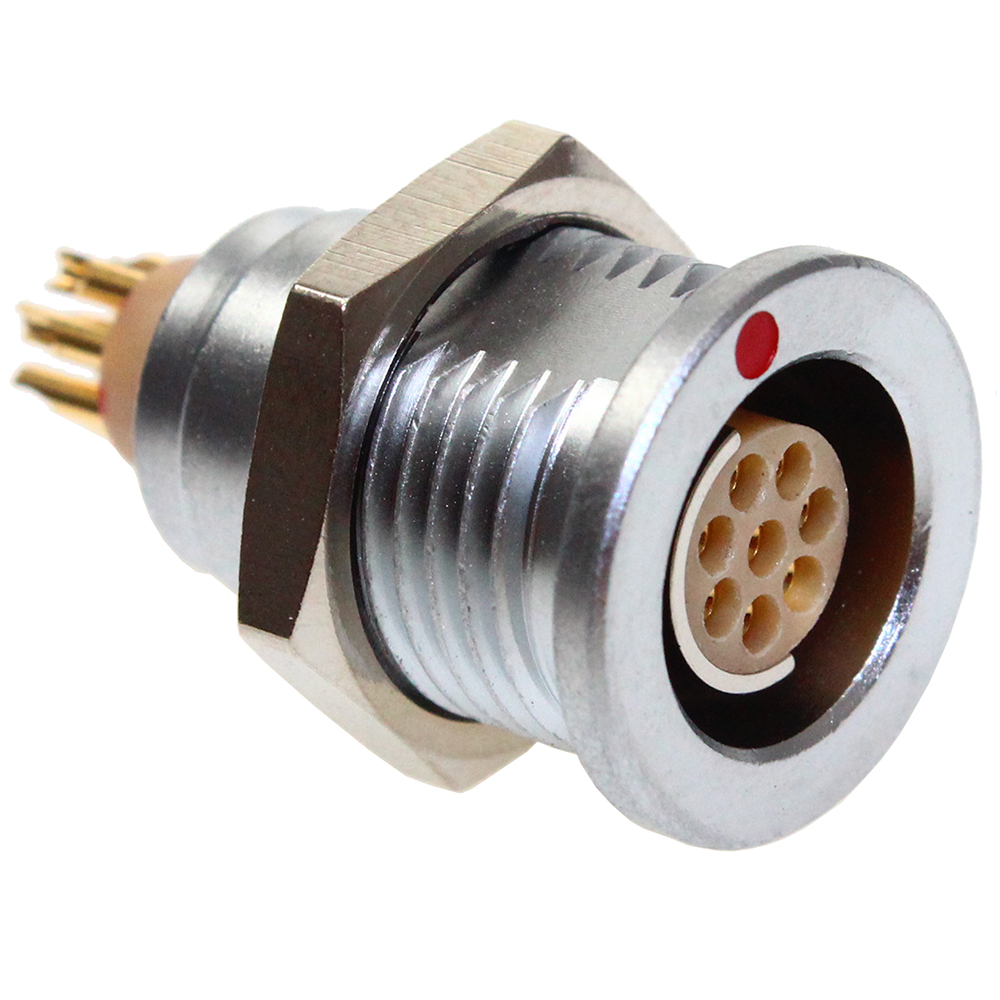

CCB2S1/08 - Circular Connector Socket, 8 Pole Fixed Panel Mounting Socket Connector
CamCirc Circular Connector Fixed Socket Flat, 103 Size, 8 Pole
- 8 Poles
- Panel mount
- Receptacle
- Key coded to prevent mis-connection
- Tested to IEC 60512-3-5a
- Does not disconnect when the cable is under load or stress
- Tough, high performance interconnection solution
- Suitable for broadcasting, autosport, military, rail, marine, security, industrial and agricultural
- Ideal for harsh environments.
| External Length (mm) | 14 |
| External Width (mm) | 14 |
| External Height (mm) | 23 |
| Weight (G) | 30 |
| IP Rating | IP68 |
| Brand | CamCirc |
| No. of Poles | 8 |
3D Step Drawing
