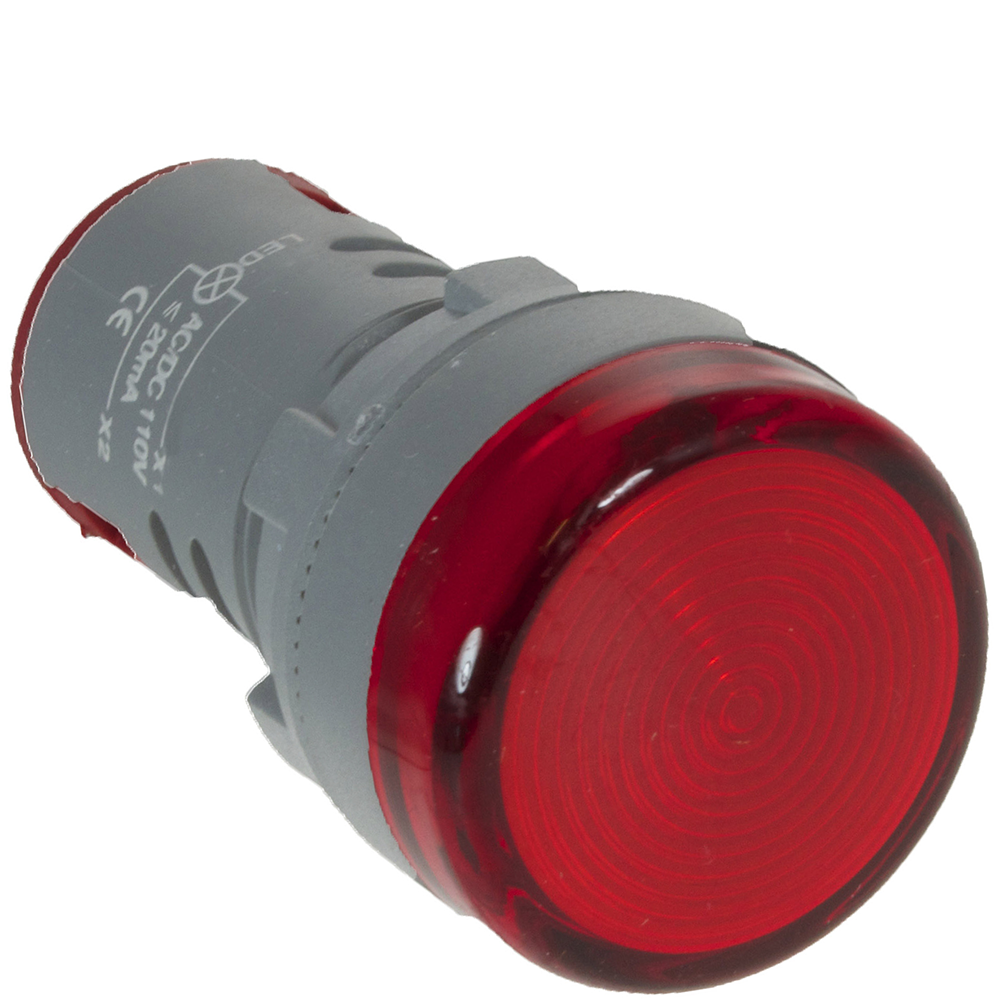

CBPI22-230/RD - 22mm Panel Indicator
22mm Panel Mount LED Indicator 230V Red
- Multi-chip LED technology
- Modern and effective replacement for traditional 22mm pilot lights
- Up to 400 percent more efficient than incandescent indicators
- Brighter/ lower power
- Back of panel lock nut fixing
- Screw clamp terminals
- Screw cover is colour coded to lens colour
- IP65 rated (Front of panel)
- Red, green, amber, white and blue lens colour options
- CE approved
| External Length (mm) | 52 |
| External Width (mm) | 22 |
| External Height (mm) | 22 |
| Weight (G) | 18 |
| Colour | Red |
| IP Rating | IP65 |
| Orientation | Horizontal |
| Terminal Type | Screw Clamp |
| Max Wire size (mm) | 15 |
| Operating Temperature | -25 Deg C to 105 Deg C |
| CE Approval | Yes |
| LED Voltage | 230 |
| LED Colours | Red |
| Light Source | LED |
| Fitting Type | Threaded |
3D Step Drawing
