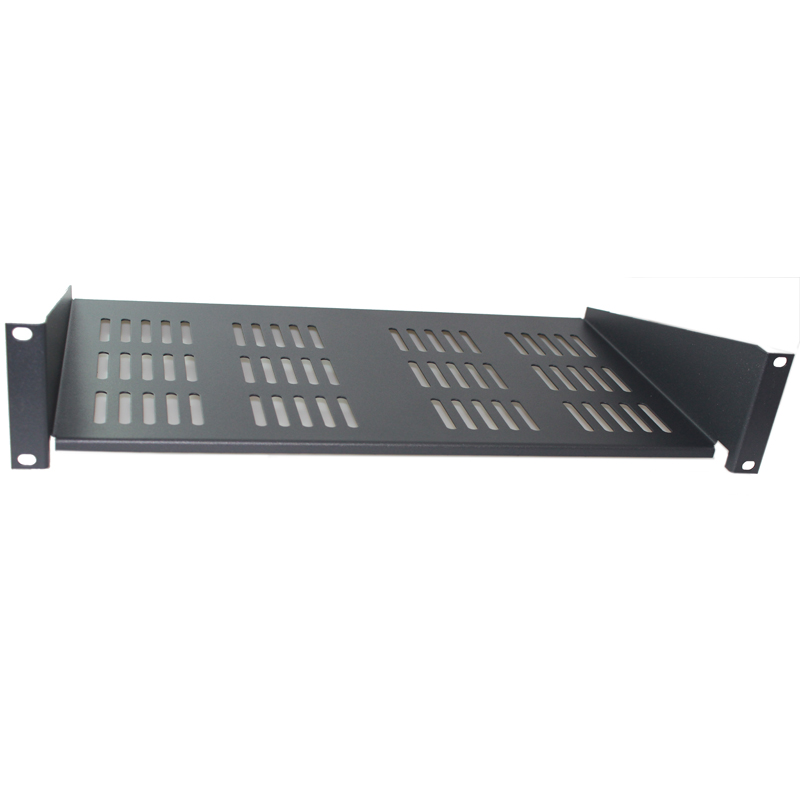

CAX2TY280 - 19 Inch Rack Cabinet Cantilever Tray
Cantilever Tray for CamRack 19 inch Cabinets
- Manufactured in steel, 1.5mm thick.
- 19 inch assembly with four anchoring points on the front sections
- Recommended maximum static load: 10/20 Kg
- Standard ventilation slots
- Front fastening height 2U
- One tray with mounting hardware
- Standard depths 180, 280, 350, 400mm
- Grey graphite epoxy paint, anthracite - RAL 7016
- 1 tray (screws not included)
| External Length (mm) | 280 |
| External Width (mm) | 445 |
| External Height (mm) | 90 |
| U Height | 2 |
| Weight (G) | 1400 |
| Base Material | Metal |
| Material Type | Steel |
| Colour | Anthracite |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP40 |
| Brand | CamdenBoss |
| Size | 280mm |
| Development Board | N/A |
