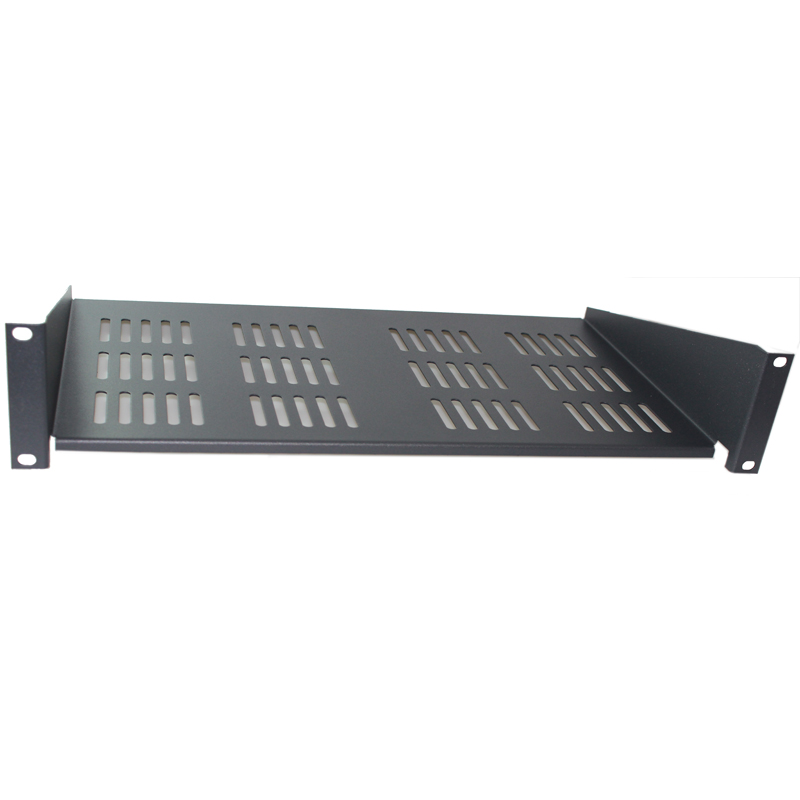

CAX2TY180 - 19 Inch Rack Cabinet Cantilever Tray
Cantilever Tray for CamRack 19 inch Cabinets
- Manufactured in steel, 1.5mm thick.
- 19 inch assembly with four anchoring points on the front sections
- Recommended maximum static load: 10/20 Kg
- Standard ventilation slots
- Front fastening height 2U
- One tray with mounting hardware
- Standard depths 180, 280, 350, 400mm
- Grey graphite epoxy paint, anthracite - RAL 7016
- 1 tray (screws not included)
External Length (mm) | 180 |
External Width (mm) | 445 |
External Height (mm) | 90 |
U Height | 2 |
Weight (G) | 900 |
Base Material | Metal |
Material Type | Steel |
Colour | Anthracite |
UL Rating | N/A |
IK Rating | N/A |
IP Rating | IP40 |
Brand | CamdenBoss |
Size | 180mm |
Development Board | N/A |
