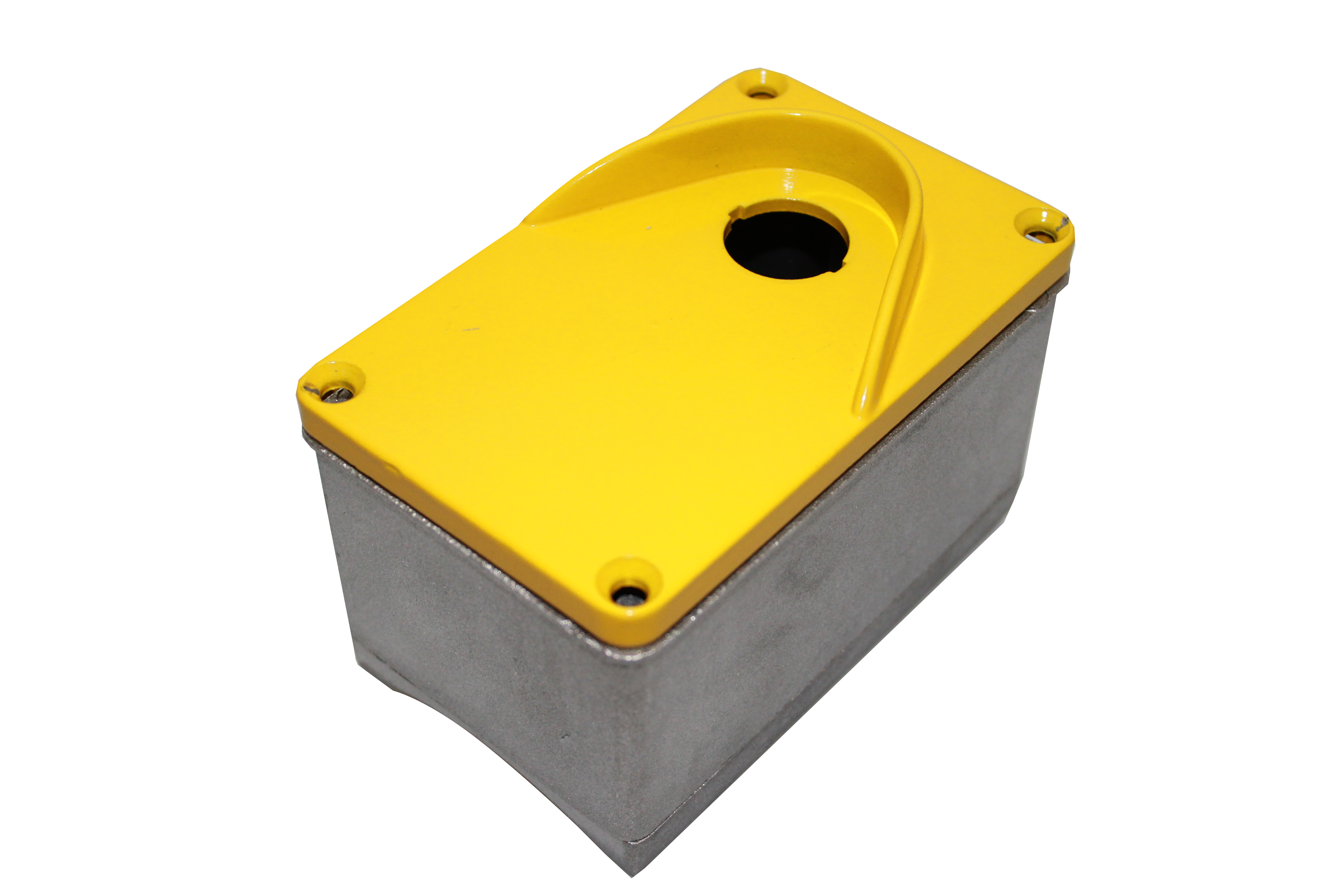

CAE030YW01 - Die-cast Aluminium 22mm Pushbutton Enclosure, 1 button hole yellow lid pole mounting
Aluminium electrical 22mm pushbutton enclosure, ideal for industrial housing
- Die-cast aluminium suitable for control switches and equipment
- Grey and yellow lid colour options
- For 22mm control switches and indicators (available without to order)
- Yellow lid
- 1 push button hole
- This series has been designed to meet the requirements of IP65
| External Length (mm) | 125 |
| External Width (mm) | 76 |
| External Height (mm) | 61 |
| Weight (G) | 612 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Grey/Yellow |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP65 |
| Special Features | Pole mount |
| Operating Temperature | -25 Deg C to 70 Deg C |
| Brand | CamdenBoss |
| Development Board | N/A |
| Diecast | Yes |
3D Step Drawing
Request
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
