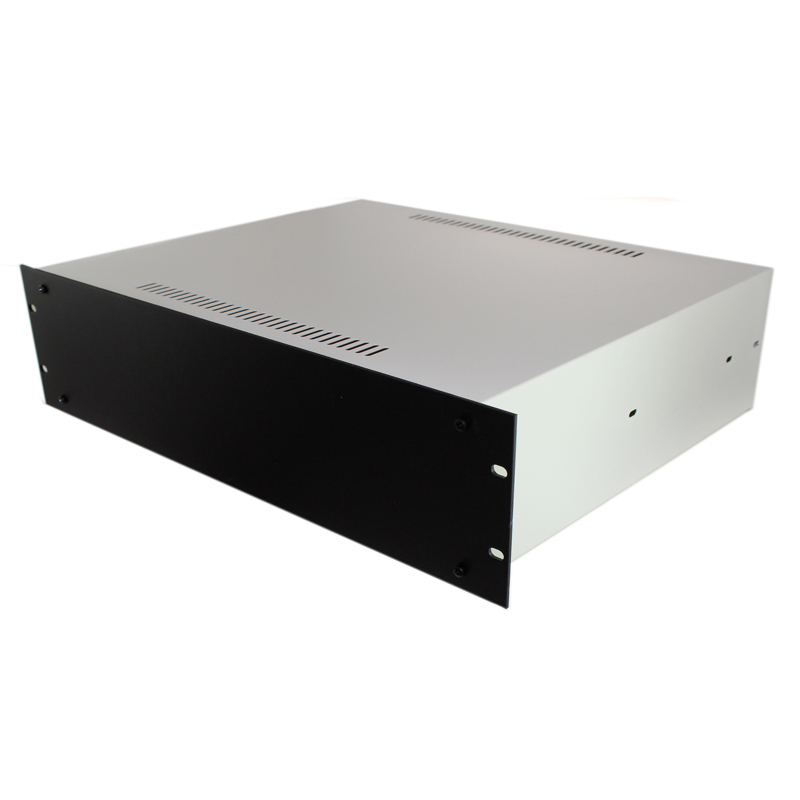

C19G3263B - 19 inch Rack Mounting Aluminium Enclosure, 3U, Black, 263x132.5mm
Designed for installation of electronic and telecommunication equipment, into 19" racks and cabinets.
- Ease of assembly and accessibility, via three removable parts: rigid front panel, vented lid and rear panel
- Strong folded sheet-steel construction and 3mm think aluminium front interface-panel
- Front and rear internal supports for mounting of trays or PCBs
- Secured with 10x screws M4 (8x for 1U)
- Available in three heights (1U, 2U & 3U) and two depths (260mm & 360mm)
- Available in silver and black, with or without handles
- Customisation options include cutouts, mounting and printing
- Custom colours and sizes also available (MOQs apply)
- Ideal for computer networking, data centres and security control applications
| External Length (mm) | 263 |
| External Width (mm) | 482.2 |
| External Height (mm) | 132.5 |
| U Height | 3 |
| Weight (G) | 5500 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Black |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP20 |
| Brand | CamdenBoss |
| Development Board | N/A |
