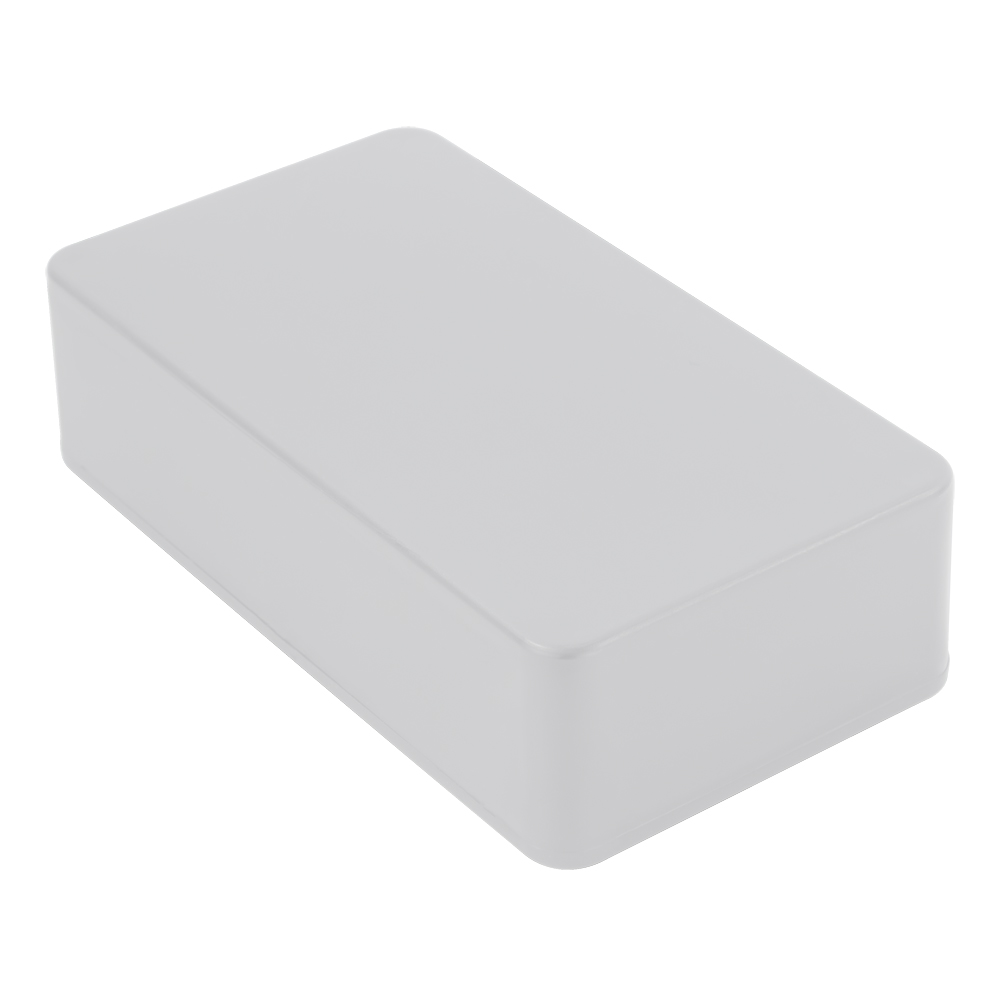

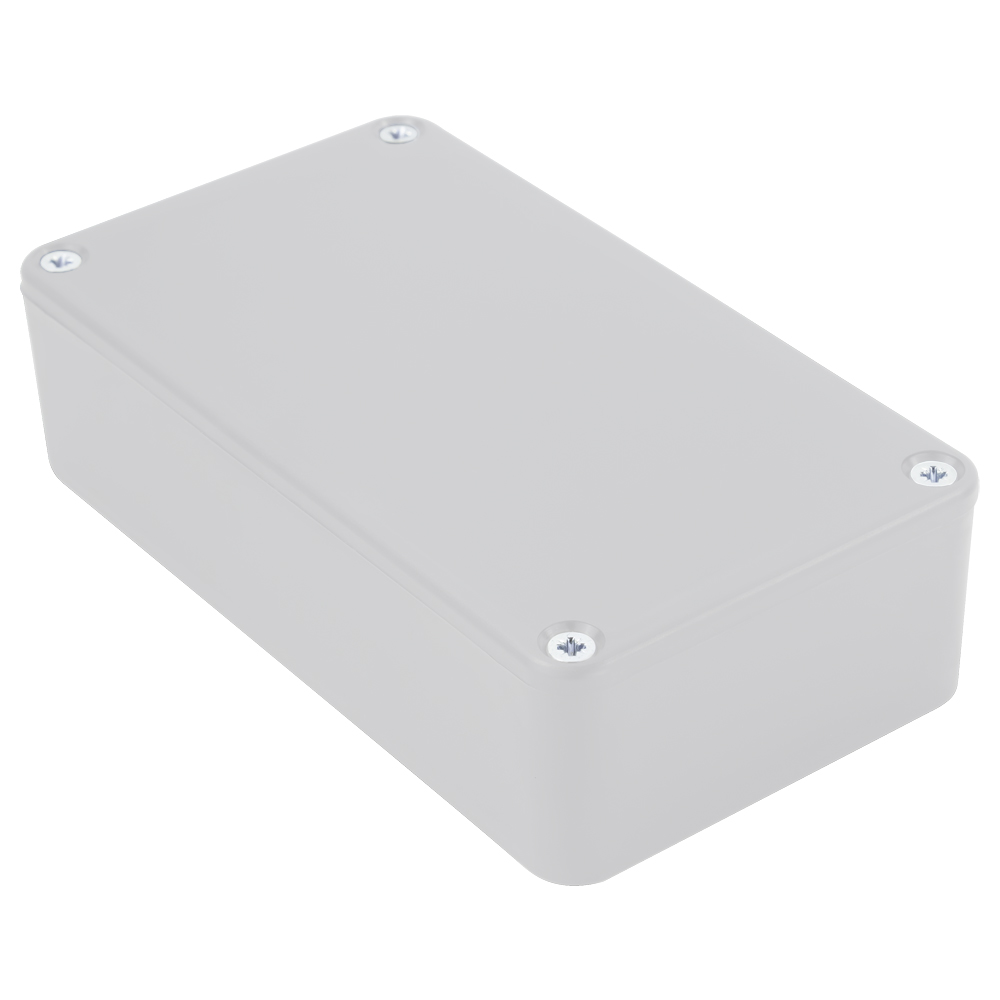

BIM2007/17-GY - 2000 Series General Purpose ABS Enclosure, Grey, ABS UL94-HB, 112x62x31mm
Multipurpose electronics enclosure suitable for OEM manufacturing, IoT designs and industrial technology. This UK manufactured enclosure is moulded in UL94-HB ABS.
- Extensive range of electronic enclosures with ABS lid, designed for a broad range of applications
- Brass inserts in base for repetitive removal of the lid (except for 2000 or 2008 sizes)
- High gloss polished finish
- Excellent properties for machining
- Integral mounting guides to accept 1.6mm PCBs

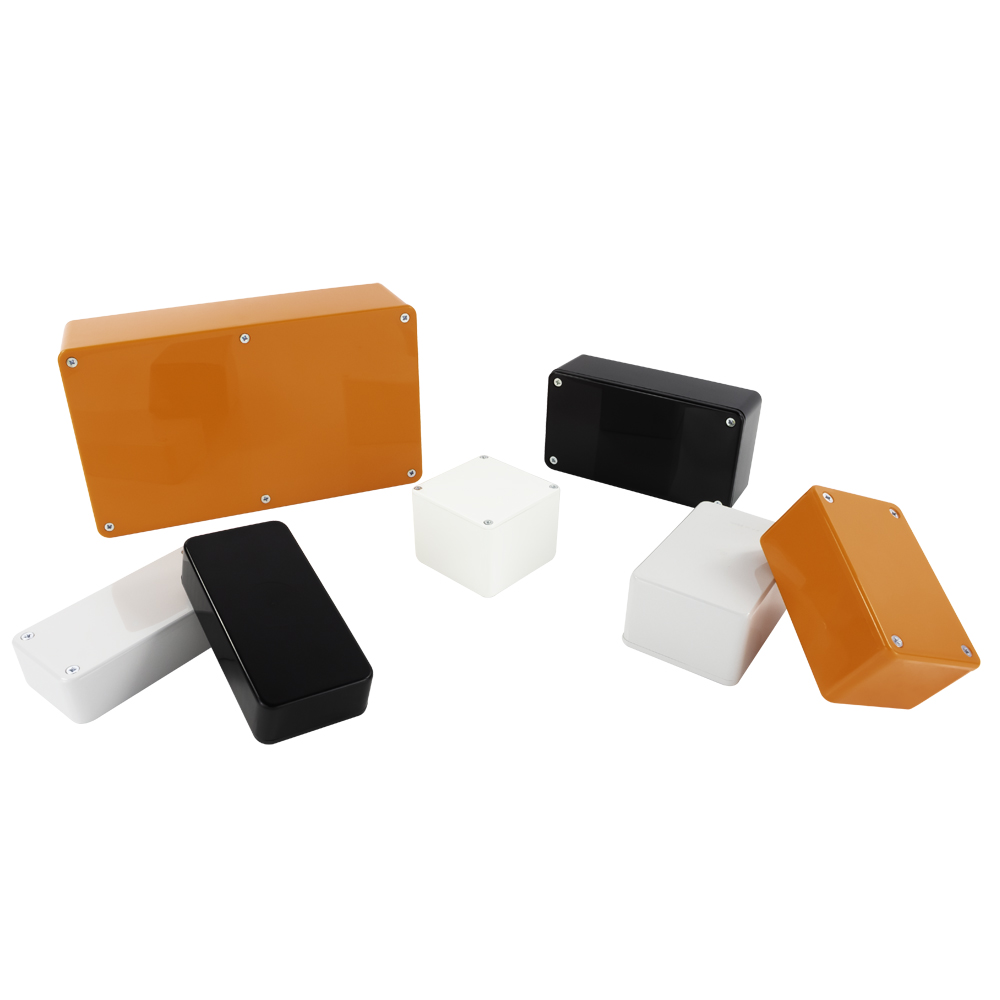

- Available in other colours on request (subject to MOQ)
- 2000 series has been designed to meet the requirements of IP54
- Electronics enclosure moulded from high impact ABS UL94-HB material
- Deep Profile, EMC/RFI, flanged or lugged lid enclosures available
- Customise your BIM enclosure using our digital printing service
| External Length (mm) | 112 |
| External Width (mm) | 62 |
| External Height (mm) | 31 |
| Internal Length (mm) | 107 |
| Internal Width (mm) | 57 |
| Internal Height (mm) | 27 |
| Weight (G) | 54 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 112 x 62 x 31 |
| Development Board | N/A |
| Country Of Origin | Great Britain (GB) |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Custom Materials
Special materials available, including UL94 rated and anti-microbial
Custom Sizes
Create an enclosure to your specific size
Systems Integration
Box build and product testing service available
