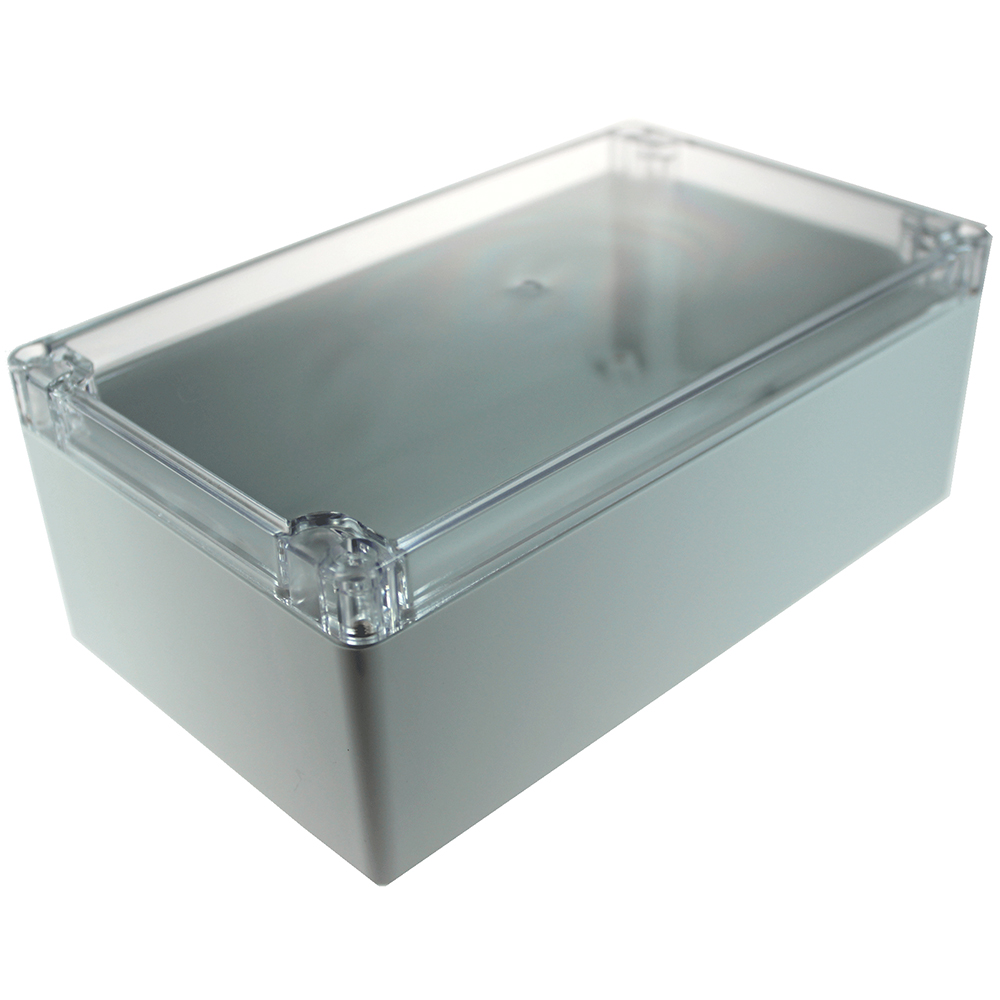

7200-269C - 7200 Series Waterproof Polycarbonate Electronic Enclosure with Transparent Lid, Grey, Polycarbonate UL94-HB, 200x120x75mm
Robust industrial polycarbonate enclosure suitable for a wide range of electrical and electronic indoor or outdoor applications. Available in 25 sizes with either a clear or solid lid.
- Robust Polycarbonate cases to guard electrical and electronic components in rugged environments
- Moulded in high grade Polycarbonate
- PCB pillars in base with threaded inserts and for self-tapping screws
- Lid mounted by M3 machine screws
- Easy to use wall-mounting holes
- Clear lid and solid lid options available
- 7200 series has been designed to meet the requirements of IP65
- Ideal for Industrial electrical applications and smart factory electronics
| External Length (mm) | 200 |
| External Width (mm) | 120 |
| External Height (mm) | 75 |
| Internal Length (mm) | 193 |
| Internal Width (mm) | 113 |
| Internal Height (mm) | 70 |
| Weight (G) | 437 |
| Base Material | Plastic |
| Material Type | Polycarbonate UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP65 |
| Transparent Lid | Yes |
| Operating Temperature | -40 Deg C to +120 Deg C |
| Brand | CamdenBoss |
| Size | 200 x 120 x 75 |
| Lid Colour | Clear |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
