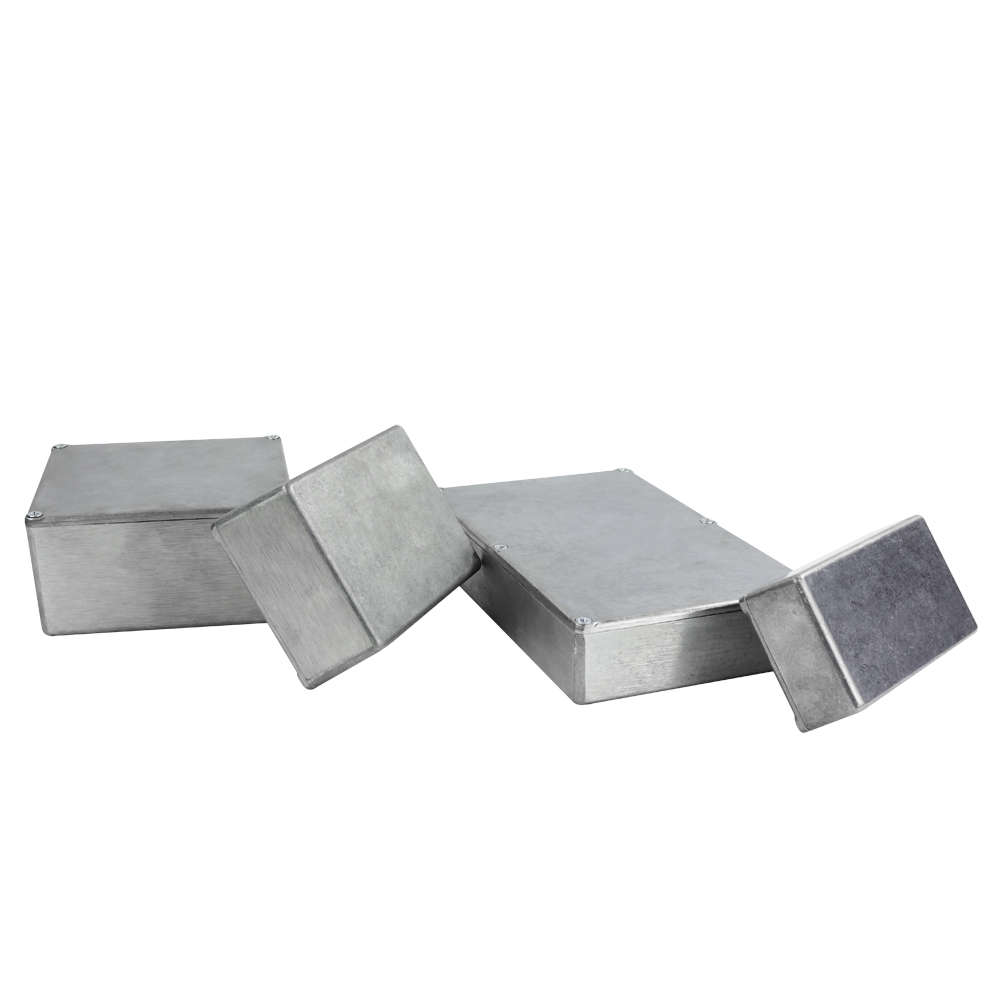

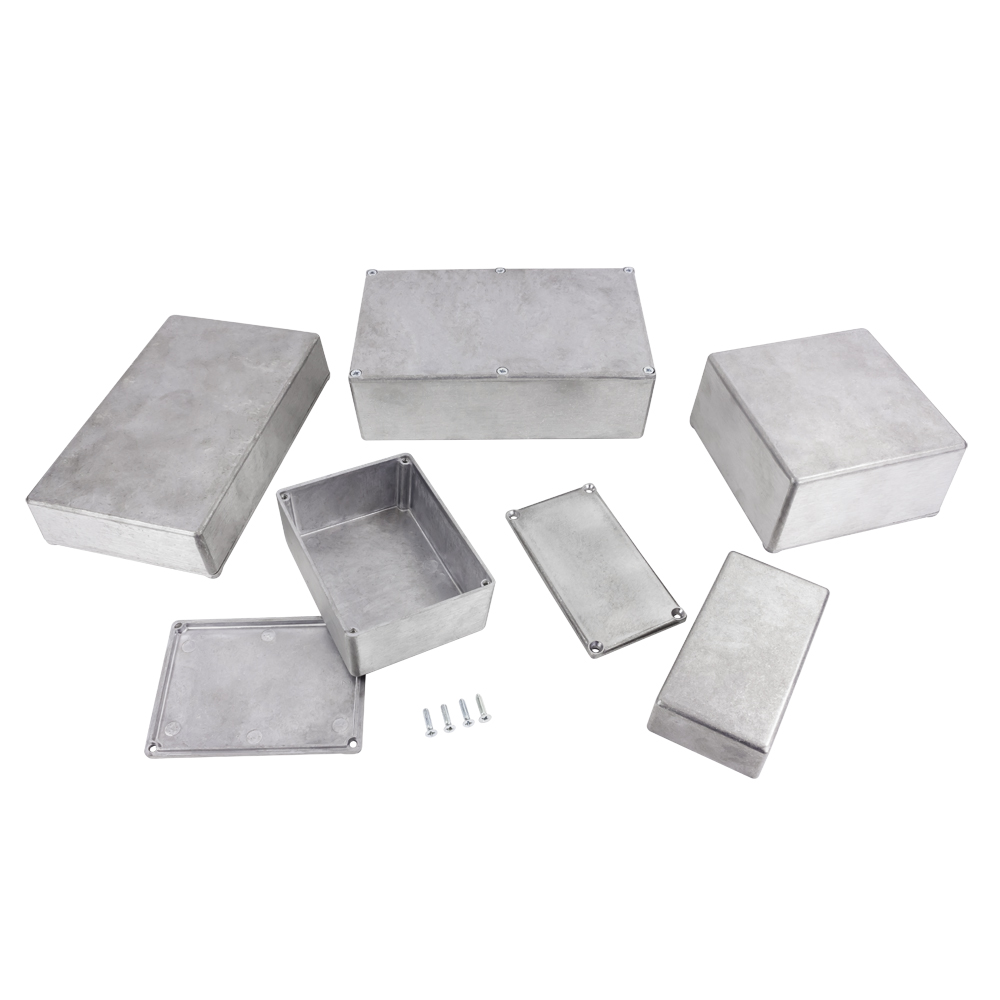

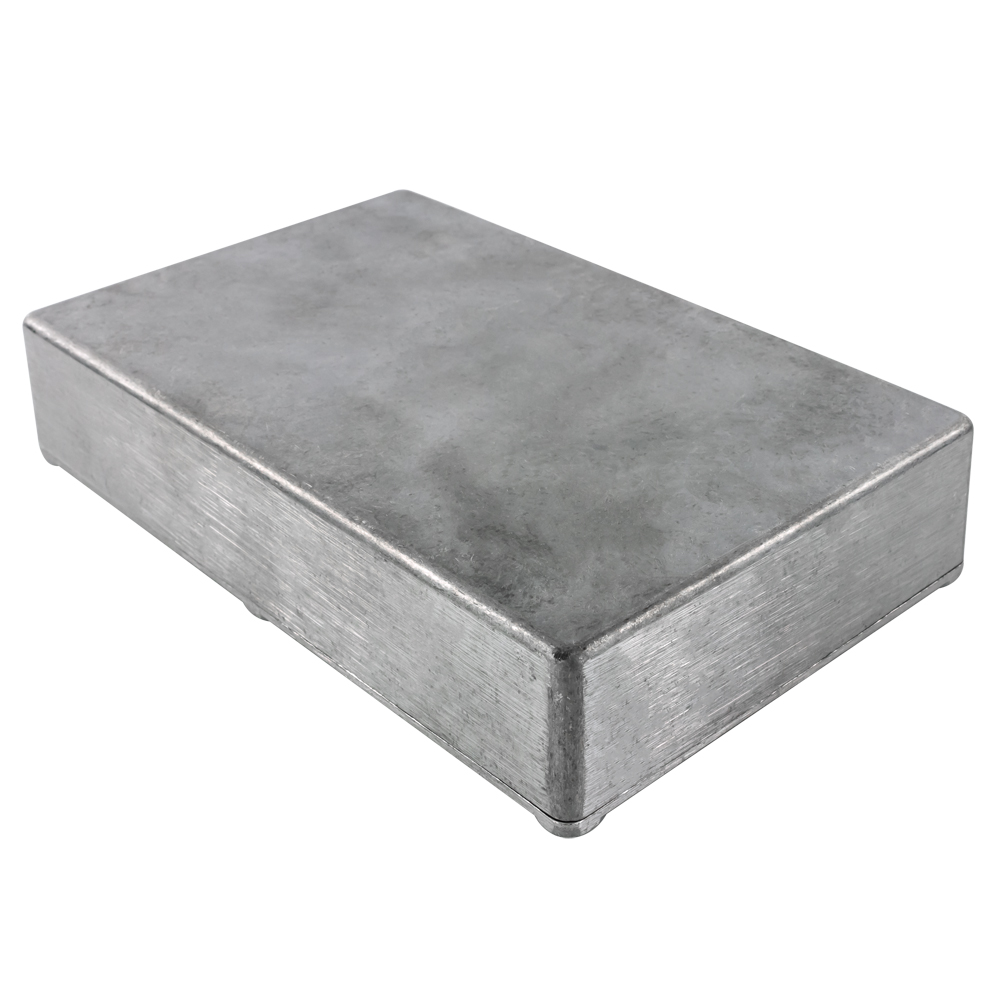

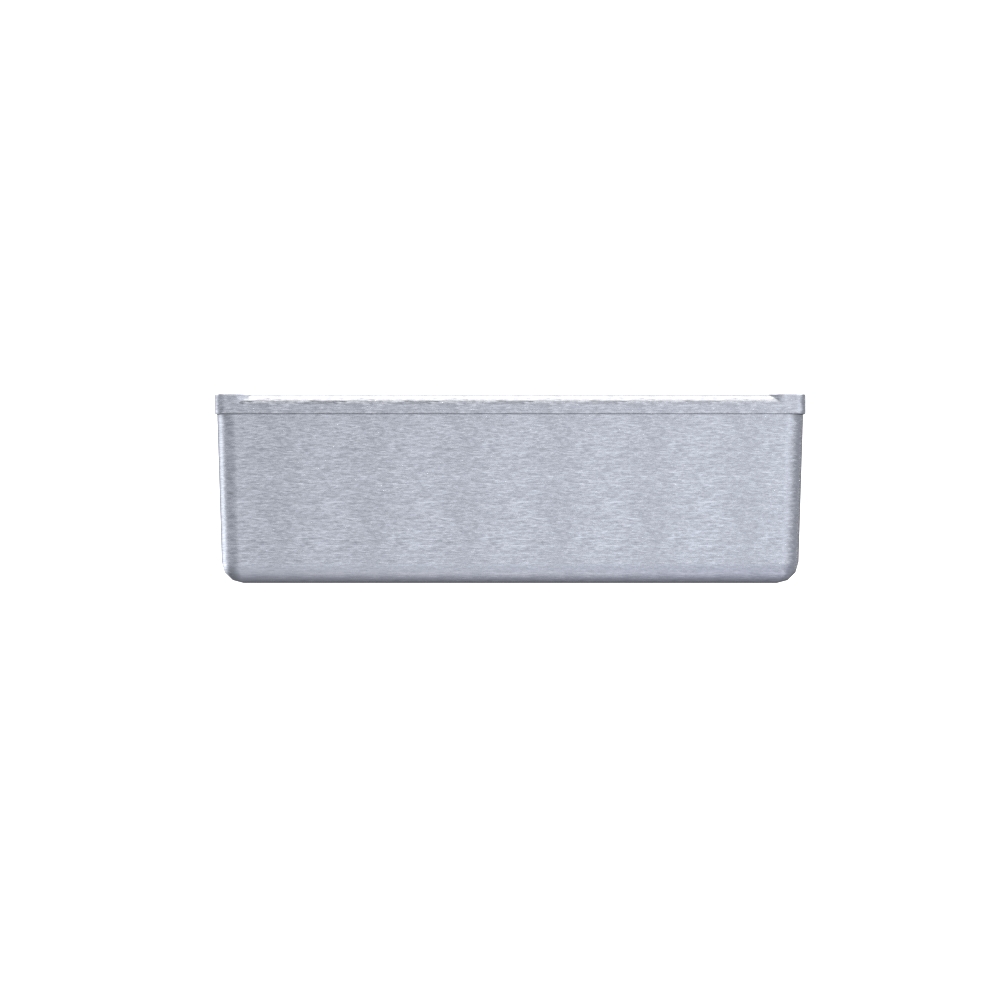

5100-477 - 5100 Series Stomp Box Diecast Enclosure, Natural Colour, 187x119x38mm

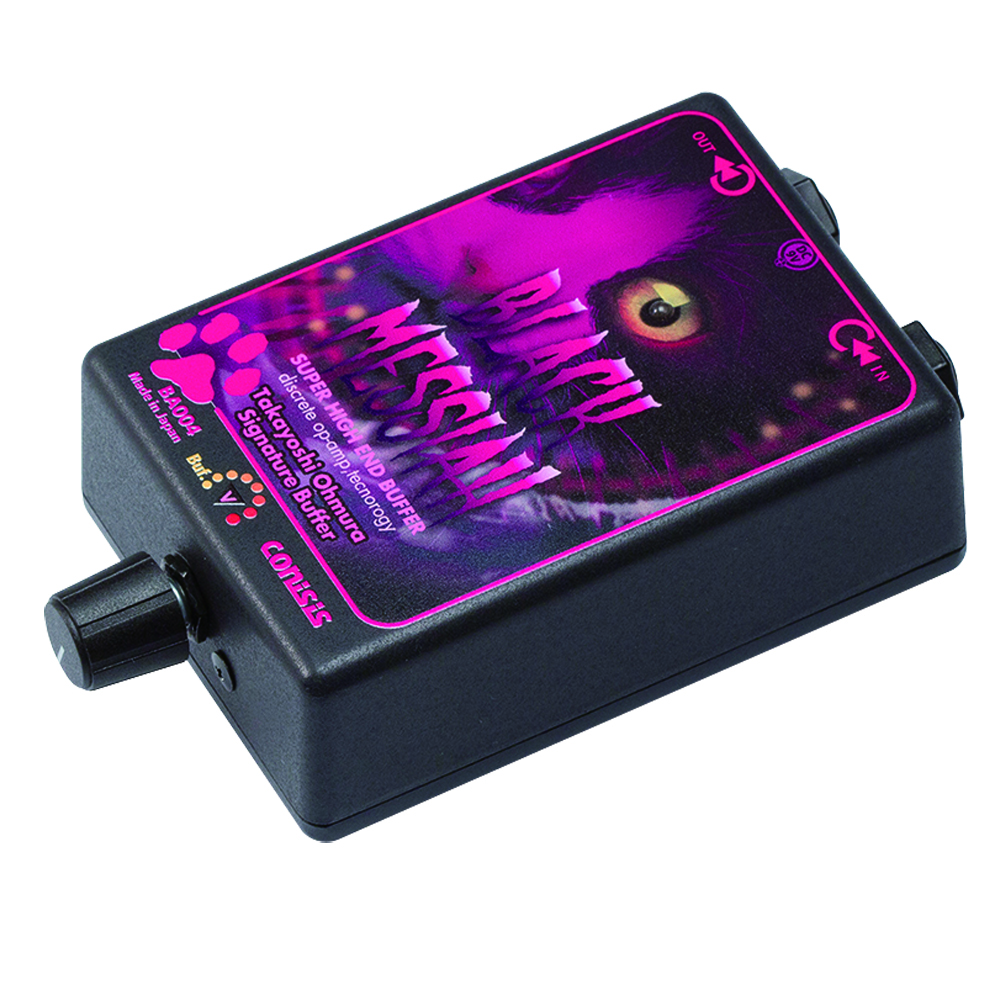

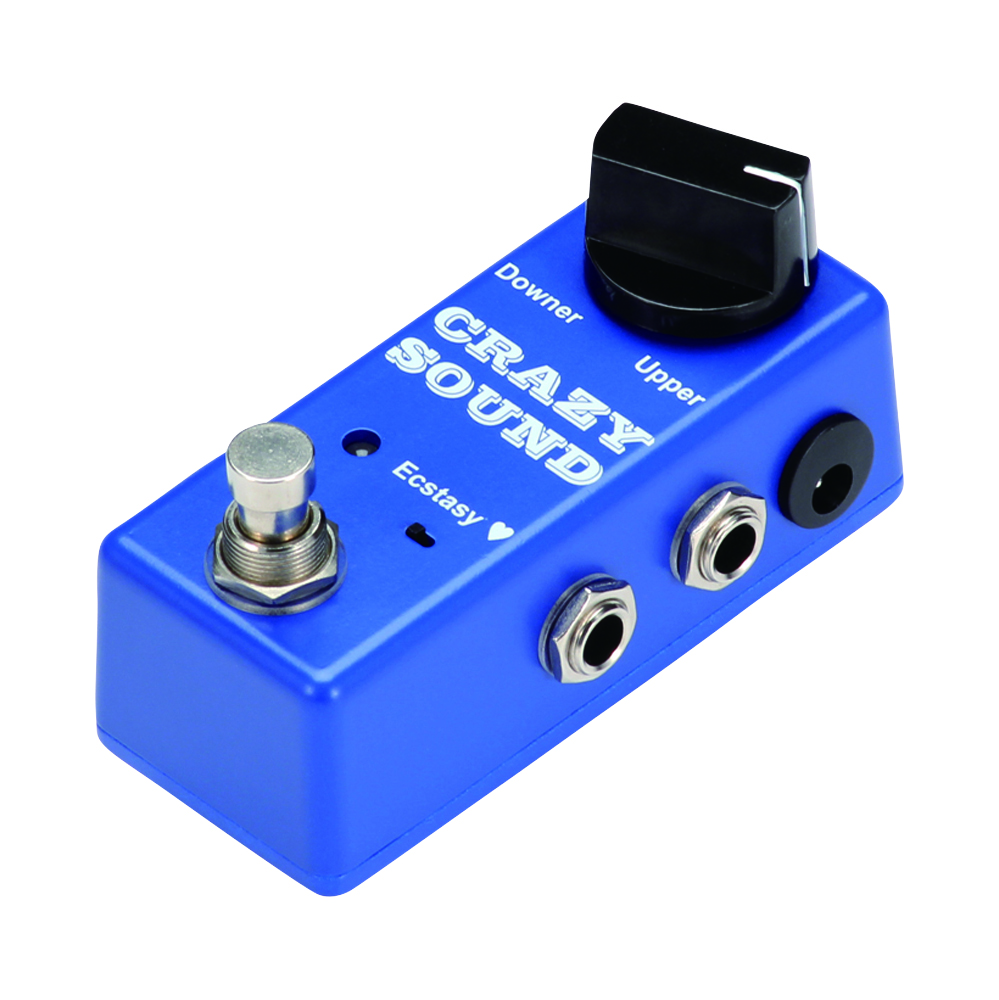

Robust IP54 diecast aluminium electronics enclosure, ideal for a wide range of applications including a guitar pedal box (stomp box) or industrial control boxes.
- Economy project aluminium diecast enclosures
- Temperature resistant to 300 degrees C
- Material functions as a screening layer and heat-sink
- Robust and lightweight
- Smooth surface and edges makes it ideal to be customised with cable entries, component controls, etc

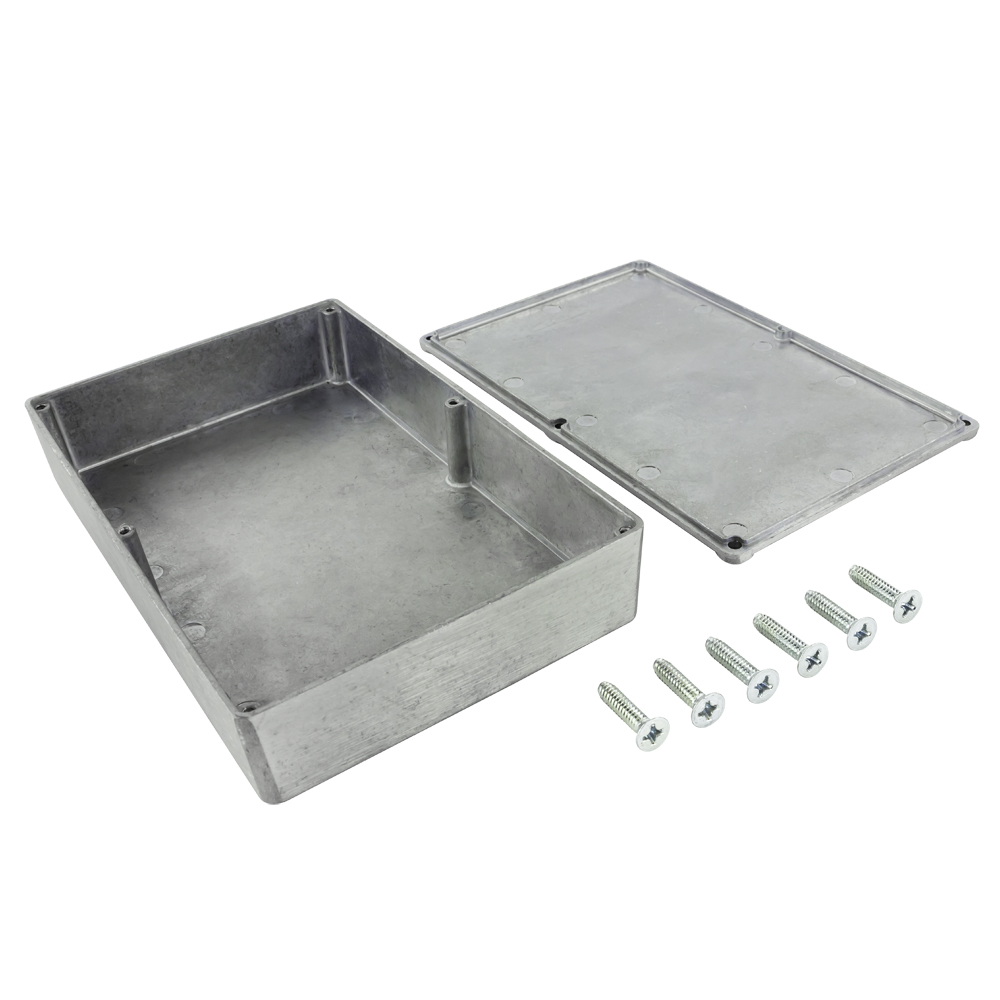

- Close fitting flanged lids using self-tapping screws
- ideal for RF circuit designs and mounting pneumatic or hydraulic equipment
- 5100 series has been designed to meet the requirements of IP54
| External Length (mm) | 187 |
| External Width (mm) | 119 |
| External Height (mm) | 38 |
| Internal Length (mm) | 183 |
| Internal Width (mm) | 106 |
| Internal Height (mm) | 34 |
| Weight (G) | 389 |
| Base Material | Metal |
| Material Type | Aluminium |
| Colour | Natural |
| UL Rating | N/A |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 187 x 119 x 38 |
| Development Board | N/A |
| Diecast | Yes |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
