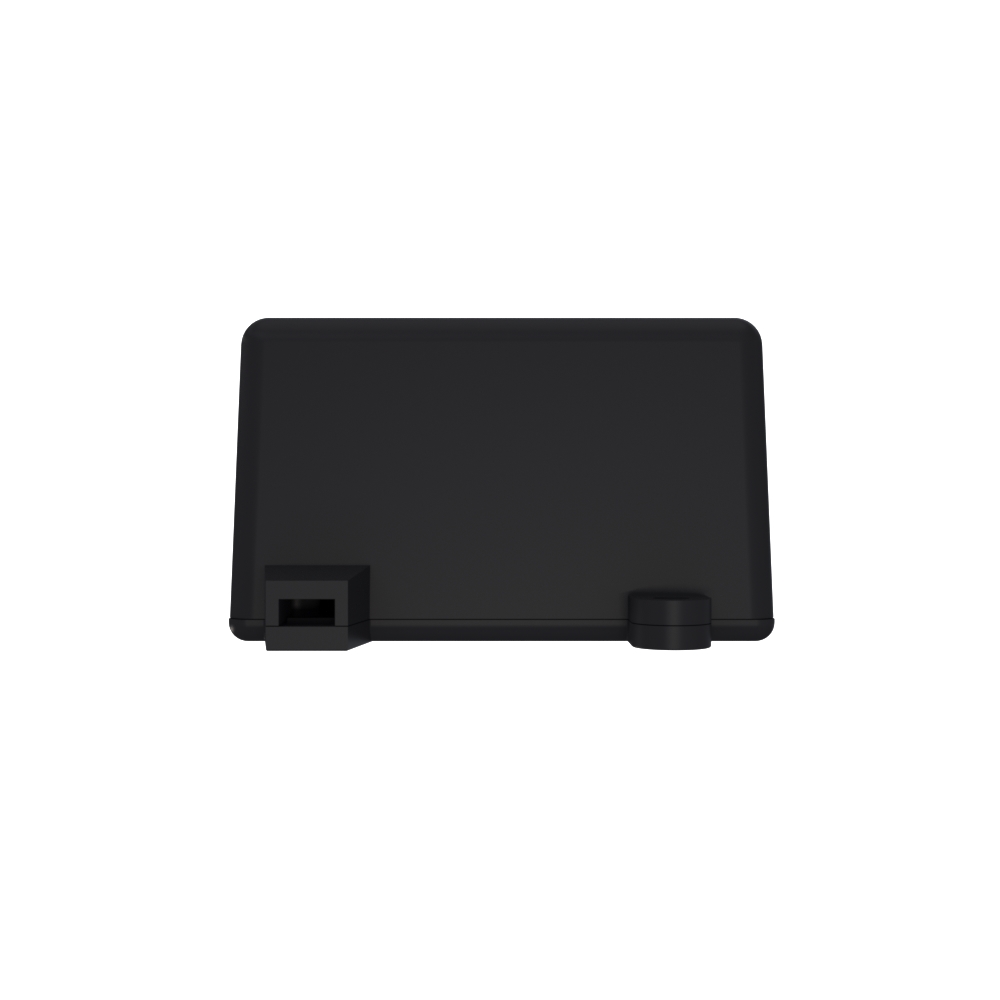

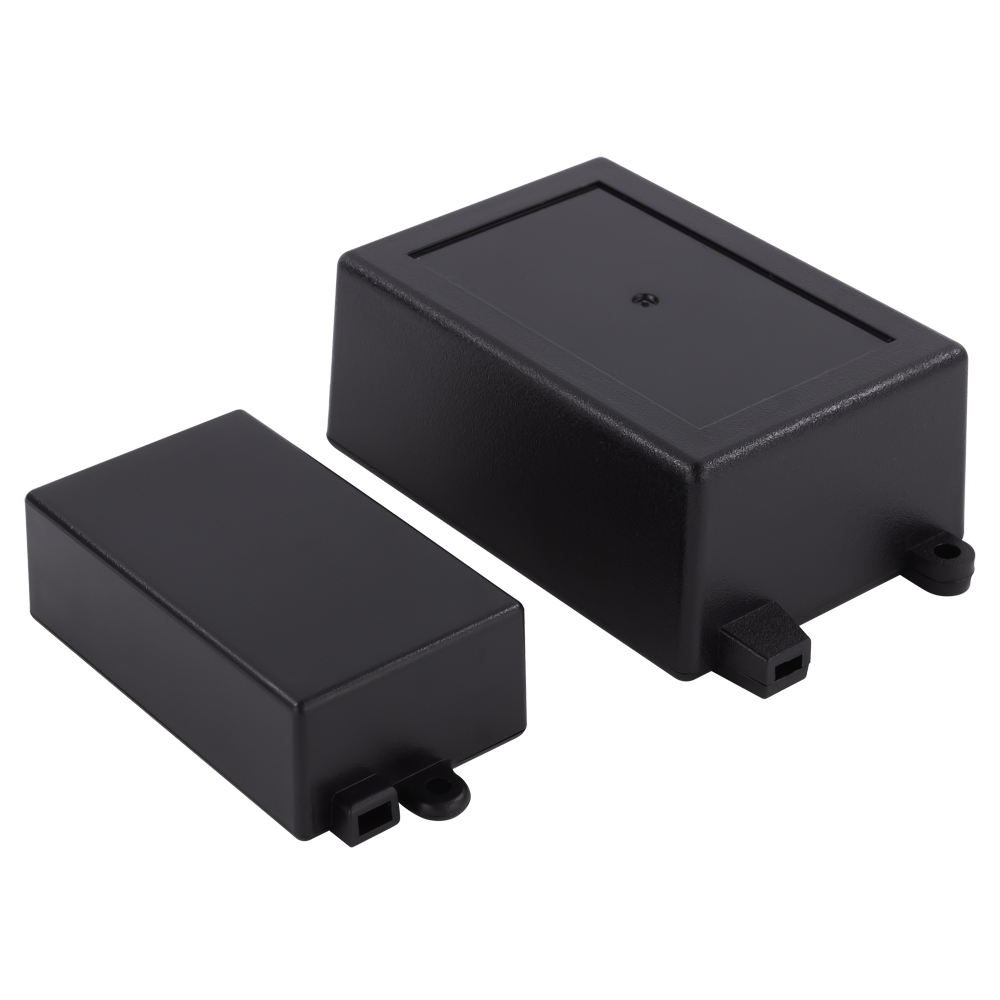

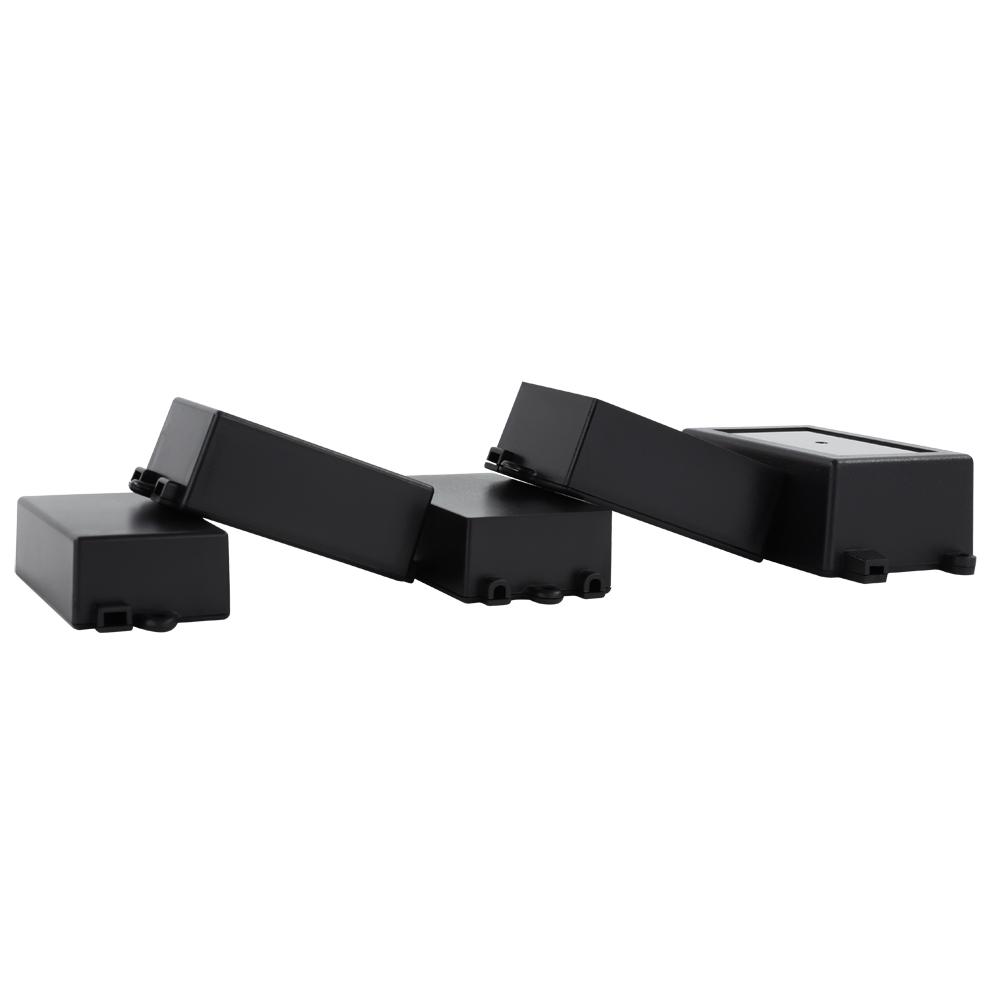

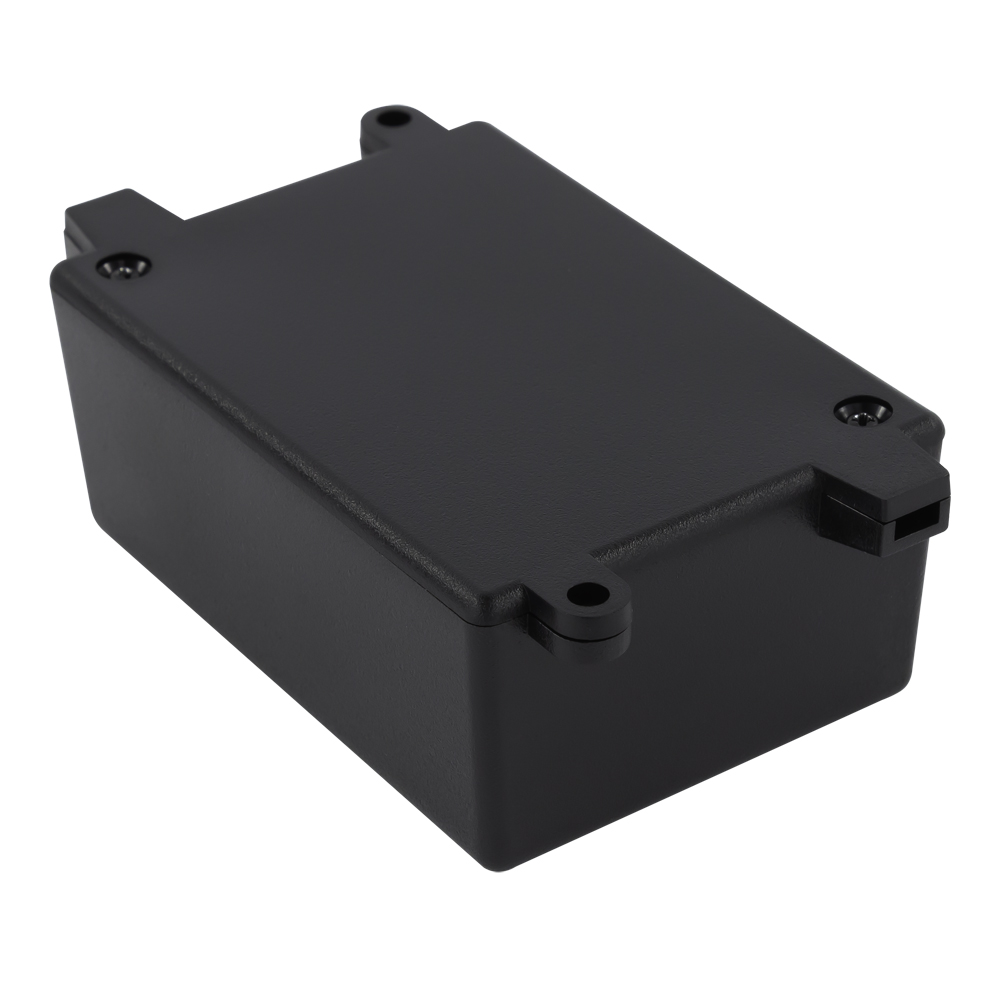

400-019 - 400 Series Lugged Cable Entry Box, Black, ABS UL94-HB, 82x57x33mm
400 Series small electronics enclosure with a lugged lid and cable entry tunnel
- Moulded in ABS
- Press-fit flush lid (screw mounted lid 400-019)
- Lugs provide added security once mounted by restricting access
- 2x moulded cable entries
- Label recess in base (400-019 only)
- Highly resistant to most chemicals
- High rigidity and impact strength
- Compliant with water absorption to DIN53495
- Maximum protection against shock, chemicals, moisture & temperature
| External Length (mm) | 82 |
| External Width (mm) | 57 |
| External Height (mm) | 33 |
| Internal Length (mm) | 76 |
| Internal Width (mm) | 51 |
| Internal Height (mm) | 29 |
| Weight (G) | 44 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Black |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Size | 82 x 57 x 33 |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
