3400-59 - 3400 Series Multipurpose Electronic Equipment Enclosure, Grey, ABS UL94-HB, 190x100x80mm

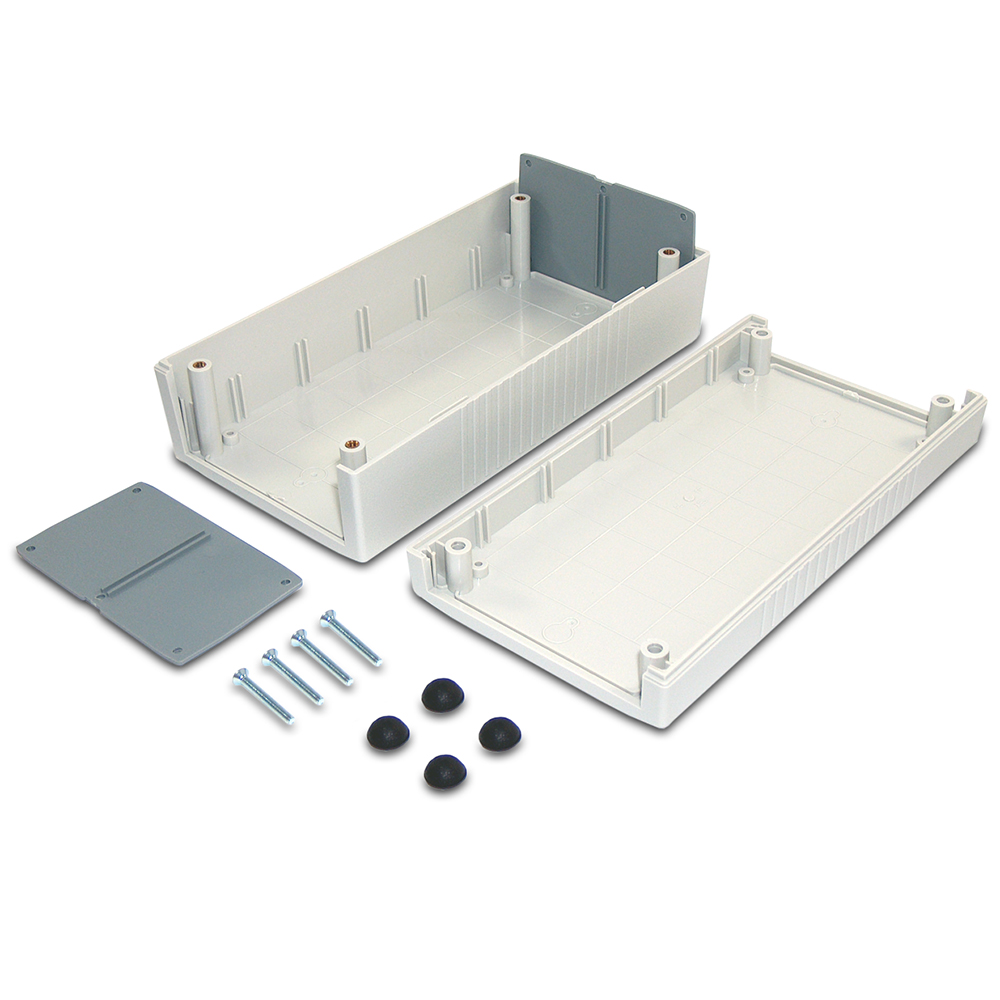

3400 Series enclosure with removable end panels gaining easy access into the enclosure for assembly. Available in HB or V0 material
- Lid, base and end panels moulded in high impact UL94-HB ABS
- Integral mounting guides in U-shell lid and base for vertical PCB mounting
- Bosses in base and lid for horizontal PCB mounting
- Ergonomically curved lid and base
- Four part construction for complete access and fitting of electronics
- Four M3 or self-tapping screws countersunk into base and fixed into lid
- Textured non-scratch surface
- 3400 series has been designed to meet the requirements of IP54
| External Length (mm) | 190 |
| External Width (mm) | 100 |
| External Height (mm) | 80 |
| Internal Length (mm) | 180 |
| Internal Width (mm) | 83 |
| Internal Height (mm) | 76 |
| Weight (G) | 800 |
| Base Material | Plastic |
| Material Type | ABS UL94-HB |
| Colour | Grey |
| UL Rating | UL94-HB |
| IK Rating | N/A |
| IP Rating | IP54 |
| Brand | CamdenBoss |
| Development Board | N/A |
CNC Milling
Machining of holes, vents, pockets and cut-outs
Engraving
Engrave an enclosure with your own design or logo
Shielding
Internal RFI coatings provide your enclosure with additional protection
Custom Painting
Coat your enclosure with a custom colour to match your brand
Digital Printing
Print in full colour directly onto the surface of your enclosure
Systems Integration
Box build and product testing service available
